BGA Soldering Tshuab
Hloov kho los ntawm DH-5860, nrog rau sab saum toj kub-air adjustable muaj nuj nqi, tab sis steel-mesh rau IR perheating cheeb tsam tiv thaiv, muaj kev nyab xeeb thiab ntau dua efficiency rau ntau yam chips / motherboards, xws li, ASIC hash board, Macbook, computer thiab game console, thiab lwm yam. kho.
Hauj lwm lawm

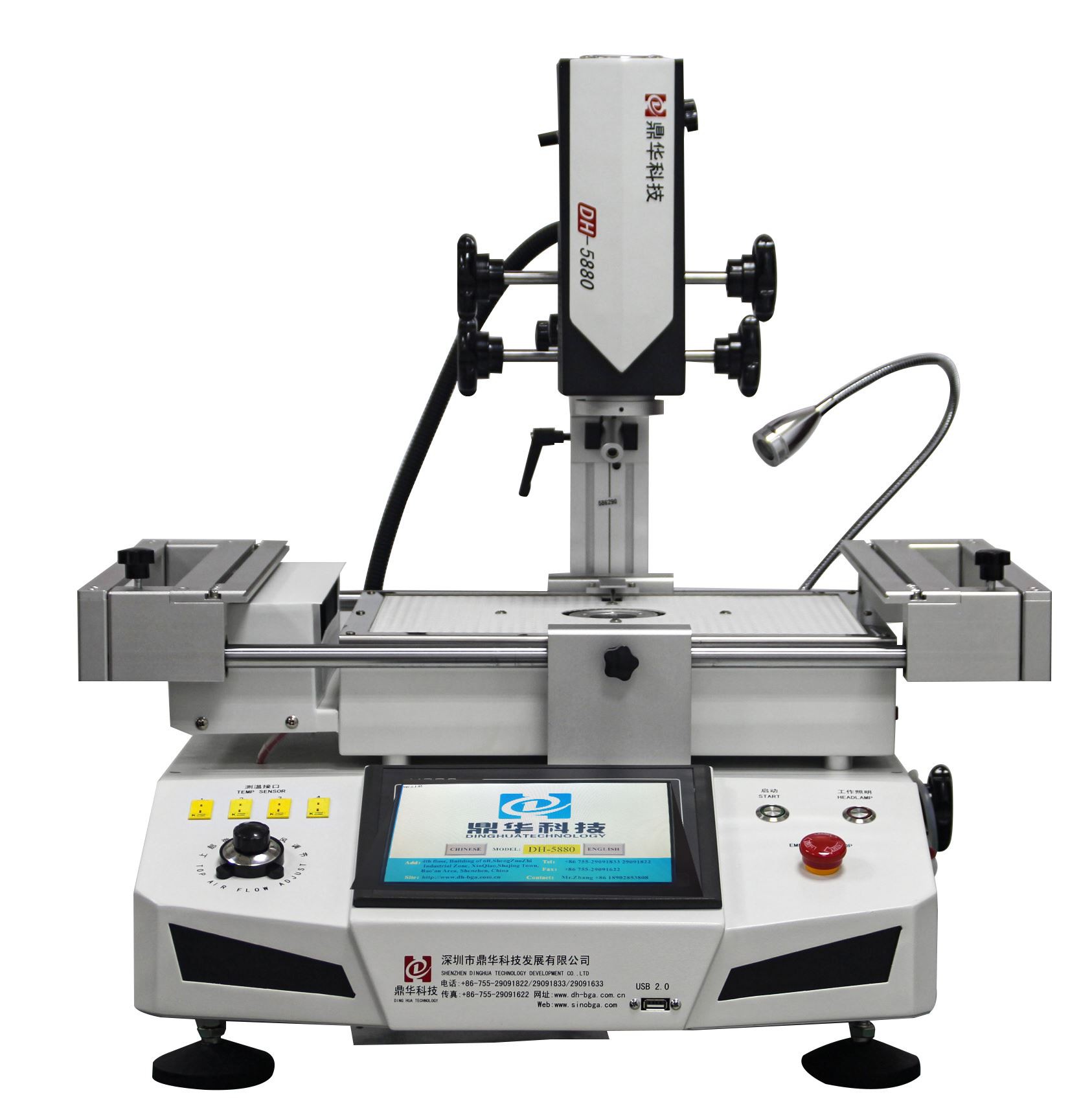

DH-5880 BGA soldering tshuab nrog PID rau qhov kub thiab txias
Tshiab tsim BGA rework tshuab nrog steel-mesh rau IR preheating cheeb tsam tiv thaiv, uas yuav kho yuav luag chips, xws li,
BGA, QFN, LGA, DMA, POP thiab lwm yam ntawm lub computer, macbook, laptop, desktop, hasb board, game console thiab lwm yam motherboards thiab lwm yam.
Ⅰ. Parameter ntawm BGA soldering tshuabrau hash board kho
| Fais fab mov | 110 ~ 240V ntxiv / - 10 feem pua 50/60Hz |
| Rated zog | 5400W BGA soldering tshuab |
| Upper cua kub cua sov | 1200W BGA soldering tshuab |
| Tsawg cua kub cua sov | 1200W BGA soldering tshuab |
| Tsawg IR preheating cheeb tsam | 3000W (nrog excentive IR preheating cheeb tsam haum rau loj PCBa ntau thiab tsawg) |
| PCB positioning | V-groove, txav tau X / Y axis nrog universa fixtures |
| Chip positioning | Laser taw tes ntawm nws qhov chawkho antminer hash board |
| Touchscreen | 7 ntiv tes, qhov ntsuas kub ntawm lub sijhawm tiag tiag tsim |
Kub profiles khaws cia | Txog li 50, 000 00 pawghash board kho kev pab |
Kub contro | PID, K-hom, kaw lub voj |
Kub qhov tseeb | ± 2 degree |
PCB loj | Max 500 × 400 mm Min 20 × 20mm |
| Chip loj | 2 * 2 ~ 90 * 90mmantminer l3 hashboard kho |
| Min nti sib nrug | 0.15 hlikho hashboard |
| Theromocouple | 4 pcs (yeem |)asic hash board kho |
| DimensionBGA soldering tshuab | L500 * W600 * H700mm |
| Net nyhavntawm BGA rework tshuab | 41kg ua |
Ⅱ. Cov qauv ntawm BGA rework tshuab siv rau antminer s9 hash board hloov
Kev qhia ua haujlwm ntawm BGA tshuabs9 hash board kho
taub hau: Sab saum toj kub-cua cua sov sab hauv, uas tuaj yeem txav tau nce toj, nqes, rov qab, pem hauv ntej, sab laug thiab sab xis kom paub tseeb tias cov txheej txheem rov ua haujlwm yooj yim duarau antminer s9 hash board kho
Cov kabmob lub voj voog: qhov siab adjustable
Upper nozzle:ntau yam nozzles nrog hlau nplaum, uas tuaj yeem tig 360 degreerau antminer l3 plus hash board kho
LED teeb:10W ua haujlwm lub teeb nrog lub teeb hloov tau yooj yim uas tuaj yeem khoov rau txoj haujlwm sib txawvmus kho hashboard
Cross-flow ntxuam:ua PCB thiab chips txias tom qab ua hauj lwm finshing los yog thaum nias lub pob kub ceevflos yog BGA tshuab
Hauv qab nozzle:ntau yam nozzles nrog hlau nplaum, uas tuaj yeem tig 360degreeraumobile ic reballing tshuab
Thermocouple chaw nres nkoj: 4pcs kev ntsuas kub sab nraud uas tuaj yeem pab tus kws tshaj lij saib xyuas qhov kub thiab txias ntawm lub motherboard lossis ntintawm game console, macbook, computer thiab asic hash board
Hloov fais fab:tag nrho lub tshuab hluav taws xob muab hluav taws xob, uas muab kev nyab xeeb dua thaum muaj hluav taws xob los yog luv luv, nws yuav raug txiav tawm tam sim ntawdrau tsis siv neeg bga rework chaw nres tsheb
pob qhov rooj:Upper kub-cua hloov kho nrog 10 qib siv rau cov chips sib txawvntawm tsheb, khoos phis tawj thiab xov tooj ntawm tes thiab lwm yam.
Touchscreen:7 nti, rhiab interface rau kub, lub sij hawm thiab lwm yam tsis presetting
Hloov OFF/ON:niasntawm cpu reballing tshuab
Laser point:taw tes ntawm qhov nruab nrab ntawm nti
Kev kub ntxhov:Thaum muaj xwm txheej tshwm sim, nias lub pob tam simrau lub tshuab tsis siv neeg reballing
Ⅲ.Kev piav qhiantawm automatic bga reballing tshuab
Laser pointrau lub xov tooj txawb ic reballing tshuab
Thermocouple (4 pcs ports)rau laptop bga tshuab
Hwj chim cross-flow ntxuamntawm ic reballing tshuab nqe
Thaum muaj xwm ceev nresntawm bga kev tso kawm tshuab
Vacuum cwj mem rau chip suctionntawm laser bga reballing tshuab
10W LED ua haujlwm LEDntawm bga reflow tshuab
motherboard khiav kom zoo thiab sib npaug ntawm BGA tshuab rau laptop
Ⅳ. Ua haujlwm videontawm bga soldering tshuab
rework tshuab, ic reballing tshuab
Ⅴ. Shipping thiab packingntawm rework chaw nres tsheb tshuab
Muaj ntau txoj hauv kev uas koj tuaj yeem xaiv, xws li, Fedex, TNT, DHL, SF; hiav txwv shipping, huab cua shippig thiab Land shipping (railway).
Thiab txoj kev tsheb ciav hlau yog avaiable rau cov tebchaws hauv Asia thiab Europe.rau reballing tshuab nqe
Lub thawv ntoo lossis thawv uas tsis tas yuav tsum tau fumigation dua rau txhua lub tebchaws lossis cheeb tsam, muaj cov ntoo tuav ruaj khov lossis ua npuas dej puv
sab hauv, uas ua kom cov thawv tuaj yeem xa los ntawm txhua txoj kev raws li saum toj no.tsis siv neeg reballing tshuab
Ⅵ. Kev pab cuam tom qab muagntawm pob ic soldering tshuab
Feem ntau 1 ~ 3 xyoos rau cov cua sov lossis IR ceramics, 1 xyoos rau tag nrho BGA rework tshuab thiab kev pabcuam pub dawb rau lub neej.
Peb yuav txuas ntxiv muab cov khoom nrog tus nqi me ntsis tom qab lub sijhawm lav.
Txoj hauv kev rau kev pabcuam yog online xws li, Wechat, WhatsApp, Facebook thiab Tiktok, thiab lwm yam. Tseeb, yog tias tsim nyog, peb tuaj yeem muab
tus engineer rau koj ntawm qhov chaw rau kev taw qhia.ntawm bga tshuab rau motherboard
Ⅶ.Muaj kev paub txog chips thiab luam tawm Circuit Board
Cov thev naus laus zis tshiab tau tsav qhov ntev ntawm cov pob khoom thiab luam tawm Circuit Board sib dhos kom me, sib dua, thiab nyias. Kev lag luam hluav taws xob tau dhau mus ntev mus rau kev tsim cov khoom siv me me. Cov pob khoom hauv cheeb tsam yog thaj chaw uas qhov miniaturization tau tshwm sim ntawm tus nqi zoo siab. Pob-Grid-Array (BGA) pob khoom tau hloov mus rau hauv cov pob me me Chip-Scale (CSPs) thiab ntxiv mus rau Wafer-Level CSPs (WLCSPs).tsis siv neeg bga reballing tshuab tuaj yeem kho lawv
Txhawm rau txo qis thaj tsam ntawm cov ntawv luam tawm thiab ua kom cov teeb liab kev ncaj ncees, stacking ntawm CSPs tau tsim thiab tam sim no tau siv rau hauv cov khoom hauv Huawei. Cov tshuab no feem ntau hu ua Pob-On-Package (POP).chip reballing tshuab
Nrog rau cov kev xav tau rau kev ua kom me me ntxiv, liab qab-tuag xws li Chip-On-Board (COB) thiab Flip Chip (FC) merging nrog tsoos nto-mount thev naus laus zis (SMT) sib dhos tau dhau los ua qhov xav tau siab. Los ntawm kev tshem cov pob khoom tshaj pwm, qhov chaw ntawm cov khoom tuaj yeem txo qis ntxiv.bga tso tshuab
Lwm thaj chaw ntawm miniaturization yog nyob rau hauv passive nti Cheebtsam xws li 01005 thiab 00800 4. Lub 01005 yog ib feem nrog qhov ntev ntawm 0.016 "x 0.008" (0.4 mm x 0.2 mm nyob rau hauv metrics), thiab 008004 yog ib feem ntawm 0.008 "x 0.004" (0.25mm x 0.125mm hauv metrics). qee lub tuam txhab hla teb chaws tau pib tshawb xyuas thiab txhim kho 01005 cov khoom nyob ib puag ncig xyoo 2008, thiab kev txhim kho tau tso cai rau peb cov neeg siv khoom tseem ceeb hauv kev tsim khoom nrog 01005 cov khoom hauv ntim ntau lawm. Txhawm rau ua raws li cov qauv ntawm miniaturization, kev txhim kho tam sim no tab tom ua rau tiam tom ntej 008004 cov khoom kom tau raws li cov neeg siv khoom xav tau yav tom ntej.bga ic reballing tshuab
Ntxiv nrog rau qhov muaj peev xwm ntawm pob miniaturization, ntau lub tuam txhab kuj tau tsim cov txheej txheem rau cov txheej txheem nyuaj thiab siab ceev Circuit Court boards nrog cov kab noj hniav kom txo tau tag nrho cov thickness ntawm cov khoom kawg. Cov kab noj hniav tuaj yeem txo qhov siab zoo rau CSPs, POPs, thiab COBs.
Zuag qhia tag nrho, cov players tseem ceeb tau ua haujlwm zoo hauv kev tsim cov txheej txheem siab heev kom tau raws li cov kev cov nyom ntawm miniaturization raws li pob qhov ntev tau txo qis. Tam sim no, huawei muaj ntau qhov chaw tsim khoom nrog 01005 chips, CSPs, POPs, thiab COBs.
