Tsis Siv Neeg Xauv Ntsia Hlau Tshuab
Tsis siv neeg ntsia hlau xauv tshuab tau dhau los ua neeg nyiam nyob hauv ntau qhov kev lag luam, suav nrog kev tsim khoom, hluav taws xob, thiab aerospace. Cov tshuab no pab txhim kho cov txheej txheem ntau lawm los ntawm kev ua haujlwm rov ua haujlwm ntawm cov ntsia hlau ntsia hlau, uas tsis tsuas yog txuag lub sijhawm tab sis kuj txhim kho qhov raug thiab sib xws.
Hauj lwm lawm
Tsis siv neeg xauv ntsia hlau tshuab Ib X Ib Y hauv 4-Axis
1. Input coordinates ntawm screws ncaj qha thiab qhia los ntawm yooj yim programming thiab qhia
lub coordinates ntawm qhia pendant. Txhawm rau teem caij hloov pauv cov khoom rau
siv lub voj voog ua haujlwm ntawm screwing rau efficiency los ntawm programming rau
qhia pendant. (tsis siv neeg fastening ntsia hlau neeg hlau)
2. Qhia pendant yog ib qho yooj yim kawm thiab ua haujlwm rau cov neeg ua haujlwm.
3. Kev cia siab tshaj plaws ntawm 999 profiles thiab ib lub tshuab muaj feem xyuam rau 999 txawv
cov khoom, tsuas yog yuav tsum tau hloov raws li profile thiab hloov lub fixture rau tshiab
khoom screwing.(tsis siv neeg ntsia hlau tsav tshuab)
4. Qhov tseeb torsion rau kev kho yooj yim thiab ntsia hlau xauv zoo.
5. Sau cov ntaub ntawv lub sijhawm tiag tiag thiab xa mus rau cov neeg rau zaub mov, suav nrog kom muaj nuj nqis, yam khoom, sijhawm,
Fault Report, txhaum cai, txhaum lub sij hawm.(ntsia hlau zawm tshuab)
6. Daim duab faib ntawm cov ntsia hlau tuaj yeem kuaj xyuas ntawm lub interface thiab sib txawv
xim blocks qhia "xauv". "tsis zoo" thiab "loos"
7. Pib los ntawm ib qho ntsia hlau rau ntawm cov khoom, lossis txuas ntxiv los ntawm kev ncua sijhawm kawg. Qhov screwing
txoj hauj lwm yog qhia ntawm lub hau ntswj kom yooj yim xyuas.
Khoom Specification
| Qauv | DH-300X | DH-400X | |
| Axis naj npawb | 5-axis synchronous maub los | ||
| Tracing Range | X axis | 500 hli | 500 hli |
| Y axis | 300 hli | 400 hli | |
| Z axis | 100 hli | 100 hli | |
| Max Ceev | XY axis | 800mm / sec | |
| Z axis | 450mm / sec | ||
| Rov ua Precision | X, Y axis | 0.02 hli | |
| Z axis | 0.02 hli | ||
| Max fixture loj | 300 * 240 hli (X, Y) | 400 * 240 hli (X, Y) | |
| profiles | 999 | ||
| Max load | 10kg ib | ||
| Input voltage | AC 110V / 220V | ||
| Hwj chim | 450W | ||
| Khoom siv lub cev | Aluminium alloy | ||
| Feeder Hom | Zeda | ||
| Hom Tsav Tsav Tsheb | HIOS/KIL EWS (Optionally ntawm koj xav tau) | ||
| Sucker Brand | Dinghua customized | ||
| Ntsia Hlau Tsav | Dinghua customized | ||
| Applied Screw Size | Me me dua M6 | ||
| Tshuab Loj | L680 * W700 * H780mm | ||
| FAULT DETECTION | TSIS MUAJ |
Yog lawm |
|
| LOOSE THOV | Yog lawm | ||
| TSIS TXAUS SIAB | Yog lawm | ||
| DEFAULT | Tswb, RE-LOCKING, hla | ||
| TXOJ CAI | Nqi Txuag | Ib tus neeg tuaj yeem ua haujlwm 2 lossis ntau dua tshuab kom txuag tau tus nqi zog |
|
| QUALITY ASSURANCE | yesAccurate torsion, yooj yim kho rau guarantee zoo ntawm screwing |
||
| Muaj peev xwm | Ceev ceev rau screwing los txhim kho lub peev xwm ntau lawm | ||
Khoom nthuav qhia
Nws pib nqus hom ntsia hlau xauv tshuabModel No. DH-300X DH-400X
・ Siv dav rau txhua tus ntsia hlau hauv Mo.6-M6.
・ Kev ua haujlwm yooj yim los ntawm kev kov ntawm tes - tuav kev qhia pendant, nrog 0.5-1.2 'kev ua haujlwm & 0.02mm ntawm kev rov ua dua.
・ Khaws 999 xauv cov ntaub ntawv uas ua rau nws kaw 999 hom khoom sib txawv ntawm cov khoom.
・ Lub tswb nrov, thiab rov- ntsia hlau los yog hla tawm thaum muaj teeb meem tshwm sim
Cov duab ntxaws

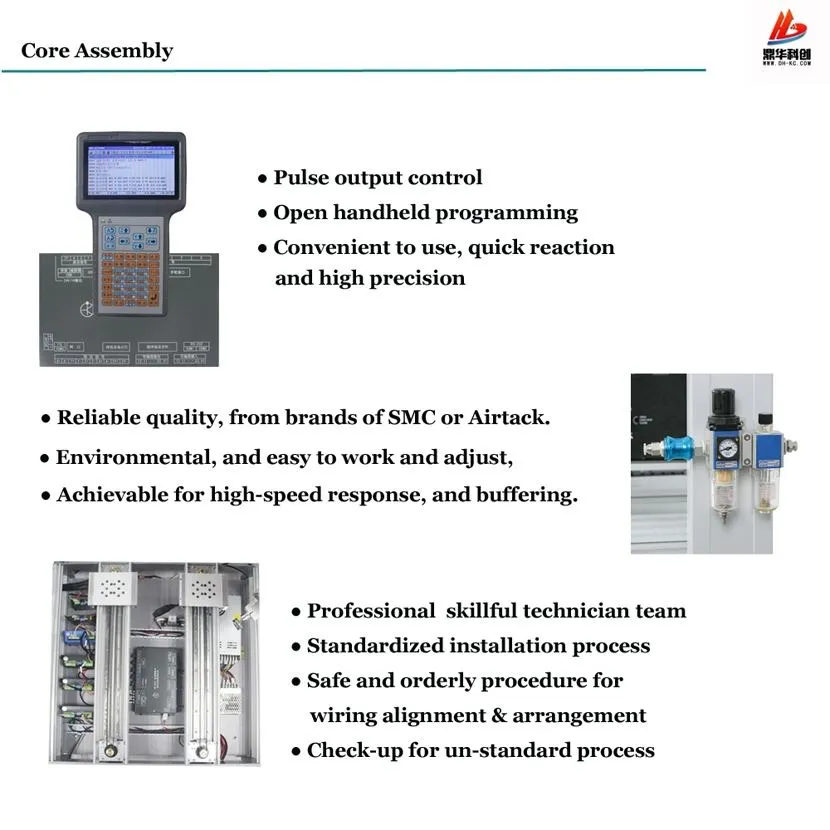

Core Assembly
Peb lub tuam txhab
Pom hauv2011, Dinghua Technologytau tsom mus rau R & D thiab ntau lawmX-RAY suav tshuab, X-ray NDT tshuab, BGA rework chaw nres tsheb, thiab cov cuab yeej siv tshuab tsim khoom. Lub tuam txhab siv "kev tshawb fawb thiab kev tsim kho raws li lub hauv paus, zoo li lub hauv paus, thiab kev pabcuam raws li qhov lav" thiab tau cog lus los tsim "cov cuab yeej tshaj lij, kev ua haujlwm zoo, thiab kev pabcuam tshaj lij"! Nyob rau tib lub sijhawm, lub tuam txhab ua raws li kev tsim kho lub tswv yim ntawm "kev tshaj lij, kev ncaj ncees, kev tsim kho tshiab, thiab pragmatism" thiab tau tsim ib pab pawg kws tshaj lij kev tshawb fawb thiab kev tsim kho. Nws niaj hnub nqus thiab rub tawm ntawm kev tsim kho kev lag luam hauv tsev thiab txawv teb chaws, ua siab loj tshawb nrhiav, qhia cov tswv yim tshiab, thiab paub txog kev hloov pauv los ntawm cov khoom siv kho vajtse ua ke rau kev koom ua ke. Lub kiv puag ncig thib ob hauv kev tswj hwm kev lag luam, dhau los ua tus thawj coj thiab tus thawj coj hauv X-txoj kab hluav taws xob suav lossis NDT, BGA rework chaw nres tsheb, thiab automation cov cuab yeej tsim khoom lag luam.
Ntim & Xa
FAQ
Q: 1. Yuav ua li cas txog lub pob? Puas muaj kev nyab xeeb thaum lub sijhawm xa khoom?
A: Tag nrho cov xov tooj ntawm tes LCD refurbished tshuab yog packed Safely, los ntawm tus qauv muaj zog ntoo thawv los yog thawv thawv nrog npuas nyob rau hauv.
Q: 2. Txoj kev xa khoom yog dab tsi? Muaj pes tsawg hnub lub tshuab yuav tuaj rau peb?
A: Peb yuav xa lub tshuab los ntawm DHL, Fedex, UPS, thiab lwm yam (Qhov Kev Pabcuam Qhov Rooj), nyob ib ncig ntawm 5 hnub los txog. Los yog los ntawm Cua rau koj lub tshav dav hlau (Qhov Rooj rau Tshav Dav Hlau Kev Pabcuam), nyob ib ncig ntawm 3 hnub los txog. Los yog los ntawm hiav txwv mus rau seaport, Yam tsawg kawg nkaus CBM yuav tsum tau: 1 CBM, nyob ib ncig ntawm 30 hnub los txog.
Q: 3. Koj puas muab qhov Warranty? Yuav ua li cas txog qhov kev pab cuam tom qab muag?
A: 1 xyoo lav dawb rau cov khoom seem, Kev txhawb nqa tag nrho lub neej. Peb muaj pab pawg tshaj lij tom qab muag, yog tias muaj lus nug, cov yeeb yaj kiab pabcuam kuj tau muab rau tom qab - kev pabcuam muag.
Q: 4.Lub tshuab no yooj yim rau kev khiav lag luam? Yog tias kuv tsis muaj kev paub dhau los, Kuv puas tuaj yeem ua haujlwm tau zoo? Koj puas muab cov neeg siv phau ntawv thiab cov yeeb yaj kiab ua haujlwm los txhawb peb?
A: Yog, peb cov cav tov tau tsim los siv tau yooj yim, Nquag nws yuav siv sijhawm 2-3 teev los kawm txog kev khiav haujlwm, yog tias koj yog tus kws tshaj lij, nws yuav kawm sai dua.Peb yuav muab cov lus Askiv siv phau ntawv pub dawb, thiab cov yeeb yaj kiab ua haujlwm muaj.
Q: 5, Yog tias peb tuaj rau koj lub Hoobkas, koj yuav muab kev cob qhia dawb?
A: Yog, txais tos tuaj xyuas peb lub Hoobkas, peb yuav npaj kev cob qhia dawb rau koj.
Q: 6. Txoj kev them nyiaj yog dab tsi?
A: Peb lees txais cov nqe lus them nqi: hloov txhab nyiaj hauv txhab nyiaj, Western Union, Nyiaj Gram, Paypal, thiab lwm yam.
