Reballing Chaw nres tsheb Ir Rework Chaw nres tsheb Reflow Chaw nres tsheb

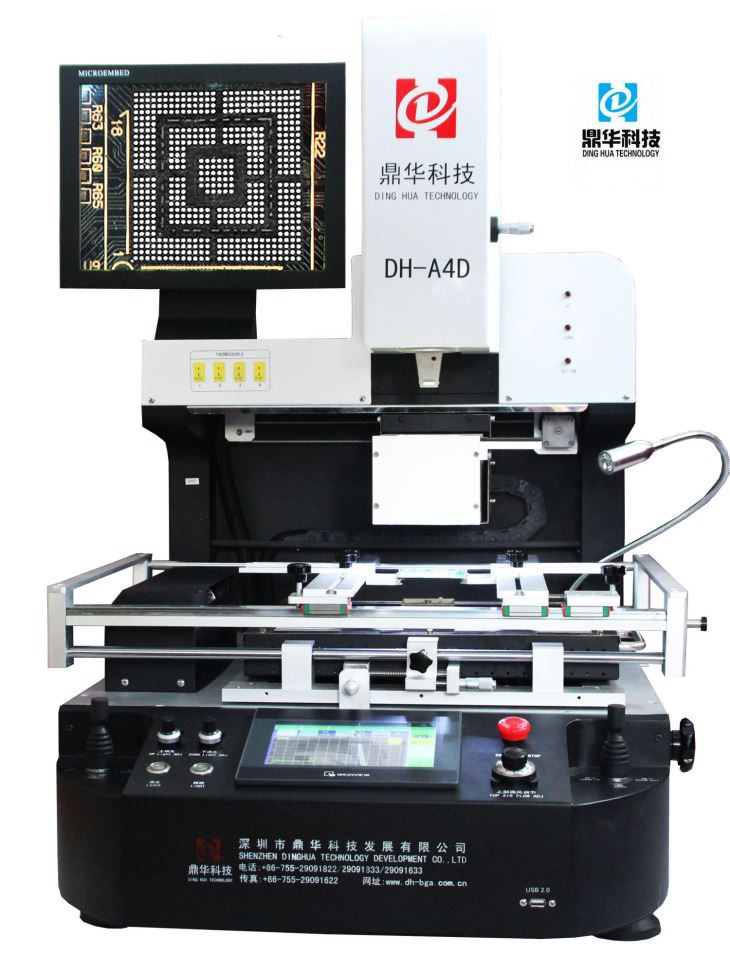

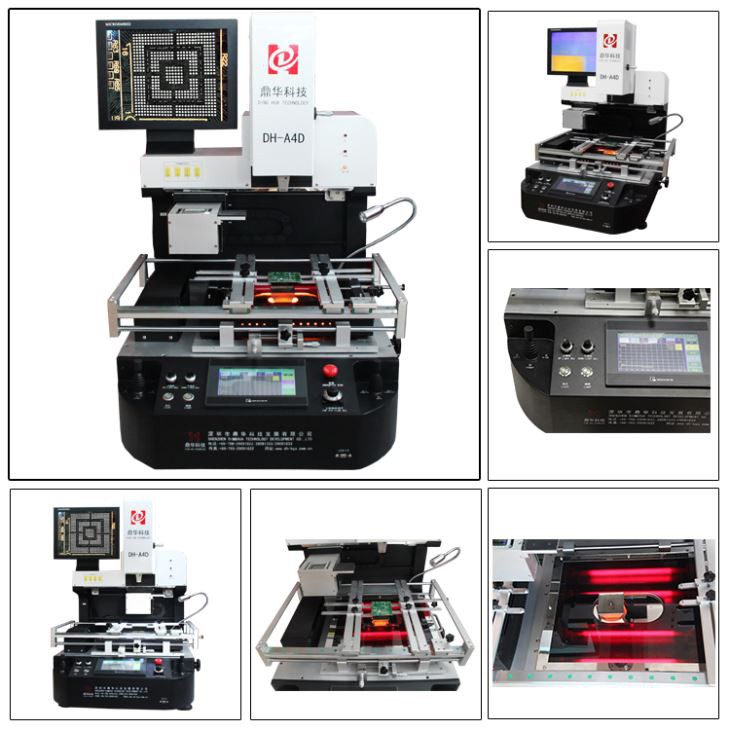

DH-A4D hi-tech kawg nrog tshwj xeeb zoo sib dhos ntse ntse kho qhov muag alignment BGA rework chaw nres tsheb

Specification



Tag Nrho Lub Zog	6800W
Lub tshuab cua sov sab saum toj	1200W

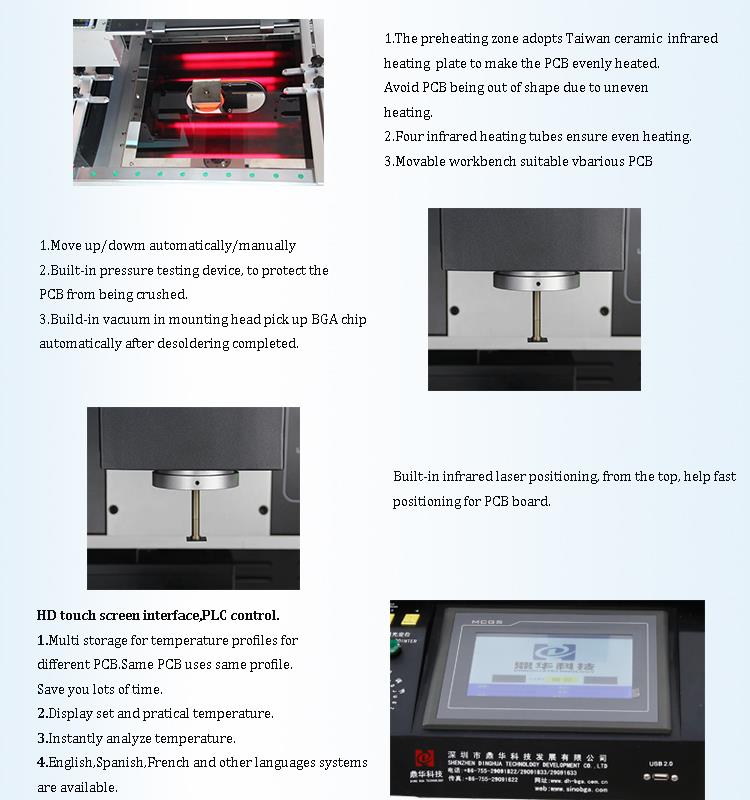

Hauv qab rhaub	2nd 1200W, 3rd German IR infrared rhaub 4200W
Qhov hluav taws xob	AC220V / 110V ± 10% 50Hz / 60Hz
Hom kev ua haujlwm	Ob chav joysticks ua haujlwm. Tag nrho tsis siv neeg qhov chaw, soldering, txias, kev koom ua ke.
Optical CCD lub koob yees duab lens	Tsis siv neeg pem hauv ntej / rov qab, sab xis / sab laug, los yog phau ntawv los ntawm joysticks
Lub koob yees duab magnification	2.0 lab pixels (Digital zoom 10X-180X times)
Workbench fine-tuning:	± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug
BGA positioning	Laser txoj hauj lwm, ceev thiab meej txoj hauj lwm ntawm PCB thiab BGA
Sab saum toj airspeed	Nws tuaj yeem hloov kho los ntawm kev kho pob qhov rooj, tiv thaiv me me BGA los ntawm kev txav mus los.
PCB Positioning	Qhov chaw ntse, PCB tuaj yeem hloov kho hauv X, Y-kev taw qhia nrog "5 ntsiab lus txhawb nqa" + V-groove Pcb bracket + universal fixtures.
Kev tswj qhov kub thiab txias	K sensor, kaw voj, PLC tswj, Servo tsav tsheb
Qhov tseeb qhov chaw:	± 0.01 hli
Temp raug	± 1 degree
Teeb pom kev zoo	Taiwan coj lub teeb ua haujlwm, txhua lub kaum sab xis adjustable
Kub profile cia	50000 pawg
PCB loj	Max 500 × 420 mm Min 22 × 22 mm
BGA chip	1 x 1 - 80 x 80 mm
Yam tsawg kawg ntawm nti sib nrug	0.1 hli
Sab nraud temper sensor	4pc ib

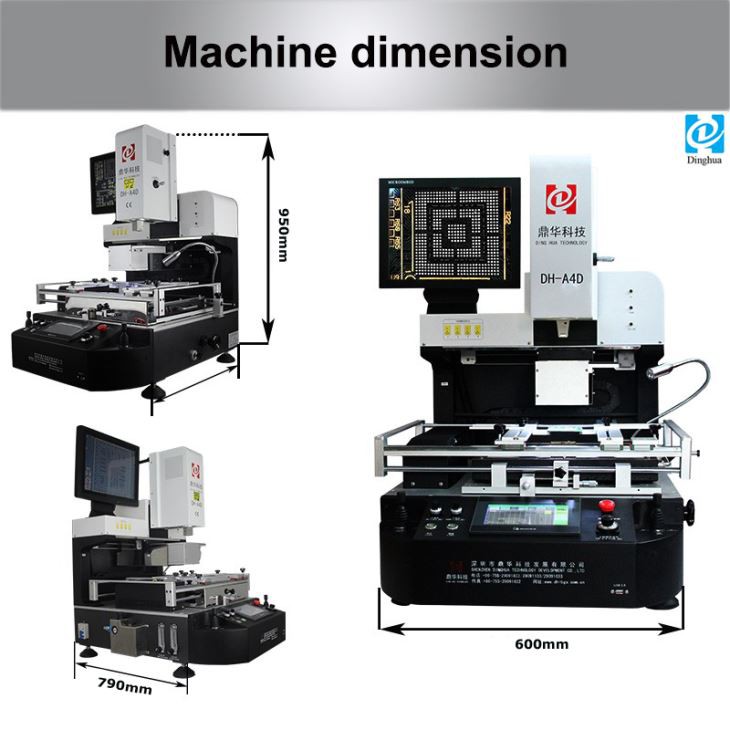

Dimension	790 x 60 x 950 mm
Net nyhav	9 5 KG

Daim ntawv thov

1. Ua tiav ntau yam ntawm cov ntawv thov rov ua haujlwm hauv cov chaw pabcuam nruab nrab thiab loj, xov tooj ntawm tes thiab xov tooj cua tsim kho,

2. xov tooj ntawm tes, PDAs, handhelds, laptops, notebooks, portable kho mob cov cuab yeej LAN, network nodes, tub rog

3. cokhoom siv sib txuas lus, thiab lwm yam.

2. Muaj feem xyuam rau kev kho txhua yam ntawm cov chips, xws li BGA, PGA, POP, BQFP, QFN, PLCC, TQFP, TSOP, thiab lwm yam nrog cov tin hauv cov hlau lead thiab tsis muaj txhuas.

Kev pabcuam

1. Ntawm kev muag khoom ua ntej, pub dawb rau kev ua qauv qhia thiab cov ntaub ntawv kev sab laj, ntawm qhov chaw lossis hauv video.
2.Can muab cov txheej txheem video lossis kev cob qhia ua ntej xa zaub mov, ntawm koj xav tau.
3. Tom qab-muag, nrog ib pab neeg muaj zog technical back-up.

4. Muab cov luv nqi loj loj rau kev txiav txim loj loj lossis rau kev txiav txim rov qab.

5.Warranty: 1 xyoo dawb, thiab tau txais cov nqi them rau xyoo ntxiv.

Qhov chaw nres tsheb tsis siv neeg BGA rework ua haujlwm li cas?

FAQ

1. Yuav ua li cas txog lub pob? Puas muaj kev nyab xeeb thaum lub sijhawm xa khoom?

Tag nrho cov xov tooj ntawm tes LCD refurbished tshuab yog packed Safely, los ntawm tus qauv muaj zog ntoo thawv los yog thawv thawv nrog npuas nyob rau hauv.

2. Txoj kev xa khoom yog dab tsi? Muaj pes tsawg hnub lub tshuab yuav tuaj rau peb?

Peb yuav xa lub tshuab los ntawm DHL, FedEx, UPS, thiab lwm yam (Qhov Rooj Rau Qhov Kev Pabcuam), nyob ib ncig ntawm 5 hnub los txog.

Los yog los ntawm Cua rau koj lub tshav dav hlau (Qhov Rooj rau Tshav Dav Hlau Kev Pabcuam), nyob ib ncig ntawm 3 hnub los txog.

Los yog los ntawm Hiav Txwv mus rau lub hiav txwv, qhov tsawg kawg nkaus CBM yuav tsum tau: 1 CBM, nyob ib ncig ntawm 30 hnub los txog.

3. Koj puas muab qhov Warranty? Yuav ua li cas txog qhov kev pab cuam tom qab muag?

1 xyoo warranty pub dawb rau cov khoom seem, Tag nrho lub neej kev txhawb nqa.

Peb muaj pab pawg tshaj lij tom qab muag, yog tias muaj lus nug, cov yeeb yaj kiab pabcuam kuj tau muab rau hauv kev pabcuam tomqab muag.

4.Lub tshuab no yooj yim rau kev khiav lag luam? Yog tias kuv tsis muaj kev paub dhau los, Kuv puas tuaj yeem ua haujlwm tau zoo?

Koj puas muab cov neeg siv phau ntawv thiab cov yeeb yaj kiab ua haujlwm los txhawb peb?

Yog lawm, peb cov tshuab tau tsim los siv tau yooj yim, Nquag nws yuav siv sijhawm rau koj 2-3 teev los kawm txog kev khiav haujlwm, yog tias koj yog tus kws tshaj lij,nws yuav kawm tau sai dua. Peb yuav muab cov lus Askiv siv phau ntawv pub dawb, thiab cov yeeb yaj kiab ua haujlwm muaj.

5, Yog tias peb tuaj rau koj lub Hoobkas, koj yuav muab kev cob qhia dawb?

Yog, sov siab txais tos tuaj xyuas peb lub Hoobkas, peb yuav npaj cov kev cob qhia dawb rau koj.

6. Txoj kev them nyiaj yog dab tsi?

Peb lees txais cov nqe lus them nqi: hloov txhab nyiaj hauv txhab nyiaj, Western Union, Nyiaj Gram, Paypal, thiab lwm yam.

Muaj plaub hom BGA: PBGA, CBGA, CCGA, thiab TBGA, thiab hauv qab ntawm pob yog feem ntau

txuas nrogib lub pob array raws li I / O lead-out. Qhov sib nrug ntawm cov pob arrays hauv cov pob no yog

1. 0mm, 1.27mm, 1.5mm.

Cov khoom siv lead-tin feem ntau ntawm cov khoom siv yog 63Sn / 37Pb thiab 90Pb / 10Sn. Cov qauv sib txawv ntawm lub tuam txhab mus rautuam txhab. Los ntawm kev xav ntawm BGA sib dhos tshuab, BGA muaj cov yam ntxwv zoo dua li QFP cov khoom siv, uasQhov tseem ceeb yog xav txog qhov tseeb tias BGA cov khoom siv tsis tshua muaj kev txwv nruj rau kev txhim kho qhov tseeb. Qhov offset ntawm lub ncoo yog lintau li 50%, thiab txoj hauj lwm ntawm lub cuab yeej tuaj yeem raug kho vim qhov nro ntawm lub solder. Qhov no situation tau raug pov thawj los ntawm kev sim. Qhov thib ob, BGA tsis muaj teeb meem ntawm tus pin deformation zoo ib yam liQFP thiab lwm yam khoom siv, thiab BGA kuj muaj kev sib koom ua ke zoo dua li QFP thiab lwm yam khoom siv, thiab nws qhov sib txawv ntawm cov hlau lead yog ntau duatshaj li ntawm QFP, uas tuaj yeem txo qhov kev sib txhuam ntawm cov ntawv luam tawm tsis xws luag ua rau muaj teeb meem ntawm "bridging" ntawm cov pob qij txha;

Tsis tas li ntawd, BGA muaj cov yam ntxwv zoo hluav taws xob thiab thermal, nrog rau kev sib txuas siab ceev. Lub ntsiab tsis zoontawm BGA yog tias nws tsis yooj yim rau kev kuaj xyuas thiab kho cov pob qij txha, thiab kev ntseeg tau ntawm cov pob qij txha yog qhov nruj,uas txwv tsis pub siv BGA li hauv ntau qhov chaw.
