Infrared Touch Screen Bga Reballing Chaw nres tsheb
Infrared kov screen BGA reballing chaw nres tsheb Lub BGA rework chaw nres tsheb DH-B2 nrog ntau yam nta, xws li Sab saum toj cua ntws, xiav-hlau hais lus, carbon fiber cua sov raj, iav-shield thiab ob chav shadowless teeb thiab lwm yam nrov heev rau cov neeg uas ua hauj lwm rau. tus kheej kho lub khw, kho tus kheej...
Hauj lwm lawm

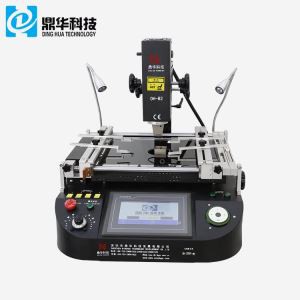

Infrared kov screen BGA reballing chaw nres tsheb
BGA rework chaw nres tsheb DH-B2 nrog ntau yam nta, xws li Sab saum toj huab cua ntws, blue-tooth hais lus,
carbon fiber cua sov raj, iav-shield thiab ob chav shadowless teeb thiab lwm yam. Nrov heev rau cov
cov neeg ua haujlwm ntawm tus kheej kho lub khw, kho tus kheej hobby thiab kev cob qhia tus kheej thiab lwm yam.
Cov khoom lag luam ntawm infrared kov npo BGA reballing chaw nres tsheb
Tag Nrho Lub Zog | 5100W |
Lub tshuab cua sov sab saum toj | 1200W (HR) |
Hauv qab rhaub | Qhov 2ndThaj tsam: 1200W (HR), 3rd 2700W (IR: qhov loj preheating rau yuav luag tag nrho cov PCB / MB) |
Sab saum toj cua ntws kho | Rau micro nti kho |
Blue-tooth hais lus | Txuas tau txhua lub xov tooj ntawm tes rau kev mloog suab paj nruag / tshaj tawm |
IR preheating cheeb tsam | Carbon fiber ntau cua sov raj thiab iav-shield |
Fais fab mov | AC110 ~ 220V ± 10 ~ 50 / 60Hz |
Qhov ntev | L500 × W600 × H700 hli |
Qhov chaw | "V" zawj, PCB rooj kho nws hauv X kev taw qhia, thiab jig / fixtures |
Kev tswj qhov kub thiab txias | K Sensor Kaw lub voj |
Temp raug | ± 2 degree |
PCB loj | Max 500 × 400 mm, Min 22 × 22 mm |
BGA chip | 2 X 2-80 X 80 mm |
Yam tsawg kawg ntawm nti sib nrug | 0.15 hli |
Sab nraud Temperature Sensor | 4, yeem |
Net nyhav | 45kg ua |
Cov khoom lag luam ntawm infrared kov npo BGA reballing chaw nres tsheb
Ob chav shadowless teeb, imported los ntawm Taiwan cheeb tsam, 5W raws li ib tug, kaj thiab tsom
ntawm PCB/MB, txawm koj nyob qhov twg, tsis muaj duab ntxoov ntxoo ntawm PCN, yog li ntawd lub com-
ponents tuaj yeem soj ntsuam kom meej.
4 temp sensor (thermocouple), rau qhov ntsuas kub ntawm lub sijhawm yog xav tau, 4 tuaj yeem kuaj
tib lub sijhawm kom cov kws tshaj lij tuaj yeem ntsuas qhov ntsuas kub yog tias muaj kev cuam tshuam.
Kev kho cua saum toj kawg nkaus, muaj 10-chav kawm rau koj kho, feem ntau, rau cov nti loj dua
20 * 20mm, koj tuaj yeem hloov mus rau 5-chav kawm lossis ntau dua, ntawm qhov tod tes, nws yuav raug hloov mus rau tsawg dua t-
han 10-chav kawm, xws li, yog tias lub nti yog 10 * 10mm, nws yuav tig mus rau 5-chav kawm.
Caij nplooj ntoos hlav dua li nruab rau ntawm lub rooj ntev zaum ua haujlwm, thaum PCB / MB raug cua sov, nws yuav ua haujlwm rau
PCB tiv thaiv, yog li ua rau PCB tiv thaiv zoo tshaj plaws.
Blue-tooth speaker, uas tuaj yeem txuas txhua lub xov tooj ntawm tes rau kev siv suab paj nruag lossis tshaj tawm
mloog thiab lwm yam. Ua haujlwm thaum mloog kom zoo dua thiab ua tau zoo dua tus nqi rov ua haujlwm dua.
Cov pa roj carbon fiber ntau cua sov raj thiab npog los ntawm iav-shield uas tuaj yeem tiv thaiv ib qho me me compo-
nents los yog plua plav los ntawm kev xa me nyuam rov hauv, thiab lub teeb liab ntawm cov hlab yog yooj yim absorbed los ntawm PCB
thiab ntev & ruaj khov siv lub neej.
Tsis tas li ntawd, muaj 4 qhov hloov pauv rau cov raj muaj feem cuam tshuam, yog tias kho PCB me me, 1 lossis 2
ntawm lawv tuaj yeem muab tua kom txuag hluav taws xob thiab tsawg dua kom tsis muaj tsev cog khoom tsawg dua
lub ntiaj teb.
Cov khoom zoo ntawm infrared kov screen BGA reballing chaw nres tsheb.
Tag nrho cov khoom muaj CE dhau, thiab tau txais daim ntawv pov thawj High-tech kev lag luam tsim nyog, Inde-
Pendent daim ntawv pov thawj cov cuab yeej cuab tam thiab daim ntawv pov thawj se los ntawm peb lub chaw haujlwm hauv nruab nrab lossis cheeb tsam d-
chav tsev.
Lub Hoobkas sab nraud nyob rau hauv qhov chaw uas nws raug kaw rau lub roob nrog huab cua ntshiab, thiab tsis deb ntawm
subway chaw nres tsheb (5 feeb caij tsheb) thiab chaw nres tsheb npav (5 feeb ntawm ko taw), yooj yim rau custo
mers tuaj xyuas.
Qhov no yog ib feem ntawm peb lub Hoobkas rau BGA rework chaw nres tsheb, muaj lwm tus rau ntsia hlau xauv tshuab,
soldering chaw nres tsheb thiab kua nplaum dispensing tshuab thiab lwm yam.
FAQ: ntawm lub tshuab no DH-B2 infrared kov screen BGA reballing chaw nres tsheb
1. Q: Kuv puas tuaj yeem tsim (hloov) qee yam ntawm lub tshuab?
A: Feem ntau, Nws yog OK, tab sis yog tias muaj ntau npaum li cas, qhov ntawd yuav raug nqi.
2. Q: Cov kauj ruam ntawm kev kho BGA yog dab tsi?
A: Ua ntej, tshem tawm cov khoom; Tom ntej no, tshem tawm cov residual solder.Thaum koj tau tshem tawm
Tag nrho cov dhau solder Tom qab cov dhau solder tau raug tshem tawm thiab BGA tau reba
lled, thaum kawg, soldering.
3. Q: Koj lub Hoobkas nyob hauv Suav teb yog dab tsi?
A: Peb yog tus naj npawb ib hauv kev lag luam no hauv Suav teb.
4. Q: Koj puas tuaj yeem txais OEM? Yog tias muaj, pes tsawg qhov tsawg kawg nkaus kom muaj nuj nqis?
A: Yog, nws nyob ntawm seb koj yuav yuav khoom. Feem ntau ntau dua
50set ib.
