IR6000 bga rework chaw nres tsheb

                                                                                              IR6000 bga rework chaw nres tsheb

IR6500 BGA rework tshuab tuaj yeem kho ntau yam ntawm BGA chips, suav nrog:

Graphics Processing Units (GPUs)
Central Processing Units (CPUs)
Nco chips xws li DDR, DDR2, DDR3, DDR4
System-on-a-Chip (SoC) cov khoom siv
Networking chips
Wireless kev sib txuas lus chips
Lub zog tswj chips
Audio chips
Microcontroller units (MCUs)
FPGA thiab CPLD chips

Nco ntsoov tias lub peev xwm los kho qhov tshwj xeeb BGA nti nyob ntawm qhov tsim thiab qhov loj ntawm cov nti, nrog rau cov

muaj peev xwm ntawm IR6500 BGA rework tshuab. Nws yog qhov zoo tshaj plaws los sab laj cov chaw tsim khoom tshwj xeeb

thiab cov txheej txheem los txiav txim siab cov chips tshwj xeeb uas tuaj yeem kho tau siv IR6500 BGA rework tshuab.

2.Product Nta ntawm Keyboard Game Consoles BGA Rework Tshuab

(1) Precise kub tswj.

(2) Kev ua tiav siab ntawm kev kho cov chips.

(3) Ob qhov chaw cua sov infrared nce qhov kub thiab txias maj mam.

(4) Tsis muaj kev puas tsuaj rau nti thiab PCB.

(5) CE daim ntawv pov thawj lav.

(6) Suab hint system: muaj lub suab ceeb toom 5s-10s ua ntej ua kom tiav cua sov, kom tus neeg teb xov tooj npaj.

(7) V-groove PCB ua haujlwm rau qhov chaw nrawm, yooj yim thiab raug, uas tuaj yeem ua tau raws li txhua yam ntawm PCB pawg thawj coj saib.

(8) V-groove PCB ua haujlwm rau qhov chaw nrawm, yooj yim thiab raug, uas tuaj yeem ua tau raws li txhua yam ntawm PCB pawg thawj coj saib.

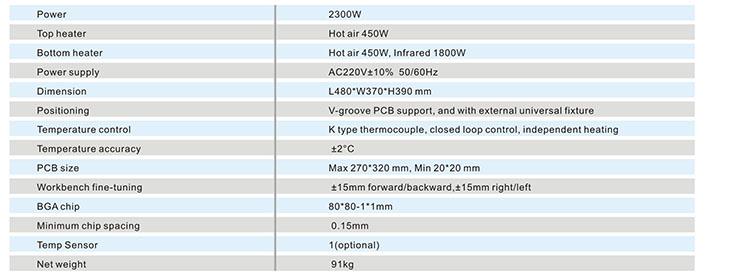

3.Specification ntawm Keyboard Game Consoles BGA Rework Tshuab

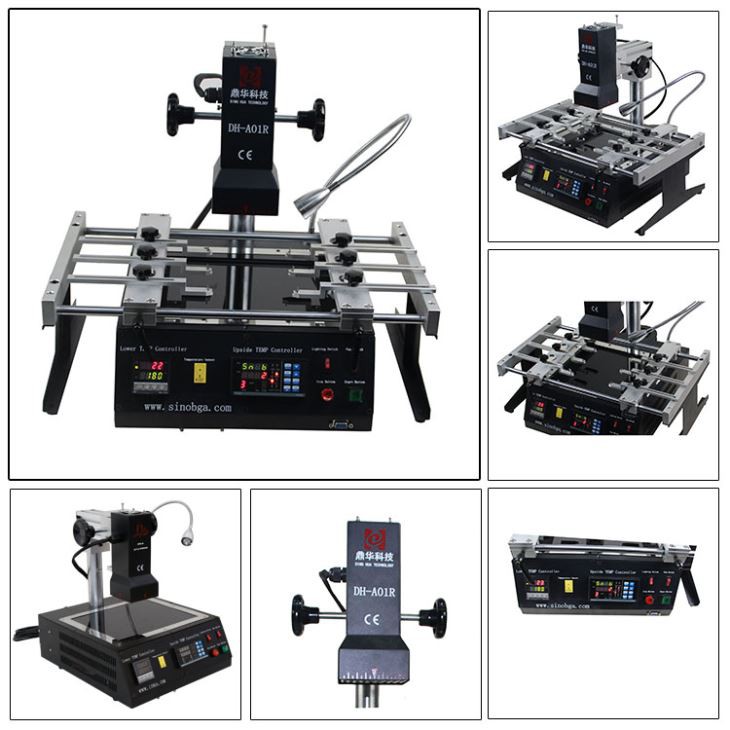

4.Details ntawm Keyboard Game Consoles BGA Rework Tshuab

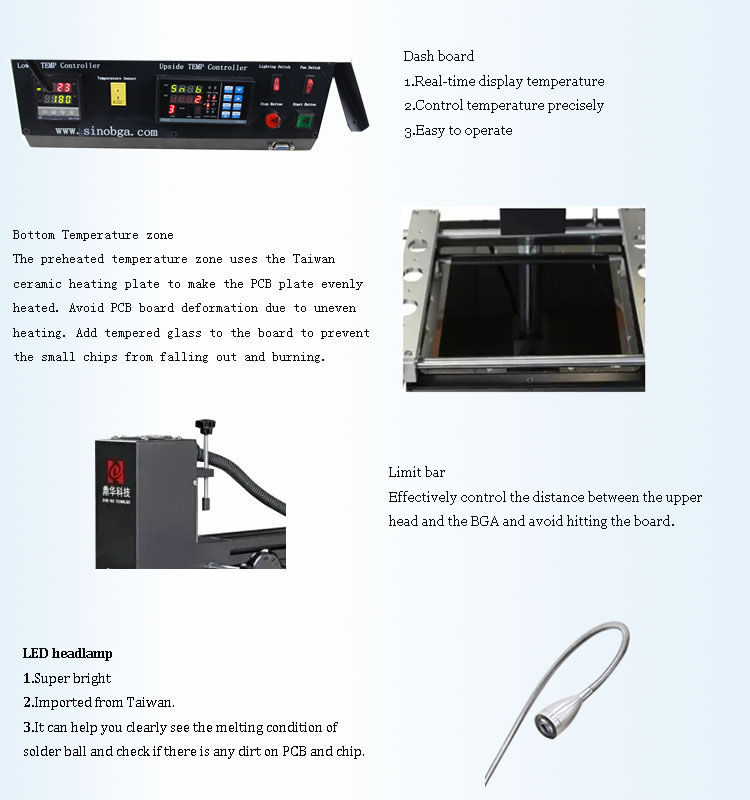

1. Ob qhov chaw cua sov infrared;

2. Coj lub taub hau;

3. Kev khiav hauj lwm dashboard;

4. txwv bar.

5. Daim ntawv pov thawj ntawm Keyboard Game Consoles BGA Rework Tshuab

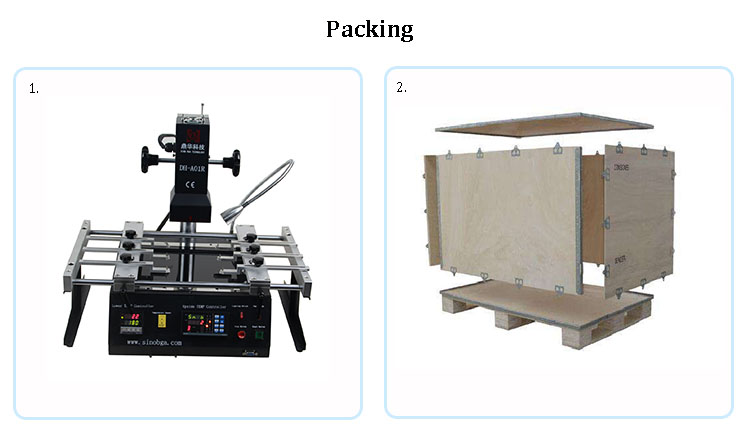

6.Packing & Shipping ntawm Keyboard Game Consoles BGA Rework Tshuab

IR6500 BGA chaw nres tsheb yog ib qho cuab yeej siv los kho cov ntawv luam tawm hauv Circuit Court. Nws feem ntau yog siv hauv electronics

kho, tshwj xeeb tshaj yog nyob rau hauv rework ntawm Ball Grid Array (BGA) Cheebtsam. IR6500 siv infrared cua sov techn-

ology tshem tawm thiab hloov BGAs hauv qhov tseeb thiab tswj tau.

Nov yog qee qhov kev siv thiab kev siv ntawm IR6500 BGA chaw nres tsheb:

BGA Rework: Lub IR6500 tuaj yeem siv los tshem tawm thiab hloov BGAs puas lossis ua tsis zoo ntawm cov rooj sib tham. Qhov no yog

ua tiav los ntawm cua sov BGA mus rau qhov kub thiab txias thiab siv qhov tseeb ntawm lub zog kom tshem tawm cov

tiv thaiv los ntawm lub rooj tsavxwm.

BGA Reballing: IR6500 tuaj yeem siv los hloov cov khoom qub lossis puas BGA nrog cov tshiab, txhim kho cov khoom sib txuas.

ection ntawm BGA thiab Circuit Court board.

Kev Ntsuas BGA: IR6500 tuaj yeem siv los ntsuas kev ua haujlwm ntawm BGAs tom qab rov ua haujlwm lossis kho dua. Qhov no tuaj yeem pab ua kom pom-

ntify tej teeb meem uas tej zaum yuav tsum tau hais ua ntej lub rooj tsavxwm muab tso rau hauv kev pab.

BGA Prototyping: IR6500 tuaj yeem siv rau hauv kev tsim cov qauv tsim hluav taws xob tshiab, tso cai rau cov kws ua haujlwm rau

qauv qauv sai sai thiab sim BGAs yam tsis tas yuav tsim lub rooj tsav xwm tshiab txhua zaus.

Qhov chaw nres tsheb IR6500 BGA yog cov cuab yeej muaj txiaj ntsig rau cov kws kho hluav taws xob kho hluav taws xob, PCB tsim qauv, thiab cov kws ua haujlwm uas tsis muaj

d los kho lossis kuaj cov rooj tsav xwm hauv Circuit Court uas muaj BGAs. Nrog nws cov cuab yeej siv cua sov thiab kev tswj xyuas, lub

IR6500 tuaj yeem pab xyuas kom meej tias BGAs rov ua haujlwm lossis hloov kom raug thiab ua haujlwm tau zoo.
