SMT Tsis Siv Neeg Soldering Tshuab
Lub tshuab SMT Tsis Siv Neeg Soldering Tshuab yog ib qho ntawm cov cuab yeej siv tshuab uas tau hloov pauv ntawm kev tsim khoom siv hluav taws xob. Nrog nws cov meej, automated soldering muaj peev xwm tuaj yeem pab txhim kho qhov zoo thiab ua haujlwm ntawm cov txheej txheem ntau lawm thoob ntiaj teb.
Hauj lwm lawm

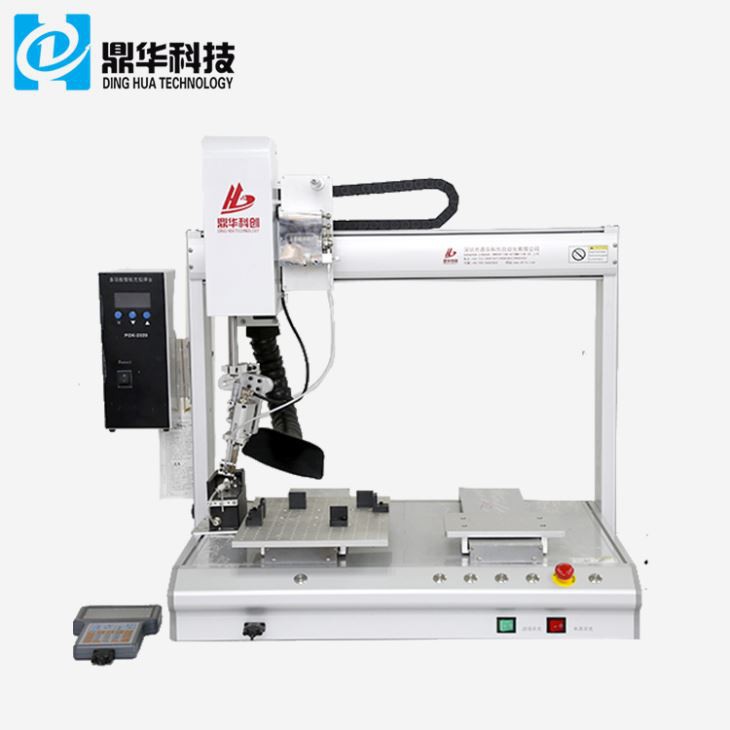

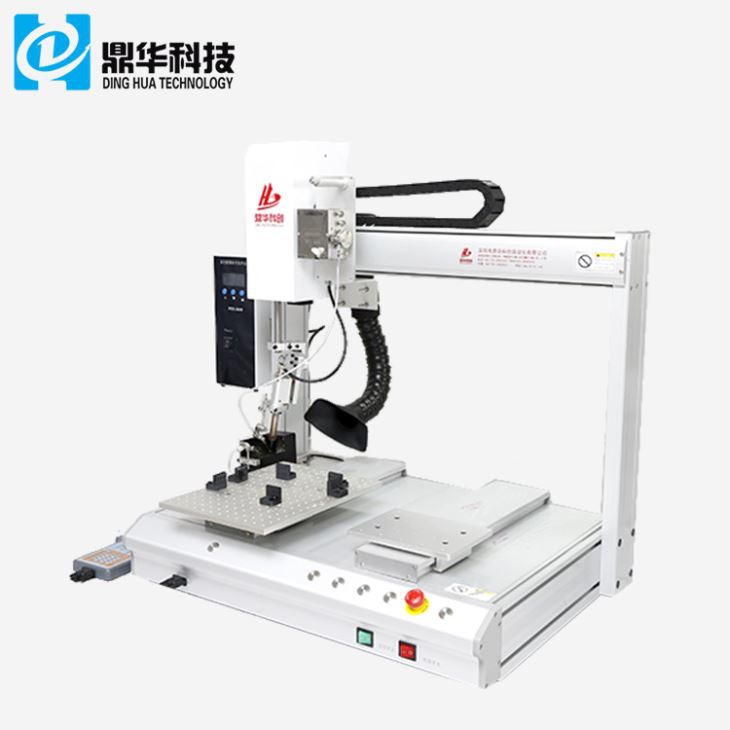

Lub tshuab nta nrog ib lub taub hau thiab ob lub rooj soldering rau cov khoom
Ib qho txiaj ntsig zoo tshaj plaws ntawm SMT Tsis Siv Neeg Soldering Tshuab yog tias nws tshem tawm ntau tus tib neeg
yuam kev uas yuav tshwm sim thaum soldering Cheebtsam ntawm tes. Qhov no ua rau kom muaj kev sib haum xeeb ntau dua thiab
raug, uas txhais ua cov khoom zoo dua qub thiab tsawg dua qhov tsis xws luag.
1.Parameters
| Qauv | DH-HX5331 | DH-HX5441 | |
| Axis naj npawb | 5 axis synchronous kev | ||
| Kev ua haujlwm thaj tsam |
X axis | 500 hli | 500 hli |
| Y 1 axis | 300 hli | 400 hli | |
| Y 2 axis | 300 hli | 400 hli | |
| Z axis | 100 hli | 100 hli | |
| R axis | ± 360 degree | ± 360 degree | |
| Max bearing muaj peev xwm | 10kg ua | ||
| Max ceev |
XY axis | 800mm / sec. | |
| Z axis | 450mm / sec. | ||
| R axis | 360 degree / sec. | ||
| Rov ua dua qhov tseeb |
x,y os | ± 0.02mm | |
| Z axis | ± 0.02mm | ||
| R axis | ± 0.02 degree | ||
| Max khoom loj | 280 * 250 hli (XY) | 280 * 350 hli (X, Y) | |
| Khaws Cov Kev Pabcuam | 999 ua profile | ||
| Tsav system | Kaw-loop | ||
| Tswj qhov system | Movenent tswj system | ||
| Qhov kub thiab txias | 40-450 degree | ||
| Kub precision | ± 2 degree | ||
| Cua sov lub taub hau tswb ntau | 2-99 degree | ||
| Pub | Tib tin feeding system | ||
| Lub zog cua sov | 200w | ||
| Tin pub ceev | 0-50mm/s | ||
| Tin diam | Φ0 3-Φ1.2(tus qauv) | ||
| Tswb | Tin tawg, Tin thaiv, cua sov tswb | ||
| Dimension | L880*W600*H830m | L880 * W700 * H830mm | |
| Tswv yim | AC220V ± 10% 50 / 60Hz 450VA | ||
| Cua siab | 0 4-0.8Mpa | ||
| Cov av noo | 20-95% | ||
| Ua haujlwm kub | -10-45 degree | ||
2..Cov ntsiab lus ntawm lub tshuab tsis siv neeg soldering

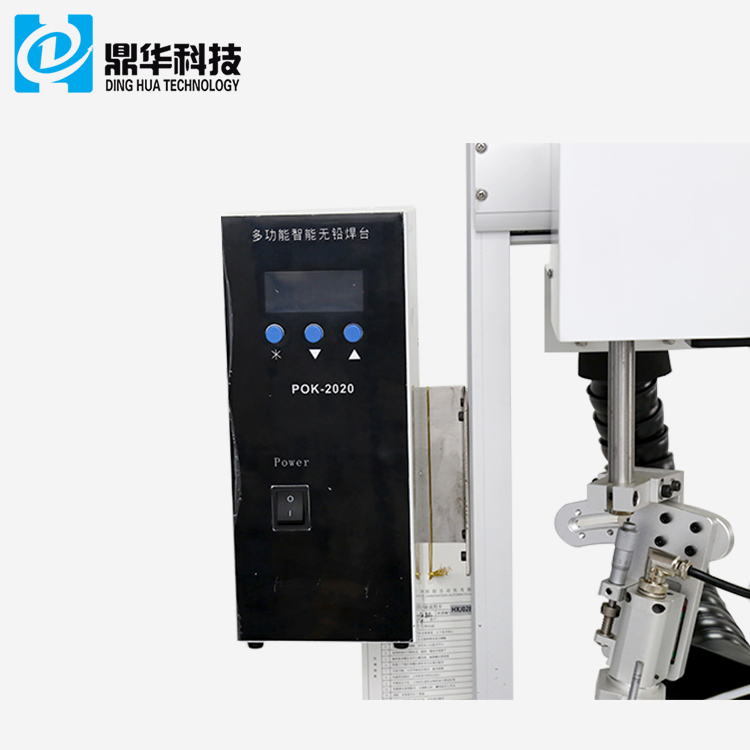

1. Yooj yim heev los teeb tsa qhov kub thiab txias raws li qhov sib txawv solder, precisely Tswj qhov kub thiab txias
thaum lub sij hawm tag nrho.

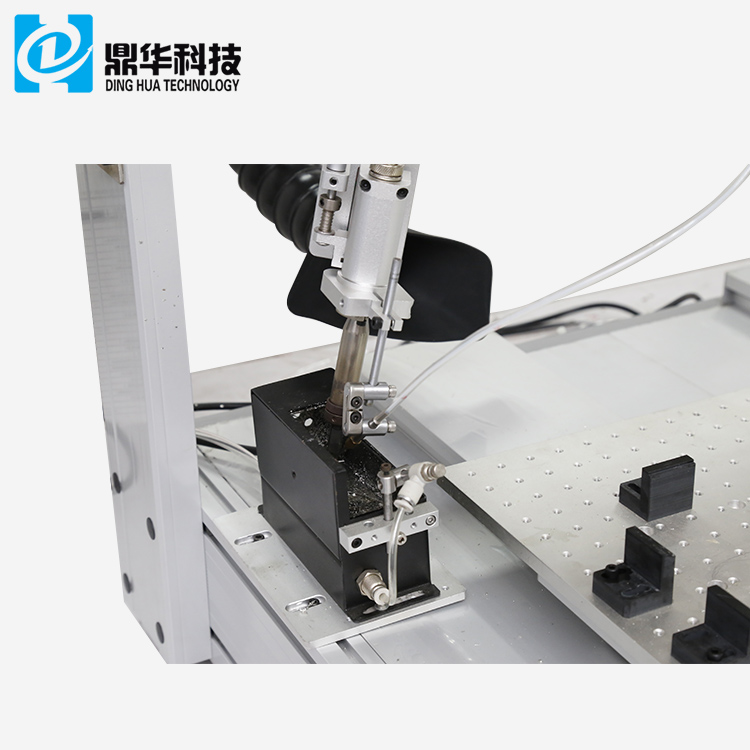

2. Nws pib lub taub hau huv si, lub caij nyoog thiab zaus tuaj yeem teeb tsa tau yooj yim raws li cov khoom siv Soldering.

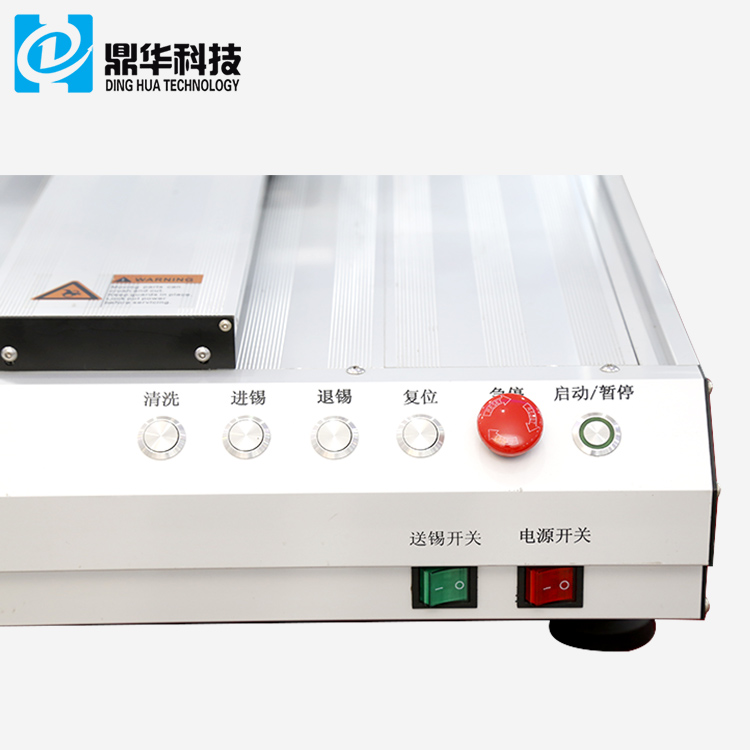

3. Nias cov nyees khawm uas nquag siv ua haujlwm nyob rau pem hauv ntej ntawm lub tshuab, kom yooj yim thiab ceev ua haujlwm.
3.FAQ
Nws yog ib qho cuab yeej siv hauv kev tsim khoom siv hluav taws xob kom siv tau cov khoom siv hluav taws xob rau cov khoom siv hluav taws xob ntawm lub rooj tsav xwm luam tawm.
nws yog muab kev sib raug zoo, meej thiab ua tau zoo soldering ntawm cov khoom siv hluav taws xob, ua rau cov khoom lag luam zoo dua qub, nce ntau lawm ceev thiab txo nqi zog.
muaj peev xwm solder ntau yam ntawm cov khoom, nrog rau nto mount li (SMDs), los ntawm-lub qhov Cheebtsam thiab hlau txuas.
Lub tshuab siv tus nqi meej ntawm cov tshuaj txhuam los yog cov dej ntws mus rau cov khoom siv uas siv cov stencil lossis dispenser, thiab tom qab ntawd cov khoom siv tau muab tso rau hauv lub rooj tsav xwm luam tawm. Lub tshuab tom qab ntawd siv cov cua sov rau lub solder, melting nws thiab bonding cov khoom rau lub rooj tsavxwm.
Yog, nrog intuitive interfaces thiab tswj cov txheej txheem yooj yim.
6. Lub tshuab SMT tsis siv neeg tuaj yeem tuaj yeem kho tau rau kev tsim khoom tshwj xeeb?
Yog lawm, ntau SMT tsis siv neeg vuam tshuab tuaj yeem hloov kho kom haum rau kev tsim khoom tshwj xeeb, suav nrog hom kev tivthaiv thiab ntim ntau lawm.
7.Puas yuav tsum muaj kev saib xyuas rau lub tshuab SMT tsis siv neeg soldering?
Yog lawm, zoo li txhua lub tshuab, kev saib xyuas tsis tu ncua yuav tsum tau ua kom pom kev ua haujlwm zoo thiab ua haujlwm ntev. Feem ntau, kev saib xyuas niaj hnub suav nrog kev tu, calibration, thiab hloov cov khoom hnav.
8. Puas muaj ntau qhov sib txawv ntawm SMT tsis siv neeg vuam tshuab muaj?
Yog lawm, muaj ntau qhov ntau thiab tsawg, los ntawm cov qauv me me mus rau qhov loj tag nrho cov tshuab rau cov khoom ntim siab.
9. Puas tuaj yeem siv lub tshuab SMT tsis siv neeg soldering rau lwm hom kev siv hluav taws xob ntxiv?
Thaum SMT tsis siv neeg soldering tshuab feem ntau yog tsim los rau kev tsim hluav taws xob, qee cov qauv tuaj yeem ua tau
tau yoog rau lwm hom kev siv soldering.
10. Puas yog nws yuav tsum muaj kev cob qhia tshwj xeeb rau kev khiav lag luam SMT tsis siv neeg vuam tshuab?
Txawm hais tias qee qhov kev qhia yooj yim yog qhov tsim nyog, feem ntau yog tsim los kom yooj yim siv thiabxav tau kev paub tshwj xeeb me me. Cov neeg tsim khoom feem ntau muab kev cob qhia thiab kev txhawb nqa los pab cov neeg siv kawm paub yuav ua li casua haujlwm cov tshuab kom zoo.
