BGA Reballing Cov Khoom Siv PS3 XBOX

Lub tshuab me me loj, loj ua ntej thaj chaw, ob chav IR, hloov tau lub taub hau sab saum toj.

Xa kev nug

Hauj lwm lawm

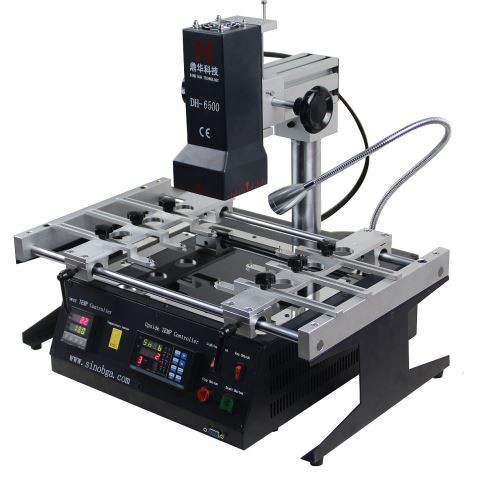

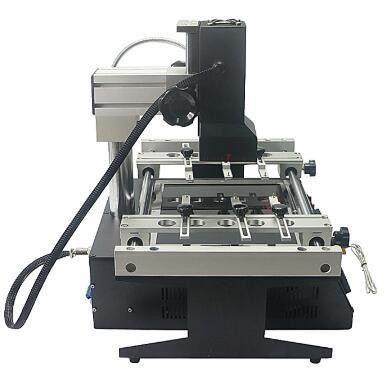

BGA rov pob khoom PS3 XBOX

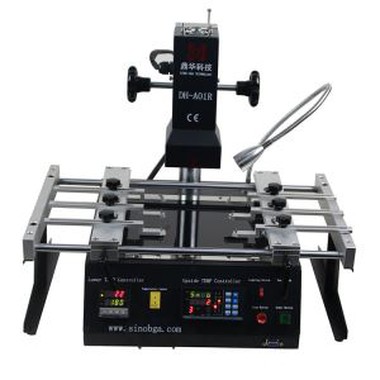

DH-6500 IR Rework chaw nres tsheb rau lub laptop motherboard, motherboards, desktops, servers, computer motherboards, txhua hom gaming phaib, motherboards, cov khoom siv sib txuas lus, LCD TVs thiab lwm cov niam loj loj

Kev tsim kho tshiab, cov kev daws teeb meem zoo rau infrared rov qab chaw nres tsheb feem ntau yog qhov chaw muaj kev cuam tshuam rau cov cuam tshuam ntawm cov pa txaus. Cov ntsuas kub thiab txias ua tau yooj yim tuaj yeem coj cov hlau lead tsis muaj txhuas.

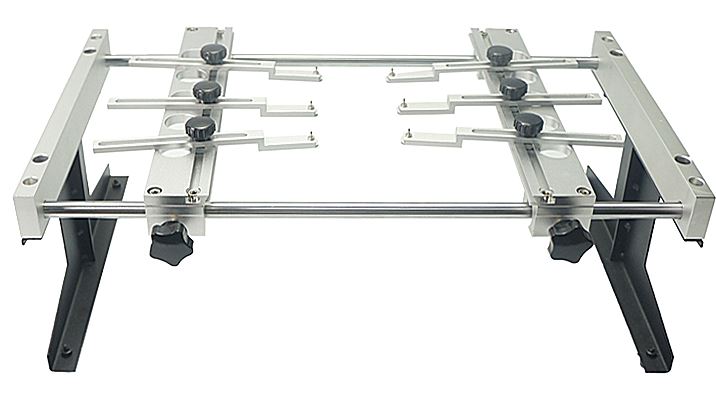

Nrog V-zawj, khej clips thiab universal kho vajtse rau ntau yam chips mounted ntawm qhov rooj lossis desoldering

Sab qaum sab sauv tuaj yeem hloov kho kom siab dua lossis qis dua, sab laug lossis sab xis, uas yooj yim heev rau cov khoom siv lossis cov khoom siv soldering.

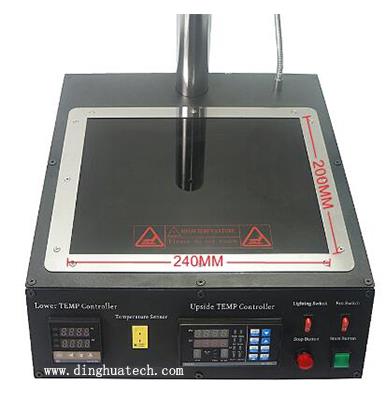

ir preheating

Thaj chaw ua cua sov, thaj chaw ua cua sov: 240 * 200 hli, siv nrog PCB 300 * 360 hli, xws li TV, game consoles thiab lwm yam khoom siv sib txuas lus

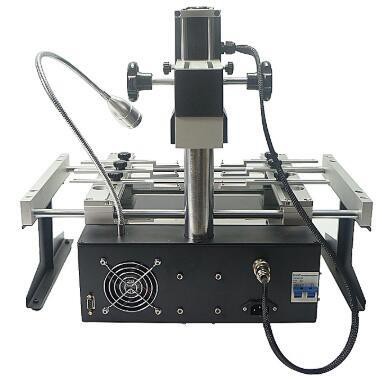

2. Cov ntsiab lus ntawm BGA rov pob khoom siv PS3 XBOX

Qhia txog BGA reballing khoom PS3 XBOX
Tag Nrho Hwjchim	2300W
Sab saum toj rhaub	450W
Ris taub rhaub	1800W
Lub zog	AC110 ~ 220V ± 10 ％ 50 / 60Hz
Lub taub hau txav sab saum toj	Saum / cia, tig ywj siab.
Teeb	Taiwan coj lub teeb ua haujlwm, txhua lub kaum ntsej muag hloov kho. 5W
Cia	Khw 10 pawg ntawm qhov kub thiab txias
Txoj Haujlwm	V-zawj, PCB cov kev txhawb nqa tuaj yeem hloov kho hauv X, Y kev taw qhia nrog kev kho kom haum sab nraud
Kub tswj	K-HOM, Kaw-voj
Temp raug raug	± 2 ℃
PCB loj	Max 300 * 360mm Min20mmⅹ20mm
Nyhav	16kg

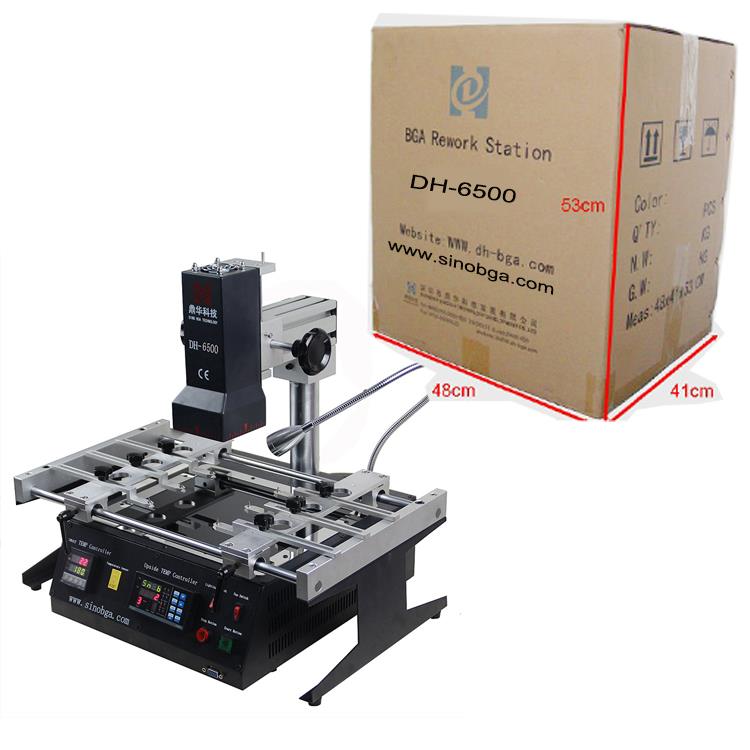

3. BGA nti desoldering thiab soldering tshuab

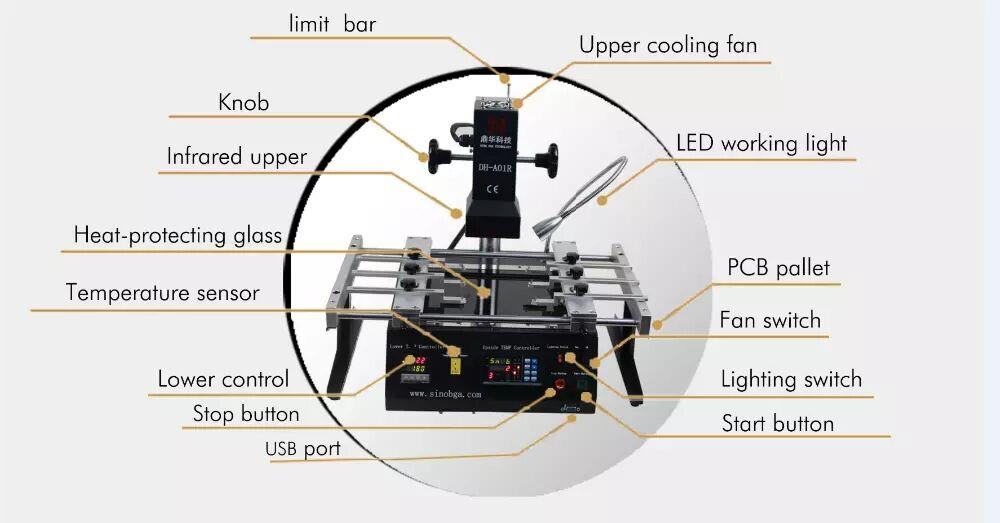

kev hloov kho txawb

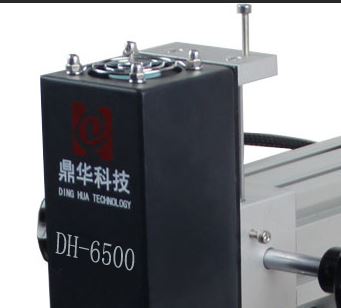

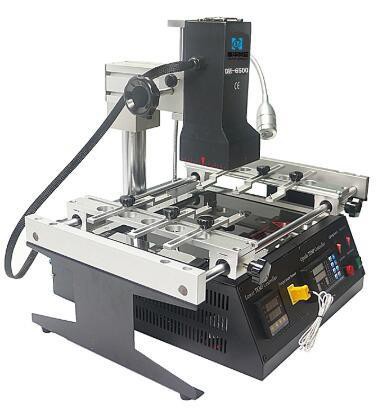

4. Khoom Taw Qhia BGA Chip Soldering Tshuab

DH-6500 yog lub tshuab hluav taws xob semi-automatic infrared kho chaw nrog PC synchronization thiab ceramic tawm rau kev kho CBGA, CCGA, CSP, QFN, MLF, PGA thiab txhua yam epoxy µBGA. Txhim kho ntawm ntau qhov kub thiab txias profiles tso cai rau koj xaiv cov hom soldering thaum siv lwm cov hlau soldering, suav nrog tsis muaj hmoov txhuas.

Feature

Kho cov chaw yooj yim rau cov motherboard ntawm khoos phis tawm, PCs, server board, muaj cov koos pij tawj, kev ua si ntawm txhua hom, kev sib txuas lus, TV khoom siv nrog LCD zaub thiab lwm yam haujlwm nrog BGA loj.

Haum rau soldering thiab kho CBGA, CCGA, CSP, QFN, MLF, PGA thiab txhua hom epoxy µBGA

Siv rau cov plua plav tsis muaj txhuas thiab txhuas

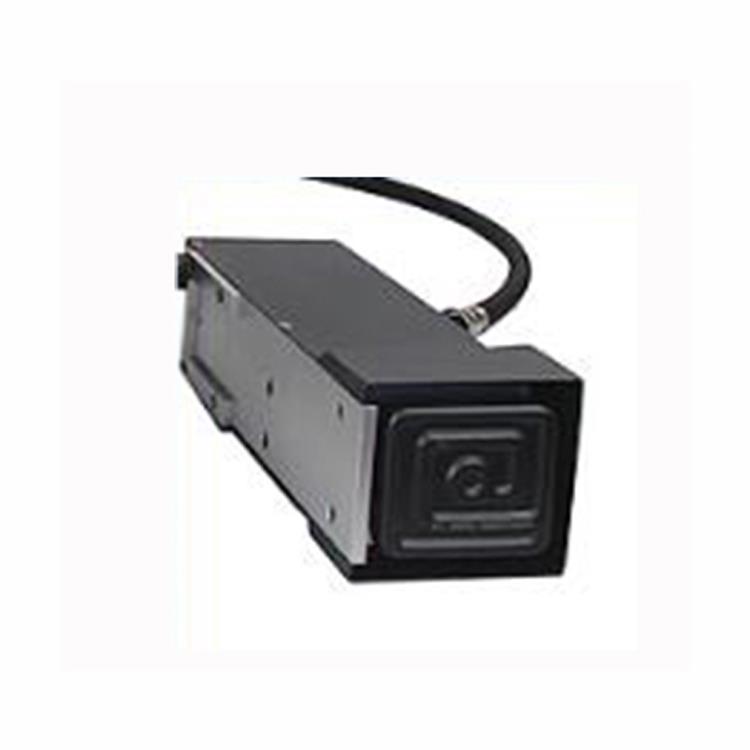

Kev siv advanced infrared soldering thev naus laus zis

Siv cov thermocouples hom K rau kev txiav txim siab tshaj kub.

Lub tshuab kub kub tswj thev naus laus zis nrog cov lus pom zoo rau kev tswj ua kom sov thiab kom tsis txhob sov tsis txias

Cov txheej txheem rhuav tshem yuav siv sijhawm li 5 feeb xwb.

Qhov kub ntau txog li 350 ° C

Lub peev xwm txuas mus rau PC lossis laptop ntawm USB interface thiab tswj siv lub software "IRSOFT"

Lub peev xwm los ntsuas qhov ntsuas kub rau 8 txoj haujlwm thiab tswj qhov ntsuas kub rau 8 txoj haujlwm

Muaj peev xwm khaws 10 kub ntsuas kub tib lub sijhawm

Xws li CD nrog rau kev taw qhia thiab yees duab ua qauv qhia.

5. cov ntsiab lus khoom ntawm cov keyboard rework chaw nres tsheb

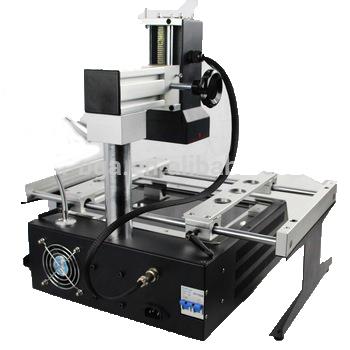

Kiv cua txias

Tom qab ua tiav cov cua sov, manually tig lub siab-kiv cua siab kom txias PCB lub rooj tsav xwm kom tsis txhob muaj PCB board deformation.

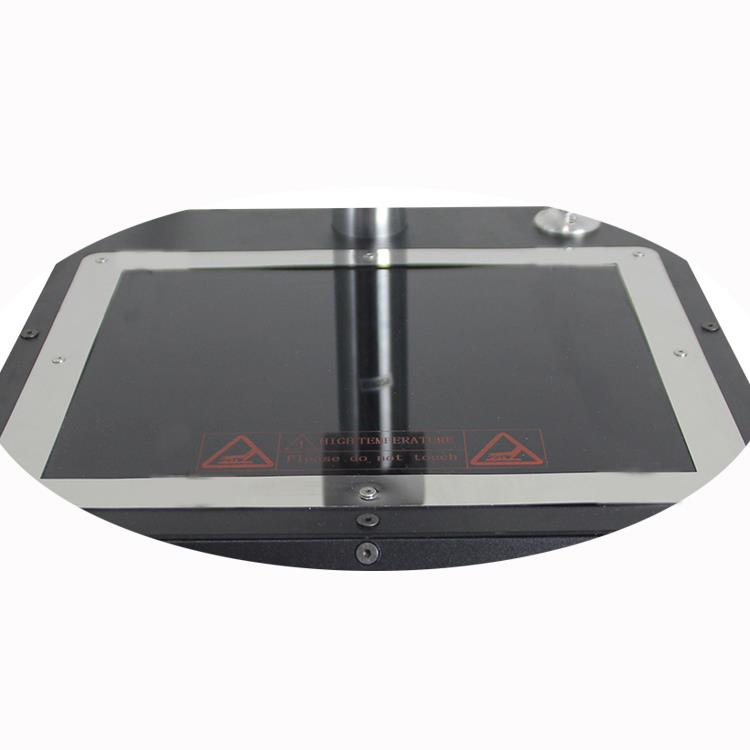

Cua Kub Thaj Tsam

Qhov ntsuas kub tau coj los siv rau Taiwan ceramic ua cua sov phaj ua cov phaj PCB txawm sov. Zam kom tsis txhob muaj zog ntawm cov Board PCB vim tsis muaj cua sov tsis sib xws. Ntxiv cov iav tawg ntawm daim txiag kom tsis txhob nti cov xau me me ntawm kom ntog thiab hlawv.
