LED TV Vaj Huam Sib Luag Kho
LED TV vaj huam sib luag kho tshuab uas yuav siv tau rau Sony, Samsung thiab LG LED TV vaj huam sib luag hloov, kuj desoldering thiab soldering lwm yam Cheebtsam, piv txwv li, BGA, POP, QFN thiab lwm yam me me rau {{0}}. 5 * 0.25 hli
Hauj lwm lawm
DH-G760 LED TV vaj huam sib luag kho
1. Lub ntsiab tsis
| Fais fab mov | 110-250V 50/60Hz |
| lub zog / lub zog ntsaws | 5200W / xaiv tau (Tebchaws USA, EU, Is Nrias teb thiab Africa thiab lwm yam) |
| LED teeb pom kev zoo | tsim tshwj xeeb rau LED chips tuaj tos |
| Min LED nti loj | 0201 |
| IR preheating cheeb tsam | anti-high-temperature iav-shield uas nres LED los ntawm poob rau hauv |
| Kub tswj qhov system | K-hom, kaw-voj |
| Lub cev muaj zog | pab thiab PLC |
| Dimension | 670 * 800 * 700 hli |
| Net nyhav | 80kg ua |
2. Lub hom phiaj ntawm LED TV vaj huam sib luag kho

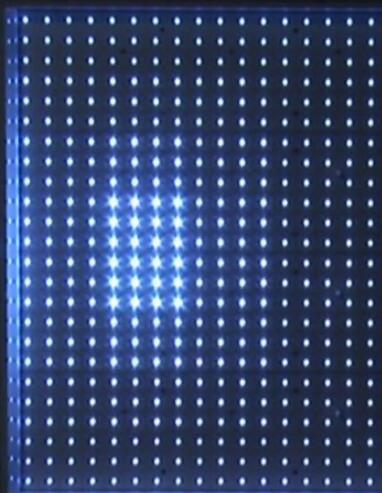

Qhov no yog backlights ntawm TV, lub teeb fluorescent muaj ib txoj kab uas hla 2 hli

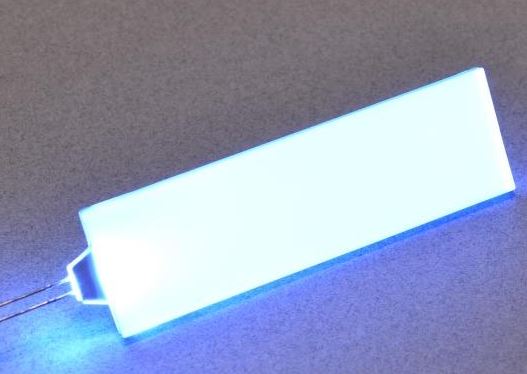

TV backlights LED modules LED strips
Tag nrho cov ntawm lawv tuaj yeem rov ua haujlwm lossis hloov pauv ntawm qhov chaw ua haujlwm rov ua haujlwm DH-G760, rau LED strips,
muaj ib tug tshwj xeeb jig rau lub strips conveyed raws li hauv qab no:

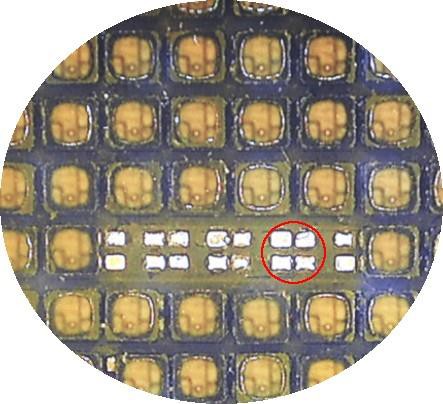

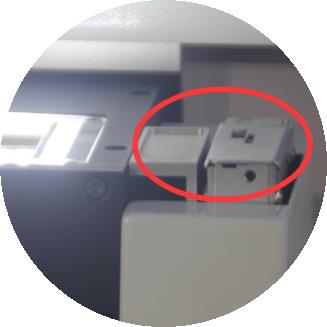

Lub fixture nyob rau hauv lub voj voog liab muaj ob feem
Qhov tshwj xeeb fixture yog tsis siv neeg khiav nrog lub optical CCD lub koob yees duab, txoj cai rau LED tso,
muaj peev xwm muab tso rau ib tug tiag tiag ntawm coj chips nyob rau hauv ib lub sij hawm, thiab cov cav tov saum lub taub hau tuaj yeem xaiv
nce ib nti LED muaj rau aligning.

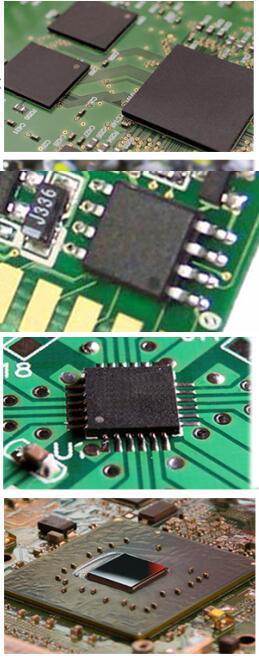

3. Rau lwm cov nti BGA, POP thiab QFN .etc, kho
Chips
Cov nti li saum toj no yog qee qhov ntawm lawv tuaj yeem rov ua haujlwm dua, thiab, lawv tuaj yeem raug tshem tawm tsis siv neeg,
solder, khaws thiab hloov, thiab lwm yam.
4. Lub tshuab lub ntsiab qhov chaw

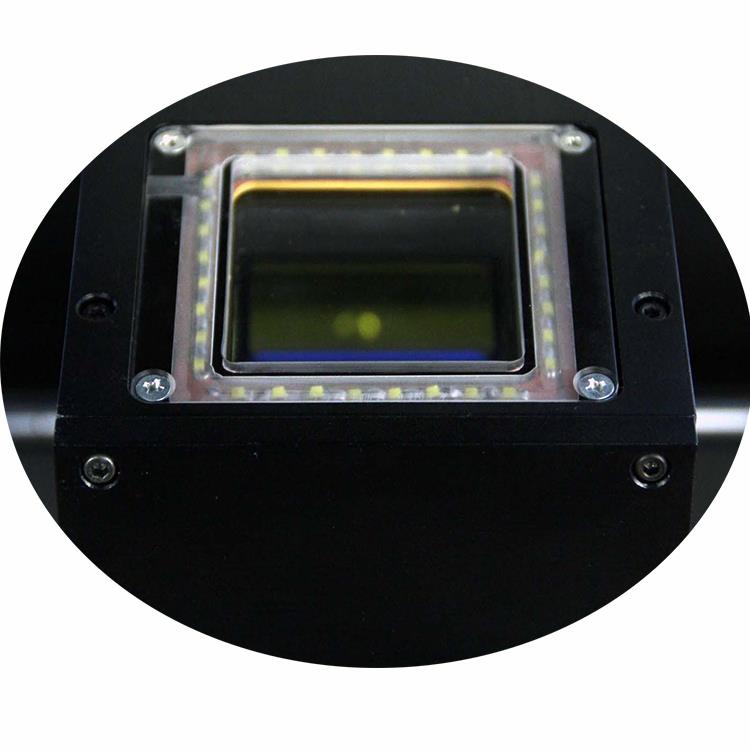

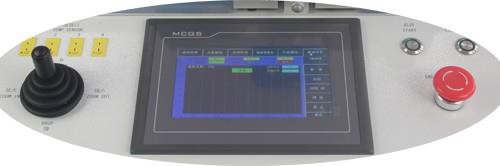

Saib xyuas qhov screen optical CCD

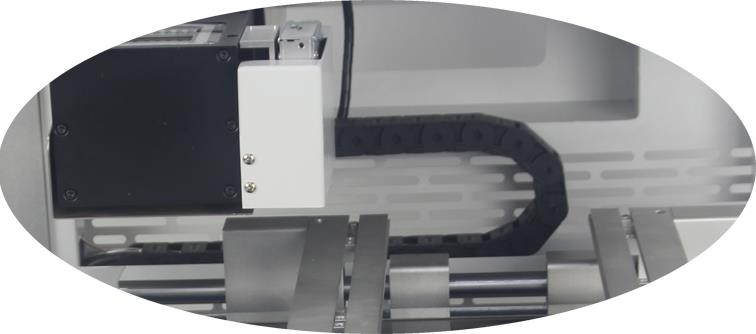

X/Y movable imported PLC
FQA rau kev kho vaj huam sib luag LED TV:
Q: Puas yog LED muaj kev taw qhia thaum muab tso rau ntawm LED module?
A: Yog, tsuas yog ua kom koj lub teeb ci LED tsau rau ntawm qhov tshwj xeeb fixture, nws cov kev taw qhia yeej ib txwm yog.
Q: Kuv puas yuav tsum tau siv flux paste thaum soldering?
A: Raws li qhov kev paub tiag tiag, peb xav kom koj txhuam me ntsis ntawm cov ntaub qhwv ntawm LED mainboard.
3. Q: Thaum desoldering qhov phem LED chips los ntawm lub mainboard, yog hais tias cov LED chips nyob ib ncig ntawm qhov phem ib
yuav cua sov?
A: Yuav tsum tau kho lub taub hau sab saud nrog me me, xws li, 10 * 10mm rau koj siv,
uas yuav ua rau cov teeb ci LED tuaj yeem tiv thaiv los ntawm cua sov.
4.Q: Koj puas muag tej yam khoom ntawm LED?
A: Peb yog cov chaw tsim khoom lag luam ntawm LED rework chaw nres tsheb thiab cov cuab yeej siv hluav taws xob nkaus xwb.
Video demo ntawm LED rework chaw nres tsheb:
