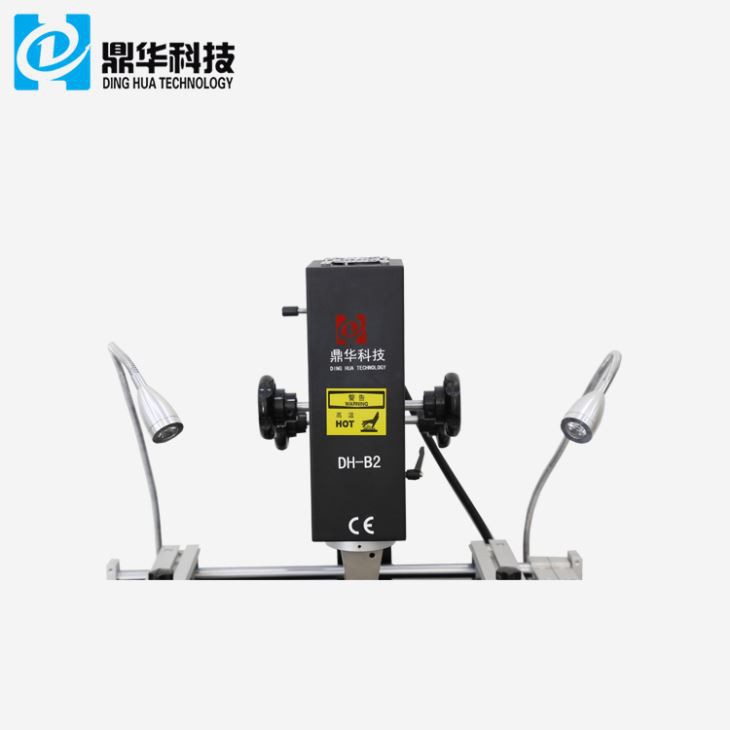

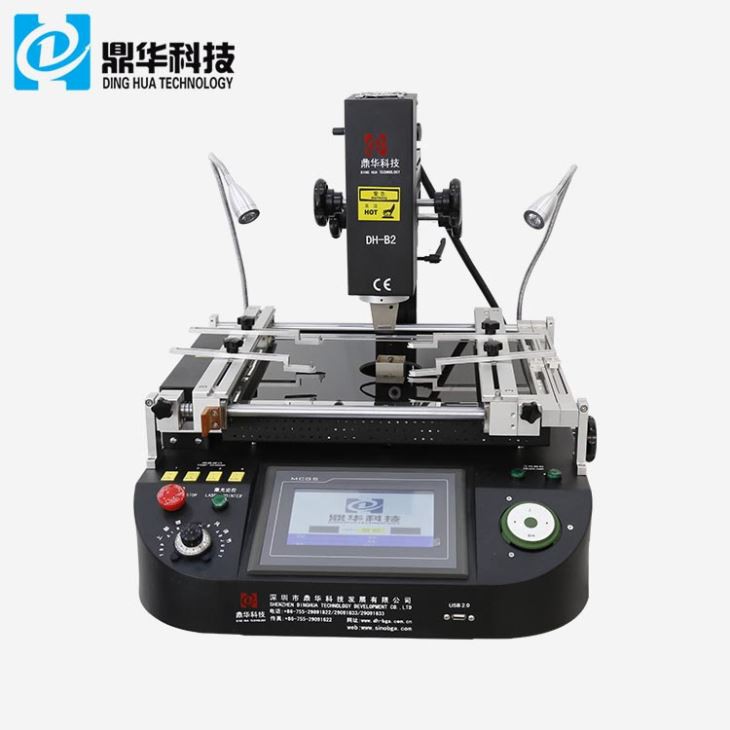

2 Cov Cuab Yeej Cuab Yeej Kov Screen SMD Rework Chaw Nres Tsheb
Kev nyab xeeb, kev ua haujlwm zoo rau SMD, BGA, thiab LED chips Lub DH-B2 rework chaw nres tsheb sib txuas cov kev ua tau zoo, kev ntseeg siab, thiab kev pheej yig hauv ib qho kev daws teeb meem rau tag nrho koj cov kev xav tau rework, los ntawm complex, densely populated PCBAs rau yooj yim LED strips. Txawm li cas los xij, nws tseem yog ib qho yooj yim kawm thiab siv, ua rau cov kws tshaj lij ua kom sai thiab muaj kev ntseeg siab ua kom tau raws li qhov tseeb, kev tso kawm zoo, thiab kev tswj xyuas kom sov.
Hauj lwm lawm
2 Cov Cuab Yeej Cuab Yeej Kov Screen SMD Rework Chaw Nres Tsheb
1. Cov khoom nta ntawm 2 Lub Cuab Yeej Cuab Yeej Kov Screen SMD Rework Chaw Nres Tsheb
-
Tom qab ua tiav desoldering & soldering, muaj kev ceeb toom. Thaum qhov kub thiab txias dhau los tswj,
cov hluav taws xob hluav taws xob tuaj yeem txiav tawm tau, nrog kev tiv thaiv cua sov.
2. Siv lub tshuab hluav taws xob muaj zog ua kom txias rau PCB kom tsis txhob deformation thiab xyuas kom cov vuam zoo.
3. Siv lub V-groove nruab nrog qhov hloov pauv hloov pauv rau PCB qhov chaw los tiv thaiv PCB los ntawm deformation thaum
cua sov los yog txias.
4. Lub tshuab no tuaj yeem txuas nrog lub computer kom tswj tau yooj yim dua nrog lub PC built-in serial chaw nres nkoj thiab
ib tug proprietary software txuas rau nws.
5. Rau cov thermal muaj peev xwm loj ntawm PCB / CSP / QFP lossis lwm yam kev kub siab thiab cov hlau lead-dawb vuam yuav tsum, tag nrho
tuaj yeem ua tau yooj yim.
2.Specification ntawm 2 Cua sov Cheeb Tsam Kov Screen SMD Rework Chaw nres tsheb
| Hwj chim | 4800W |
| Lub tshuab cua sov sab saum toj | Cua kub 800W |
| Hauv qab rhaub | Cua kub 1200W, Infrared 2700W |
| Fais fab mov | AC220V ± 10% 50/60Hz |
| Dimension | L800 * W900 * H750 hli |
| Qhov chaw | V-groove PCB kev txhawb nqa, thiab nrog rau sab nraud universal fixture |
| Kev tswj qhov kub thiab txias | K hom thermocouple, kaw voj tswj, ywj siab cua sov |
| Kub qhov tseeb | ± 2 degree |
| PCB loj | Max 450 * 500 mm.Min 20 * 20 mm |
| Workbench fine-tuning | ± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug |
| BGAchip | 80 * 80-1 * 1 hli |
| Yam tsawg kawg ntawm nti sib nrug | 0.15 hli |
| Temp Sensor | 4 (yeem) |
| Net nyhav | 36kg ua |

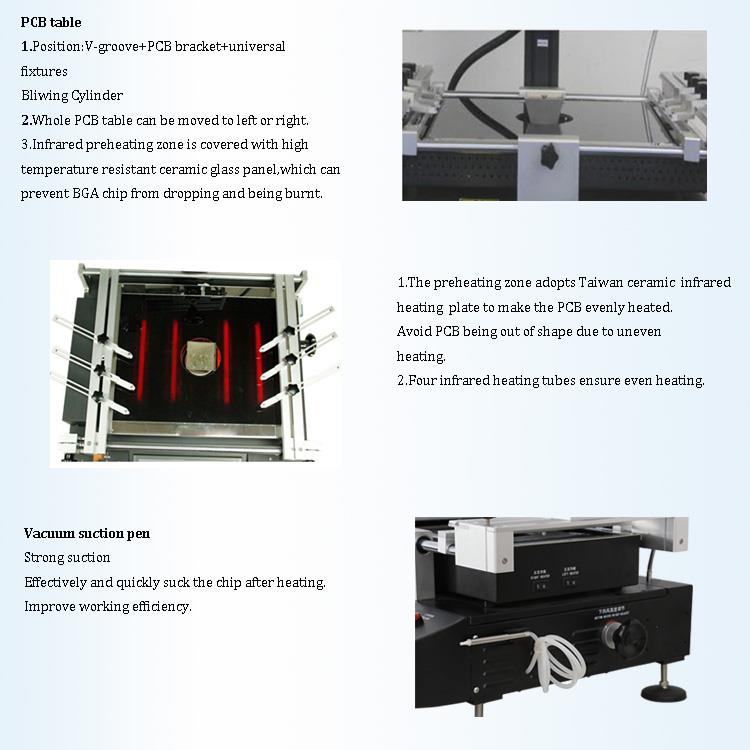

3.Cov ntsiab lus ntawm 2 Lub Cuab Yeej Cuab Yeej Kov Screen SMD Rework Chaw Nres Tsheb
1. HD kov npo interface;
2.Peb lub tshuab hluav taws xob ywj pheej ( cua kub & infrared );
3. Nqus cwj mem;
4.Led headlamp.

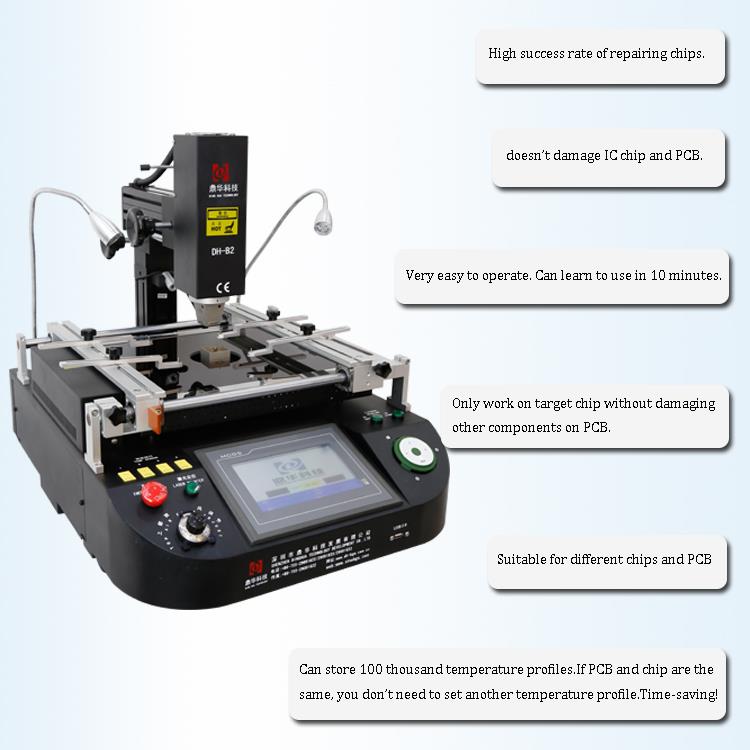

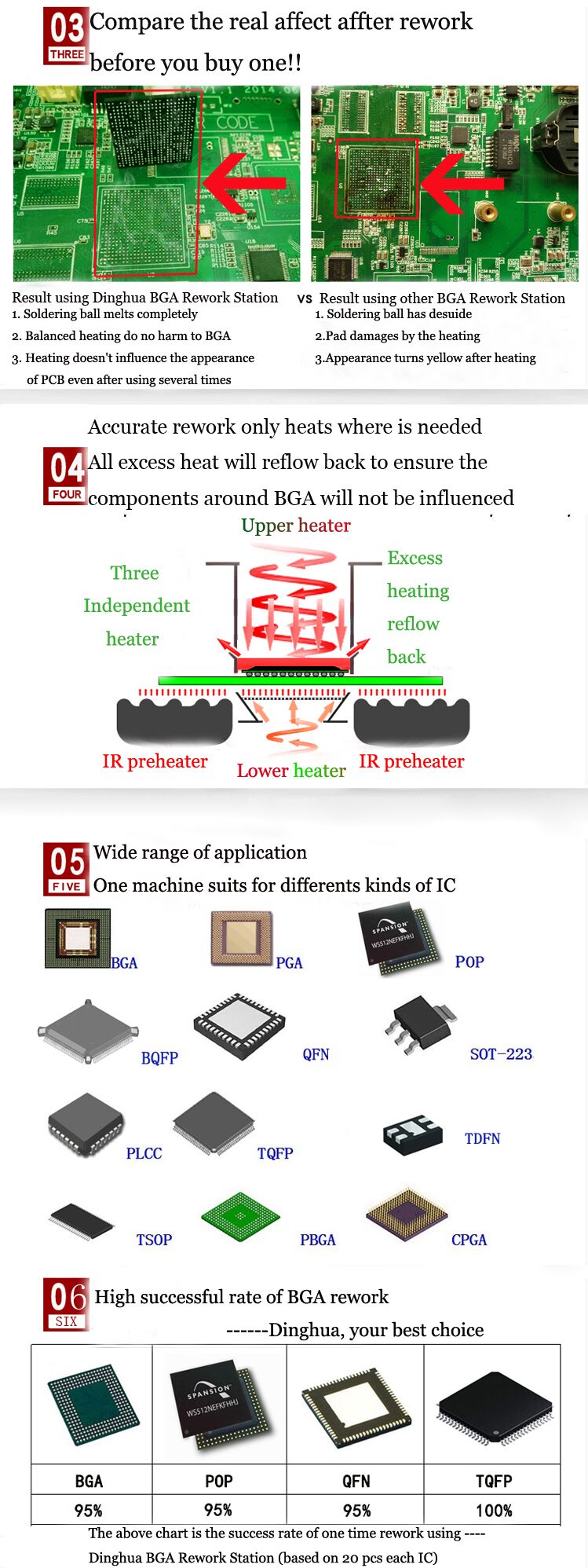

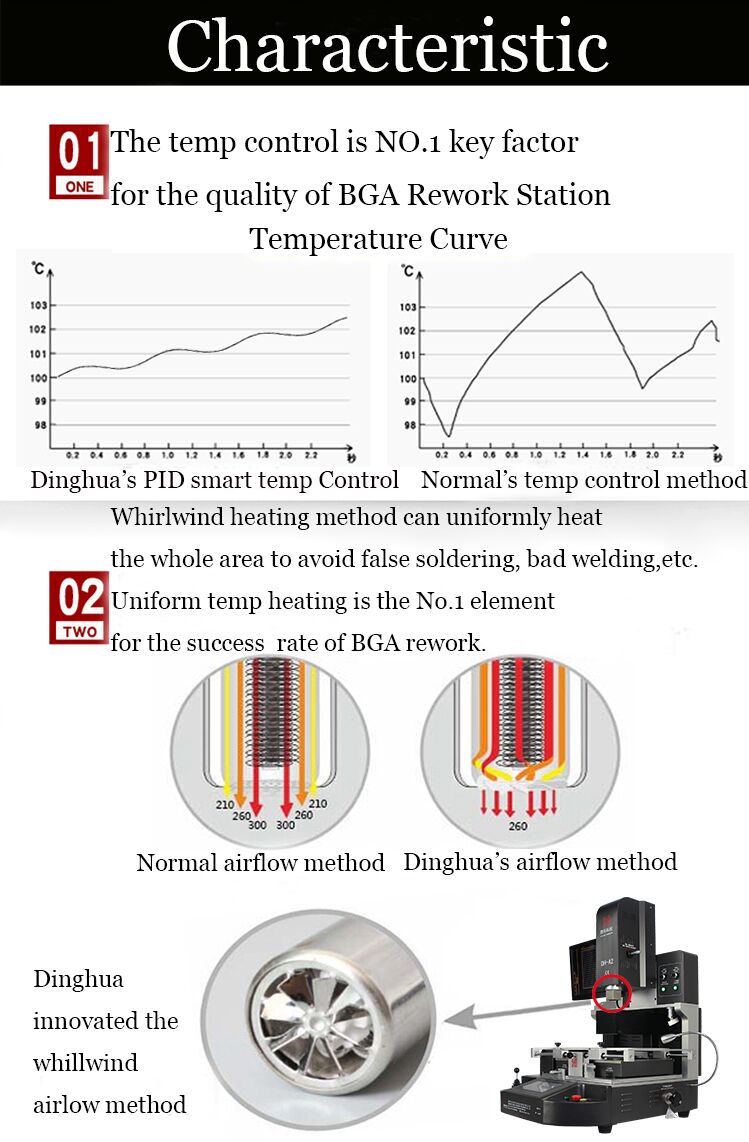

4.Vim li cas thiaj xaiv peb 2 qhov chaw cua sov Kov Screen SMD Rework Chaw nres tsheb?
5.Certificate of 2 Heating Zones Touch Screen SMD Rework Station

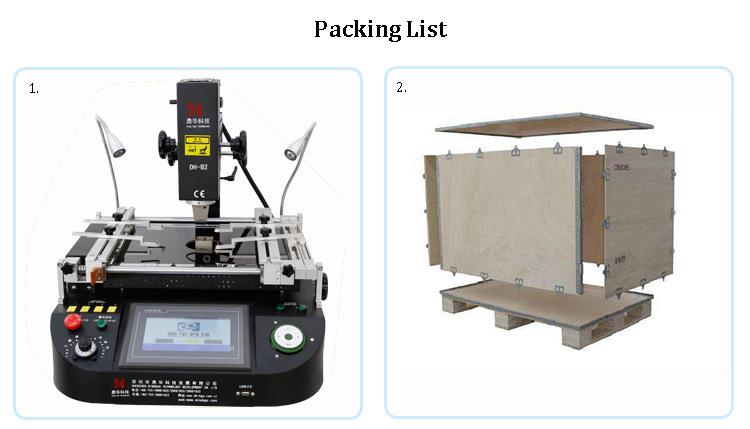

6.Packing & Shipping ntawm 2 Cua sov Zones Kov Screen SMD Rework Chaw nres tsheb
