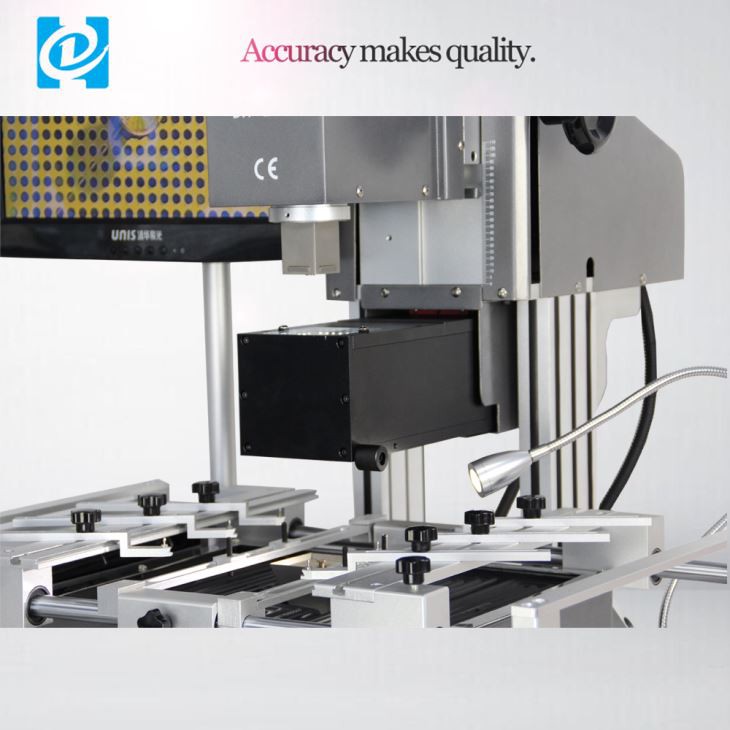

Optical Computer BGA Rework Chaw nres tsheb

                                                                                                     Optical computer bga rework chaw nres tsheb

1. Ceev saib ua ntej:

Peb muab DH-G600 BGA Rework cov cav tov rau kev kho lub computer nrog qhov zoo tshaj plaws. Tag nrho peb cov khoom yog CE certified.Peb yog

ib lub Hoobkas thawj, tus nqi yog ntau dua kev sib tw thiab tus nqi siab dua rau cov nyiaj. Cov kws tshaj lij engineers thiab pab pawg muag khoom muab

kev txhawb nqa rau koj. Peb cia siab tias yuav dhau los ua koj tus neeg koom tes ntev hauv Suav teb.

2. Parameter ntawm DH-G600 BGA rework chaw nres tsheb

Khoom parameter Khoom npe soldering thiab desolding tshuab Tag nrho lub zog 5300W cua sov sab saum toj 1200w cua sov hauv qab Hauv qab cua kub cua sov 1200W, IR preheating 2700W Hwj chim 220V 50HZ / 60HZ Cov Qhov chaw V-groove, PCB boards tuaj yeem hloov kho hauv X, Y axis thiab nruab nrog universal fixture Kev tswj qhov kub thiab txias K-hom, kaw lub voj PCB loj Max 400x380mm, Min 22x22mm Chip loj 2 x 2-50 x 50 mm Yam tsawg kawg ntawm nti sib nrug 0.15 hli Sab nraud kub sensor 1 (yeem) N.W. cav 60kg Tsim nyog motherboards mobile xov tooj, laptop, desktop, game console, XBOX360, PS3

3. Cov yam ntxwv tseem ceeb & kev siv dav dav ntawm DH-G600 BGA rework chaw nres tsheb

Lub ntsiab nta

♦ Peb lub tshuab hluav taws xob ywj pheej tuaj yeem teeb tsa 8 ntu ntawm cov cua sov, cua txias, thiab qhov ntsuas kub tsis tu ncua, qhov ntsuas kub tau txuag

yog unlimited. IR preheat cheeb tsam tuaj yeem xaiv raws li PCB loj.

♦ K sensor kaw tswj, tswj cov txheej txheem cua sov kom meej.

♦ Cov kiv cua muaj zog ua kom txias txias rau PCB board sai thiab tiv thaiv nws los ntawm deformation.

♦ V-groove PCB txhawb nqa kom ceev, yooj yim thiab raug qhov chaw uas haum rau txhua yam ntawm PCB pawg thawj coj saib.

Kev siv DH-G600 BGA REWORK STATION

Daim ntawv thov siv rau BGA Rework Chaw nres tsheb

BGA rework chaw nres tsheb muaj ntau daim ntawv thov sib txawv nyob rau hauv lub ntiaj teb no ntawm PCB kho thiab hloov. Nov yog ob peb ntawm cov

feem ntau siv.

Kev Txhim Kho: Kev hloov kho dua tshiab yog ib qho laj thawj tshaj plaws rau kev rov ua haujlwm dua. Cov kws kho mob yuav tsum tau sib pauv cov khoom los yog ntxiv upg-

raded pieces rau PCB.

Faulty Parts: PCBs tuaj yeem muaj ntau yam faulty qhov chaw uas yuav tsum tau ua dua tshiab. Piv txwv li, cov ntaub qhwv tuaj yeem raug puas thaum lub sijhawm

Kev tshem tawm BGA, txhua qhov chaw tuaj yeem raug cua sov lossis tuaj yeem muaj ntau qhov sib koom ua ke.

Faulty assembly: Muaj ntau qhov yuam kev tuaj yeem tshwm sim thaum lub sijhawm rov ua haujlwm. Piv txwv li, PCB tej zaum yuav muaj BGA tsis raug

kev taw qhia lossis kev tsim kho tsis zoo BGA rework thermal profile. Yog tias qhov no yog qhov teeb meem, PCB yuav zoo li yuav tsum tau mus ntxiv

rework los daws qhov faulty assembly.

4. Cov duab ntxaws ntxaws ntawm G600 BGA REWORK STATION

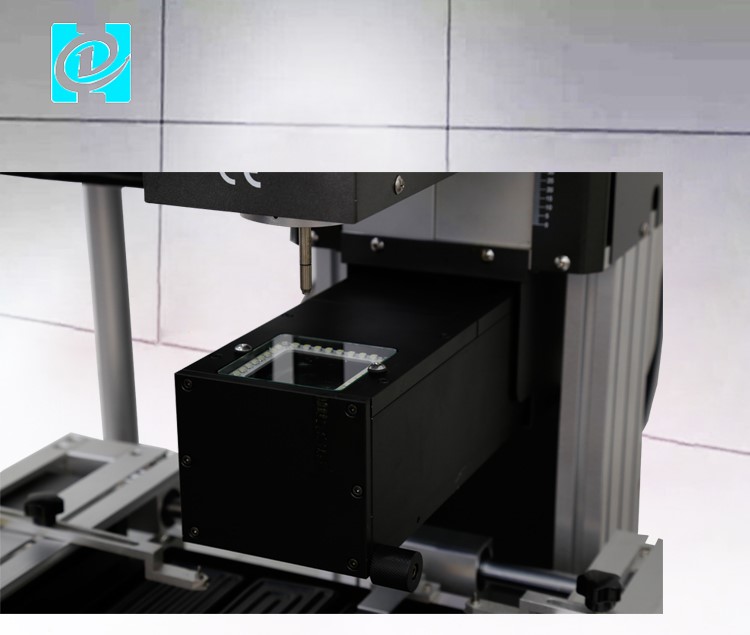

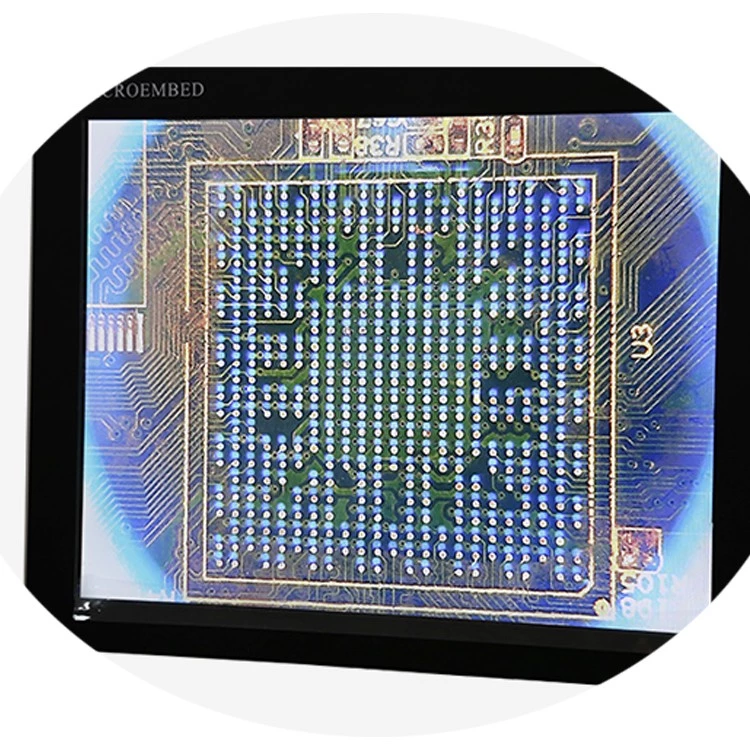

HD Optical CCD Lens Alignment System

Lub koob yees duab yog imported los ntawm Panasonic, Nyiv los xyuas kom meej qhov hloov qhov tseeb ntawm ±0.01mm

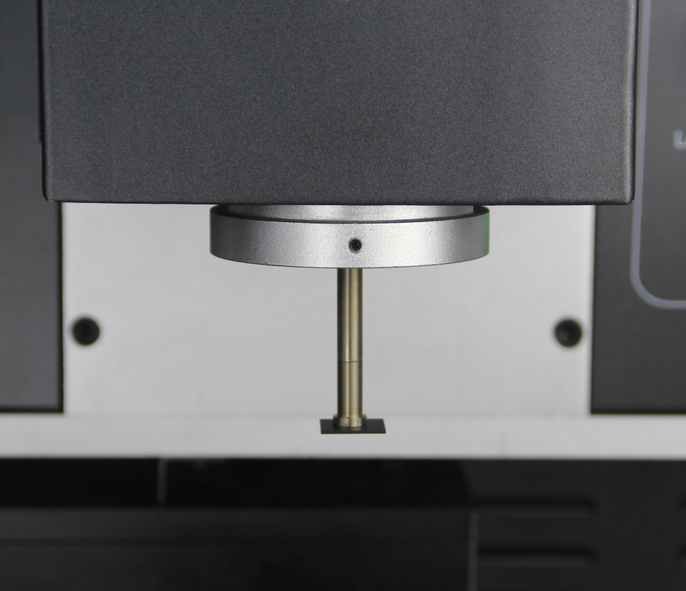

Mounting lub taub hau nrog built-in siab ntsuas ntsuas, los tiv thaiv PCB los ntawm kev puas tsuaj.

build-in lub tshuab nqus tsev nyob rau hauv mounting lub taub hau tuaj tos BGA nti txiav tom qab desoldering tiav

Nrog rau saum huab cua ntws kho, kom tiv thaiv me me bga los ntawm tawg.

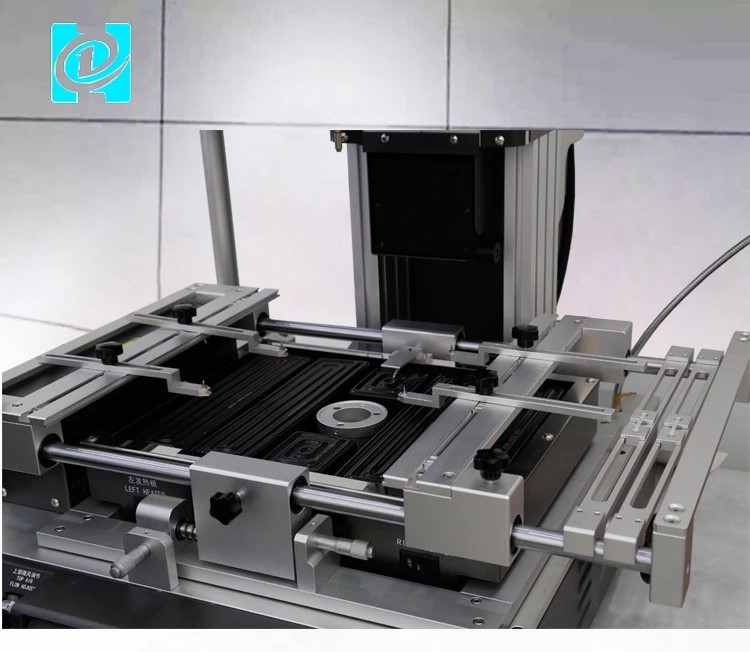

PCB Positioning

V-groove, PCB boards tuaj yeem hloov kho hauv X, Y axis thiab nruab nrog universal fixture

6. Ntim & Xa & Kev Pabcuam ntawm G600 BGA REWORK STATION

Kev xaiv xa khoom

◆ Cov qauv yuav raug xa tuaj tsis pub dhau 5 hnub ua haujlwm tom qab tau txais cov nyiaj them tag nrho. 7-15 hnub rau kev txiav txim ntau. ◆ Shipping Los ntawm DHL, FedEx, TNT, EMS, thiab UPS nthuav qhia. Kev xa khoom los ntawm hiav txwv kuj muaj.

7. FAQ ntawm G600 BGA REWORK STATION

Q: Muaj pes tsawg hnub peb tuaj yeem tau txais cov tshuab? Muaj pes tsawg txoj kev xa tuaj peb tuaj yeem xaiv?

A: Peb tuaj yeem xa cov tshuab hauv 2-3 hnub tom qab them tag nrho tab sis lub sijhawm tshwj xeeb txiav txim siab los ntawm kev xa khoom

txoj kev koj xaiv.

3-7 hnub los ntawm DHL, Fedex, UPS, thiab lwm yam (Qhov Rooj Rau Qhov Rooj)

3-5 hnub los ntawm Cua rau koj lub tshav dav hlau (Qhov Rooj rau Tshav Dav Hlau Kev Pabcuam)

25-35 hnub los ntawm Hiav Txwv mus rau qhov chaw nres nkoj hiav txwv (Chaw nres nkoj rau Chaw Nres Nkoj)

Q: Koj puas muab warranty? Yuav ua li cas txog qhov kev pab cuam tom qab muag?

A: Peb muaj pab pawg tshaj lij tom qab muag, thiab peb muab ib lub xyoo lav dawb rau cov khoom seem thiab kev txhawb nqa lub neej.

Yog tias koj muaj lus nug, thov hu rau peb dawb.

Q: Nws puas yooj yim rau kev khiav lag luam BGA rework chaw nres tsheb? Koj puas muab phau ntawv siv los pab peb?

A: Yog, peb yuav muab cov lus Askiv siv phau ntawv. Lub tshuab yog humanized thiab tsim, yog li tsis txhob txhawj, thiab nws yooj yim rau kev khiav lag luam.
