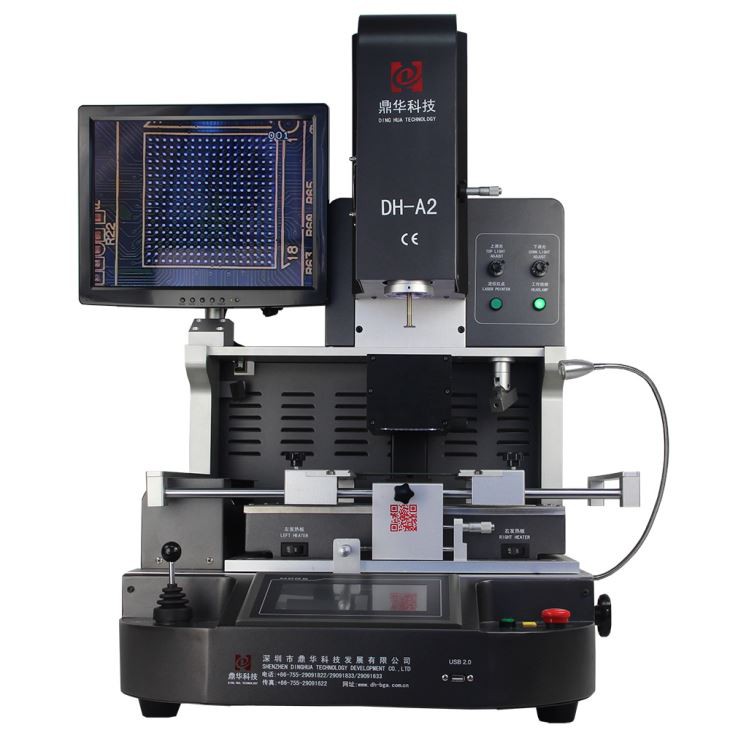

Semi-auto Optical BGA Rework Tshuab
1. Khoom Taw qhia Cov khoom siv ntau yam tuaj yeem ua haujlwm ntawm qhov kev txhawb nqa dav rau kev lag luam loj thiab me me hauv Circuit Court boards, suav nrog 01005 Cheebtsam Tswj koj cov profiles kom dawb do Ob Mega Pixels Full HD Lub Koob Yees Duab nrog 15 Nti LCD Zaub Rau Kev Pom Kev Yooj Yim Kev sib tw...
Hauj lwm lawm
1.Khoom Taw Qhia
Multi-functional profiles tuaj yeem ua haujlwm ntawm kev txhawb nqa dav rau kev lag luam loj thiab me me
Circuit boards, suav nrog 01005 Cheebtsam
Tswj koj cov profiles kom dawb do.
Ob lub Mega Pixels Full HD Lub Koob Yees Duab nrog 15 Nti LCD Zaub Rau Kev Pom Kev Yooj Yim Yooj Yim
Kaum Lub Sijhawm txhim kho Sampling Accuracy Temperature Control
Ua-nyob rau hauv high-power, high-response heaters
2.Khoom Specifications
| Dimensions (W x D x H) mm | 660x620x850 |
| Qhov hnyav hauv kg | 70 |
| Antistatic Design (y/n) | Y |
| Lub zog ntsuas hauv W | 5300 |
| Nominal voltage nyob rau hauv V AC | 220 |
| Sab saum toj cua sov | Cua kub 1200w |
| Tsawg cua sov | Cua kub 1200w |
| Preheating cheeb tsam | Infrared 2700w, loj 250x330mm |
| PCB loj hauv mm | 20 x 20 rau 370 x 410 (+ x) |
| Cov khoom loj hauv mm | 1 x 1-80 x 80 |
| Kev ua haujlwm | 7 nti built-in kov npo, 800 * 480 daws teeb meem |
| Test cim | CE |
Cov khoom siv
DH-A2 yog qhov chaw ua haujlwm puv ntoob, nrog rau nws txoj kev lag luam ua kev tswj qhov kub thiab txias
optical alignment system, nws yog tsim los ua kom tau raws li qhov xav tau ntawm cov tiam tam sim no thiab lwm tiam ele-
ctric Circuit board nti qib kho.

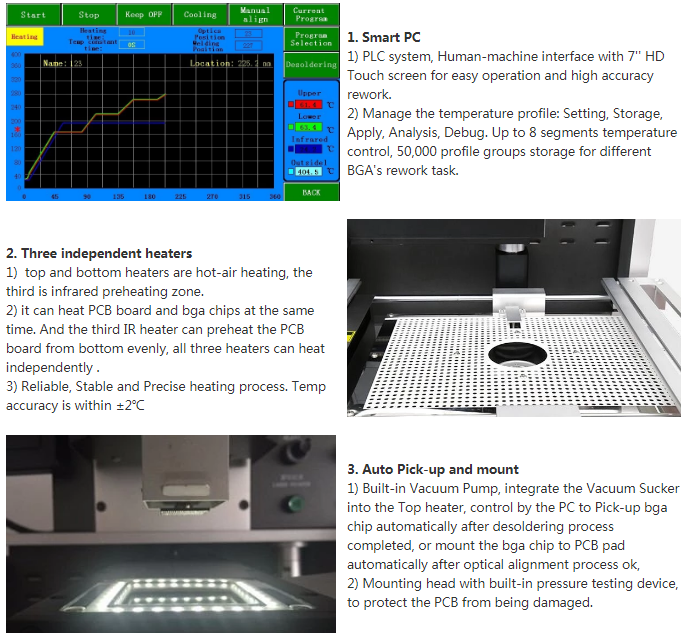

3.Product details

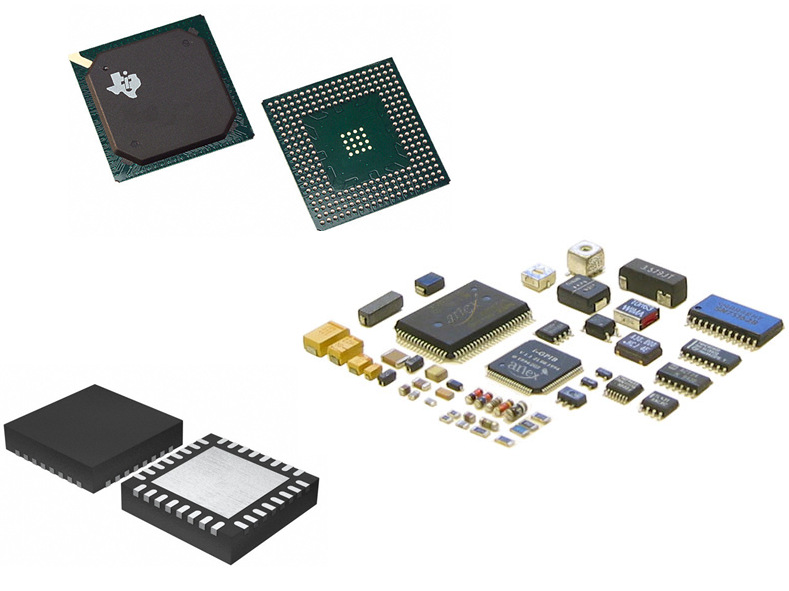

4.Cov khoom tsim nyog
5.Peb cov kev pabcuam
Dinghua Rework Systems xyuas kom muaj kev kho cov khoom siv hluav taws xob thiab tiv thaiv tus nqi ntxiv rau
nws cov neeg siv. Kev ua haujlwm ntawm kev tshem tawm, kev tso kawm thiab resoldering txhua yam ntawm SMD Cheebtsam tuaj yeem yooj yim thiab nrawm
tau kawm los ntawm txhua tus neeg siv.
6. Yuav ua li cas tsis siv neeg BGA rework chaw nres tsheb:
