Los ntawm txhais tes Optical BGA Rework Tshuab
Optical bga rework tshuab 1. Ceev saib ua ntej: Peb muab DH-G600 nrog kev ua tau zoo dua. Yog tias koj tab tom nrhiav bga rework chaw nres tsheb rau kev kho lub xov tooj ntawm tes, ua kev zoo siab! Koj tau pom thawj lub Hoobkas -- Dinghua Tech. Peb lub Hoobkas yuav yog qhov zoo tshaj plaws ntawm BGA rework chaw nres tsheb hauv Suav teb.
Hauj lwm lawm
Optical bga rework tshuab
1. Ceev saib ua ntej:
Peb muab DH-G600 nrog kev ua tau zoo dua.
Yog tias koj tab tom nrhiav bga rework chaw nres tsheb rau kev kho lub xov tooj ntawm tes, ua kev zoo siab! Koj twb nrhiav tau lub Hoobkas thawj
-- Dinghua Tech. Peb lub Hoobkas yuav yog qhov zoo tshaj plaws ntawm BGA rework chaw nres tsheb mfg.Peb cia siab tias yuav dhau los ua koj pab neeg ntev
tus khub hauv Suav teb.
Khoom parameter | |
Khoom npe | soldering thiab desolding tshuab |
Tag nrho lub zog | 5300W |
cua sov sab saum toj | 1200w |
cua sov hauv qab | Hauv qab cua kub cua sov 1200W, IR preheating 2700W |
Hwj chim | 220V 50HZ / 60HZ Cov |
Qhov chaw | V-groove, PCB boards tuaj yeem hloov kho hauv X, Y axis thiab nruab nrog universal fixture |
Kev tswj qhov kub thiab txias | K-hom, kaw lub voj |
PCB loj | Max 400x380mm, Min 22x22mm |
Chip loj | 2 x 2-50 x 50 mm |
Yam tsawg kawg ntawm nti sib nrug | 0.15 hli |
Sab nraud kub sensor | 1 (yeem) |
N.W. | cav 60kg |
Tsim nyog motherboards | mobile xov tooj, laptop, desktop, game console, XBOX360, PS3 |
3. Khoom Nta thiab daim ntawv thov ntawm DH-G600 BGA rework chaw nres tsheb
Lub ntsiab nta
1). Imported rhaub, siab zoo, ruaj.
2). Taiwan infrared preheating ceramic phaj, iav tiv thaiv.
3). Txais ob thaj chaw cua sov, lub tshuab cua sov sab saud yog cua sov infrared, qis cua sov yog infrared preheat cheeb tsam.
4). K hom kaw voj tswj, qhov tseeb qhov kub yuav nyob ntawm ± 2 degree
5). Nrog sab nraud sensor connector, detech qhov tseeb kub thaum cua sov.
6). Lub zog hluav taws xob hla lub kiv cua txias, tiv thaiv PCB los ntawm deformation.
7). Suab hint system: muaj lub suab ceeb toom 5s-10s ua ntej ua kom tiav cua sov, kom tus neeg teb xov tooj npaj.
8). Kev ntsuas kev ruaj ntseg: overheat guard thiab thaum muaj xwm ceev nres muaj nuj nqi
DH-G600 BGA Rework Chaw Nres Nkoj Daim Ntawv Thov:
Siv rau kev sib dhos hluav taws xob thiab tsim khoom hauv kev rov ua haujlwm thiab tswj kev ua haujlwm.
High stability PCB, SMD Cheebtsam tshem tawm / mount, reflow chaw nres tsheb.
Tshem tawm / mount cov khoom ntawm PBGA, UBGA, CSP, PLCC, QFP, SOJ, MSP, SOP, thiab lwm yam.
Haum rau qhov loj ntawm PCB.
⇒ Kho Laptop / Notebook / Computer motherboard kho.
⇒ Playstation / XBOX 360 thiab lwm yam kev ua si console kho.
⇒ Iphone 4/4s/5/5s motherboard kho.
⇒ Kho TV / Video / iPad mainboard kho.
⇒ SMD / SMT / IC BGA rework
Vim li cas thiaj xaiv DH-G600 BGA rework chaw nres tsheb?

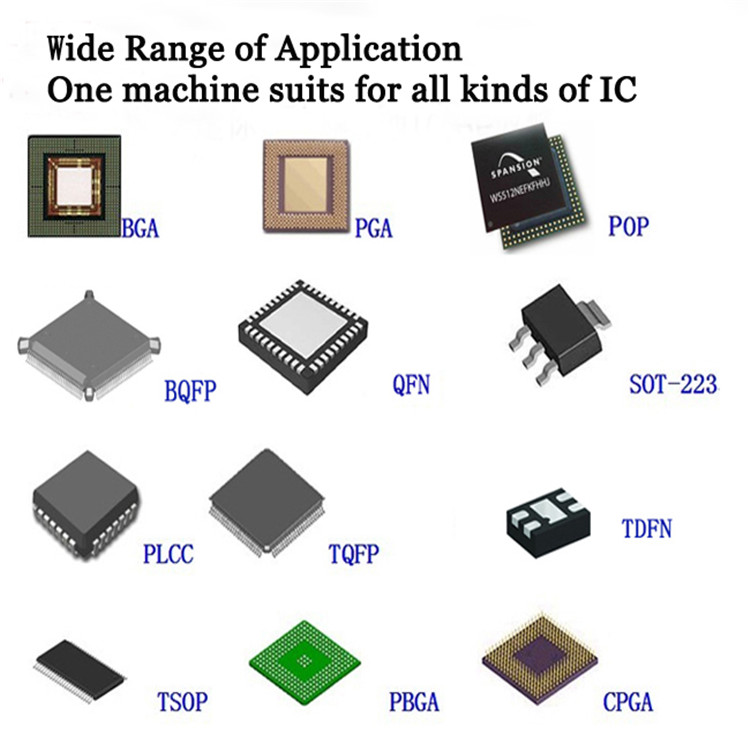

Ib qho zoo tshaj plaws ntawm DH-G600 BGA rework Chaw nres tsheb yog tias nws haum nrog txhua yam ntawm IC, suav nrog
tab sis tsis txwv rau BGA, PGA, POP, BQFP, QFN thiab lwm yam. Kev yuav ib lub tshuab tuaj yeem ua tau raws li tag nrho koj cov damands ntawm IC
kho thiab hloov BGA.

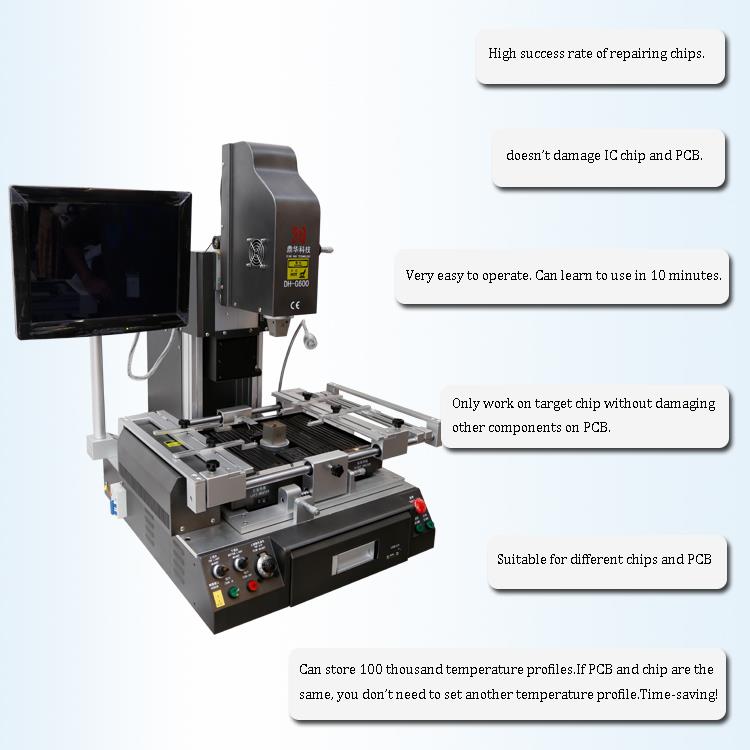

4.Cov duab nthuav dav ntawm G600 BGA REWORK STATION
Phau ntawv kho qhov muag BGA rework tshuab yog cov cuab yeej tshwj xeeb siv los kho lossis hloov pob kab sib chaws (BGA)
Cheebtsam ntawm electronic circuit boards. Nws feem ntau suav nrog lub siab daws teeb meem kho qhov muag uas tso cai rau tech-
nicians kom pom kev kuaj xyuas lub rooj tsavxwm thiab BGA tivthaiv, nrog rau cov khoom cua sov thiab lub tshuab nqus tsev
tshem tawm thiab hloov BGA. Qhov "manual" nam yog hais txog qhov tseeb hais tias tus kws kho mob yuav tsum manually ua-
roll lub tshuab cua sov thiab cua txias thiab kev txav ntawm cov khoom siv, tsis yog kev cia siab rau nws pib-
software sib txawv.
4. Tuam txhab Profile
Qee cov duab ntawm peb lub Hoobkas thiab BGA rework chaw nres tsheb

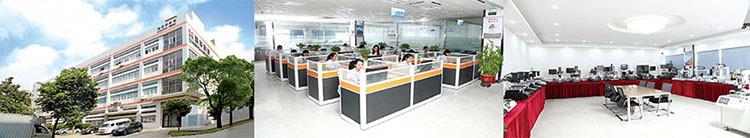

Chaw ua haujlwm
Cov kab tsim khoom
5.CE Certification raws li hauv qab no
Ib feem ntawm peb Cov Neeg Siv Khoom
6. Ntim & Xa & Kev Pabcuam ntawm G600 BGA REWORK STATION
