Optical North Choj BGA Rework Tshuab
Optical sab qaum teb choj bga rework tshuab 1. Ceev saib ua ntej: DH-A4D BGA Rework Chaw nres tsheb nrog tus nqi siab dua tau pib lub lim tiam no.With tsim tshiab, peb qhov chaw nres tsheb bga rework kho qhov kev ua tiav tau nce mus txog 99.9 feem pua .Peb mob siab rau peb tus kheej rau bga rework chaw nres tsheb rau ntau tshaj 10 xyoo.
Hauj lwm lawm
Optical qaum teb choj bga rework tshuab
1. Specification
Tag Nrho Lub Zog | 6800W |
Lub tshuab cua sov sab saum toj | 1200W |
Hauv qab rhaub | 2nd 1200W, 3rd IR rhaub 4200W |
Hwj chim | AC220V ± 10% 50Hz |
Optical CCD lub koob yees duab lens | Pem hauv ntej / rov qab, sab xis / sab laug ntawm tes |
Chip feeder | tsis siv neeg |

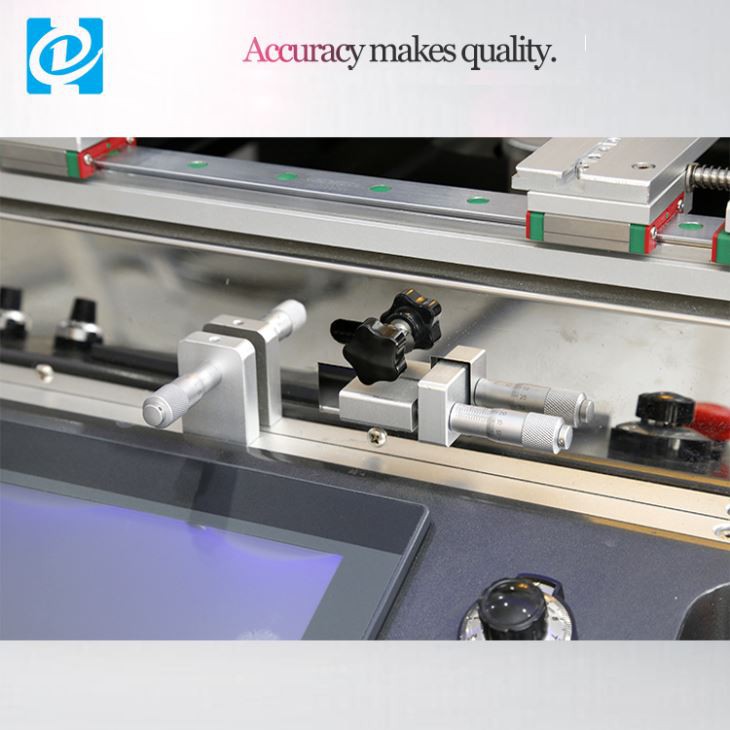

Workbench fine-tuning: | ± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug |
Qhov tseeb qhov chaw: | ± 0.01 hli |
Temp raug | ± 1 degree |
PCB loj | Max 530 × 490 mm Min 22 × 22 mm |
BGA chip | 2 x 2 - 80 x 80 mm |
Yam tsawg kawg ntawm nti sib nrug | 0.15 hli |
Sab nraud temper sensor | 4pc ua |

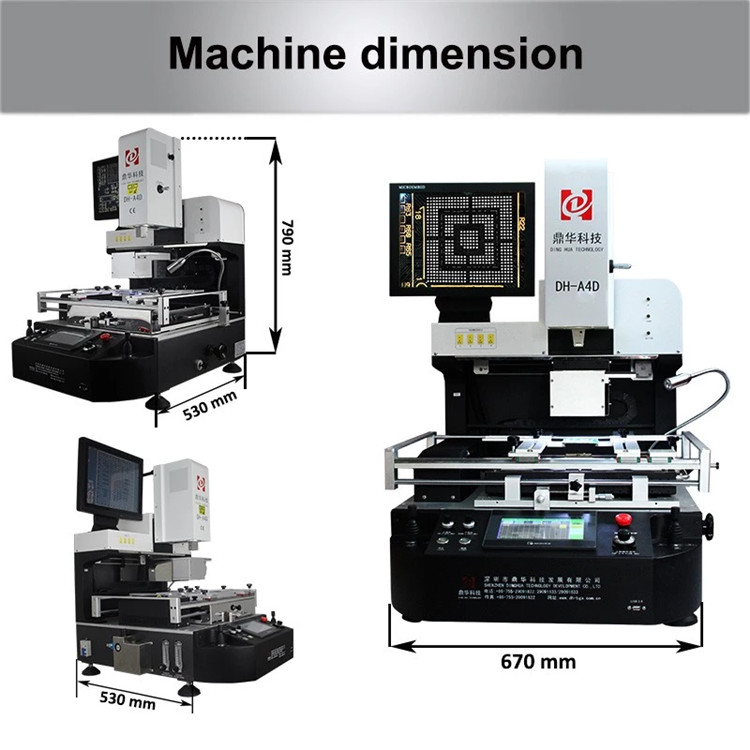

Tshuab Dimensions | 780 x 740 x 890 mm |
Net nyhav | 9 7 Kg |
Qhov hnyav tag nrho | 140 KG |
Packing Dimension | 118 * 86 * 121 hli |
2.Product Nta thiab qhov zoo ntawm DH-A4D BGA rework chaw nres tsheb
DH-A4D BGA Rework Chaw nres tsheb Lub ntsiab nta:
1.Precise kub tswj thiab cua sov raug rau reworking ntau hom BGAs.
2.Advanced optical alignment system nrog lub koob yees duab siab CCD rau kev sib raug zoo
thiab muab tso rau ntawm BGA Cheebtsam.
3.Qhov chaw ua haujlwm loj kom haum rau qhov sib txawv ntawm PCBs thiab BGAs.
4.Adjustable cua ntws thiab siab rau kev tswj xyuas cov txheej txheem reflow.
5.Programmable cua sov profiles los txhawb ntau yam BGA rework daim ntaub ntawv.
6.User-phooj ywg interface thiab tswj kev ua haujlwm yooj yim thiab kev ua haujlwm.

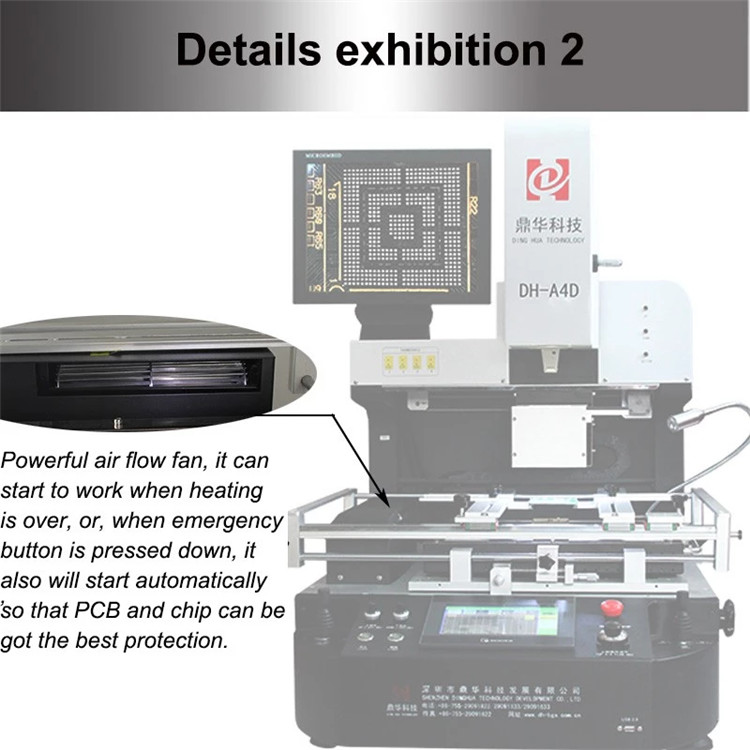

7. Tsis siv neeg txias system los tiv thaiv kev puas tsuaj rau cov khoom tom qab reflow.
3.DH-A4D BGA Rework Chaw nres tsheb ua haujlwm video:

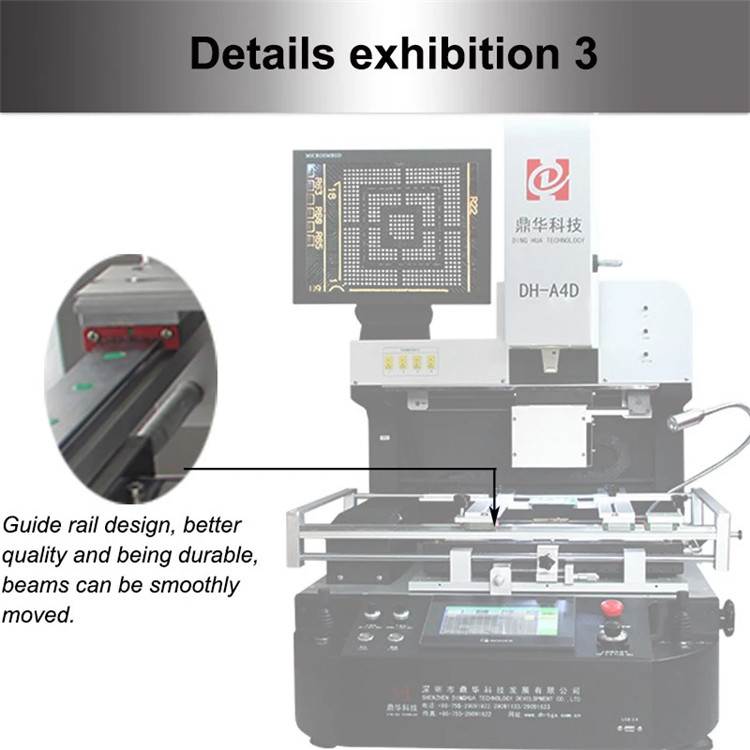

4.Cov duab nthuav dav ntawm A4 BGA REWORK STATION
Lub tshuab kho qhov muag sab qaum teb BGA rework tshuab yog ib qho cuab yeej siv los kho lub khoos phis tawj motherboard los ntawm kev tshem tawm
thiab hloov tus choj qaum teb BGA (Ball Grid Array) tivthaiv. North choj yog ib qho tseem ceeb ntawm lub com-
puter motherboard uas tswj kev sib txuas lus ntawm CPU, nco, thiab lwm yam khoom siv.
Lub tshuab siv lub tshuab kho qhov muag los kho qhov BGA tivthaiv thiab cov khoom siv solder, thiab tom qab ntawd siv cov cua sov rau solder
cov tshiab solder pob rau cov khoom. Lub tshuab kho qhov muag tso cai rau tus neeg teb xov tooj kom ua tiav qhov chaw BGA com-
ponent thiab xyuas kom meej tias cov pob solder yog raug raws nraim.
Cov tshuab no feem ntau yog siv los ntawm txhais tes tshiab thiab cov kws kho tshuab computer uas muaj kev txawj ntse
hauv kev kho cov motherboard. Lawv tuaj yeem ua rau kom muaj txiaj ntsig thiab raug ntawm cov txheej txheem rov ua haujlwm, lawv tuaj yeem ua tau
yuav kim tab sis yooj yim rau kev khiav lag luam.
Lub caij nplooj ntoos hlav ntawm lub platform ntawm BGA rework chaw nres tsheb yog zoo li siv los ua ib lub tswv yim los muab kev hloov siab
thaum lub sij hawm rework txheej txheem, pab kom muaj kev sib raug zoo thiab kev sib cuag ntawm lub platform ua hauj lwm
thiab Circuit Board.
Ib qho optical CCD (Charge-Coupled Device) hauv BGA rework chaw nres tsheb yog hom koob yees duab uas ntes
high-resolution dluab ntawm BGA tivthaiv thiab Circuit Court board thaum lub sij hawm rework txheej txheem. Cov no
dluab tuaj yeem siv rau kev sib dhos thiab kev tshuaj xyuas, tso cai rau tus kws kho mob kom paub tseeb tias qhov kev tso kawm zoo
thiab soldering ntawm BGA tivthaiv.
5.Ib feem ntawm peb cov neeg siv khoom
6. Ntim & Xa & Kev Pabcuam ntawm DH-A4D BGA REWORK STATION

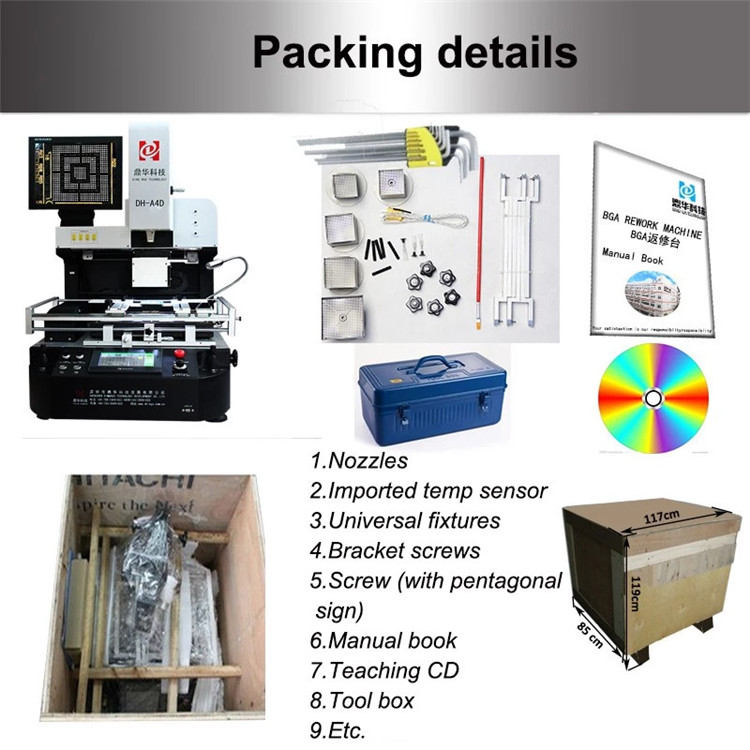

Packing cov ntsiab lus:
Plywood box (tau fumigated),
packing loj: 85 * 119 * 117cm,

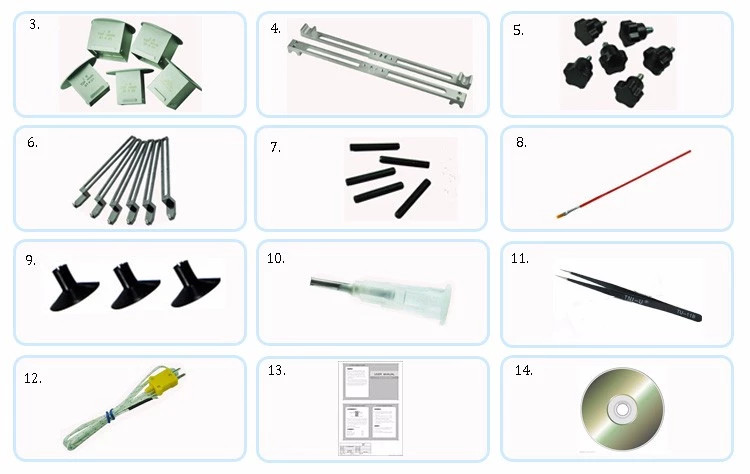

accessories: nozzles, thermocouple,
sab hauv hexagan spanners thiab kev qhia
CD lwm.
Delivery cov ntsiab lus,
Los ntawm DHL, TNT, FEDEX, Cua shipping, Hiav txwv shipping thiab av thauj thiab lwm yam. noj 3 ~ 30 hnub los txog ntawm
lo lus uas peb raws li txawv shipping txoj kev.
7. FAQ
Q1: Koj puas muab warranty? Yuav ua li cas txog qhov kev pab cuam tom qab muag?
A: Peb muaj pab pawg tshaj lij tom qab muag, thiab peb muab ib lub xyoo lav dawb rau cov khoom seem thiab lub neej
kev txhawb nqa.
Yog tias koj muaj lus nug, thov hu rau peb dawb.
Q2: Nws puas yooj yim rau kev khiav lag luam BGA rework chaw nres tsheb? Koj puas muab phau ntawv siv los pab peb?
A: Yog, peb yuav muab cov lus Askiv siv phau ntawv.Lub tshuab yog humanized tsim, yog li tsis txhob txhawj, thiab nws yog
yooj yim rau kev khiav lag luam.
Q3: Txoj kev them nyiaj yog dab tsi?
Peb lees txais cov nqe lus them nqi: hloov txhab nyiaj hauv txhab nyiaj, Wester Union, Moneygram, Paypal, thiab lwm yam.
8. Kev pabcuam
A.Technology Support: kev tu lub neej; Yog tias koj muaj sijhawm, txais tos rau peb lub tuam txhab, peb yuav npaj en-
giners los qhia koj txog kev ua haujlwm; Lub neej-lub sij hawm kev kawm pub dawb kom paub tseeb tias koj txawj ua haujlwm ntawm no ma-
suav;
B. Kev tshuaj xyuas:
1.Vibrating xeem
Txhua lub tshuab yuav vibrating kuaj xws li tsheb thauj mus los tsawg kawg 24 teev ua ntej xa khoom
2. Kev sim ua haujlwm
Tom qab vibrating kuaj, lub tshuab yuav khiav rau 1 ~ 3 hnub kom paub tseeb tias txhua txoj haujlwm zoo.
3.Qhov zoo
Imported tseem ceeb Cheebtsam, xws li, optical CCD lens, cua sov xov hlau thiab thermocouple thiab lwm yam.
