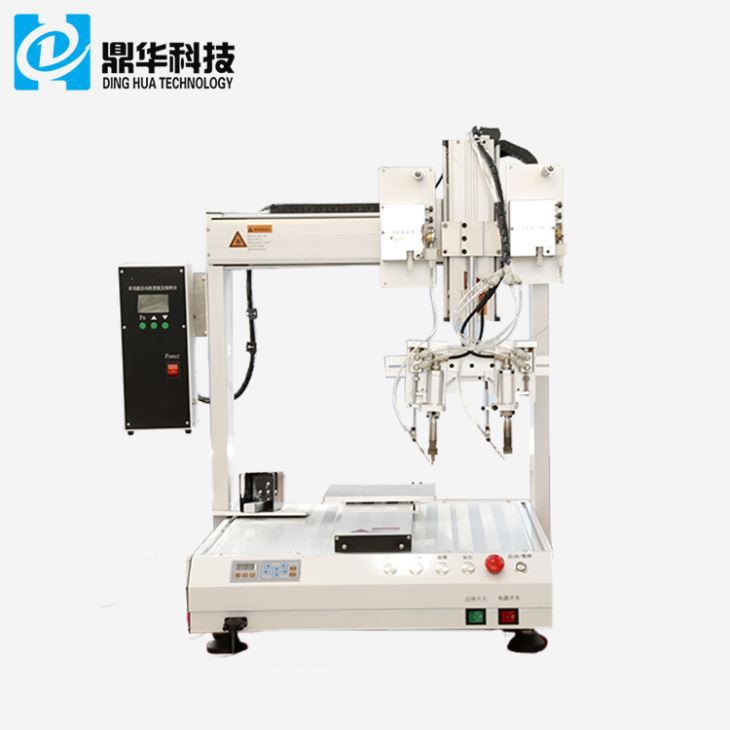

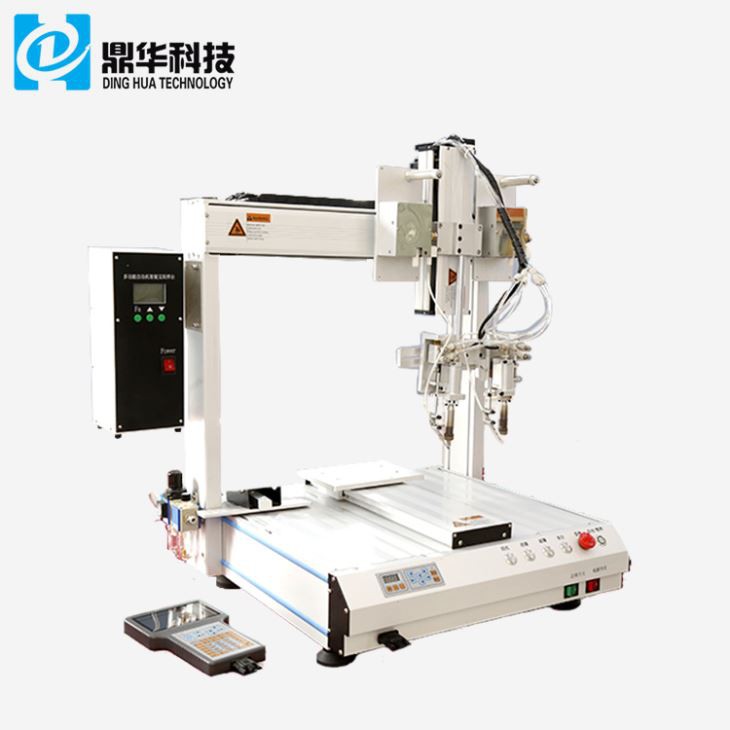

4 Axis Soldering neeg hlau

1. Khoom Taw Qhia

4 Axis Soldering Robot yog ib qho kev siv hluav taws xob siv hluav taws xob uas tsim los rau kev ua haujlwm zoo thiab rov ua dua tshiab hauv cov khoom siv hluav taws xob. Nws hloov cov txheej txheem ntawm cov txheej txheem soldering, txhim kho qhov sib xws, txo cov nqi zog, thiab ua kom cov qib siab - zoo solder pob qij txha.

Lub kaw lus yog tsim rau PCB sib dhos, hlau soldering, connector soldering, LED khoom, automotive electronics, thiab lwm yam kev siv yuav tsum tau ruaj khov soldering zoo.

1. Lub PC tswj 4 axis soldering neeg hlau yog tus qauv tsis siv neeg soldering tshuab nrog thaj chaw ua haujlwm ntawm 500x500mm. Nws tuaj yeem siv rau kev ua haujlwm ib nrab lossis tag nrho automated ntawm xaiv taw tes- mus rau - taw tes soldering los ntawm saum toj no.
2. Lub 4-axis soldering neeg hlau tuaj yeem nruab nrog cov txheej txheem kev tsim kho. Cov no suav nrog cov hlau nplaum, inductio, n thiab micro nplaim taws.
3. Lub 3 los yog 4 axes ntawm cov neeg hlau soldering yog tag nrho cov programmable los ntawm cov yeeb yuj HD screen qhia pendant, xws li:
4. solder kom muaj nuj nqis, xaim pub ceev, preheating / postheating lub sij hawm, tsis siv neeg lub taub hau tu lub voj voog ib ntus, thiab lwm yam tsis rau txhua qhov taw tes soldered.
5. Ua tsaug rau nws lub tswv yim hloov tau yooj yim thiab modular, cov neeg hlau soldering muaj qhov qhib architecture. Yog li ntawd nws tuaj yeem yooj yim ua ke rau hauv cov kab ntau lawm nrog pallet conveyors lossis lub rooj teb.
6. Lub tshuab soldering muab cov txheej txheem automation daws nrog qhov zoo tshaj plaws thiab rov ua dua tshiab rau txhua tus neeg siv khoom tshwj xeeb.

2. Tsis muaj

3. Nta

1. Ntau hom Soldering

Txhawb point soldering, luag soldering, hlau soldering, thiab customized soldering txheej txheem rau ntau yam hluav taws xob sib dhos.

2. Tsis siv neeg Ntsis tu
Qhov tsis siv neeg lub taub hau tu muaj nuj nqi pab tswj kev ua haujlwm zoo thiab txuas ntxiv lub neej ntev ntawm kev ua haujlwm.

3. High Precision Motion Control
Lub 4-axis tsab ntawv tsa suab muab qhov tseeb qhov chaw thiab rov ua dua cov txiaj ntsig, txo qhov tsis xws luag los ntawm kev tuav haujlwm.

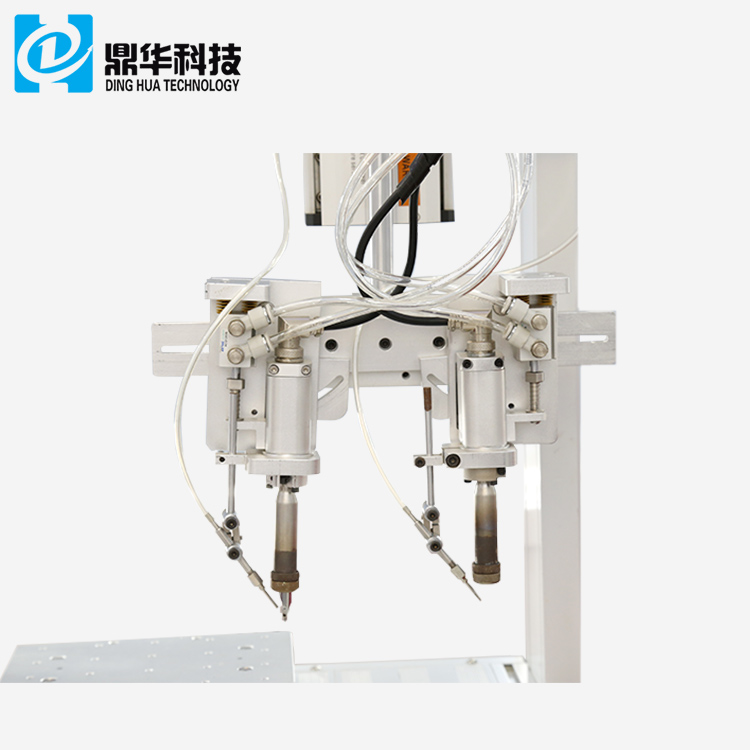

4. Dual Head Configuration
Kev xaiv dual soldering hau tuaj yeem ua haujlwm ib txhij, txhim kho kev ua haujlwm ntau lawm.

5. Tus neeg siv-Kev Pabcuam Tus phooj ywg

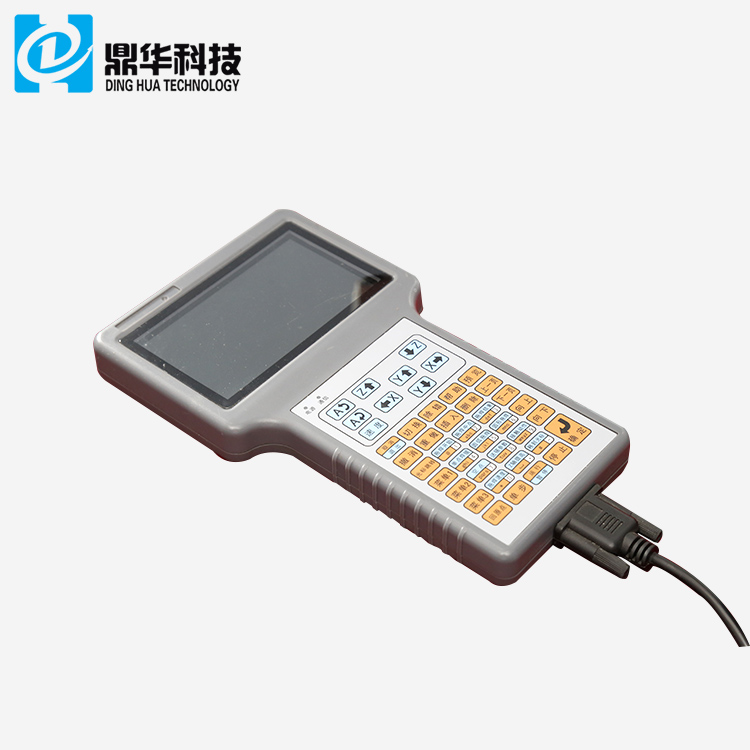

Cov neeg ua haujlwm tau yooj yim tsim thiab hloov kho cov kev pab cuam los ntawm kev qhia pendant interface yam tsis muaj kev paub txog kev ua haujlwm siab.

4. Paub meej

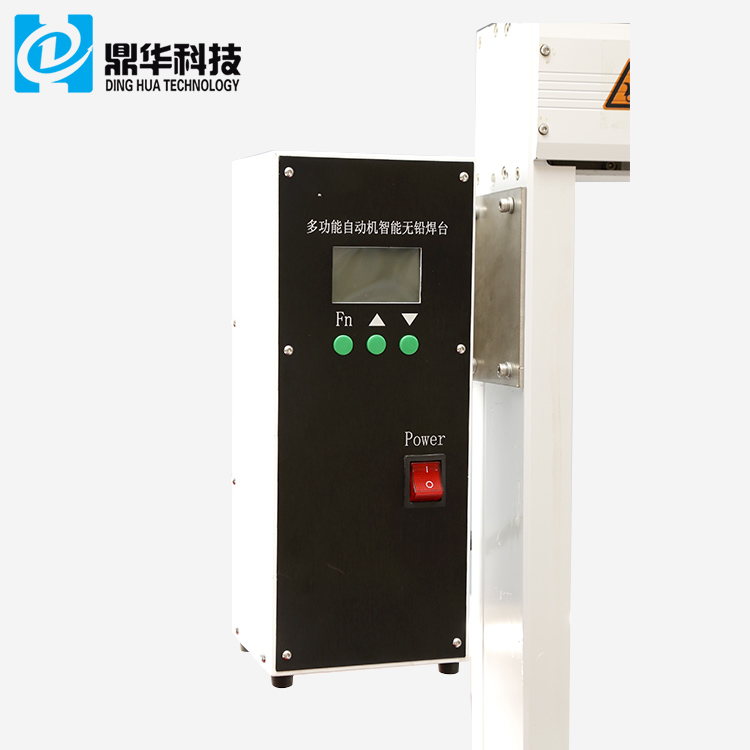

1. Yooj yim heev los teeb qhov kub thiab txias raws li qhov sib txawv solder, precisely Tswj qhov kub thiab txias

thaum lub sij hawm tag nrho soldering.

2. RTC + TM, ceev kub cua sov thiab txias, ua haujlwm zoo, thiab tsis muaj kev puas tsuaj rau cov khoom.

3. Nws pib lub taub hau huv si, lub sij hawm thiab zaus tuaj yeem teem tau yooj yim.

Daim ntawv thov

PCB Assembly
Tsis siv neeg soldering ntawm - qhov thiab nto -mount hluav taws xob cov khoom.

Hlau Harness Manufacturing
Txhim khu kev qha hlau thiab cable soldering nrog zoo ib yam.

Connector Assembly
Precise soldering ntawm connectors thiab terminals.

LED kev tsim khoom
Ua haujlwm zoo rau LED strips, modules, thiab cov khoom siv teeb pom kev zoo.

Automotive Electronics
Siab -kev ntseeg tau soldering rau automotive tswj systems thiab sensors.

Consumer Electronics
Kev tsim khoom loj ntawm cov khoom siv hluav taws xob yuav tsum tau ua kom zoo sib xws.

FAQ

1): Txoj kev xa khoom yog dab tsi?
Teb: Cov no yog tag nrho cov tshuab hnyav; peb xav kom koj siv lub nkoj thauj khoom. Tab sis cov khoom siv kho cov tshuab,

huab cua kev thauj mus los yuav zoo.

2): Kev cob qhia zoo li cas?
Tom qab yuav peb cov tshuab, koj cov engineers tuaj yeem mus rau peb lub tuam txhab lossis peb cov engineers mus rau koj lub Hoobkas yog tias xav tau.

thiab peb yuav cob qhia lawv siv cov tshuab no.

3): Puas yog siv cov tshuab no nyuaj?
Teb: Tsis yog, tsis nyuaj txhua. Rau peb cov neeg siv khoom dhau los, feem ntau 2 hnub yog txaus los kawm ua haujlwm ntawm cov tshuab.

4): Koj lub tshuab puas muaj daim ntawv pov thawj zoo?
Teb: Tag nrho peb cov tshuab tau dhau daim ntawv pov thawj CE, ISO14001 (BCC), ISO9001 (IQNET) thiab muaj tus kheej patent.



5) Dab tsi yog 4 Axis Soldering Robot siv rau?
A 4 Axis Soldering Robot yog siv rau kev siv lub tshuab hluav taws xob ntawm PCBs, cov khoom sib txuas, cov xov hlau, LEDs, thiab cov khoom siv hluav taws xob uas xav tau siab precision thiab rov ua dua.



6) Dab tsi ntawm soldering tus neeg hlau ua tau?
Lub kaw lus txhawb nqa point soldering, luag soldering, hlau soldering, thiab customized soldering txheej txheem rau ntau daim ntawv thov.



7) Cov neeg hlau puas tuaj yeem hloov tau phau ntawv soldering?
Yog lawm. Cov neeg hlau tuaj yeem txo qis kev siv zog thaum txhim kho kev sib xws thiab kev ua haujlwm ntau lawm.
