IR Kov Screen BGA Rework Tshuab

IR kov screen bga rework tshuab ceev saib ua ntej:

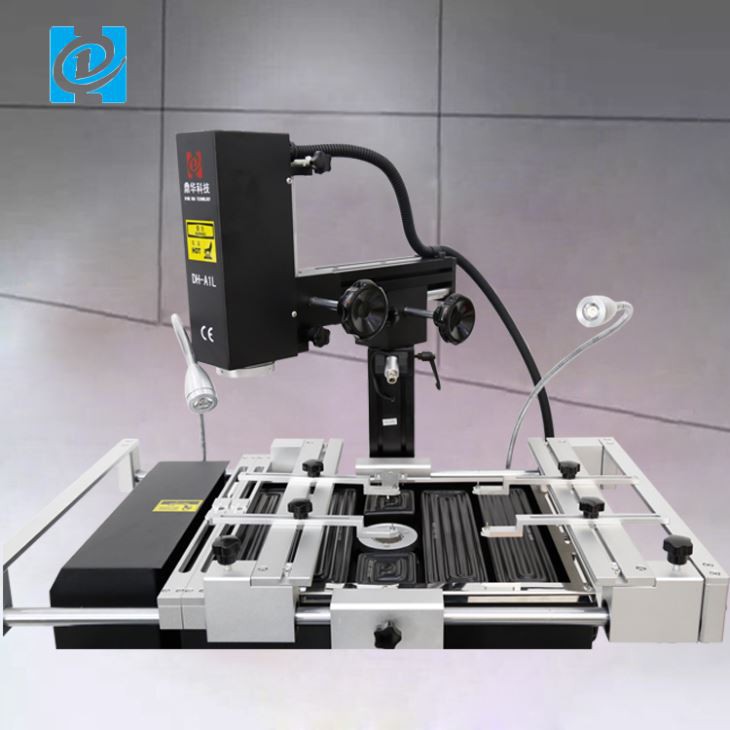

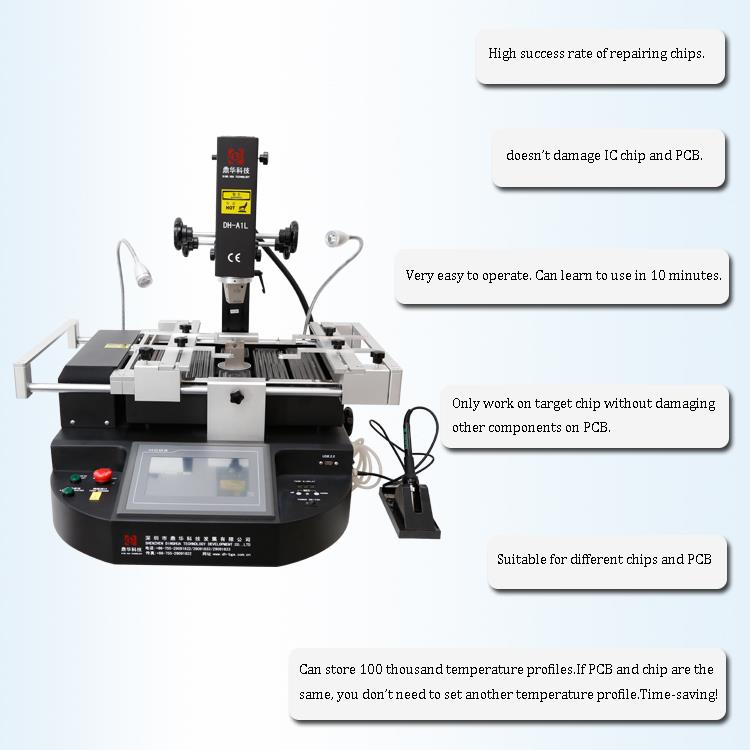

DH-A1L SMD REWORK MACHINE yog eqiupped nrog laser positioning muaj nuj nqi, tuaj yeem ceev txoj hauj lwm ntawm BGA Chip

thiab motherboard.Yog tias koj tab tom nrhiav bga rework chaw nres tsheb rau kev kho lub xov tooj ntawm tes, ua kev zoo siab! Koj nrhiav tau

thawj lub Hoobkas. Dinghua, tej zaum yuav yog lub npe zoo tshaj plaws ntawm bga rework chaw nres tsheb thoob ntiaj teb.



1. Specification



Specification
1	Hwj chim	4900W
2	Lub tshuab cua sov sab saum toj	Cua kub 800W
3	Hauv qab rhaub Hlau rhaub	Cua kub 1200W, Infrared 2800W 90w
4	Fais fab mov	AC220V ± 10% 50 / 60Hz
5	Dimension	640 * 730 * 580 hli
6	Qhov chaw	V-groove, kev txhawb nqa PCB tuaj yeem hloov kho rau txhua qhov kev taw qhia nrog rau sab nraud universal fixture
7	Kev tswj qhov kub thiab txias	K hom thermocouple, kaw voj tswj, ywj siab cua sov
8	Temp raug	± 2 degrees
9	PCB loj	Max 500 * 400 mm Min 22 * ​​22 mm
10	BGA chip	2 * 2-80} * 80 hli
11	Yam tsawg kawg ntawm nti sib nrug	0.15 hli
12	Sab nraud Temperature Sensor	1 (yeem)
13	Net nyhav	45kg ua



2.Application ntawm DH-A1L BGA rework chaw nres tsheb

Daim ntawv thov siv rau BGA Rework Chaw nres tsheb

BGA rework chaw nres tsheb muaj ntau daim ntawv thov sib txawv nyob rau hauv lub ntiaj teb no ntawm PCB kho thiab hloov. Nov yog ob peb ntawm

feem ntau siv.

Kev Txhim Kho: Kev hloov kho dua tshiab yog ib qho laj thawj tshaj plaws rau kev rov ua haujlwm dua. Cov kws kho mob yuav tsum tau sib pauv cov khoom los yog ntxiv

upgraded cov khoom rau PCB.

Faulty Parts: PCBs tuaj yeem muaj ntau yam faulty qhov chaw uas yuav tsum tau ua dua tshiab. Piv txwv li, cov ntaub qhwv tuaj yeem raug puas thaum lub sijhawm

Kev tshem tawm BGA, txhua qhov chaw tuaj yeem raug cua sov lossis tuaj yeem muaj ntau qhov sib koom ua ke.

Faulty assembly: Muaj ntau qhov yuam kev tuaj yeem tshwm sim thaum lub sijhawm rov ua haujlwm. Piv txwv li, PCB tej zaum yuav tsis raug

BGA orientation los yog ib tug tsis zoo tsim BGA rework thermal profile. Yog tias qhov no yog qhov teeb meem, PCB yuav zoo li yuav tsum tau ua

ntxiv rework los daws qhov faulty los ua ke.



3.Vim li cas koj yuav tsum xaiv DH-A1L BGA rework chaw nres tsheb?





4. Kev Paub Txog:

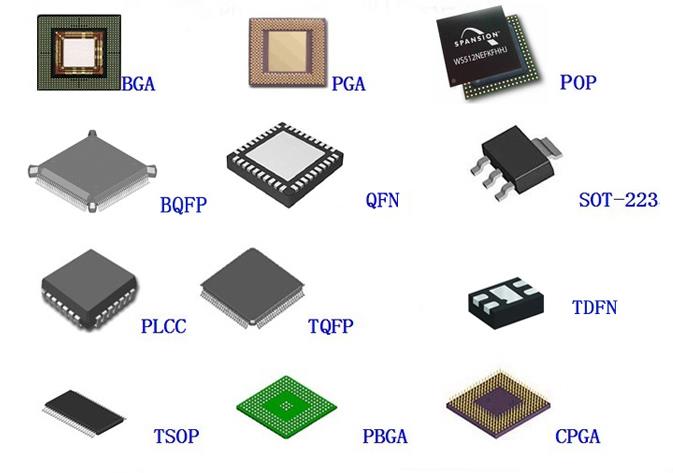

Ib lub pob kab sib chaws (BGA) yog ib hom ntim ntim ntim (ib lub thawv ntim khoom) siv rau kev sib xyaw ua ke. BGA

cov pob khoom siv los txuas mus tas li xws li microprocessors. BGA tuaj yeem muab kev sib txuas ntau dua

pins tshaj tuaj yeem muab tso rau ntawm ob sab hauv kab lossis pob tiaj tus. Tag nrho hauv qab ntawm lub cuab yeej siv tau, tsis yog

tsuas yog ib puag ncig. Cov coj kuj nyob rau nruab nrab luv dua nrog ib puag ncig-tsuas yog hom, ua rau kev ua tau zoo dua

ntawm kev kub ceev.



Soldering ntawm BGA li yuav tsum tau tswj kom meej thiab feem ntau yog ua los ntawm cov txheej txheem automated. Cov khoom siv BGA tsis haum

rau qhov (socket) mounting.

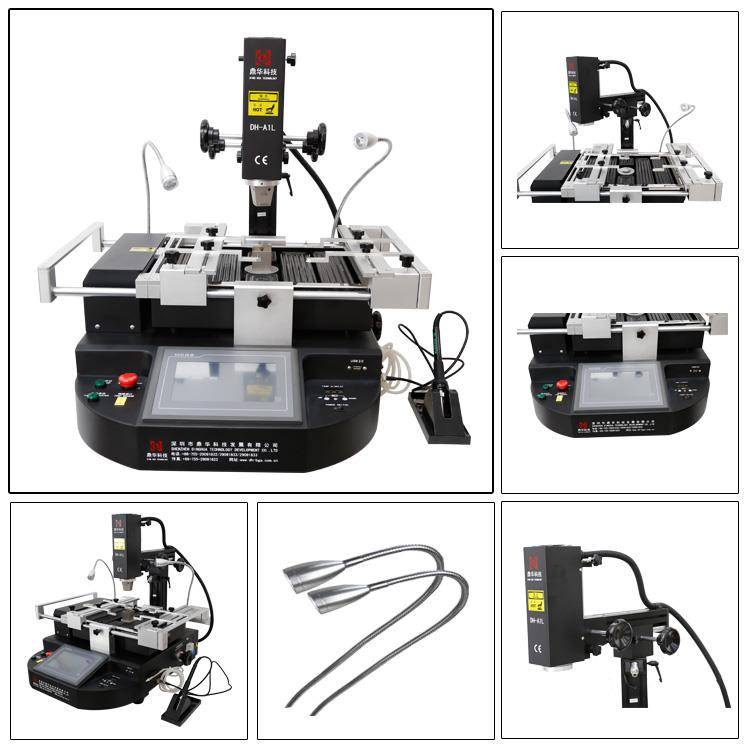

5.Cov duab nthuav dav ntawm DH-A1L BGA REWORK STATION

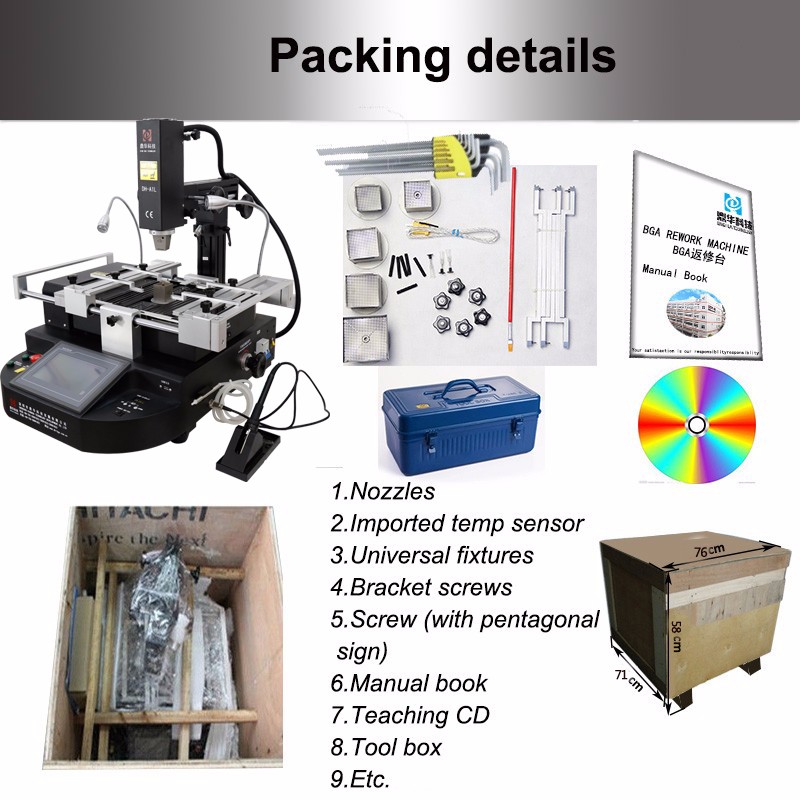

6.Packing & xa cov ntsiab lus ntawm DH-A1L BGA REWORK STATION







Kev xa khoom ntawm DH-A1L BGA REWORK STATION

Shipping:

1.Shipment yuav ua tiav hauv 5 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm.

2. Kev xa khoom ceev ceev los ntawm DHL, FedEX, TNT, UPS thiab lwm txoj hauv kev xws li los ntawm hiav txwv lossis los ntawm huab cua.







8. Yam khoom zoo sib xws

bga rework chaw nres tsheb

mobile kho tshuab

mobile xov tooj BGA chipset rework chaw nres tsheb

ntsiav tshuaj pc chipset rework chaw nres tsheb

router rework chaw nres tsheb

laptop notebook BGA chipset kho qhov system

ntse xov tooj chipset BGA kho soldering system

BGA kho tshuab soldering

BGA chipset vuam tshuab

BGA kho chaw nres tsheb

BGA de-soldering chaw nres tsheb
