Kub Cua Kov Screen BGA Rework Tshuab
Cov cua kub kov lub vijtsam bga rework tshuab ceev saib ua ntej: nqi tshaj tawm! DH-A1L BGA Rework Tshuab nrog cua sov reflow muaj nuj nqi yog tam sim no nyob rau hauv Tshuag. Nrog cov tswv yim tsim qauv zoo dua, peb lub tshuab BGA mounting raug nyob hauv 0.01mm. Peb mob siab rau peb tus kheej rau bga rework & tsis siv neeg ...
Hauj lwm lawm

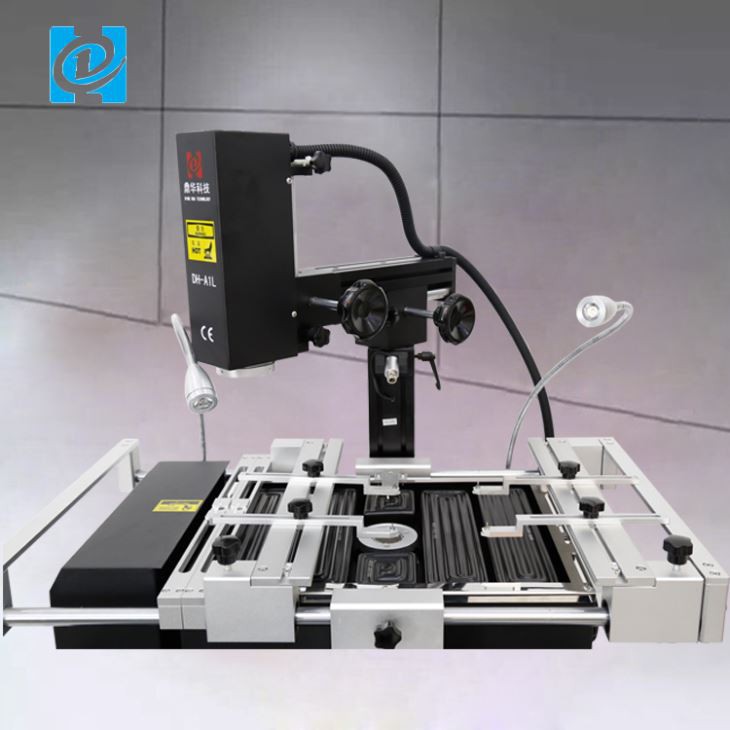

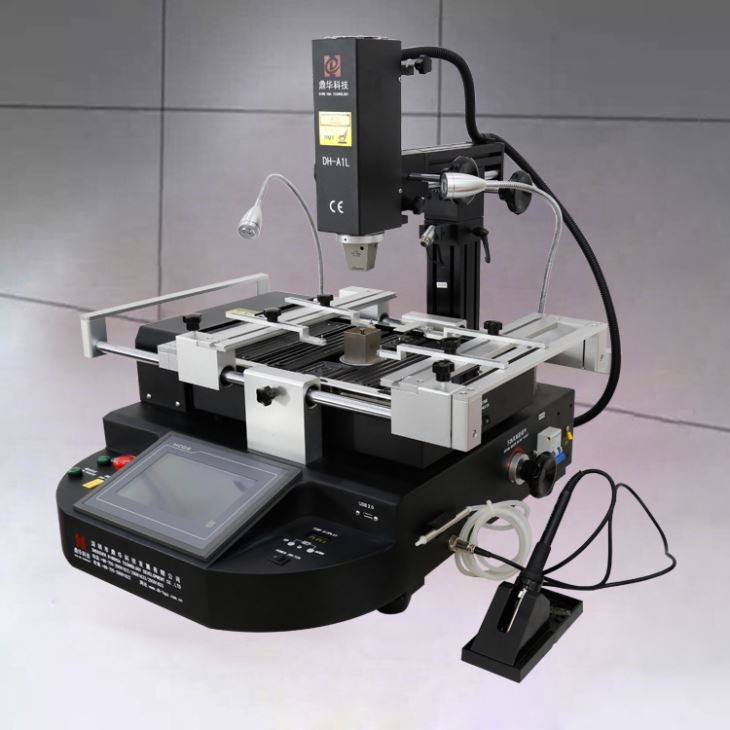

Cua kub kov screen bga rework tshuab
Ceev saib ua ntej:
Promotional nqi! DH-A1L BGA Rework Tshuab nrog cua sov reflow muaj nuj nqi yog tam sim no nyob rau hauv Tshuag. Nrog kev tsim qauv zoo dua
tswv yim, peb lub tshuab BGA mounting raug nyob rau hauv 0.01mm. Peb mob siab rau peb tus kheej rau bga rework & tsis siv neeg
machinery, npog feem ntau ntawm Is Nrias teb, Tebchaws Europe thiab Asmeskas kev lag luam.Peb cia siab tias yuav dhau los ua koj tus khub ntev hauv
Tuam Tshoj.
| Specification | ||
|
1 |
Hwj chim |
4900W |
|
2 |
Lub tshuab cua sov sab saum toj |
Cua kub 800W |
|
3 |
Hauv qab rhaub Hlau rhaub |
Cua kub 1200W, Infrared 2800W 90w |
|
4 |
Fais fab mov |
AC220V ± 10% 50 / 60Hz |
|
5 |
Dimension |
640 * 730 * 580 hli |
|
6 |
Qhov chaw |
V-groove, kev txhawb nqa PCB tuaj yeem hloov kho rau txhua qhov kev taw qhia nrog rau sab nraud universal fixture |
|
7 |
Kev tswj qhov kub thiab txias |
K hom thermocouple, kaw voj tswj, ywj siab cua sov |
|
8 |
Temp raug |
± 2 degrees |
|
9 |
PCB loj |
Max 500 * 400 mm Min 22 * 22 mm |
|
10 |
BGA chip |
2 * 2-80} * 80 hli |
|
11 |
Yam tsawg kawg ntawm nti sib nrug |
0.15 hli |
|
12 |
Sab nraud Temperature Sensor |
1 (yeem) |
|
13 |
Net nyhav |
45kg ua |

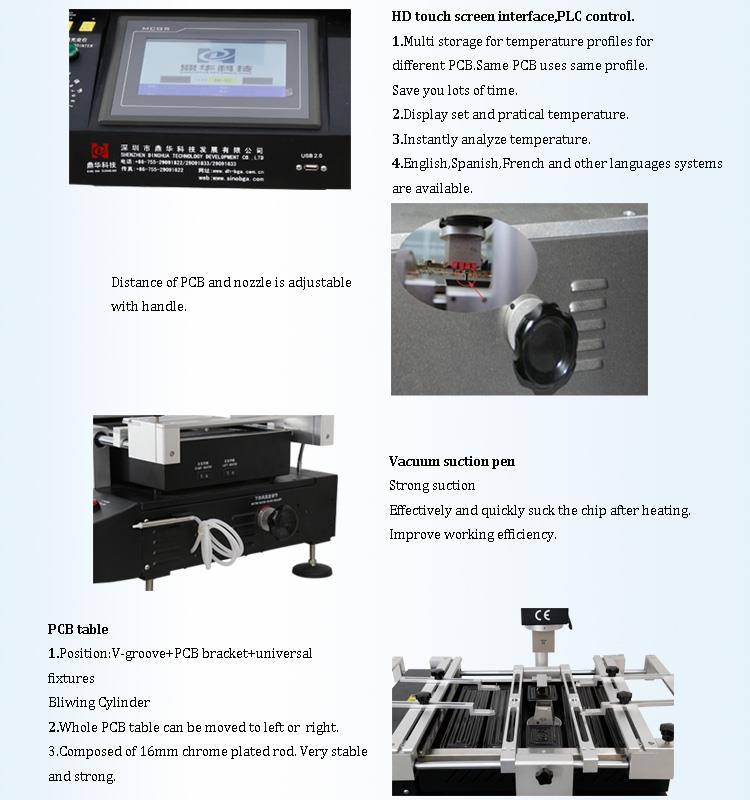

2.Main nta ntawm DH-A1L BGA rework chaw nres tsheb
High txhais kov npo, PLC tswj, tuaj yeem txuag tau ntau pab pawg profile. Qhia lub sijhawm teem sijhawm thiab ntsuas
kub nrog instant kub nkhaus tsom xam muaj nuj nqi. Nws tuaj yeem qhia qhov teeb tsa thiab ntsuas kub.
Txhawm rau hloov thiab txheeb xyuas qhov profile.
High-precision K-hom thermocouple nrog kaw-voj tswj, lub zog tso zis thiab tswj qhov system txais kev sib cais kho qhov muag
tshuab. PID tus kheej-kho qhov system tswj qhov kub kom raug, thiab qhov kub tawm mus yog nyob rau hauv 2 degree.
Lub caij no, cov ntsuas kub sab nraud ua rau lub sijhawm ntsuas kub ntsuas thiab hloov kho tau.
V-groove PCB tuaj yeem hloov kho nyob rau hauv txhua qhov kev taw qhia nrog rau sab nraud universal fixture, haum rau txhua yam ntawm BGA kho.
Saj zawg zog thiab tshem tau universal fixture tuaj yeem tiv thaiv PCB board los ntawm deformation thiab puas, irregular board
tau yooj yim muab tso rau nrog nws.
Muab txhua yam cua kub cua nozzle, nrog 360 degree kev sib hloov; yooj yim rau nruab thiab hloov, customized yog muaj.
Daim ntawv thov
Lub tshuab no yog siv los kho qhov tawg BGA (Ball Grid Array pob) chipset ntawm PCB motherboard.
BGA daim ntawv thov
1.Laptop & desktop PCBA
2.Game console, xws li Xbox ib, Chaw Ua Si Chaw Ua Si 4
3. Txawb xov tooj PCBA
4.TV & TV Set-top box motherboard
5.Server, tshuab luam ntawv, koob yees duab thiab lwm yam motherboard

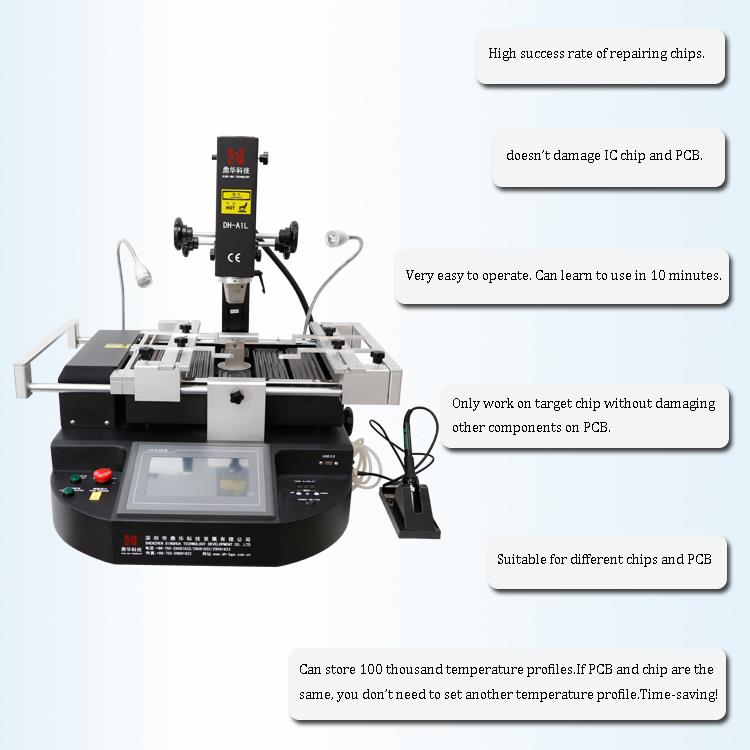

3.Vim li cas koj yuav tsum xaiv DH-A1L BGA rework chaw nres tsheb?
4. Kev Paub Txog:
Qhov zoo ntawm BGA
BGA yog ib qho kev daws teeb meem ntawm kev tsim cov pob me me rau kev sib txuas nrog ntau pua
ntawm pins. Pin grid arrays thiab dual-in-line nto mount (SOIC) pob tau raug tsim nrog ntau thiab ntau tus pins,
thiab nrog txo qhov sib nrug ntawm cov pins, tab sis qhov no ua rau muaj teeb meem rau cov txheej txheem soldering. Raws li pob
pins tau los ze zog ua ke, qhov txaus ntshai ntawm kev sib tsoo cov pins uas nyob ib sab nrog solder loj hlob.
Ib qho txiaj ntsig ntxiv ntawm cov pob BGA tshaj cov pob khoom nrog cov khoom sib cais (piv txwv li pob ntawv nrog ob txhais ceg) yog qhov qis dua thermal
tsis kam ntawm pob thiab PCB. Qhov no tso cai rau cov cua sov tsim los ntawm kev sib xyaw ua ke hauv lub pob
kom ntws yooj yim dua rau PCB, tiv thaiv cov nti los ntawm overheating.
Qhov luv luv tus neeg xyuas pib hluav taws xob, qhov qis dua nws qhov tsis xav tau inductance, cov cuab yeej uas ua rau tsis muaj kev cuam tshuam.
ntawm cov teeb liab hauv high-speed electronic circuits. BGAs, nrog rau lawv qhov deb heev ntawm pob thiab PCB, muaj cov hlau lead inductances tsawg, muab lawv cov hluav taws xob zoo tshaj plaws rau cov khoom siv pinned.

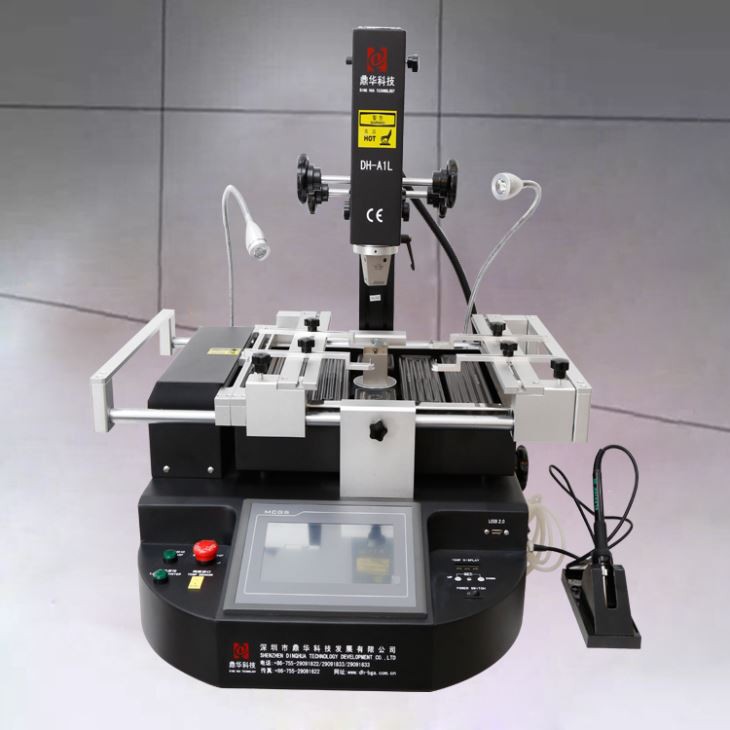

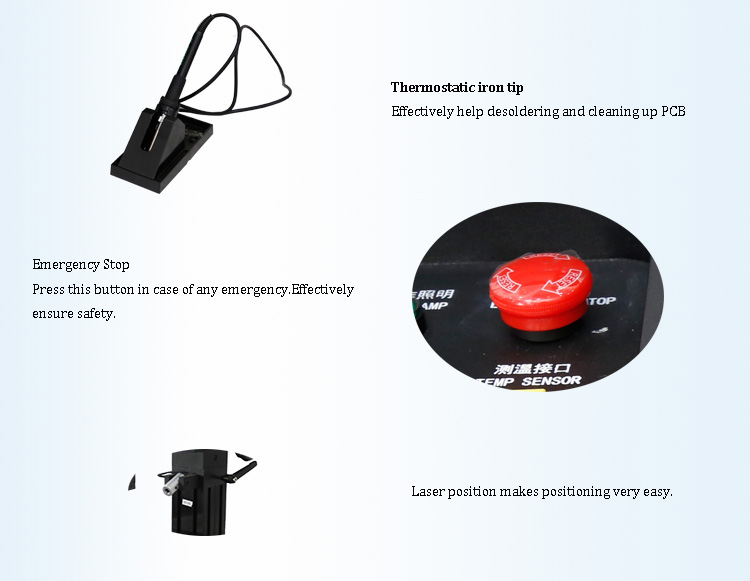

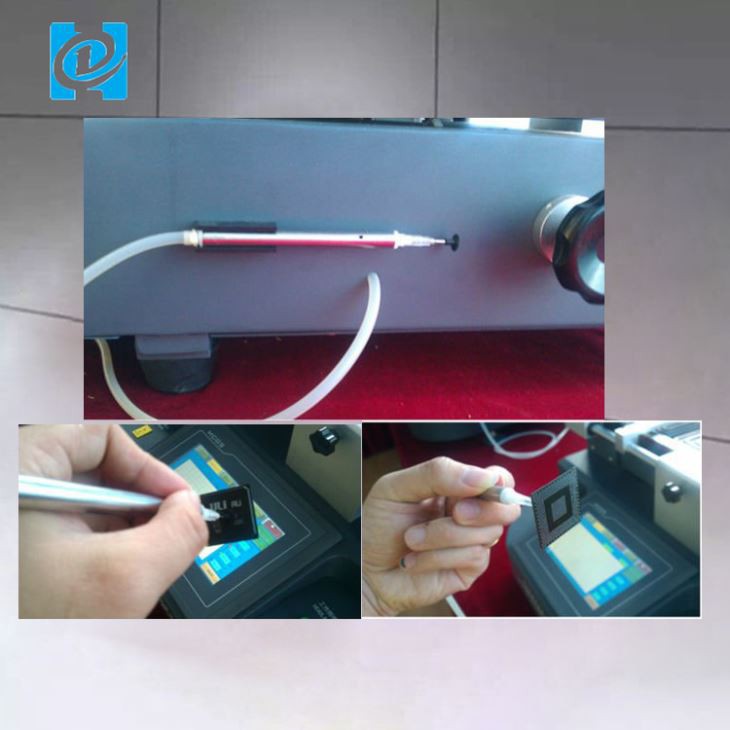

5.Cov duab nthuav dav ntawm DH-A1L BGA REWORK STATION

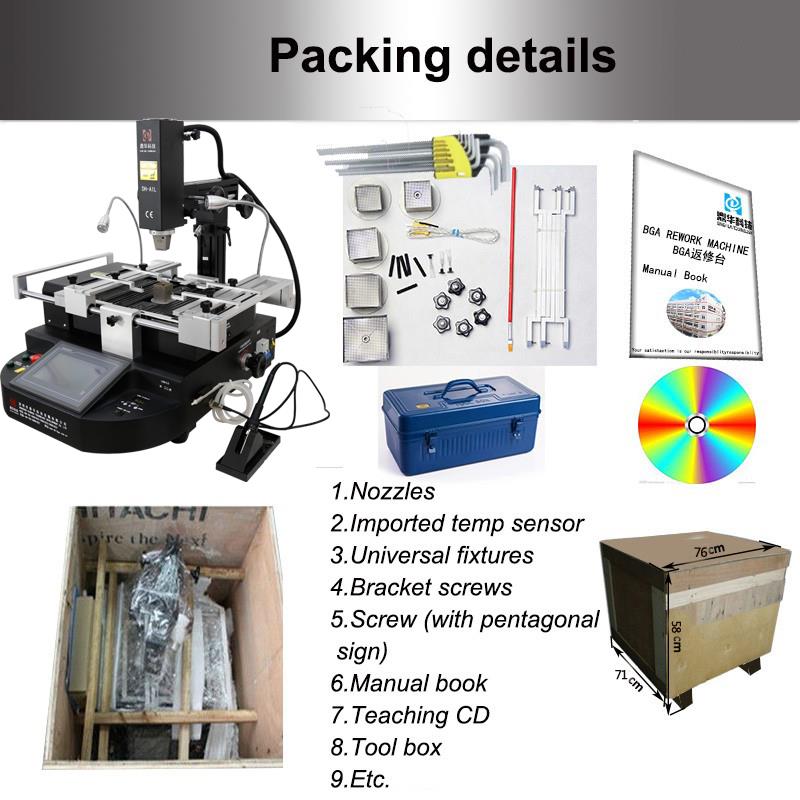

6.Packing & xa cov ntsiab lus ntawm DH-A1L BGA REWORK STATION
Kev xa khoom ntawm DH-A1L BGA REWORK STATION
|
Shipping: |
|
1.Shipment yuav ua tiav hauv 5 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm. |
|
2. Kev xa khoom ceev ceev los ntawm DHL, FedEX, TNT, UPS thiab lwm txoj hauv kev xws li los ntawm hiav txwv lossis los ntawm huab cua. |
7.FAQ
Q: Vim li cas thiaj xaiv peb?
Q: Kuv yuav ua li cas them nyiaj? Txoj kev twg zoo dua?
Q: Yuav ua li cas txog lub pob? Puas muaj kev nyab xeeb thaum lub sijhawm xa khoom?
Q: Lub tshuab no puas yooj yim ua haujlwm? yog tias kuv tsis muaj kev paub dhau los, kuv tuaj yeem ua haujlwm tau zoo?
Koj puas muab cov neeg siv phau ntawv thiab cov yeeb yaj kiab ua haujlwm los txhawb peb?
