Infrared soldering chaw nres tsheb

                                                                                      Infrared soldering chaw nres tsheb

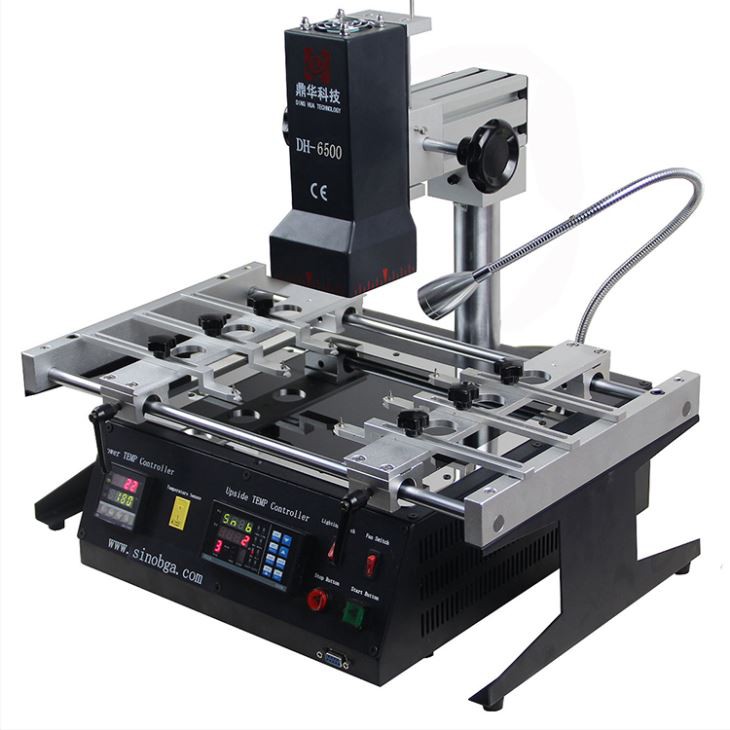

Tag Nrho IR BGA rework chaw nres tsheb nrog 2 qhov chaw cua sov, haum rau cov nti loj loj (tsawg dua 80 * 80 hli),

thiab cov PCB, xws li, TV, Gaming console thiab computer thiab lwm yam.

Ntau lawm parameter

Tag Nrho Lub Zog	2300W
Lub tshuab cua sov sab saum toj	450W
Hauv qab rhaub	1800W, tag nrho nyob rau hauv ib lub iav-shielded compartment
Hwj chim	110-250V 50/60Hz
Sab saum toj lub taub hau txav	Up / down, tig dawb.
Teeb pom kev zoo	Taiwan coj lub teeb ua haujlwm, txhua lub kaum sab xis hloov kho.
Cia	Khaws 10 pawg ntawm qhov kub thiab txias profile
Qhov chaw	V-groove, kev txhawb nqa PCB tuaj yeem hloov kho hauv X, Y kev taw qhia nrog cov khoom siv sab nraud
Kev tswj qhov kub thiab txias	K Sensor, kaw lub voj
Temp raug	± 2 degree
PCB loj	Max 270 * 320 mm Min 20 * 20 mm
BGA chip	5 * 5 ~ 80 * 80 hli
Yam tsawg kawg ntawm nti sib nrug	0.15 hli
Sab nraud temper sensor	1pc ua
Qhov ntev	L480 × W 370 × H 390 mm
Net nyhav	Kwv yees li 15.5KG

Product details

Sab saum toj IR rhaub, 80 * 80 mm, siv rau yuav luag tag nrho cov nti kom sov

Tau dav siv rau cov motherboard nrog loj loj txog 270 * 320 hli

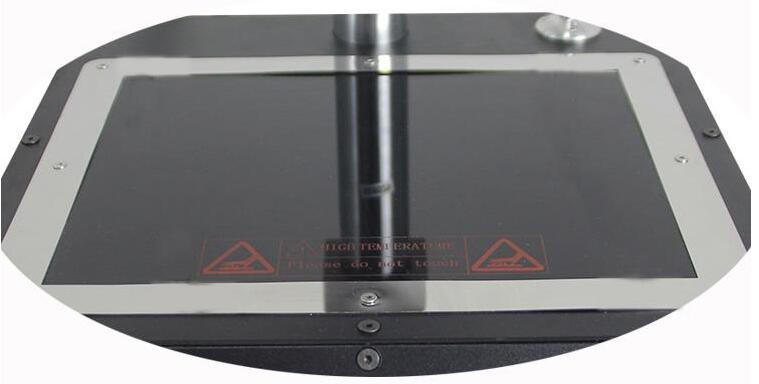

Hauv qab IR tag nrho nyob rau hauv ib lub iav-shielded

Instrument Vaj Huam Sib Luag rau qhov kub thiab txias thiab lub sijhawm teeb tsa, yooj yim rau kev khiav lag luam thiab siv yooj yim

Instrument Vaj Huam Sib Luag

Infrared Soldering chaw nres tsheb - Tshwj xeeb nta:

• Imported rhaub: zoo thiab ruaj khov.
• Taiwan infrared preheating ceramic phaj nrog iav tiv thaiv.
• Ob thaj chaw cua sov: lub tshuab cua sov sab saud yog infrared, thiab lub cua sov qis yog infrared preheating thiab.
• K-hom kaw-voj tswj: qhov kub thiab txias yog nyob rau hauv ± 2 degree. Sab nraud sensor connector pom qhov tseeb qhov kub thiab txias thaum lub sij hawm cua sov.
• Lub suab ceeb toom: lub suab ceeb toom tshwm sim 5-10 vib nas this ua ntej ua kom tiav cua sov, ceeb toom tus neeg teb xov tooj kom npaj.

Peb Cov Kev Pabcuam

• Ua ntej xa khoom: Lub tshuab yuav raug kuaj kev vibration tsawg kawg 12 teev ua ntej xa khoom. Tom qab ntawd, lub tshuab yuav raug kuaj dua kom ntseeg tau tias nws ua haujlwm zoo.
• Tom qab xa khoom: Thaum lub tshuab tuaj txog ntawm koj qhov chaw, peb yuav tiv tauj koj ntawm email, xov tooj, lossis WhatsApp kom paub meej tias cov khoom tau ua tiav raws sijhawm.
• Tshuab txais: Peb yuav muab kev txhawb nqa rau kev teeb tsa thiab kev ua haujlwm.

FAQ

Q: Cov khoom ntim li cas?

A: Cov khoom tau ntim rau hauv ib lub thawv ntawv nrog ua npuas ncauj rau hauv kev tiv thaiv.

Q: Koj puas yog lub Hoobkas?

A: Yog, peb yog lub Hoobkas nrog peb tus kheej R & D department thiab lub rooj cob qhia tsis muaj plua plav.

Q: Yog tias kuv xaj ntau ntau, kuv puas tuaj yeem tau txais tus nqi zoo dua?

A: Yog, thov hu rau peb kom paub meej.

Q: Kuv tuaj yeem tuaj xyuas koj lub rooj cob qhia?

A: Yog, koj tuaj yeem tuaj xyuas. Thov qhia rau peb paub ua ntej.

Infrared Soldering Chaw Nres Tsheb - Kev Sib Txuas Hluav Taws Xob

Electrostatic paug (ESD)

Qee yam khoom siv hauv cov khoom siv hluav taws xob muaj qhov cuam tshuam rau hluav taws xob zoo li qub thiab tuaj yeem raug puas tsuaj los ntawm kev tso tawm. Cov nqi hluav taws xob zoo li qub yog tsim thaum cov khoom siv tsis yog cov khoom sib cais, xws li thaum lub hnab yas khaws lossis qhib, thaum muaj kev sib txhuam ntawm cov khaub ncaws hluavtaws, lossis thaum cov ntaub qhwv yas tau muab faib. Cov nqi no kuj tuaj yeem tshwm sim los ntawm ntau qhov chaw.

Kev puas tsuaj zoo li qub tuaj yeem sib sau ua ke ntawm cov neeg nyob ze, xws li tib neeg cov tawv nqaij, thiab raug tso tawm raws li cov hluav taws xob ntawm cov neeg siv khoom. Piv txwv li, thaum lub ntsej muag ntawm lub rooj sib txoos luam tawm yog kov los ntawm ib tus neeg uas muaj tus nqi zoo li qub, kev puas tsuaj tuaj yeem tshwm sim yog tias qhov paug tawm dhau los ntawm cov qauv coj mus rau cov khoom zoo li qub. Nws yog ib qho tseem ceeb uas yuav tsum nco ntsoov tias theem ntawm kev puas tsuaj zoo li qub rau cov khoom feem ntau tsis tuaj yeem hnov ​​​​los ntawm tib neeg (feem ntau qis dua 3,000 volts).

Hluav taws xob overstress (EOS)

Hluav taws xob overstress (EOS) kev puas tsuaj tuaj yeem tshwm sim los ntawm lub zog tsis xav tau, uas tuaj yeem tshwm sim hauv cov hlau nplaum, cov khoom siv hluav taws xob, cov cuab yeej ntsuas, thiab lwm yam khoom siv hluav taws xob. Cov cuab yeej no yuav tsum tau tsim los tiv thaiv cov hluav taws xob tawm uas tuaj yeem ua rau muaj kev phom sij.

ESD/EOS Safe Work Areas

Lub hom phiaj ntawm ESD / EOS chaw ua haujlwm nyab xeeb yog txhawm rau tiv thaiv kev puas tsuaj rau cov khoom rhiab los ntawm cov kab mob thiab cov kab mob zoo li qub. Cov chaw no yuav tsum tau tsim thiab tswj kom txo tau qhov kev pheej hmoo ntawm ESD/EOS puas tsuaj.

Txoj kev tuav thiab khaws cia

1, PC board sib dhosyuav tsum tau ua haujlwm nyob rau hauv qhov chaw ua haujlwm kom raug.

2, Cov chaw ua haujlwm tsim nyog yuav tsum tau kuaj xyuas ib ntus kom ntseeg tau tias lawv txuas ntxiv ua raws li cov qauv kev nyab xeeb rau kev tiv thaiv ESD. Cov kev txhawj xeeb tseem ceeb suav nrog:

• A. Txoj kev hauv av kom raug.
• B. Static dissipation ntawm qhov chaw ua haujlwm.
• C. Static dissipation ntawm pem teb nto.
• D. Kev ua haujlwm ntawm ion blowers thiab ion cua phom.

3, Cov chaw ua haujlwm tsim nyog yuav tsum tau khaws cia tsis muaj cov khoom tsim tawm zoo li qub xws li Styrofoam, yas, yas, ntaub, lossis lwm yam ntaub ntawv uas tsim cov nqi zoo li qub.

4, Cov chaw ua haujlwm yuav tsum ua kom huv thiab huv. Txhawm rau tiv thaiv kev sib kis ntawm PC pawg thawj coj saib, tsis pub noj lossis haus luam yeeb hauv thaj chaw ua haujlwm.

5, Thaum tsis siv, cov khoom rhiab thiab PC boards yuav tsum tau muab khaws cia rau hauv cov hnab ntim khoom lossis lub thawv.

6, Thaum tuav lub rooj sib txoos PC, tus neeg teb xov tooj yuav tsum tau ua kom zoo los ntawm ib qho ntawm cov hauv qab no:

• A. Hnav ib lub dab teg txuas nrog lub ntiaj teb hauv av.
• B. Hnav ob lub pob taws thiab ua kom ob txhais taw ntawm qhov chaw zoo li qub.

7, PC board sib dhos yuav tsum tau ua los ntawm cov npoo. Tsis txhob kov cov khoom siv hluav taws xob lossis cov khoom siv (saib daim duab 1).

8, Cov khoom yuav tsum tau ua los ntawm cov npoo thaum twg los tau. Tsis txhob kov cov khoom siv lead ua (saib daim duab 2).

9, Cov tshuaj pleev ib ce thiab tshuaj pleev xim uas muaj silicone yuav tsum tsis txhob siv, vim tias lawv tuaj yeem ua rau muaj teeb meem ntawm cov tawv nqaij thiab epoxy adhesion. Cov tshuaj pleev tshwj xeeb tsim los tiv thaiv kev sib kis ntawm PC boards muaj.

10, stacking PC boards thiab cov rooj sib txoos yuav tsum raug zam kom tsis txhob muaj kev puas tsuaj rau lub cev. Cov racks tshwj xeeb thiab cov tais muaj rau tuav.
