Semi-auto Optical BGA Rework Chaw nres tsheb
1. Khoom Taw Qhia
Lub ntsiab lus tshiab ntawm kev kho vaj huam sib luag: tsis siv neeg, hloov tau, thiab txheej txheem-txhim kho!
- Ua tau zoo 1200 W hybrid cua sov lub taub hau
- Homogeneous, thaj chaw loj IR hauv qab cua sov nrog 3 thaj chaw cua sov (800 W txhua)
- Tsis siv neeg thiab meej cov khoom sib dhos nrog kev pab ntawm lub tshuab tsis pom kev
- High precision, lub cev muaj zog-tsav axis system rau kev tso kawm (+/- 0.025 mm)
- Cov neeg siv ywj pheej, rov tsim kho cov txiaj ntsig tau lees paub
- Cov txheej txheem tswj thiab cov ntaub ntawv ntawm tus neeg teb xov tooj software HRSoft
- Ua haujlwm tsis siv neeg lossis semi-automatic
- Haum rau siv nrog Dip & Print Station
2. Khoom Specifications
|
Dimensions (W x D x H) mm |
660 * 620 * 850mm |
|
Qhov hnyav hauv kg |
70kg ua |
|
Antistatic Design (y/n) |
y |
|
Lub zog ntsuas hauv W |
5300W |
|
Nominal voltage hauv V / AC |
110-220V 50/60Hz |
|
Sab saum toj cua sov |
Cua kub 1200W |
|
Tsawg cua sov |
Cua kub 1200W |
|
Preheating cheeb tsam |
Infrared 2700W, qhov loj: 250 x 330mm |
|
PCB loj hauv mm |
20 * 20 ~ 370 * 450 hli |
|
Cov khoom loj hauv mm |
los ntawm 1 * 1 80 * 80 |
|
Kev ua haujlwm |
7-inch built-in kov npo, 800 * 480 daws teeb meem |
|
Test cim |
CE |
3. Cov khoom siv
Desoldering, tso, thiab soldering ntawm tag nrho cov hom ntawm nto-mounted li (SMD): BGA, metallic BGA, CGA,
BGA qhov (socket), QFP, PLCC, MLF, thiab cov khoom me me nrog ntug ntev txog li 1 x 1 hli.

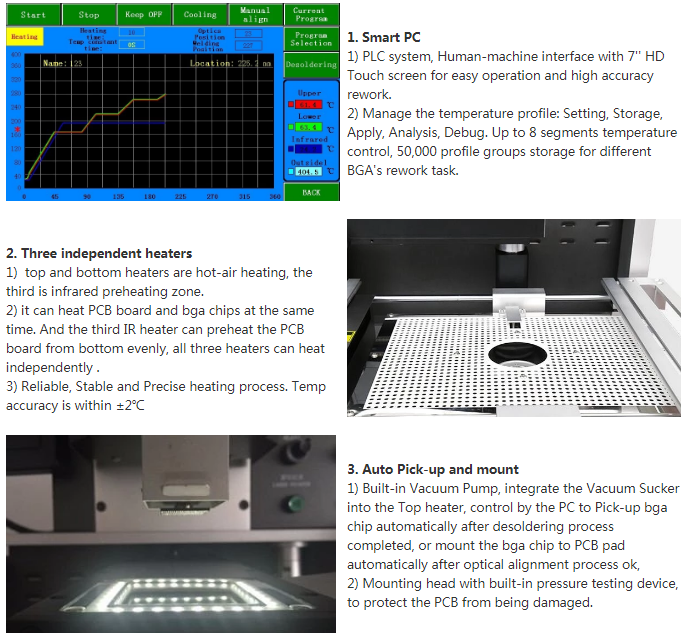

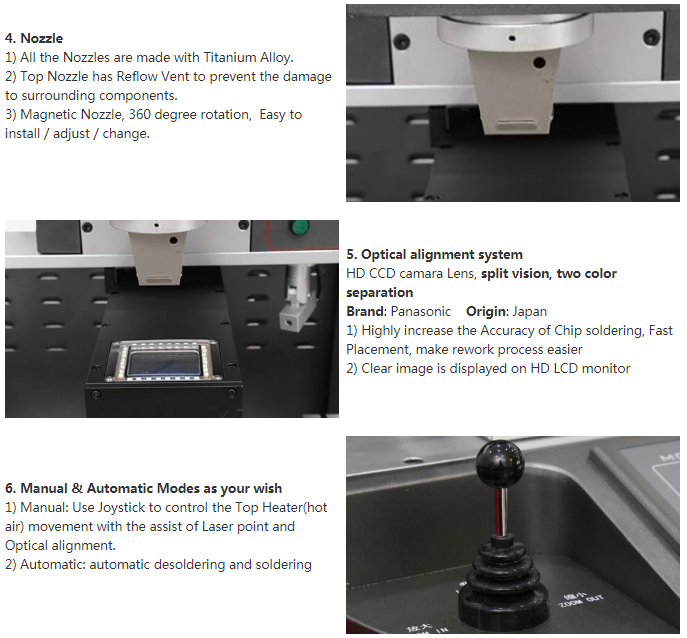

4. Product details
5. Cov khoom tsim nyog

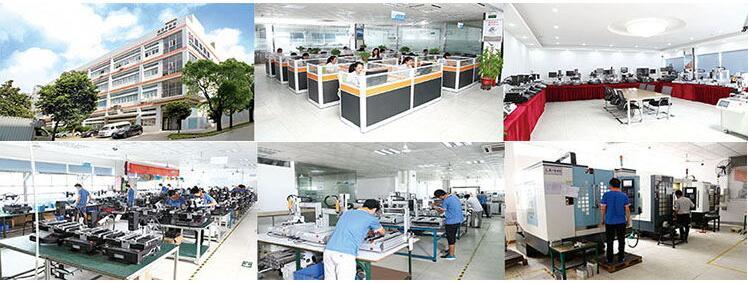

6. Peb Cov Kev Pabcuam
Txhawm rau pab txhawb peb cov neeg siv khoom, peb muab Kev Muag Khoom Kub Kub thiab Kev Pabcuam Kev Pabcuam los ntawm peb lub chaw haujlwm Dinghua.
Peb cov kws tshaj lij engineers tau paub dhau los hauv txhua hom kev siv rov ua haujlwm thiab tuaj yeem pab nrog cov txheej txheem, nozzles, stencils, spares, thiab customization.
7. FAQ
Q: Dinghua BGA rework tshuab tswj qhov kub thiab txias li cas? Lub tshuab puas kub dhau thiab puas rau PCB lossis nti?
A: Lub Dinghua BGA rework tshuab tuaj yeem ua kom sov PCB thiab BGA chips ib txhij. Qhov thib peb IR rhaub preheats PCB los ntawm hauv qab tusyees kom tsis txhob PCB deformation thaum lub sij hawm kho. Tag nrho peb lub tshuab cua sov tuaj yeem tswj tau ntawm nws tus kheej.
Nws siv K-hom thermocouple nrog kaw-voj tswj thiab PID tsis siv neeg qhov kub thiab txias, ua ke nrog PLC thiab ntsuas kub, kom paub meej qhov ntsuas kub nrog qhov sib txawv ntawm ± 2 degree.
Q: Yuav ua li cas Dinghua BGA rework tshuab lav kev nyab xeeb los tiv thaiv tus neeg teb xov tooj thaum muaj xwm ceev?
A: Lub tshuab tau ntawv pov thawj CE thiab nruab nrog lub pob xwm txheej ceev. Tsis tas li ntawd, muaj lub suab ceeb toom uas ua haujlwm li 5 vib nas this ua ntej cov txheej txheem soldering / desoldering tiav. Nws kuj tseem muaj lub tshuab hluav taws xob tsis siv neeg tiv thaiv hluav taws xob thaum muaj xwm txheej txawv txav, nrog kev tiv thaiv kev tiv thaiv ob zaug.
