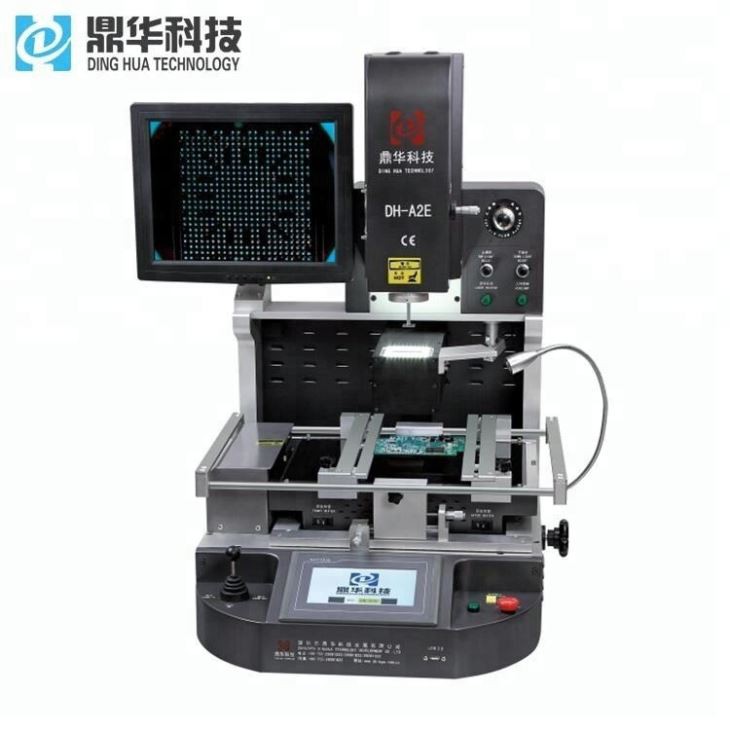

Optical TV Satellite BGA Rework Chaw nres tsheb

1. Khoom Taw Qhia

• Ultra Precision Site Paub
• Superior Alignment Ceev & Flexibility
• Precision Target Site Imaging
• Qhov siab tshaj plaws rau kev tso chaw me me
• Pixel Colorization ntawm Pads rau qhov zoo sib xws
• Optical Zoom & Auto Focus rau cov duab zoo dua
• Magnified imaging ntawm Micro loj qhov chaw
• Kev Pab Cuam Yeej & Kev Pab Txhawb!

• High-Speed ​​Force Feedback muab siab tshaj plaws rhiab heev rau ilv Cheebtsam ntawm qhov chaw.

• Dual Xim Lub Koob Yees Duab Interface muab cov kev xaiv ua haujlwm tshwj xeeb

2. Khoom Specifications

3. Cov khoom siv

Lub Dinghua BGA Rework Chaw nres tsheb muaj qhov pom tseeb thiab cov txheej txheem thermal tswj thev naus laus zis.

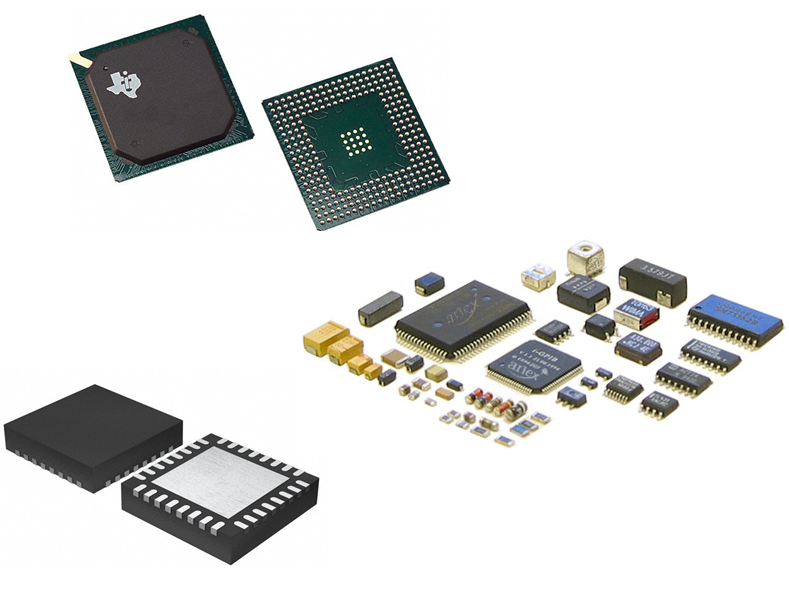

Cov ntawv luam tawm Circuit Court boards thiab substrates muaj xws li BGA's, CSP's, QFN's, Flip Chips,

PoP, Wafer Level Dies, thiab ntau lwm yam SMD tau ua tiav nrog cov txiaj ntsig zoo. meej

mechanics thiab advanced software simplifies cov khoom tso, soldering, thiab / los yog rework. Tus neeg ua haujlwm

kev koom tes yog txwv tsis pub ua cov tshuab no yooj yim rau kev teeb tsa thiab siv. Muaj nyob rau hauv benchtop thiab standalone

configurations, cov tshuab no zoo tagnrho rau cov qauv R & D, NPI, Engineering, Failure Analysis labs thiab

OEM / CEM ntau lawm ib puag ncig. Automation, tshuab muaj peev xwm, thiab siv tau yooj yim yog qhov tseem ceeb rau ob qho tib si

prototype thiab ntau lawm ntim daim ntawv thov yuav tsum tau sib xws thiab zoo.

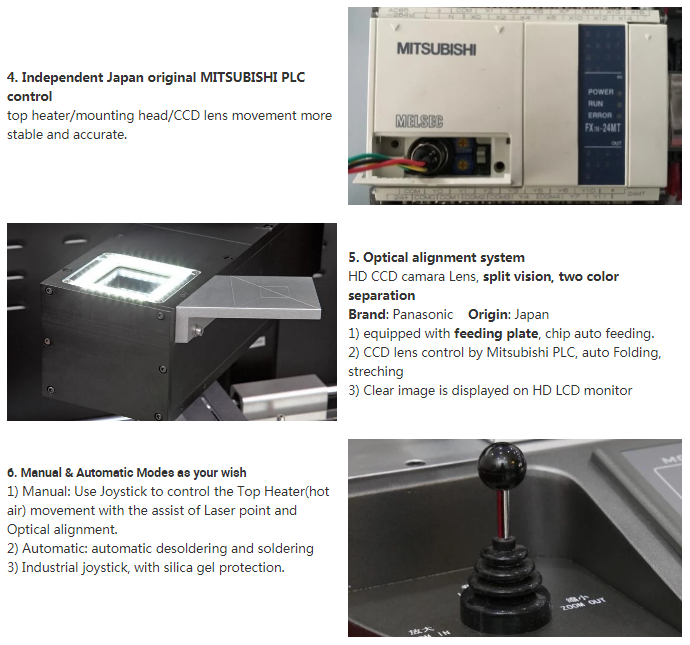

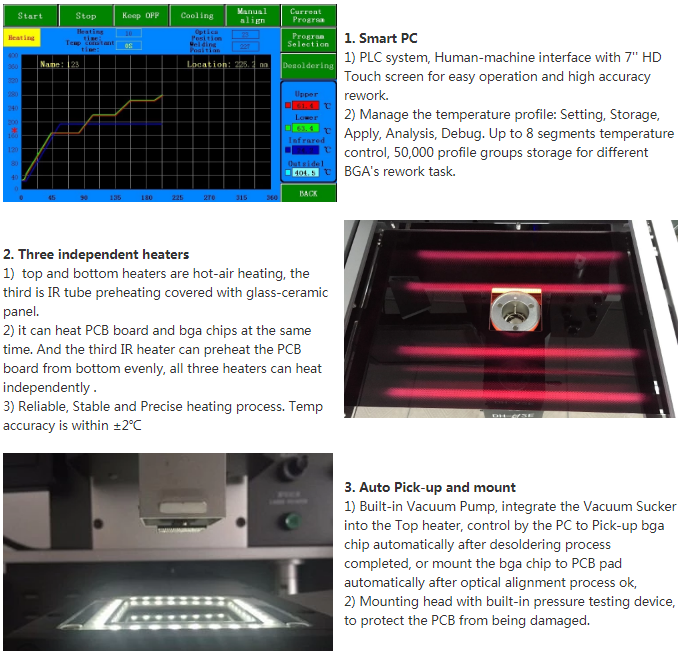

4. Product details

5. Cov khoom tsim nyog

6. Peb cov kev pabcuam

Cov khoom plig yeej thiab patented rework systems

Niaj hnub no, peb muaj ntau tshaj 50 tus kws tshaj lij engineers thiab cov kws tshaj lij ua haujlwm ntawm kev tsim kho tshiab thiab kev txhim kho

txhua hnub - tag nrho ntawm tag nrho 10% ntawm peb cov neeg ua haujlwm ua haujlwm hauv cheeb tsam ntawm kev tshawb fawb & kev loj hlob. Lub tuam txhab Dinghua twb yog lawm

technology raws li lub ntiaj teb ua lag luam thawj coj hauv ntau qhov chaw ua lag luam. Ntau patents thiab khoom plig ua pov thawj peb

tas li tsav mus rau innovation. Txais cov txheej txheem kev hloov pauv tsis tu ncua, peb hloov kho peb cov khoom kom hloov pauv sai

cov kev cai ntawm kev ua lag luam, thaum tib lub sij hawm tsim ib tug sustainable technology thiab innovation roadmap.

7. FAQ

Cov qauv tsim tsim ua kom muaj qhov tseeb tso rau hauv 0.0002" lossis 5 microns. Ib qho tshiab siv software-tsav kev ntsuas Force

Qhov system ua rau nws muaj peev xwm ua tau txawm tias qhov tsawg tshaj plaws thiab cov khoom tsis yooj yim tshaj plaws nrog rau cov pob nyuaj xws li stacked dies lossis Pob-

On-Package (PoP). Split Vision Optics tso cai rau tib lub sijhawm rau sab saum toj ntawm PCB / substrate thiab hauv qab ntawm cov khoom saib kom zoo dua

thiab kho ob qho tib si duab. Split Imaging yog qhov tshwj xeeb uas tsim cov kab pheeb ces kaum saib rau kev sib haum xeeb ntawm cov pob loj ntawm qhov loj loj.

Cov khoom lag luam zoo hauv qhov system optics kom pom tseeb thiab tsis muaj kev cuam tshuam-dawb duab. Precise kaw voj reflow txheej txheem tswj enables

ua raws li qhov kev tsim khoom qub. Lub software muaj ib tug database ntawm predefined profiles uas tus neeg siv xaiv raws li lub pob

thiab PCB tau rov ua haujlwm dua. Ib qho Automated Profile Generation feature tso cai rau tus neeg siv los tsim qhov profile zoo tshaj plaws hauv ib qho dhau los uas yuav tau txais kev cawmdim

rau yav tom ntej ua. Profiles tuaj yeem hloov kho tau yooj yim, kho kom zoo, thiab khaws cia rau yav tom ntej. Cov chaw tuaj yeem hloov kho ntawm-tus-ya thaum lub profile yog

khiav. Software tswj reflow ntawm yuam cua saum cua sov, yuam cua hauv qab rhaub, thiab ib cheeb tsam loj Quartz IR preheater. Airflow nyob rau saum lub rhaub

yog saib xyuas los ntawm lub software thiab xa zoo heev kub uniformity. Qhov no guarantees maj mam ntws uas tsis tuaj yeem cuam tshuam txawm tias qhov tsawg tshaj plaws

cov khoom nyob ib sab zoo li 01005 passives. Kev tswj cov cua txias ntawm ib feem thiab PCB yog ua tiav los ntawm kev ncaj qha cua ntws ntawm lub taub hau saum toj kawg nkaus, airflow ntawm

localized hauv qab rhaub, thiab sab tsis siv neeg muaj zog hla-cua txias kiv cua.
