Optical Playstation BGA Rework Chaw nres tsheb

Optical PlayStation bga rework chaw nres tsheb

1. Ceev saib ua ntej:

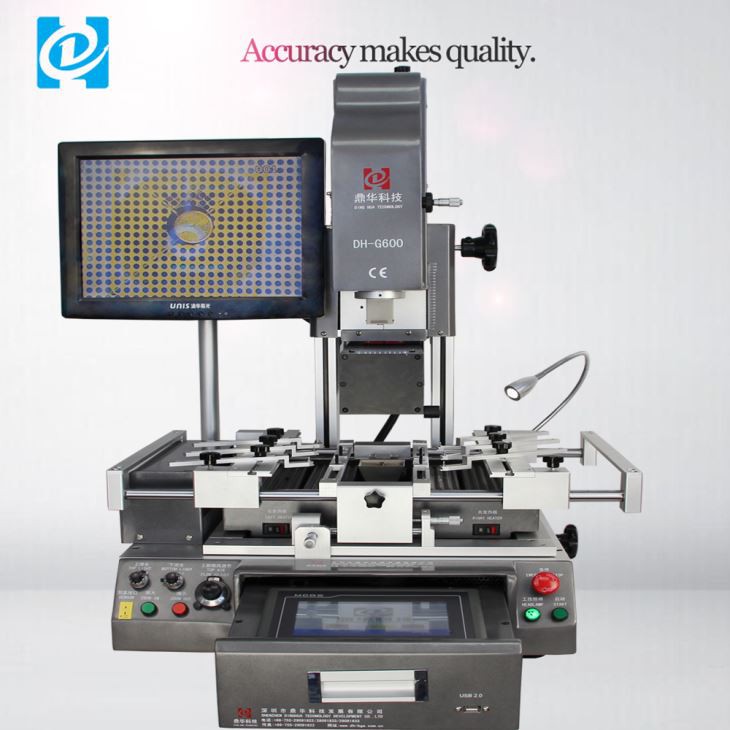

Nrog kev yooj yim rau kev khiav lag luam, DH-G600 optical PlayStation bga rework chaw nres tsheb yog tsim los nrog HD Optical Alignment

system los xyuas kom meej qhov tseeb ntawm mounting BGA thiab Cheebtsam thiab aimed los pab tus neeg teb xov tooj kom paub yuav ua li cas siv nws nyob rau hauv

ob peb feeb.

Yog tias koj tab tom nrhiav bga rework chaw nres tsheb rau kev kho lub xov tooj ntawm tes, ua kev zoo siab! Koj twb pom lub Hoobkas thawj. Dinghua,

tej zaum qhov zoo tshaj plaws hom ntawm bga rework chaw nres tsheb thoob ntiaj teb.

3. Cov yam ntxwv tseem ceeb ntawm DH-G600 BGA rework chaw nres tsheb

01, "Embedded industrial computer, high-txhais kov screen txiv neej-tshuab interface, digital system nqis, ntse txiv neej-

tshuab kev sib tham, PLC tswj, tus kheej xaiv cia, hu rau qhov kub thiab txias nkhaus, nrog "kub tuav *." Instantaneous

nkhaus tsom xam" "Zoo siab txais tos nco ntsoov thaum lub demolition down" muaj nuj nqi, real-time zaub teeb thiab ntsuas kub

nkhaus, thiab qhov nkhaus tuaj yeem txheeb xyuas thiab kho.

02, Qhov tseeb K-hom thermocouple kaw-voj tswj thiab PID kub tsis siv neeg them nyiaj system, ua ke

nrog PLC ua haujlwm chav tsev thiab ntsuas kub kom ua tiav qhov ntsuas kub kom raug, ua kom qhov kub sib txawv ntawm ± 2

degrees thaum sab nraud

03, siv high-precision digital video khub Bit system, HD CCD imaging, kev sib koom ua ke, ntse cua kub tswj:

Linear carriages yog siv los ua x. Y, Z peb axes tuaj yeem siv rau kev kho kom zoo lossis qhov chaw nrawm, yooj yim, Holley 1- tag nrho CE board

layout thiab sib txawv loj PCB board positioning.

DH-G600 BGA Rework Chaw nres tsheb tiag tiag kho kev ua haujlwm:

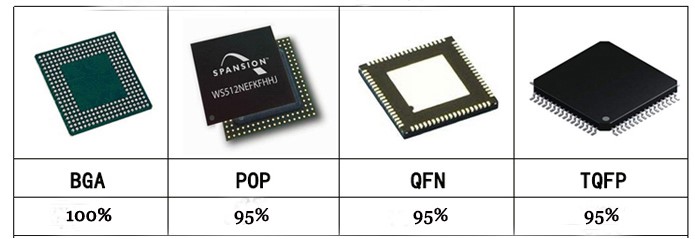

Daim duab hauv qab no qhia txog qhov ua tau zoo raws li 20 pcs ntawm txhua ntawm plaub yam IC. Qhov kev vam meej ntawm kev ua haujlwm ib zaug

ntawm BGA mus txog

 100%.

4. Cov duab ntxaws ntxaws ntawm G600 BGA REWORK STATION

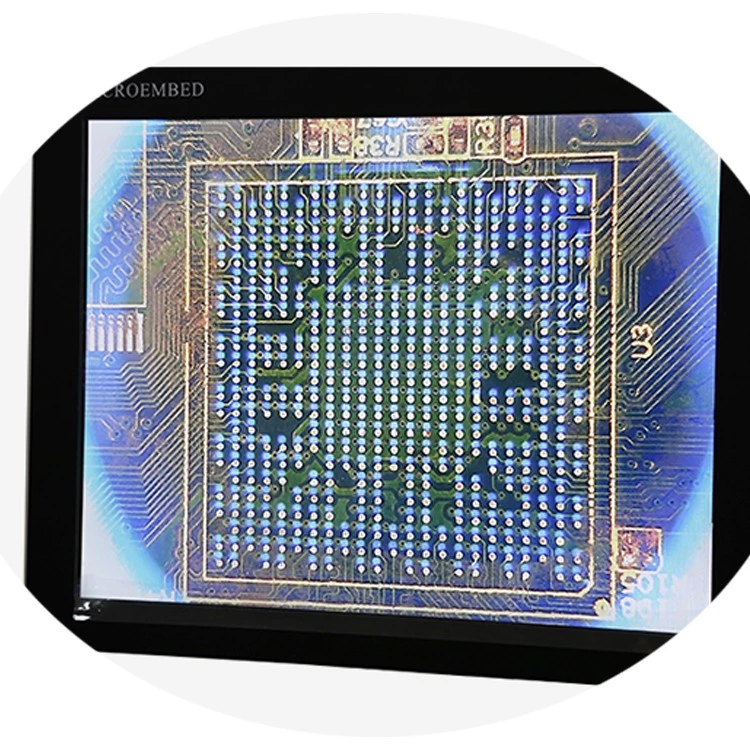

HD Optical CCD Lens Alignment System

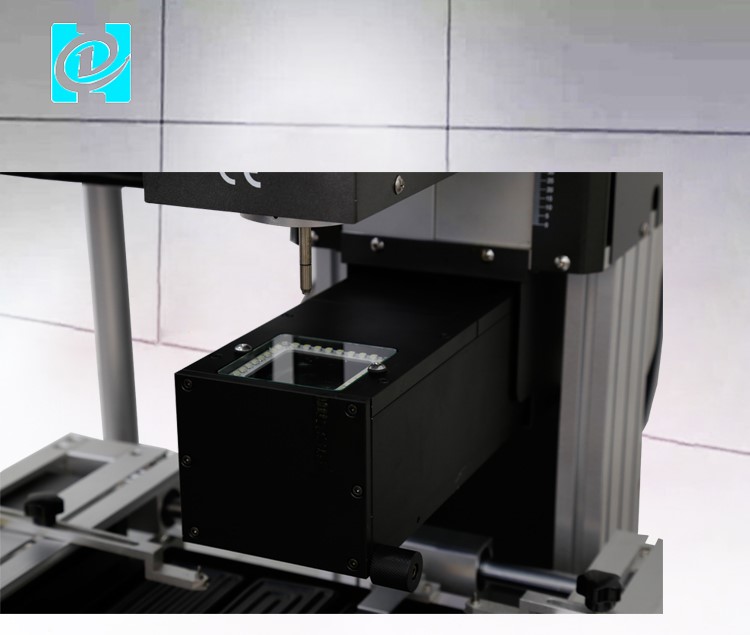

Lub koob yees duab yog imported los ntawm Panasonic, Nyiv los xyuas kom meej qhov hloov qhov tseeb ntawm ±0.01mm

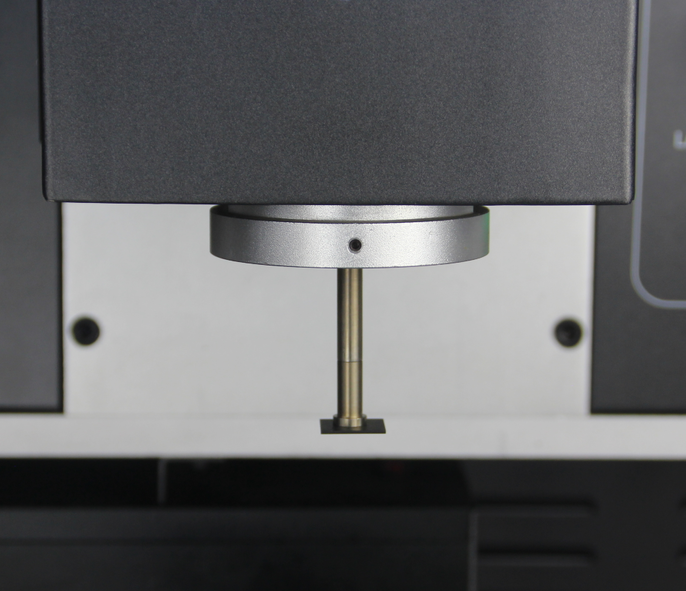

Mounting lub taub hau nrog built-in kev ntsuas siab, los tiv thaiv PCB los ntawm kev puas tsuaj.

build-in lub tshuab nqus tsev nyob rau hauv mounting lub taub hau tuaj tos BGA nti txiav tom qab desoldering tiav

Nrog rau saum huab cua ntws kho, kom tiv thaiv me me bga los ntawm tawg.

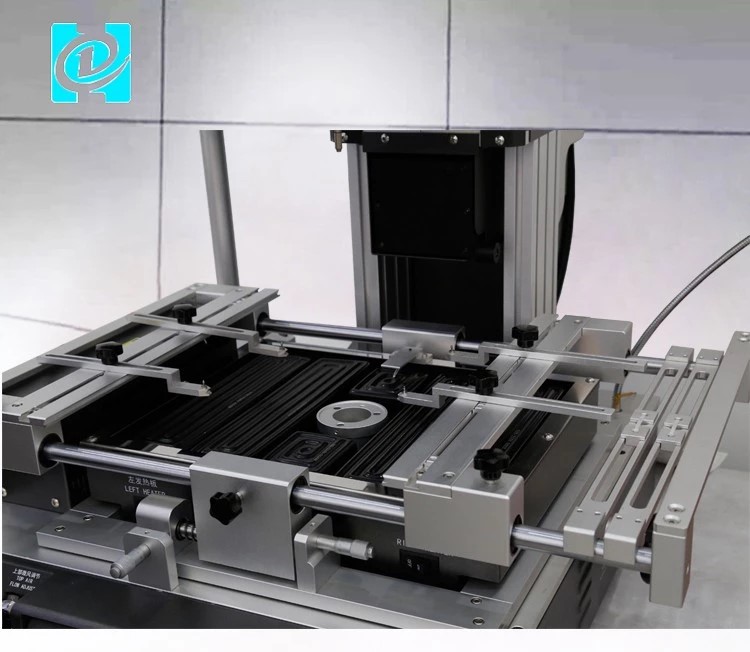

PCB Positioning: V-groove, PCB boards tuaj yeem hloov kho hauv X, thiab Y axis thiab nruab nrog lub universal fixture

5. Qhov zoo

Yim vim li cas cov neeg siv khoom xaiv peb lub tuam txhab:

1. Peb lub tuam txhab tau tsim nyob rau hauv 2011, tshwj xeeb hauv BGA rework chaw nres tsheb thiab automation kev daws teeb meem.

2. Peb cov khoom ntawm hom "DINGHUA" muag zoo nyob hauv tsev thiab txawv teb chaws.

3. Peb pab cov neeg siv khoom ncaj ncees, cov kev pabcuam sov so, muaj txiaj ntsig zoo thiab cov lus qhia tshaj lij

4. Peb lub tuam txhab yog qhov txhim khu kev qha "ib-nres" qhov rai yuav khoom.

5. Peb ua raws li "LONGLIFE" lub tswv yim zoo, ua rau koj tsis muaj kev txhawj xeeb txog kev muag khoom tom qab muag.

6. Lub Hoobkas muab khoom ncaj qha, nrog tus nqi zoo dua.

7. Dinghua tau tsim los ntawm pab pawg muag khoom loj thiab kev tswj xyuas kev tshawb fawb.

8. Peb muaj cov kab lis kev cai tseem ceeb ntawm "kev ncaj ncees, kev tshawb nrhiav, kev sib koom thiab kev sib raug zoo

6. Ntim & Xa & Kev Pabcuam ntawm G600 BGA REWORK STATION

Txoj cai xa khoom: Feem ntau, nws yuav siv li 3 hnub ua haujlwm rau Tebchaws Meskas thiab 4 hnub rau cov tebchaws nyob sab Europe thiab ntau dua

3 hnub rau kev nthuav qhia qeeb. Peb tuaj yeem xa nkoj raws li koj qhov kev thov thiab pab kom nrhiav tau tus nqi qis tshaj plaws thiab ceev ceev.

Thaum xa khoom, Peb yuav xa koj tus lej nrhiav tam sim ntawd.

7. FAQ ntawm G600 BGA REWORK STATION

Q: Yuav tiv tauj peb li cas los daws koj cov lus nug?

A: Txhua yam lus nug, pls cia peb "Nug" & nyem "Tam sim no" kom paub meej ntxiv (nqi & luv nqi & khoom plig pub dawb),

Kuv mam li teb rau koj thawj zaug.

Yog tias koj xav paub ntau ntxiv txog peb lub tshuab, thov hu rau peb, Peb ib txwm ONLINE los pab koj nug.

Mob/WhatsApp/Wechat: +86 13652339539"

Q: Yuav siv nws li cas?

A: 1. Tsis txhob txhawj. Peb yuav muab ib phau ntawv qhia lus Askiv thiab Demo Video rau koj saib yuav siv li cas.

2. Hais txog qhov kub thiab txias, pls xa mus rau qhov chaw ntawm qhov ntsuas kub ntawm phau ntawv no thiab mus rau

saib yuav ua li cas teem qhov kub thiab txias

Q: Koj puas txais OEM xaj?

A: Yog, OEM & ODM tau txais.

8. Kev pabcuam

* Koj cov lus nug ntsig txog peb cov khoom yuav teb rau hauv 24 teev.

* OEM & ODM txais tos, OEM hom muaj.

* Kev tiv thaiv koj thaj chaw muag khoom, tswv yim rau koj tsim, thiab tag nrho koj cov ntaub ntawv ntiag tug.

* Saib peb lub Hoobkas.

* Kev cob qhia yuav ua li cas rau nruab lub tshuab, kev cob qhia siv lub tshuab.

* Cov engineers muaj rau kev pabcuam tshuab txawv teb chaws.

9. Kev Paub Txog

Reflowing thiab reballing

X-ray duab ntawm cov pob qij txha zoo.

Zoo solder pob qij txha ntawm BGA thiab PCB

Pob kab sib chaws arrays (BGA) thiab chip scale pob (CSA) nthuav qhia cov teeb meem tshwj xeeb rau kev sim thiab rov ua haujlwm, vim lawv muaj ntau yam me me, ze ze.

spaced pads ntawm lawv underside uas txuas nrog cov ntaub qhwv sib xws ntawm PCB. Txuas pins yog tsis siv tau los ntawm sab saum toj rau

kuaj, thiab tsis tuaj yeem desoldered yam tsis muaj cua sov tag nrho cov cuab yeej mus rau lub melting point ntawm solder.

Tom qab tsim cov pob BGA, cov pob me me ntawm cov khoom siv tau muab khi rau hauv cov ntaub qhwv rau hauv qab; thaum sib dhos, lub pob balled yog

muab tso rau ntawm PCB thiab rhuab kom yaj lub solder thiab, txhua yam ua tau zoo, txuas txhua lub ncoo ntawm lub cuab yeej rau nws cov phooj ywg ntawm PCB yam tsis muaj

extraneous solder bridging ntawm cov ntaub ntawv uas nyob ib sab. Cov kev sib txuas tsis zoo uas tsim tawm thaum lub sijhawm sib dhos tuaj yeem kuaj pom thiab lub rooj sib txoos rov ua haujlwm dua

(los yog khawb). Kev sib txuas tsis zoo ntawm cov khoom siv uas tsis yog lawv tus kheej faulty, uas ua haujlwm rau ib lub sijhawm thiab tom qab ntawd ua tsis tiav, feem ntau tshwm sim los ntawm thermal

expansion thiab contraction ntawm kev khiav hauj lwm kub, tsis tshua muaj heev.
