Macbook Cpu RepairingTool Kits

Macbook Cpu Kho Cov Khoom Siv DH-A2E

 Kev Ua Haujlwm Saib Xyuas:Qhov no yog ib qho cuab yeej built-in uas pab koj xyuas qhov ua tau zoo ntawm koj lub cev CPU thiab lwm yam kev pab. Nws qhia cov ncauj lus kom ntxaws txog cov txheej txheem thiab cov ntawv thov tam sim no ua haujlwm ntawm koj lub cev, tso cai rau koj txheeb xyuas cov kev pabcuam uas yuav siv CPU ntau dhau.



Specifications:

1	Tag nrho lub zog	5200w
2	3 lub tshuab hluav taws xob ywj pheej	Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w
3	Qhov hluav taws xob	AC220V ± 10% 50/60Hz
4	Hluav taws xob qhov chaw	7 '' kov npo + siab precision ntse temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab daws teeb meem optical CCD system + laser positioning
5	Kev tswj qhov kub thiab txias	K-Sensor kaw-voj + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree.
6	PCB positioning	V-groove + universal fixture + movable PCB txee
7	Muaj feem xyuam PCB loj	Max 370x410mm Min 22x22mm
8	Muaj feem xyuam BGA loj	2x2mm ~ 80x80mm
9	Qhov ntev	600x700x850mm (L * W * H)
10	Net nyhav	70 Kg



Daim ntawv thov:



Yam ntxwv:

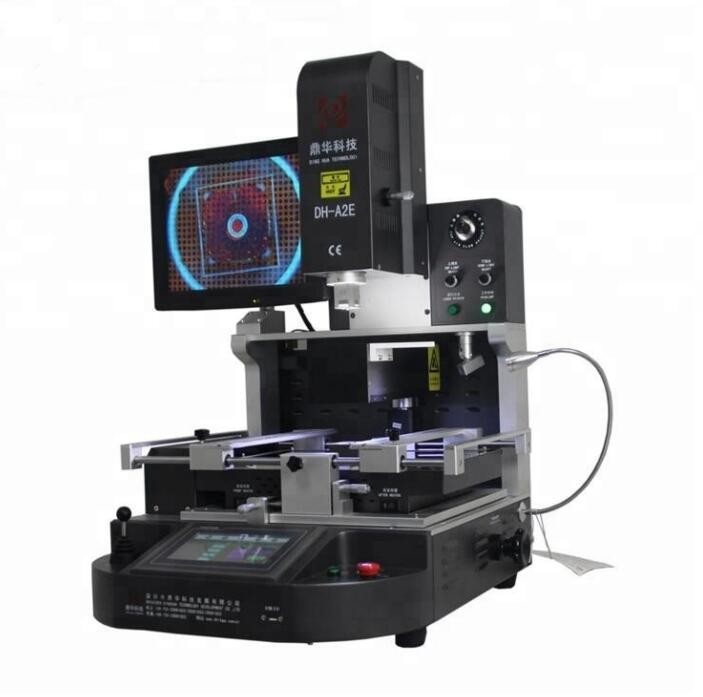

Tsis Siv Neeg Soldering Robot System DH-A2E
DH-A2E BGA rework chaw nres tsheb yog qhov siab kawg, tseem pheej yig tus nqi, kho qhov muag kho qhov muag BGA rework chaw nres tsheb. Nws cov qauv tsim tshwj xeeb suav nrog kev pub mis tsis siv neeg thiab xaiv qhov system, ua rau nws yooj yim heev rau kev khiav lag luam. Nrog peb lub tso cua sov ywj pheej muab kev faib hluav taws xob, qhov kev tso tawm ncaj qha, thiab qhov ua tau zoo ntawm cov cua sov dissipation, A2E tau txais txiaj ntsig zoo los ntawm cov neeg siv khoom thiab nrov hauv kev lag luam txawv teb chaws.





Packing List:

Cov ntaub ntawv: Cov ntaub ntoo muaj zog + ntoo tuav + pov thawj pearl paj rwb nrog zaj duab xis

1pc Macbook Cpu repairingTool Kits

1pc txhuam cwj mem

1pc Phau ntawv qhia

1pc ua cd video

3 pcs saum nozzles

2 pcs hauv qab nozzles

6pcs universal fixtures

6pcs fastened screws

4pcs kev them nyiaj yug ntsia hlau

Sucker loj: Dia 2,4,8,10,11mm

Sab hauv hexagon spanner: M2/3/4

Loj: 81 * 76 * 85CM

Qhov hnyav tag nrho: 115 kg









1. Lub tshuab tuaj yeem xa los ntawm DHL, FedEx, TNT, EMS, UPS.

2. Los ntawm hiav txwv lossis los ntawm huab cua. Thov muab koj qhov chaw nres nkoj ze tshaj rau peb.

3. Hnub xa khoom yog nyob rau hauv 5-7 hnub tom qab tau txais tag nrho cov nyiaj them poob haujlwm. Yog tias koj xav tau kev pab ceev,

thov ua siab zoo qhia peb.

1.Txhua lub tshuab yuav raug kuaj zoo rau 3 hnub ua ntej xa khoom

2.Lub tshuab tag nrho yog rau 1 xyoo warranty







Specification:



Tag Nrho Lub Zog	5200W
Lub tshuab cua sov sab saum toj	1200W
Hauv qab rhaub	2nd 1200W, 3rd IR rhaub 2700W
Qhov hluav taws xob	AC220V / 110V ± 10% 50Hz
Pub noj system	Nws pib pub mis rau nti

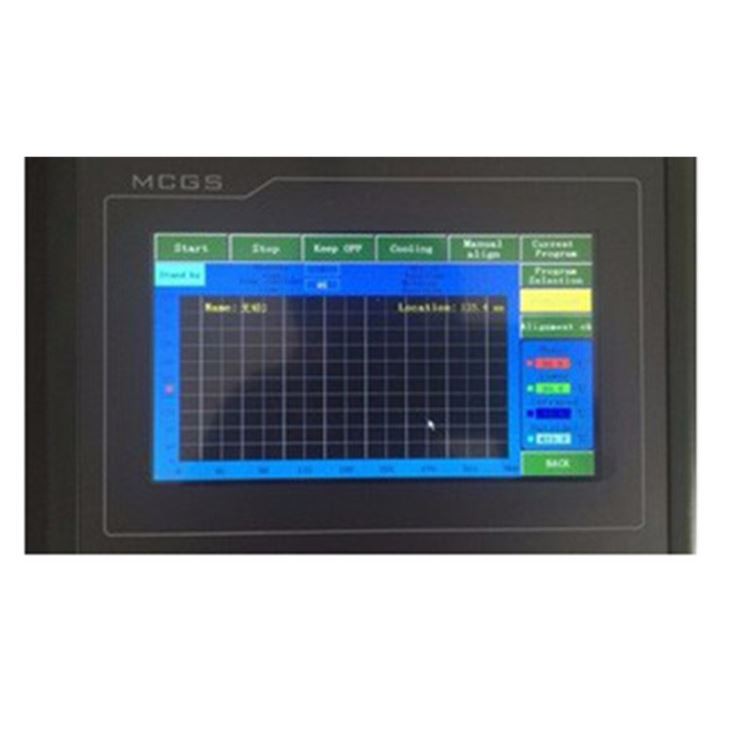

Hom kev ua haujlwm	Ob hom: phau ntawv thiab tsis siv neeg, xaiv dawb! HD kov npo, ntse tib neeg-tshuab, kev teeb tsa digital.
Kub profile cia	50, 000 pab pawg (cov pab pawg tsis txwv)
Optical CCD lub koob yees duab lens	Tsis siv neeg ncab tawm thiab folding los xaiv thiab tso BGA nti
Lub koob yees duab magnification	1.8 lab pixels
Workbench fine-tuning:	± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug
Qhov tseeb qhov chaw:	± 0.015mm
Bga positioning	Laser positioning, ceev thiab raug txoj hauj lwm ntawm PCB thiab BGA
PCB txoj haujlwm	Qhov chaw ntse, PCB tuaj yeem hloov kho hauv X, Y kev taw qhia nrog "5 ntsiab lus txhawb nqa" + V-groov pcb bracket + universal fixtures.
Teeb pom kev zoo	Taiwan coj lub teeb ua haujlwm, txhua lub kaum sab xis adjustable
Kev tswj qhov kub thiab txias	K sensor, kaw voj, PLC tswj
Temp raug	± 2 degree
PCB loj	Max 450 × 400 mm Min 22 × 22 mm
BGA chip	1 x 1 - 80 x 80 mm
Yam tsawg kawg ntawm nti sib nrug	0.015 hli
Sab nraud temper sensor	1pc ua
Qhov ntev	L740 × W630 × H710 hli
Net nyhav	70 KG
