Tshuab Soldering

Ntiaj teb no kub-muag AUTOMATIC SOLDERING MACHINE Ib X Ob Chav Y)

MODEL NO. DH-HX5331 & HX5441 (kuj tuaj yeem hloov kho los ua HX6331 HX6441)

Introduction Video:ntawm soldering tshuab nqe

I: Technical Parameters

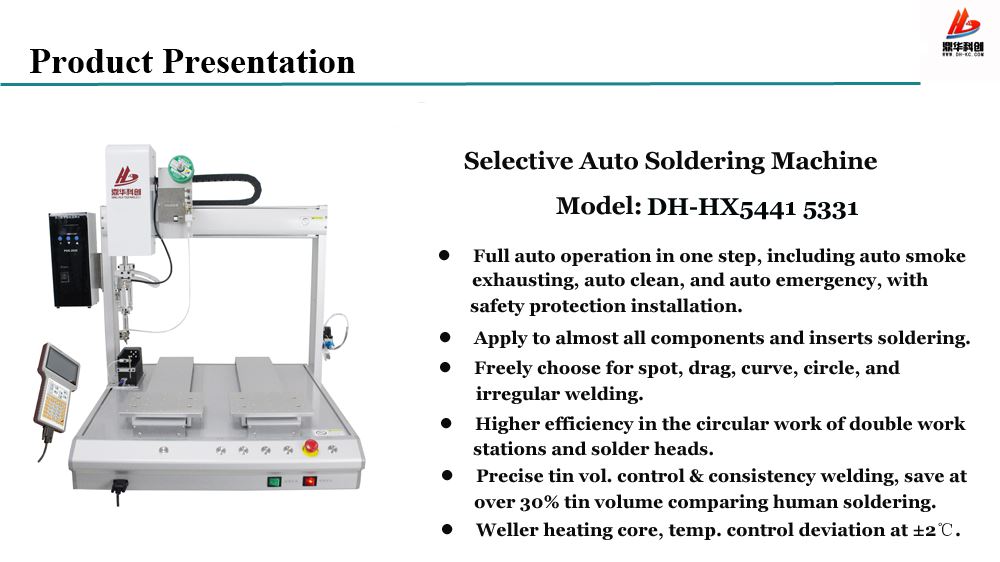

Duab ntawmsoldering tshuab nqe

II: Cov lus piav qhiantawmsoldering tshuab nqe

1. 5 axis tsis siv neeg soldering neeg hlau

        hluav taws xob soldering tshuab

2. Thov rau qhov chaw vuam, rub vuam, nkhaus vuam, lub voj voog vuam, tsis tu ncua nkhaus nruam vuam.

2. tuaj yeem ua haujlwm qhov chaw ceev ceev thiab coj lub taub hau vuam mus rau txoj hauj lwm ntawm kev sib tw, tuaj yeem hloov lub sijhawm luv ntawm ob yam khoom siv los siv lub voj tsis nres thiab txhim kho qhov ua tau zoo los ntawm kev ua haujlwm ntawm kev qhia pendant yooj yim.

3. Ntau tshaj 999 qhov kev pab cuam profile tuaj yeem khaws cia, ib lub tshuab tuaj yeem ua 999 cov khoom sib txawv los ntawm kev ua haujlwm.

4. Qhov tsis sib txawv ntawm qhov sib txawv tuaj yeem hloov pauv tau yooj yim, qhov kev pab cuam calibration ua tiav kev sib koom ua haujlwm them nyiaj tau txais txiaj ntsig, nrog rau kev sib hloov ntawm kev sib hloov thiab kho cov haujlwm tsis raug. Qhov parameter ntawm txhua qhov chaw soldering tuaj yeem teeb tsa.soldering tshuab nqe hauv amazon

5. Thov rau qhov chaw vuam, rub vuam, nkhaus vuam, lub voj voog vuam thiab vuam tsis zoo, tag nrho cov vuam tsis tuaj yeem raug teeb tsa los ntawm cov neeg siv rau kev ua haujlwm vuam nyuaj thiab micro vuam ua haujlwm.

6. Lus Askiv version interface yog ib qho yooj yim rau cov neeg siv debug txawm tsis qhia pendant.

7. Tsis siv neeg tin pub, kom muaj nuj nqis ntawm tin tuaj yeem hloov kho thiab tswj tau meej. Tin tuaj yeem pub tau txhua lub sijhawm los thov kev sib txawv ntawm cov vuam thiab txhim kho kev ua haujlwm.soldering tshuab nqe hauv amazon

8. Weller cua sov lub taub hau, qhov kub thiab txias tuaj yeem tswj tau qhov tseeb rau ± 2 degree, lub sijhawm thiab ceev ntawm tin pub tuaj yeem hloov kho kom ua tiav cov vuam zoo.soldering tshuab nqe hauv amazon

9. Ntau lub tswv yim yog xaiv tau rau cov qauv array vuam.

10. Cov kev khaws cia vuam siv tau txhua lub sijhawm kom txuag tau lub sijhawm ntawm kev ua haujlwm.

11. Ntau yam soldering robots tuaj yeem ua haujlwm ua ke los ntawm kev tswj hwm lub computer thiab programming.

12. Nrog kev sau cov pa luam yeeb tsis siv neeg thiab nws pib ua haujlwm huv.soldering tshuab nqe hauv amazon

IV: Qhov zoohluav taws xob soldering tshuab

1. Nrog kev sau cov pa luam yeeb tsis siv neeg los ua kom huab cua huv (yeem).

2. High-strength solder lub taub hau tuaj yeem hloov kho kom zoo melding.

3. Qhov kev pab cuam tuaj yeem ua tau sai los ntawm kev rov teeb tsa, ntxig thiab tshem tawm qhov chaw ntawm cov soldering lossis tag nrho kev hloov kho.

4. Clamping qhov kom yooj yim nqa thiab hloov cov khoom.hluav taws xob soldering tshuab

5. Pub cov tins txhua lub sijhawm los thov rau ntau qhov vuam thiab ua haujlwm siab.

6. Weller soldering kub tswj, tswj qhov kub thiab txias ntau dua thiab ruaj khov dua.

7. Nws pib anti-collapse.hluav taws xob soldering tshuab

8. Programming nrog kev qhia pendant rau txhua tus neeg siv tshiab ua haujlwm hauv 2 teev.

9. Nws pib thauj daim kab xev yog xaiv tau rau tag nrho tsis siv neeg.

10. Hom ntawm ob tus neeg siv kev tswj hwm ntawm txoj cai sib txawv rau engineer thiab tus neeg teb xov tooj.

11. Nrog kev ua haujlwm ntawm calibration ntawm R axis, kho cov haujlwm tsis raug.

12. ±0.02mm rov ua dua kom ua tiav qhov tseeb soldering.hluav taws xob soldering tshuab

Yuav ua li cas los tsim lwm phau ntawv welding workstations:

Lub hom phiaj ntawm kev hloov ntawm phau ntawv welding workstation, cov khoom siv tsis siv neeg tuaj yeem nyob hauv kev ua lag luam tam sim no suav nrog kev xaiv yoj soldering thiab soldering neeg hlau. Selective yoj soldering yog ib hom tshwj xeeb ntawm yoj soldering tshuab. Nws feem ntau yog tsom rau ntawm cov khoom hauv lub qhov thiab xaiv xaiv cov pob qij txha kom ua tau raws li qhov xav tau ntau lawm. Cov yam ntxwv ntawm kev xaiv yoj soldering txiav txim siab tias qhov tseeb ntawm nws cov cuab yeej yog siab heev, yog li tsuas muaj ob peb yam khoom uas ruaj khov thiab muaj nyob rau hauv kev ua lag luam, thiab tus nqi kim heev. Nyob rau hauv sib piv rau cov xaiv yoj soldering, tus neeg hlau soldering kho cov khoom los ntawm lub qhov plug-in cov khoom nrog ib tug clamping ntaus ntawv thiab solders lub pins upwards los ntawm sab saum toj.

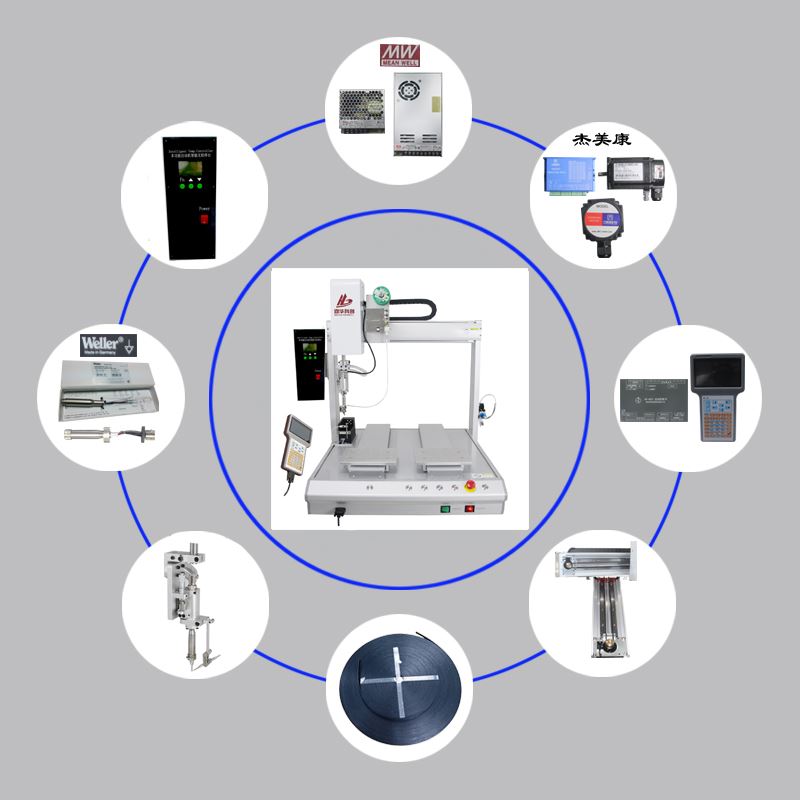

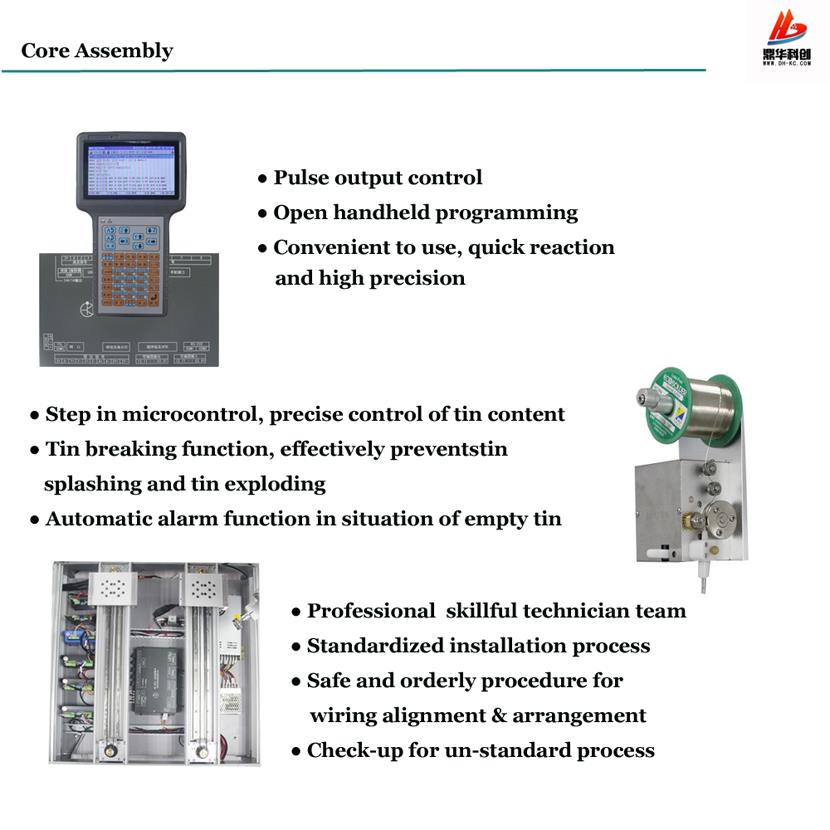

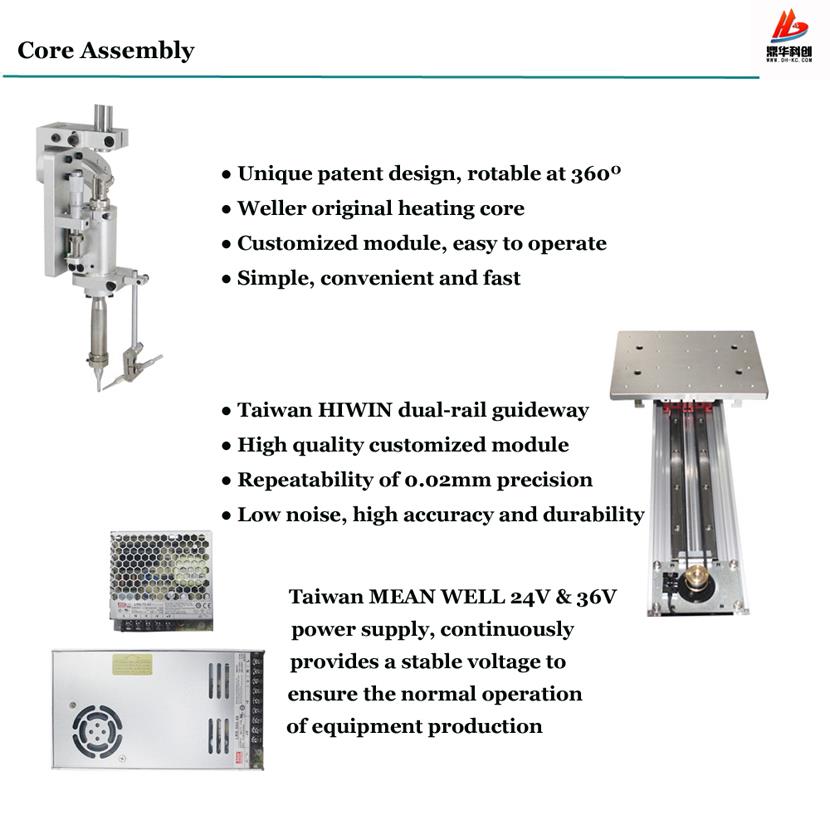

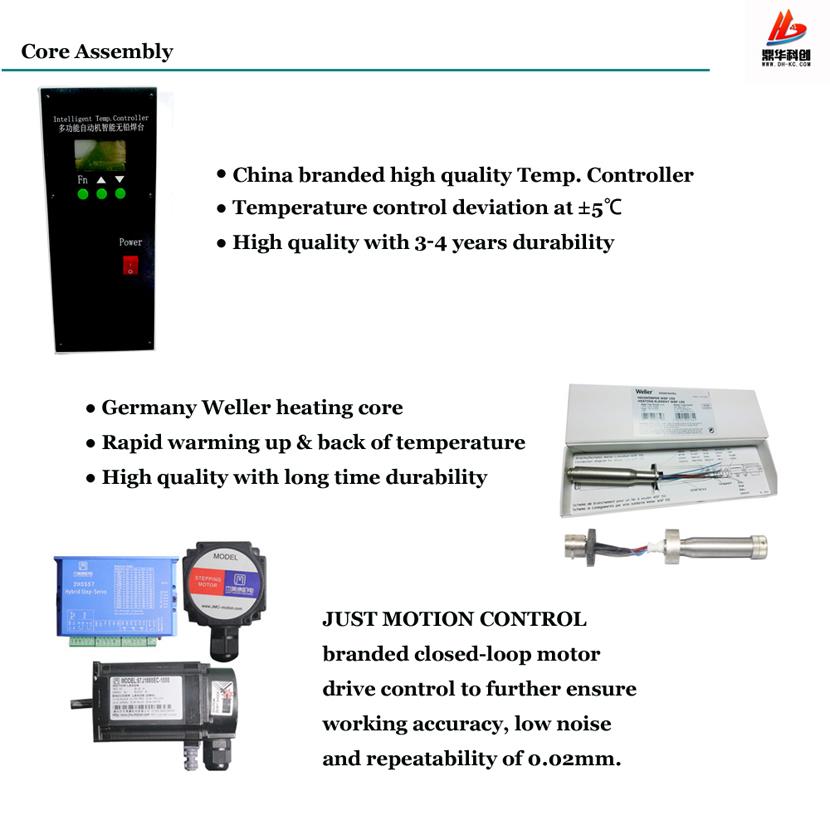

V: Cov npe ntawm cov khoom tseem ceebhluav taws xob soldering tshuab

III Ntim & Xa khoom

VI: Tuam txhab Profile

SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO., LTD yog Tuam Tshoj ua cov chaw tsim khoom, tsim nyob rau hauv 2011.Nws yog lub Hoobkas ncaj, tsim, tsim, muag, thiab xa tawm ntawm ib kab, tau koom nrog BGA rework chaw nres tsheb, tsis siv neeg soldering tshuab thiab neeg hlau, tsis siv neeg ntsia hlau xauv tshuab thiab cov neeg hlau, cov tshuab tsis siv neeg dispenser, nrog rau kev lag luam rau CNC engraving tshuab, LCD cov khoom, thiab SMT cov cuab yeej thiab cov khoom siv. Peb tau cog lus los muab cov cuab yeej siv siab tshaj plaws nrog kev ua haujlwm siab thiab kev pabcuam raws sijhawm rau peb cov neeg siv khoom.

Raws li ib tug ntawm cov pioneer nyob rau hauv no kev lag luam, peb txuas ntxiv txhim kho thiab innovate nrog rau kev ua lag luam xav tau los ntawm absorbing cov kev loj hlob ntawm txawv teb chaws thiab ua raws li peb lub zeem muag ntawm 'Professionalism, Honesty, Innovative thiab lub luag hauj lwm'.

Muab cov cuab yeej technology yog peb lub hom phiaj tseem ceeb. Los ntawm kev ua haujlwm pab pawg, peb tau ua tiav cov thev naus laus zis thev naus laus zis nrog rau patent. Nyob rau tib lub sijhawm, peb cov khoom lag luam npog 3 pawg: high-end, nruab nrab-kawg thiab qis-kawg rau kev txhim kho thiab tsim khoom siv phau ntawv, semi-auto mus rau tag nrho cov txheej txheem automated. Peb cov kev lag luam tau nthuav dav mus rau hauv kev lag luam xws li: kev kho tus kheej, cov chaw tsim khoom, kev kawm, tub rog thiab aerospace thiab lwm yam. Tib lub sijhawm, peb tau tsim cov ntsiab lus ntawm kev muag khoom thiab kev pabcuam kawg hauv zos thiab txawv teb chaws. Peb tau nce qib hauv kev lag luam thoob ntiaj teb ncaj qha, nrog cov khoom lag luam zoo, cov nqi sib tw, thiab kev tshawb nrhiav kev lag luam xav tau, thiab tau koom tes nrog ntau tus neeg koom tes zoo xws li Google, FOXCUNN, Lenovo, Sumsung, Huawei, thiab lwm yam.

Koj qhov kev txaus siab yog peb txoj kev nrhiav, ua raws li cov neeg siv khoom, tsom mus rau kev lag luam, peb lub tuam txhab muab cov khoom lag luam nrig thiab cov kev pabcuam zoo rau cov neeg siv khoom los ntawm kev nruam ntej. Peb zoo siab ua haujlwm nrog koj los tsim kom muaj lub neej yav tom ntej.

V.FAQ ntawm tsis siv neeg soldering neeg hlau

Q1: Kuv tsis paub dab tsi txog lub tshuab soldering tsis siv neeg, hom tshuab twg kuv yuav tsum xaiv?
Cia li qhia peb seb koj xav ua dab tsi siv lub tshuab no. Thiab xa peb cov qauv duab zoo dua.
Tom qab ntawd peb yuav xa koj cov kev daws teeb meem zoo meej thiab cov lus qhia.

Q2: Thaum kuv tau txais lub tshuab no, tab sis kuv tsis paub yuav siv nws li cas. Kuv yuav ua li cas?
Peb yuav xa koj phau ntawv txhais lus Askiv thiab CD video rau lub tshuab siv thiab tswj nrog lub tshuab. Yog tias koj tseem muaj qee qhov tsis ntseeg, peb tuaj yeem tham hauv xov tooj lossis los ntawm WHATSAPP / SKYPE. Peb tus engineer kuj tuaj yeem xa tuaj rau koj lub tebchaws los nruab lossis kho tshuab yog tias tsim nyog.

Q3: Yog tias qee qhov teeb meem tshwm sim rau lub tshuab no thaum lub sijhawm lav, kuv yuav ua li cas?
Peb yuav muab cov khoom pub dawb rau lub tshuab no thaum lub sijhawm lav yog tias lub tshuab muaj teeb meem.Peb kuj muab kev pabcuam dawb tom qab mus tas li. Yog li txhua yam tsis ntseeg, tsuas yog qhia rau peb paub, peb yuav muab cov kev daws teeb meem rau koj hauv 30 min.
