2 Cov Cuab Yeej Cuab Yeej Kov Screen BGA Soldering Tshuab

                                   2 Cov Cuab Yeej Cuab Yeej Kov Screen BGA Soldering Tshuab



1. Khoom Taw Qhia

﹡ Siv dav hauv Chip Theem Kho hauv lub xov tooj ntawm tes, PCs, laptops, TVs, Xbox ib, PS4, tswj boards, thiab lwm yam.

﹡ HD kov npo neeg siv-phooj ywg interface, ua haujlwm yooj yim

﹡ Infrared preheating cheeb tsam npog nrog high-temperature resistance iav-ceramics vaj huam sib luag

﹡ stepper lub cev muaj zog tsav tsheb rau lub tshuab cua sov sab saum toj, tswj los ntawm lub pob

﹡ Muaj peev xwm teeb tsa 8 ntu nce qhov kub thiab txias / lub sij hawm tas li / kub nce nqes



2. Khoom Specifications



1	Tag nrho lub zog	2300W
2	3 lub tshuab hluav taws xob ywj pheej	Sab saum toj kub cua 450W, hauv qab infrared preheating 1800W
3	Qhov hluav taws xob	AC220V ± 10% 50/60Hz
4	Hluav taws xob qhov chaw	kov npo tswj vaj huam sib luag + siab precision ntse temp tswj module + stepper tsav tsav
5	Kev tswj qhov kub thiab txias	K-Sensor kaw-loop + PID tsis siv neeg temp them + kub module, temp raug nyob rau hauv ± 2 degree.
6	PCB positioning	V-groove bracket + universal fixture
7	Muaj feem xyuam PCB loj	Max 350x280mm Min 22x22mm
8	Muaj feem xyuam BGA loj	2x2mm ~ 80x80mm
9	Qhov ntev	500x550x650mm (L * W * H)
10	Net nyhav	16 Kg

3. Cov khoom siv zog thiab kev siv

Qhov zoo ntawm DH-200:

(1) Kev tswj qhov kub thiab txias, yuav tsis ua rau tsis muaj vuam lossis txuas vuam.

(2) Super siab kho qhov ua tau zoo, vim qhov siab precision temp tswj thiab cov kab ke kho qhov muag zoo.

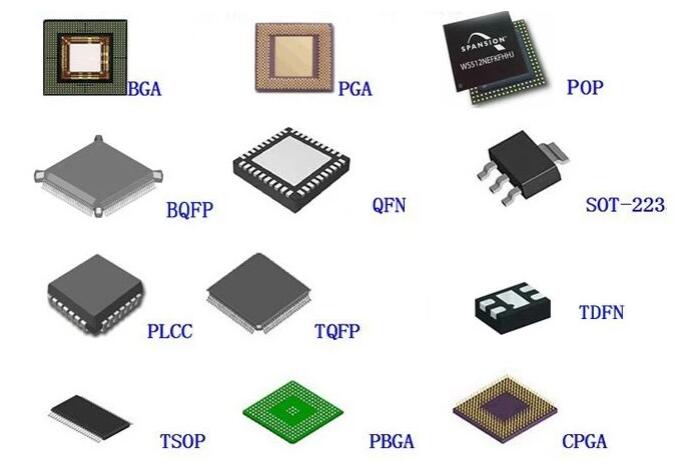

Kev siv ntau yam: tuaj yeem ua haujlwm BGA, PGA, POP, BQFP, QFN, SOT- 223, PLCC, TQFP, TDFN, TSOP, PBGA,

CPGA, LED nti hauv motherboards ntawm cov khoom siv hluav taws xob. Kho kev vam meej tus nqi 99%.



4.  Product details

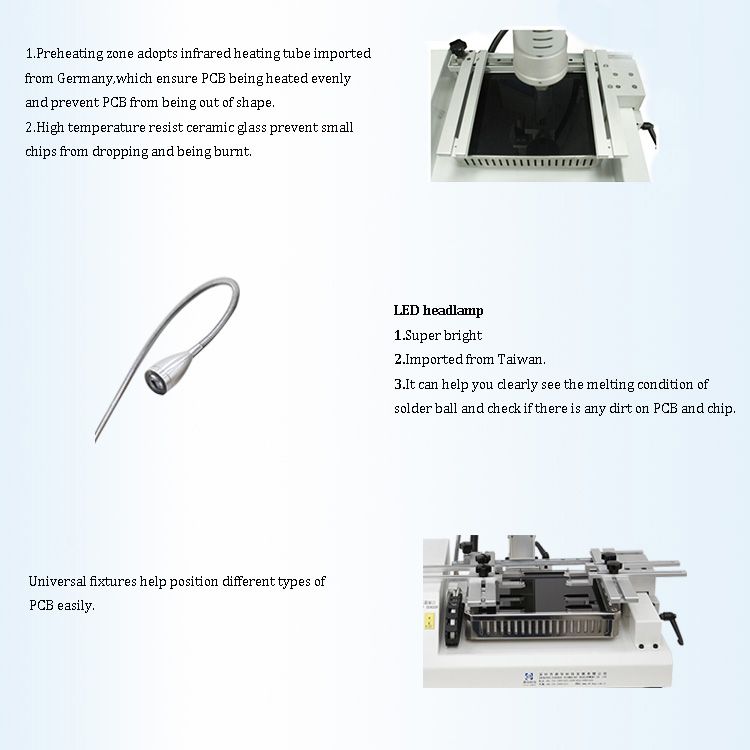

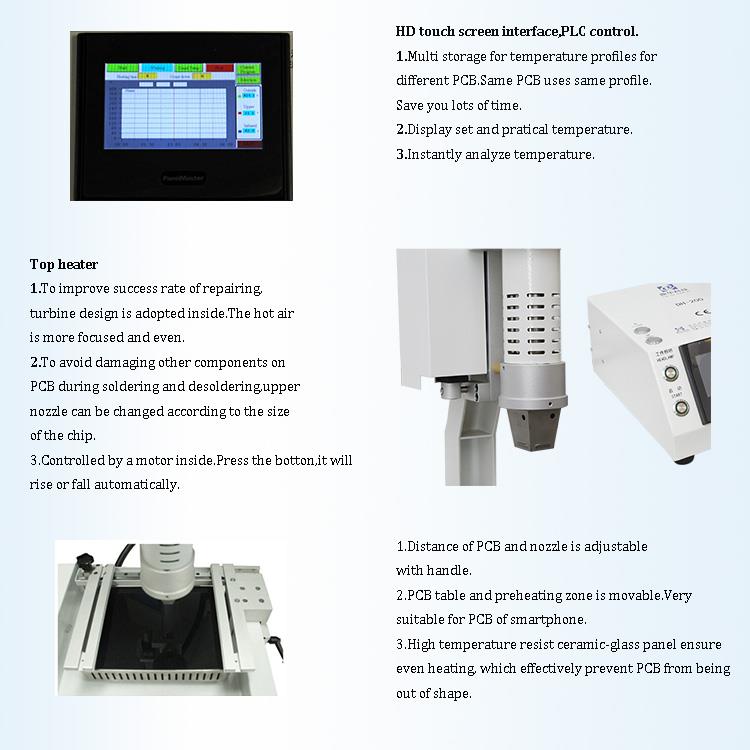

HD kov npo, ntse PC tswj

• Sab saum toj cua sov tsim
• 2 lub tshuab cua sov ywj siab
• IR raj preheating, them los ntawm high temp tsis kam iav-ceramic vaj huam sib luag, cua sov ntau tusyees
• coj lub teeb ua haujlwm
• Muaj ntau txoj hauv kev rau PCBA qhov chaw
• khawm zoo
• muaj zog cua txias ntxuam





5.Cov khoom tsim nyog





6.Peb cov kev pabcuam

Tag nrho peb cov chaw ua haujlwm BGA tau ntim khoom nyab xeeb rau kev thauj mus los.





Peb Cov Kev Pabcuam

1. Koj qhov kev nug yuav teb rau hauv 24 teev;
2. Muab cov khoom seem dawb thiab cov kev pab cuam nyob rau hauv ib xyoos ntawm warranty, tab sis tag nrho lwm cov nqi txheeb ze yuav tsum nyob ntawm tus neeg yuav khoom tus account;
3. Muab GREAT luv nqi rau AGENTS kom ntseeg tau tias cov neeg ua haujlwm tau txais txiaj ntsig.



Dinghua BGA rework chaw nres tsheb lav:

1. Tau qhov tseeb, kub tshaj plaws thiab cov khoom zoo tshaj plaws.

2. Muab cov nqi sib tw tshaj plaws.



7. FAQ

* Cov nqe lus them nqi?

T / T: 50% tso nyiaj, tshuav nyiaj li cas ua ntej ua zaub mov xa tuaj

Western Union

Paypal

Aliexpress

Escrow

* Kev cob qhia & Warranty?

Lub neej-lub sij hawm pub dawb kev cob qhia kev ua haujlwm thiab kev saib xyuas.

Warranty: ib xyoos warranty. 1st xyoo yog dawb xwb, tsuas yog spare qhov nqi them tom qab 1st xyoo.

Kev nug yuav teb rau hauv 24 teev, 7 hnub / lub lis piam.

Kev cob qhia thiab kev lees paub tuaj yeem yog los ntawm chaw ua haujlwm txawv teb chaws hauv nroog lossis Shenzhen Dinghua chaw ua haujlwm ncaj qha.



8. Xav paub ntau ntxiv:

Kev Tiv Thaiv Kev Nyab Xeeb ntawm chaw nres tsheb rov ua haujlwm

1. Tsis txhob siv cov kiv cua lossis lwm yam khoom siv ncaj qha mus rau qhov chaw kho plaub hau thaum nws ua haujlwm, txwv tsis pub, nws yuav ua rau qhov tsis zoo ntawm qhov sib txawv ntawm cov cua sov phaj.
2. Thaum qhib, qhov chaw kub kub tsis tuaj yeem yog ib qho kev sib cuag ncaj qha nrog cov khoom, nws yuav ua rau hluav taws kub los yog tawg, thiab PCB yuav tsum tau muab tso rau ntawm PCB cov txee.
3. Tsis txhob co rework chaw nres tsheb, thiab txav mus maj mam
4. Tsis txhob kov qhov kub taub hau, txwv tsis pub nws yuav kub hnyiab
5. Thaum qhib, tsis txhob siv cov tshuaj tua hluav taws, cov kua lossis cov roj hluav taws xob nyob ze ntawm qhov chaw kho.
6. Tsis txhob sim hloov chaw ua haujlwm rework, txwv tsis pub, nws yuav ua rau hluav taws kub lossis hluav taws xob poob.
7. Lub thawv hluav taws xob muaj cov khoom siv high-voltage, tsis txhob sim disassemble
8. Yog tias cov khoom siv hlau lossis cov kua dej poob rau hauv qhov chaw kho thaum nws ua haujlwm, tam sim ntawd tshem tawm lub hwj chim, tshem tawm cov hlua hluav taws xob kom txog thaum lub tshuab txias, ces tshem tawm tag nrho cov khib nyiab, av; yog av tawm, muaj ntxhiab tsw thaum reboot.
9. Thaum cov cua kub txawv txav los yog haus luam yeeb, tam sim ntawd txiav lub hwj chim thiab ceeb toom rau cov kev pab cuam kho. Nws yuav tsum tau txiav cov xov hlau ntawm lub thawv hluav taws xob thiab lub tshuab ua haujlwm, thiab yuav tsum tuav lub ntsaws, txwv tsis pub, nws ua rau kev sib cuag tsis zoo, thiab tsis ua haujlwm.
10. Nco ntsoov tias lub chaw kho mob tsis txhob nias lossis khiav hla lwm yam khoom siv hluav taws xob lossis cov kab hluav taws xob lossis kev sib txuas lus, thiab nws yuav ua rau lub cuab yeej ua haujlwm tsis zoo lossis ua rau hluav taws xob lossis hluav taws xob poob.
11. Ua ntej siv qhov chaw nres tsheb rework, koj yuav tsum nyeem phau ntawv no kom zoo zoo



Kev teeb tsa ntawm BGA rework chaw nres tsheb

Txhawm rau kom ntseeg tau tias lub neej muaj txiaj ntsig ntawm BGA rework chaw nres tsheb, kev teeb tsa kho chaw yuav tsum

ua tau raws li cov cai hauv qab no:

1. Nyob deb ntawm cov khoom tawg yooj yim thiab tawg
2. Tsis txhob txaws dej lossis lwm yam kua dej
3. Zoo-ventilated, qhov chaw txias
4. Qhov chaw ruaj khov, tiaj tiaj tsis tshua muaj kev vibration
5. Muab cov hmoov av tsawg dua
6. Txwv tsis pub tso cov khoom hnyav rau saum lub thawv tswj
7. Tsis muaj kev cuam tshuam ntawm cov cua txias, cua sov thiab kiv cua
8. Khaws cia rau 30cm kom txav thiab tig ib ncig ntawm sab saud rau sab nraum qab ntawm qhov chaw nres tsheb rework.
