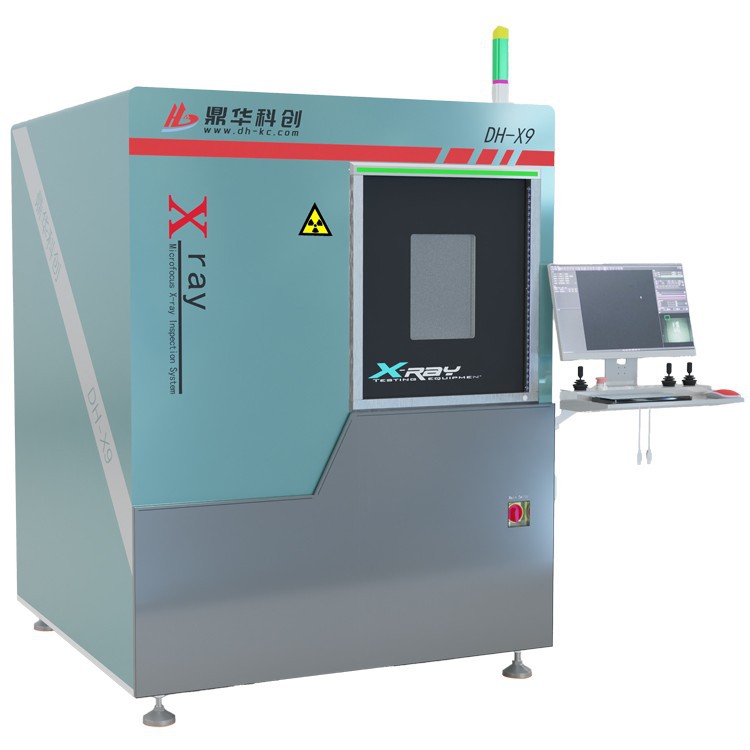

XRay tshuaj xyuas cov kab ke
Chaw thau khoom platform tuaj yeem tig tau 360º, nws cov duab ntes tau tuaj yeem tsim tau los ntawm 60º, siv rau Mobileeauto, cov qauv thiab cov qauv coj mus saib thiab lwm yam.
Hauj lwm lawm
Xray tshuaj xyuas tshuab pab koj kom tau zoo dua
Dinghua thev naus laus zis siv cov cuab yeej siv siab tshaj plaws thiab thev naus laus zis los ua kom cov qib siab tshaj plaws ntawm kev ua tau zoo thiab meej. Peb cov x-ray tshuaj xyuas cov tshuab yog haum rau ntau yam ntawm kev lag luam, suav nrog tsheb, hluav taws xob, tsheb thiab semiconductor thiab semiconductor. Nyob rau hauv lub tsheb ntsuas tsheb thiab hauv cov lag luam kev lag luam, xoo hluav taws xob kuaj pom hauv cov khoom siv hluav taws xob, egsuch li PCBS, capacitors thiab IC chips. Nrib pleb, tuag-casting, etc. ntawm txhuas qhov chaw.
Ib qho zoo ntawm X-ray tshuaj tshuaj ntsuam cov tshuab yog tias lawv tsis yog-ua kom muaj kev puas tsuaj, lub ntsiab lus peb tsis ua kev puas tsuaj rau cov khoom raug sim. Qhov kev cawm lub sijhawm vim tias qhov tsis xws luag tuaj yeem pom tau sai thiab hloov ua ntej lawv tsim teeb meem.
Cov Ntsuas Ntawm Xray Soj Ntsuam Tshuab
|
Tshuab cov xwm txheej |
Xoo hluav taws xob raj |
|||
|
Fais fab mov: |
AC220V 10A |
Xoo hluav taws xob raj hom: |
kaw lawm |
|
|
Lub Zog: |
1.9kw |
Tam sim no: |
200ɥA |
|
|
Qhov rooj qhib: |
Qauv Txheej Txheem |
Voltage: |
90Kv -130 kv |
|
|
Txoj kev kuaj pom: |
offline |
TSIM NYOG: |
5um |
|
|
Qhov loj me: |
1475 × 1465 × 1930mm |
Cov tshuaj lom zem ntsuas duab geometric: |
300times |
|
|
Nyhav: |
Kwv yees2100KG |
Cua txias txoj kev: |
Cua Txias |
|
|
Kev Ntsuam Xyuas System |
||||
|
Siv tau cov kev ntsuas thaj chaw: |
130 × 130mm |
Laij Teb Ua Phem: |
10000g |
|
|
pixel matrix: |
1536 ×1536 |
Qhov loj me: |
176 ×176 ×47 |
|
|
Pixel loj: |
85µm |
Ntes: |
Tft tshiab |
|
|
Spatial daws teeb meem: |
5.8LP \/ hli |
Kev Ua Haujlwm Kub: |
10-40 degree |
|
Cov Neeg Muaj Peev Xwm
Xaiv cov kab ke uas haum koj zoo tshaj plaws.

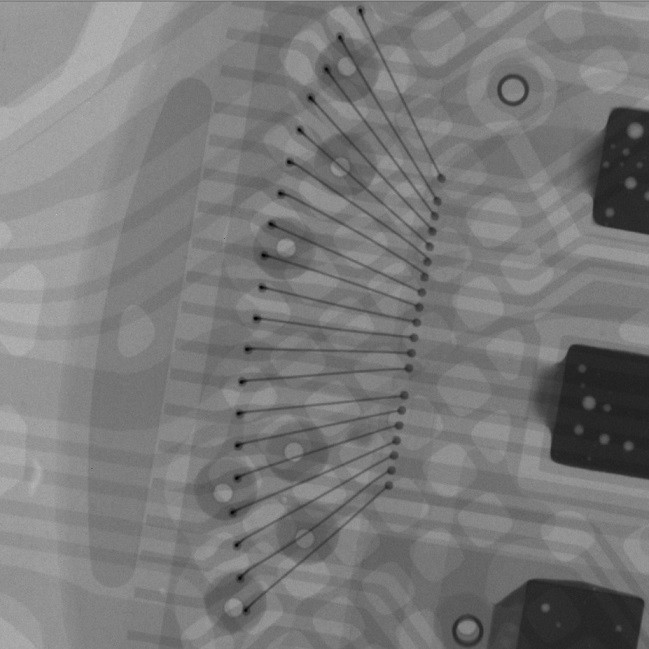

IC Hlau Hlau
Cov xov hluav kuaj kub kub, pom txhua qhov xov hlau yog qhov tseeb, tsis luv lossis tawg.
Hlau Qhov Chaw
Muaj ib lub kaum ntse ntse ploj ntawm ib qho hlau-ib feem ntawm cov khoom hluav taws xob hluav taws xob
Hlau Tshuab
Qhov no ib qho yuav muab tais ntau txhiab leej, thaum nws tau sib sau hauv xov tooj ntawm tes,
Xav tau los kuaj, kom paub tseeb tias tsis muaj kab nrib pleb lossis kev tsis taus.
LED Nti
Txhawm rau tshuaj xyuas nws cov npuas, luv luv, nco ntsoov tias nws ntsib tus qauv kev pab.

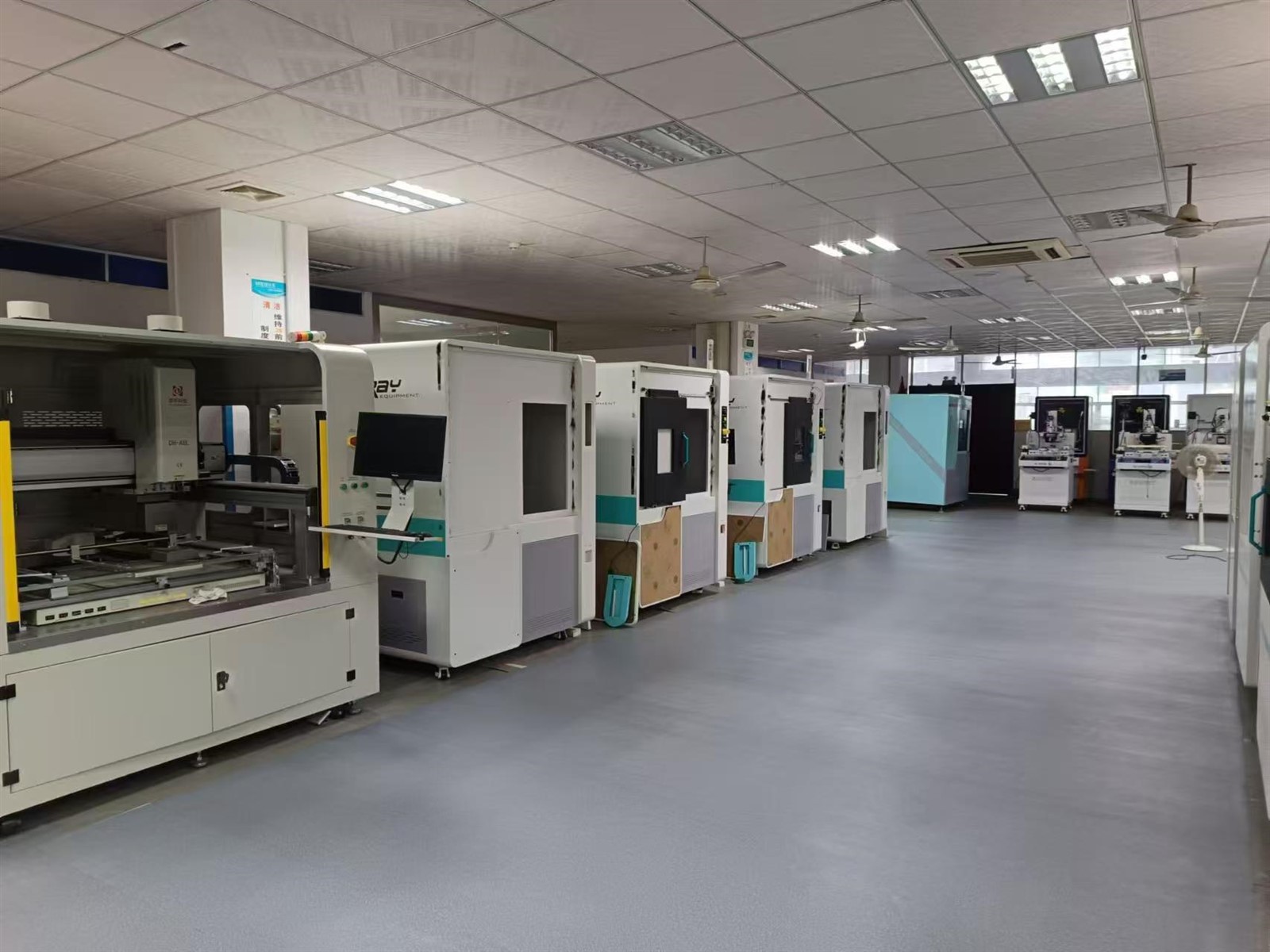

Peb Lub Hoobkas & Kev Siv Tshuaj
Tus kheej R & D thiab cov khoom lag luam hauv Suav teb
Cov Lus Nquag Nug
Yog tias tsis muaj koj cov lus teb, thov hu rau peb xwb
Dab tsi yog xoo hluav taws xob kuaj thiab nws ua haujlwm li cas?
+
-
Xoo hluav taws xob tshuaj xyuas yog ib txoj kev ntawm cov kev sim ua tsis zoo uas siv hluav taws xob hluav taws xob
Penetrates ib qho khoom thiab tsim cov duab ntawm nws cov qauv sab hauv. Nyob rau hauv cov ntsiab lus ntawm pcb,
Xoo hluav taws xob tshuaj xyuas cov tshuab tuaj yeem ua rau pom cov nta uas pom tau pom ntawm cov chaw nres tsheb cirruit Court pom
liab qab lub qhov muag. Nco ntsoov, lwm yam khoom, piv txwv li, txhuas qhov, muaj roj thiab dis-casting qhov chaw
tuaj yeem tshawb xyuas ib yam nkaus.
Cov txiaj ntsig ntawm X-ray tshuaj xyuas ntawm PCB yog dab tsi?
+
-
X-ray rear kuaj tshuab muab ob peb cov txiaj ntsig rau PCBs. Ua ntej, lawv muab txoj hauv kev kom pom cov cheebtsam thiab cov kab zais hauv cov kab mob PCB; Qhov no pab kom paub meej txog kev sib txuas hauv kev sib txuas ntawm cov khoom sib txuas thiab kuaj pom qee yam tsis xws.
Thib ob, X-ray soj ntsuam cov tshuab tuaj yeem tshawb xyuas cov nqi tau sai thiab txuag tau cov nqi, sijhawm thiab cov peev txheej rau cov tuam ntxhab.
Thaum kawg, X-ray soj ntsuam cov tshuab tuaj yeem kuaj tau ib qho ntawm cov kev tsis xws luag, suav nrog cov kab nrib pleb, tuaj yeem txo cov kev pheej hmoo ntawm cov khoom tsis ua haujlwm.
Dab tsi ntawm cov xwm txheej tsis xws luag tuaj yeem pom tau yoov kuaj pom?
+
-
X-ray ray kev tshuaj ntsuam cov cav tov tuaj yeem txheeb xyuas qhov tsis xws luag hauv PCBs, cov khoom muaj cov kab nrib pleb, kev ua haujlwm tau raug tshem tawm, thiab circuits tawg. Lawv tseem tuaj yeem tshawb xyuas hauv qab no, cov khoom sib xyaw thiab pov thawj, cov teeb meem xaim thiab cov khoom siv cuav.
Xoo hluav taws xob pom cov khoom cuav pom?
+
-
Yog lawm, X-ray soj ntsuam tuaj yeem pab txheeb xyuas qhov tseem ceeb. Cov khoom sib txawv, cov hluav taws xob, cov khoom siv hluav taws xob, cov khoom muaj pes tsawg leeg piv rau cov khoom siv sib piv tau siv cov duab xoo hluav taws xob.
Dab tsi yog cov kev txwv ntawm xoo hluav taws xob kuaj?
+
-
X-ray kev soj ntsuam tsis yog tus qauv ruam thiab nws muaj nws cov kev txwv. Nws tsis tuaj yeem kuaj xyuas cov tsis xws sab hauv cov khoom sib xyaw
Kev siv cov hau kev nce siab ntau dua li 3D x-rays lossis ct scans. Tsis tas li ntawd, kev daws teeb meem ntawm X-ray Soj ntsuam lub tshuab kuj tseem yuav txwv, uas yuav tsis pab koj txheeb xyuas cov Cheebtsam.
