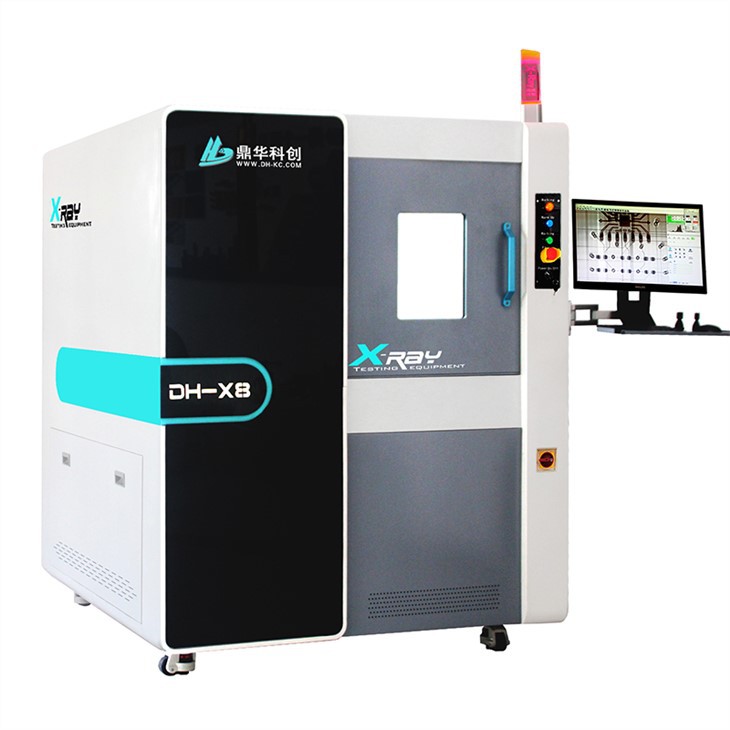

X-ray tshuab soj ntsuam

X-ray tshuab kuaj xyuas yog txheej txheem ntawm kev siv x-rays los tshuaj xyuas cov khoom lossis cov khoom siv rau qhov tsis xws luag lossis qhov txawv txav. Txoj kev no feem ntau siv rau hauv kev lag luam xws li kev tsim khoom, aviation, thiab kev kho mob.

Xa kev nug

Hauj lwm lawm

Xray tshuab kuaj xyuas

Hauv kev tsim khoom, kev tshuaj xyuas tshuab x-ray yog siv los tshuaj xyuas cov pob qij txha welded, castings, thiab cov khoom siv hluav taws xob rau

tsis xws luag xws li tawg, voids, thiab inclusions.

Feature:

Cov cuab yeej siv no ua tau raws li kev kuaj X-ray dav dav thiab muaj ntau yam kev siv.
X-ray qhov chaw txais yuav ib lub raj xa hluav taws xob xa mus, 90KV.
High-resolution tsim ua tiav cov duab zoo tshaj plaws hauv lub sijhawm luv luv.
Lub peev xwm thauj khoom yog kwv yees li 10-20KG, nrog 580mm * 570mm loading platform.
Cursor navigation positioning, xaiv ceev ntawm qhov chaw tua.
Laser tsis siv neeg navigation thiab positioning, ceev xaiv ntawm qhov chaw tua.
Inclined multi-angle detection ua rau nws yooj yim dua los xyuas cov qauv tsis xws luag, Lub teeb lub raj tiaj tiaj tuaj yeem tig
(0-60 degree ), ua kom pom cov duab pom tseeb dua thiab nkag siab ntau dua.

Hardware Parameters:


X-ray qhov chaw	Lub teeb raj hom	Hamamatsu
	Lub teeb raj hom	Kaw qhov kev xav ntawm lub hom phiaj microfocal X-ray qhov chaw
	Lub teeb lub cev voltage	90kv ua
	Phototube tam sim no	10~200μA
	Ua kom pom tseeb loj	5μm
Flat vaj huam sib luag ntes	Ntes hom	High-resolution digital tiaj vaj huam sib luag ntes (FPD)
	daws teeb meem ratio	85μm
	Platform loj	580 * 570 hli
	Qhov siab tshaj plaws load	20kg ua
Tshuab vaj tsev	Pem hauv ntej phaj	5mm tuab txhuas phaj
	Qhov hnyav	1000 kg
	Dimension	1440L1530W1820H
Lub zog thiab noo noo	Fais fab mov	110~220V +/-10% 5A
	Rated zog	1000W
	Ua haujlwm kub	25 +/- 3 degree
	Moisture	50% RH ± 10%
Cov cai tswj kev nyab xeeb	Lead iav tsom qhov rais	Pob tshab iav iav, uas tuaj yeem soj ntsuam cov khoom ntsuas
	Radiation koob	Kev siv cov hlau lead hlau tiv thaiv cov qauv, lub qhov rais pem hauv ntej yog ua los ntawm cov iav uas muaj hlau lead uas tiv thaiv hluav taws xob. Ntawm txhua txoj hauj lwm 20 hli deb ntawm lub thawv, qhov sib npaug ntawm cov tshuaj tiv thaiv hluav taws xob tsawg dua los yog sib npaug rau 1 μ SV / H raws li cov qauv
	Kev ruaj ntseg interlock	Ob qhov kev hloov pauv siab siab txwv tau teeb tsa ntawm lub qhov rooj qhib txoj haujlwm rau kev tu thiab tu cov cuab yeej. Thaum lub qhov rooj qhib, qhov hluav taws xob hluav taws xob tau txais kev tiv thaiv thiab qhib tsis tau
	Thaum muaj xwm ceev nres khawm	Nyob ib sab ntawm txoj haujlwm ua haujlwm, nias kom kaw tam sim.
	pom qhov rais	Nrog lub qhov rais pom thiab pob tshab, nws yog ib qho yooj yim los soj ntsuam cov qauv xwm txheej ncaj qha los ntawm lub qhov rais thaum lub sijhawm ua haujlwm ntawm cov khoom siv
	X-ray tube tiv thaiv	Tsuas yog tom qab tua X-ray koj tuaj yeem tawm hauv software rau lwm yam haujlwm
