Me me infrared BGA rework chaw nres tsheb
Dh -6500 yog ib qho chaw siab infrared bga ntau dua, Max
Hauj lwm lawm
Cov chaw nres tsheb sib txuas me me BGA yog qhov kev cuam tshuam nrog kev puas tsuaj rau kev kho kom zoo nkauj lossis kev siv hluav taws xob muaj kev puas tsuaj rau cov khw muag khoom cua sov thiab siv hluav taws xob kev ua haujlwm . Qhov chaw nres tsheb no tsim nyog rau kev ua haujlwm, thiab cov hneev taw me me rau kev siv hauv qhov chaw nres tsheb ib puag ncig.
Dh -6500 Infrared BGA Rhiav Chaw Nres Tsheb
DH -6500 Tau tsim thiab siv nyob rau hauv kev ua si, thiab nws yog ib qho yooj yim thiab lwm yam thiab lwm yam khoom siv hauv kev lag luam {}}

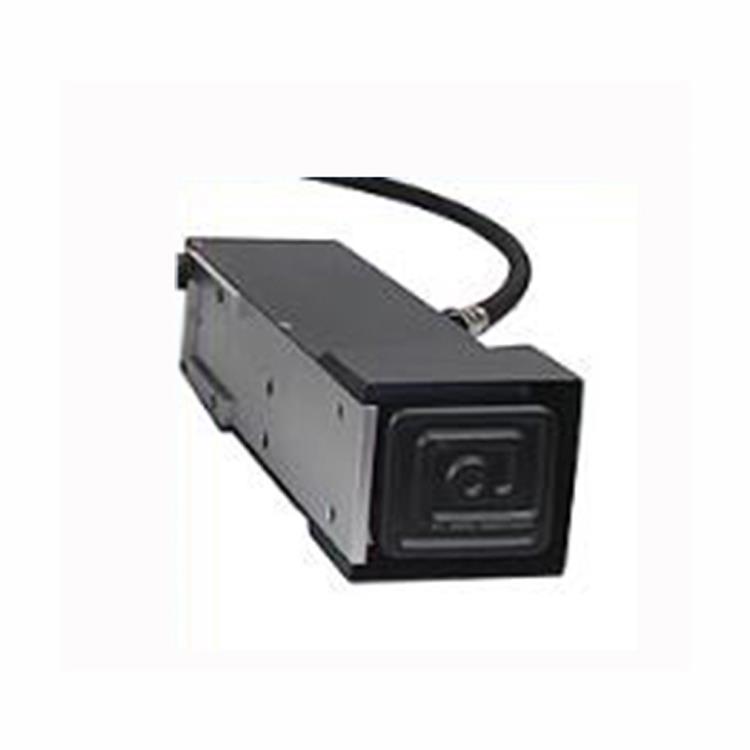

Cov khoom siv hluav taws xob sab saud uas muaj cov khoom siv hluav taws xob nrog 80}
Qhov qis dua IREYING cheeb tsam yog nruab nrog cov tshuaj tiv thaiv kab mob siab, uas muab ntau dua kev tiv thaiv ntawm cov cua sov thaum cua sov.

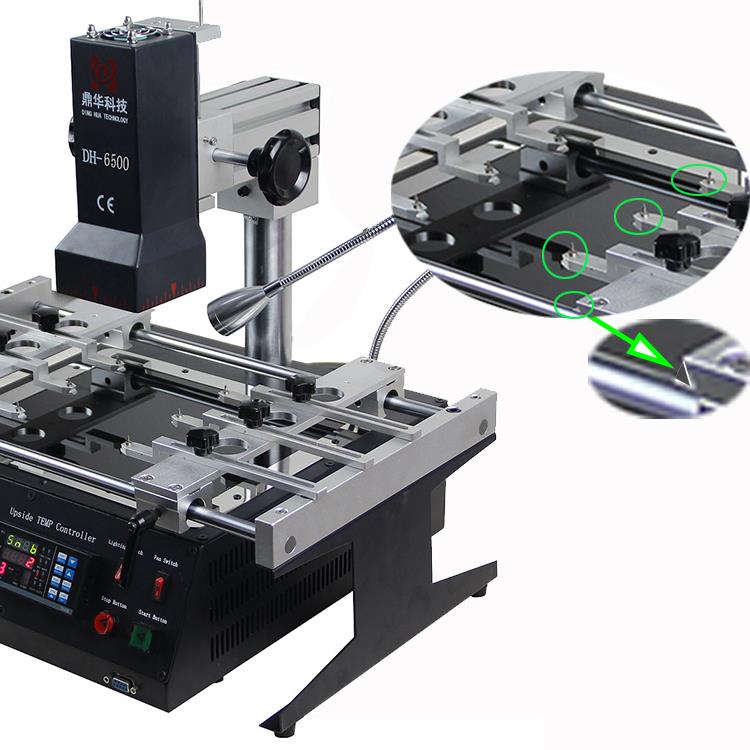

Cov kab ke suav nrog V-Groove, Alligator Clips, thiab cov txav tau universal fixtures, uas tuaj yeem ua kom ruaj khov rau soldering lossis desoldering.
Qhov ntau ntawm PCB loj txhawb tau yog 360 × 300 lub hli, thiab feem ntau thiab tsawg dua los ntawm 2 × 2 × 75 hli .
Digital IR TSHUAB NTA
- Ob qhov kub thiab txias
- Kaum qhov kub profiles tuaj yeem tau txais kev cawmdim
- Ib sab nraud thermocouple rau kev tswj hwm kub tiag tiag
- Xim xim-cim khawm rau kev ua haujlwm yooj yim
Kev qhia txuj ci technical ntawm infrared BGA Rework Chaw nres tsheb
| Chaw ua uas tsis tau haus | Kev qhia tshwj xeeb |
| Kev pab fais fab | 110-250v, 50 / 60Hz |
| Hwjchim | 2500W |
| Huab Cua Cua Sov Zuag | 2 ir aav |
| PCB Loj | Mus txog 300 × 360 hli |
| Feem ntau loj | 2 × 2 txog 78 × 78 hli |
| Qhov hnyav | 16 kg |
Cov FAQ
Q: Kuv puas tuaj yeem dhau los ua koj cov neeg faib khoom hauv kuv lub tebchaws?
A: Yog, koj tuaj yeem .
Q: Puas muaj cov tuam txhab paub zoo siv koj cov khoom?
A: Yog, tuam txhab xws li Google, Huawei, thiab Mitsubishi siv peb cov khoom .
Q: Koj puas kam lees cov khoom lag luam tshiab tsim?
A: Yog, yog tias koj muaj cov qauv tshiab los yog kev daws teeb meem, thov hu rau peb ntawm {{} {1}.
Q: Kuv puas tuaj yeem yuav ncaj qha los ntawm koj lub tebchaws?
A: Yog, peb tuaj yeem xa cov khoom ncaj qha rau koj lub qhov rooj ntawm kev xa khoom .
Qee cov lus qhia txog IR BGA cov chaw nres tsheb khiav ceev
Dab tsi yog qhov profile?
Ib qho profile yog qhov ntsuas kub nyhiab uas cov chaw nres tsheb sib tw ua raws li kev ua haujlwm thiab kev siv cov khoom siv BGA.
Qhov profile muaj plaub ntu sib txawv, uas tau piav qhia hauv qab no:
- Preheater:Cov theem no coj cov thawj coj mus rau qhov kub me ntawm 150℃thiab 180 degree. Qhov kub thiab txias
- Soak:Nyob rau theem no, cov thawj coj yog rhaub kom qhib cov flux . Qhov no yog qhov tseem ceeb vim nws muaj nuj nqi kom ua tau zoo.
- Refow:Thaum lub sijhawm no, cov hlua khau melt thiab nyiaj rau qhov ntsuas kub uas ib txwm muaj txij li thaum muaj sijhawm ntau dua txij li thaum muaj sijhawm ntau dua txij li lub sijhawm 260 pob .
- Txias cia:Cov theem no cuam tshuam nrog lub tshuab txias ntawm BGA, feem ntau ntawm tus nqi tsis tshaj 2-3℃ib ob, kom tsis txhob thermal kev ntxhov siab.
