Tsis siv neeg optical bga reballing chaw nres tsheb
Lub tshuab DH-A2E yog tag nrho tsis siv neeg BGA rework chaw nres tsheb nrog nws pib nti feeder,
zaub npo (15 nti, 1080P), nws pib kho qhov muag CCD kev sib raug zoo tuaj ntawm
Panasonic, thiab carbon fiber cua sov raj npog los ntawm iav-shield, thiab lwm yam. Siv rau pers-
onal kho, munitions Hoobkas los yog University Laboratory thiab lwm yam departments.
Cov khoom parameter ntawmTsis siv neeg optical BGA reballing chaw nres tsheb
Tag Nrho Lub Zog | 5200W |
Lub tshuab cua sov sab saum toj | 1200W |
Hauv qab rhaub | 2nd 1200W, 3rd IR rhaub 2700W |
Hwj chim | AC110 ~ 240V ± 10 ~ 50 / 60Hz |
Nws pib pub system rau nti | |
Hom kev ua haujlwm | Ob hom: phau ntawv thiab tsis siv neeg, xaiv dawb! HD kov npo, ntse txiv neej-tshuab, kev teeb tsa digital. |
Kub profile cia | 50000 pawg |
Optical CCD lub koob yees duab lens Chip feeder | Tsis siv neeg ncab tawm thiab folding los xaiv thiab hloov BGA nti, PLC tswj |
Lub koob yees duab magnification | 10x - 220x |
Workbench fine-tuning: | ± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug |
Sab saum toj micrometer | Max 60 degree |
Qhov tseeb qhov chaw: | ± 0.01 hli |
BGA positioning | Laser positioning, ceev thiab raug txoj hauj lwm ntawm PCB thiab BGA |
PCB txoj haujlwm | Qhov chaw ntse, PCB tuaj yeem hloov kho hauv X, Y kev taw qhia nrog "5 ntsiab lus txhawb nqa" ntxiv rau V-groove PCB bracket ntxiv rau universal fixtures. |
Teeb pom kev zoo | Taiwan coj lub teeb ua haujlwm, 5W, txhua lub kaum sab xis adjustable |
Kev tswj qhov kub thiab txias | K sensor, kaw lub voj |
Temp raug | ± 1 degree |
PCB loj | Max 450 × 400 mm Min 22 × 22 mm |
BGA chip | 2 x 2 - 80 x 80 mm |
Yam tsawg kawg ntawm nti sib nrug | 0.1 hli |
Sab nraud temper sensor | 1pc ua |
Qhov ntev | L600 × W700 × H850 hli |
Net nyhav | 70 KG |
Cov ntsiab lus ntawm cov khoom siv rau qhov chaw nres tsheb optical BGA reballing
Zaub npo, 15 nti, 1080P, zoom hauv / tawm 10x ~ 220x, tag nrho cov dots hauv qab nti lossis rau
PCB tuaj yeem pom meej meej, ntsuas qhov sib txawv, ua kom pom tseeb.
Ib qho tuaj yeem kho qhov muag CCD thiab chip feeder
Qhov no yog qhov kev daws teeb meem siab kho qhov muag CCD uas yog siv rau PCBA thiab cov nti los ua duab.

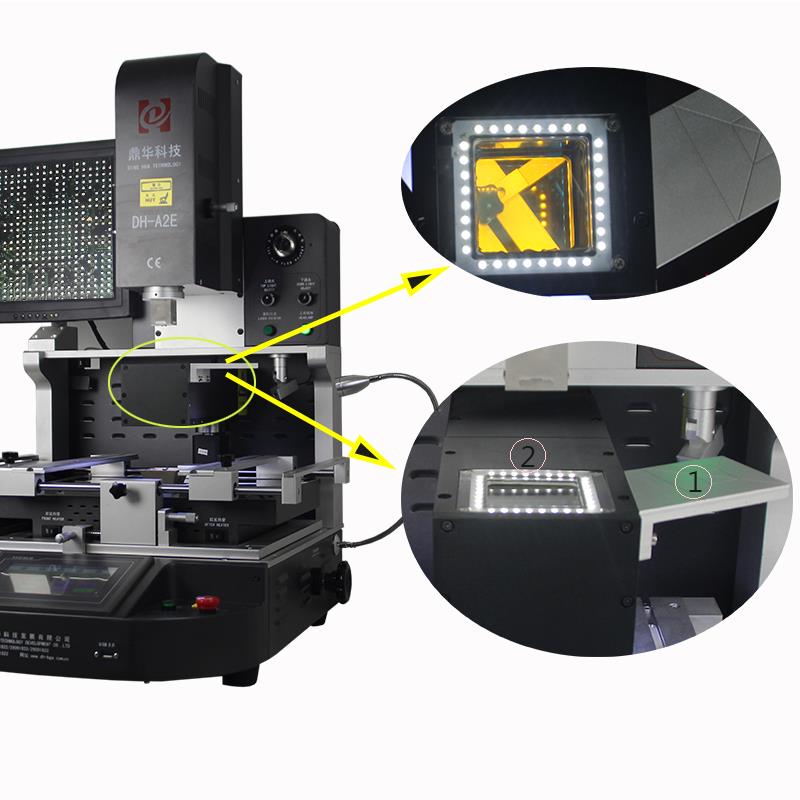

"1" yog ib qho tsis siv neeg nti feeder uas tuaj yeem muab tso rau ntawm lub nti nrog qhov loj txog 80 * 80mm;
"2" yog qhov kho qhov muag CCD nrog lub zeem muag sib cais rau PCB vs lub nti ua raws ntawm lub vijtsam saib.
Ob leeg yog cia li khiav ua ke rau aligning, khaws thiab hloov, thiab lwm yam
Cov cua kub qis thiab IR
"1" yog qhov qis cua kub cua sov nozzle, uas tuaj yeem hloov kho los ntawm 2 * 2 ~ 80 * 80mm, txawm tias
Txawm li cas los xij, mus txog 100 * 100mm, ua los ntawm titanium alloy, yuav tsis xeb, thiab nrog sib nqus pe-
destal, tuaj yeem ntsia tau yooj yim thiab yooj yim. Tseem muaj ib tug me me ntsia hlau-puab nyob rau hauv nruab nrab ntawm
qhov nozzle, nws tuaj yeem tuav lub motherboard nrog qhov loj me thaum cua sov.

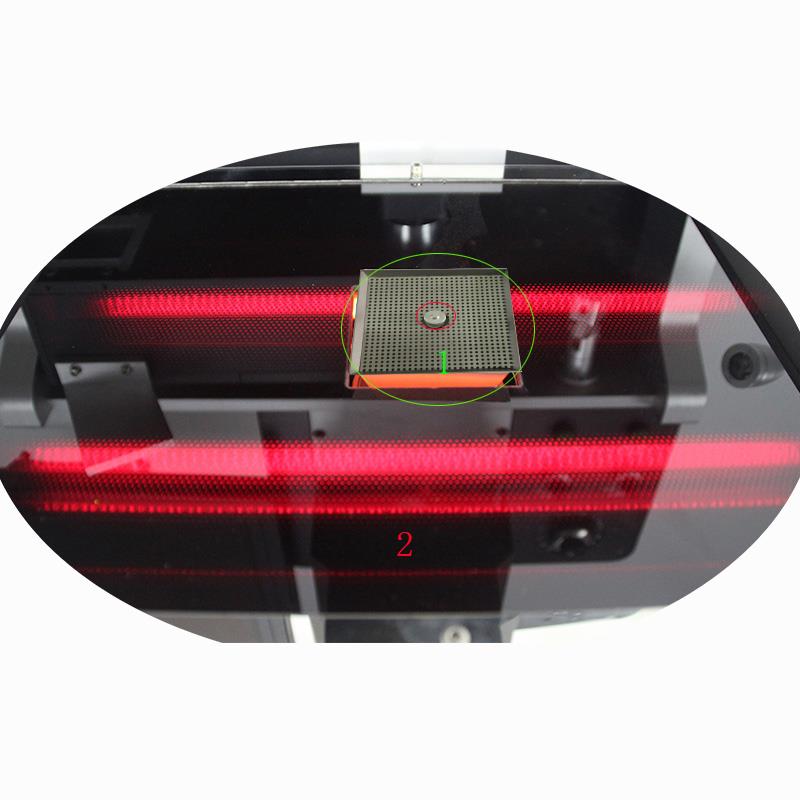

"2" yog hauv qab IR preheating cheeb tsam, thiab tiv thaiv los ntawm ib tug tshwj xeeb iav npog, cov carb-
nyob rau hauv cov tub ntxhais cua sov raj ntsia tau rau hauv, uas tuaj yeem tso tawm txawm tias lub zog cua sov, ua rau npauj-
erboard tiv thaiv qhov zoo tshaj plaws.

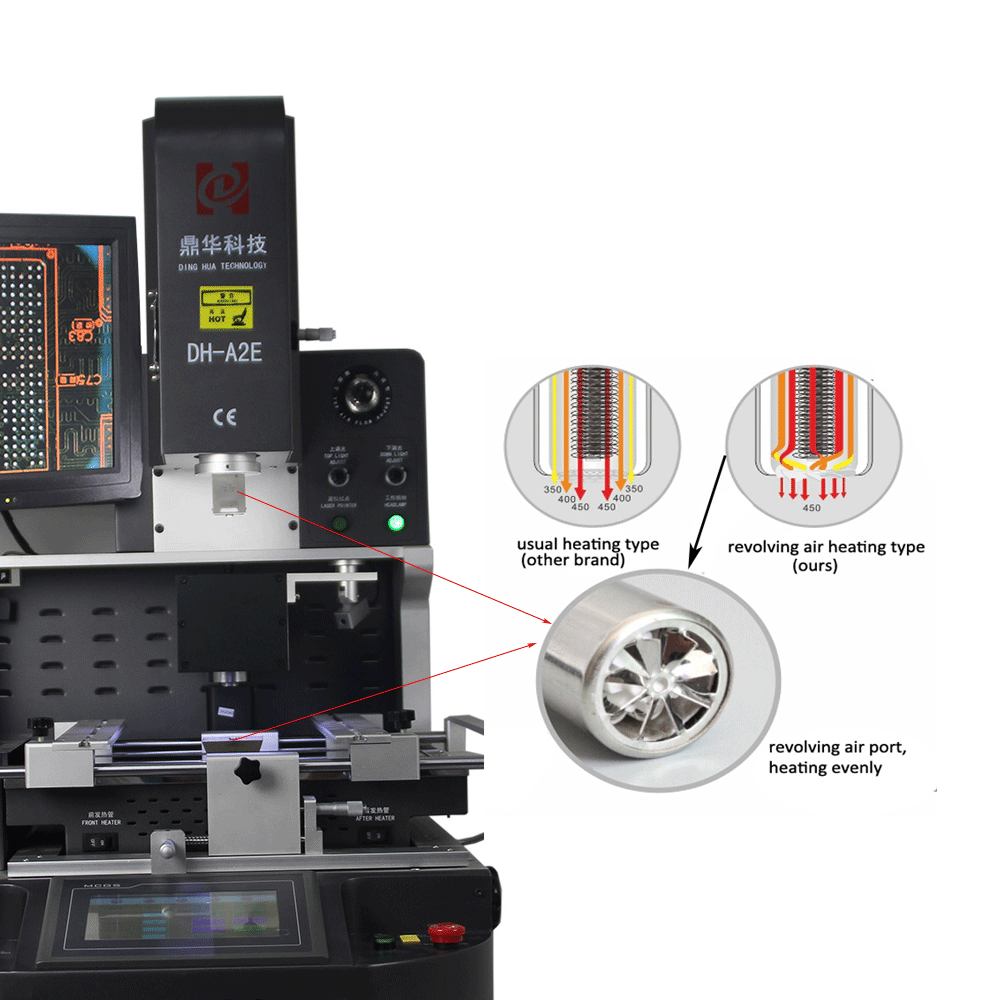

Cua kub cua sov
Cov cua kub cua sov, cov cua sov sab saud & hauv qab rau cov cua ntws ua rau cov pob zeb melted li ntawd
soldering los yog desoldering ib nti ntawm lub motherboard.
Ua los ntawm cov ntaub ntawv txawv teb chaws uas feature nrog txawm huab cua ntws, thiab kav cua sov, nws siv
lub neej yog ntau tshaj 10 xyoo.
Peb cov khoom seem muab los ntawm cov tuam txhab nto moo
Xws li, Omron relay, Mitsubish PLC, Meanwell fais fab mov, thiab lwm yam.
