Kov Screen Lub Koob Yees Duab BGA Rework Chaw Nres Tsheb

                                                        Kov Screen Lub Koob Yees Duab BGA Rework Chaw Nres Tsheb

Ceev saib ua ntej:

Nqe Promotion!DH-A1L BGA Rework Tshuab, nruab nrog lub vijtsam HD kov, tam sim no hauv Tshuag.

DH-A1L BGA Rework Chaw Nres Nkoj Nta:

1. Kev ua tau zoo siab rau kev kho chip.
2. Precise kub tswj.
3. Tsis muaj cuav soldering los yog tsis zoo solder pob qij txha.
4. Peb qhov chaw cua sov ywj siab.
5. Tus neeg siv-phooj ywg tsim.
6. Suab ceeb toom system.
7. Hwj chim cross-flow ntxuam.
8. Ua kom txias system.

Peb tau cog lus rau BGA rework thiab tsis siv neeg tshuab, npog feem ntau ntawm Is Nrias teb, Europe, thiab Asmeskas kev lag luam. Peb tos ntsoov los ua koj tus khub mus sij hawm ntev hauv Suav teb.

1. Specification

1	Hwj chim	4900W
2	Lub tshuab cua sov sab saum toj	Cua kub 800W
3	Hauv qab rhaub	Cua kub 1200W, Infrared 2800W
4	Hlau rhaub	90w
5	Fais fab mov	AC220V ± 10% 50 / 60Hz
6	Dimension	640 * 730 * 580 hli
7	Qhov chaw	V-groove, kev txhawb nqa PCB tuaj yeem hloov kho txhua qhov kev coj ua nrog rau sab nraud universal fixture
8	Kev tswj qhov kub thiab txias	K-hom thermocouple, kaw-voj tswj, ywj siab cua sov
9	Temp raug	± 2 degrees
10	PCB loj	Max 500 * 400 mm Min 22 * ​​22 mm
11	BGAchip	2 * 2-80} * 80 hli
12	Yam tsawg kawg ntawm nti sib nrug	0.15 hli
13	Sab nraud Temperature Sensor	1 (yeem)
14	Net nyhav	45kg ua

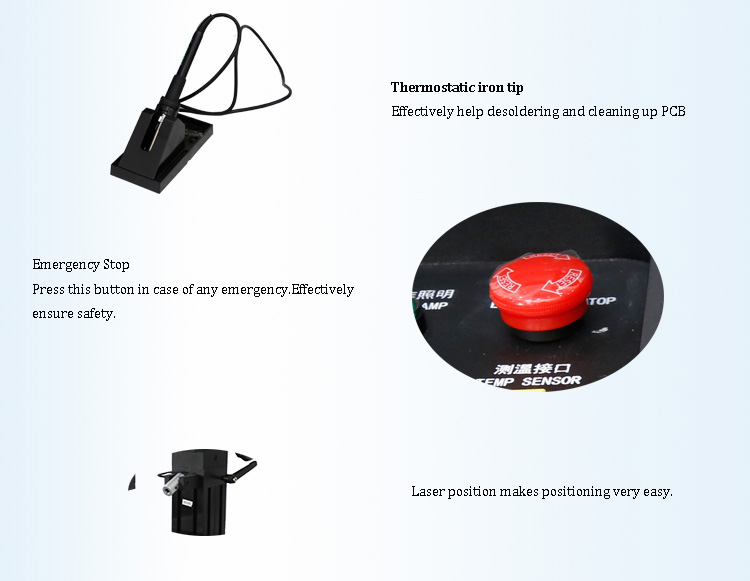

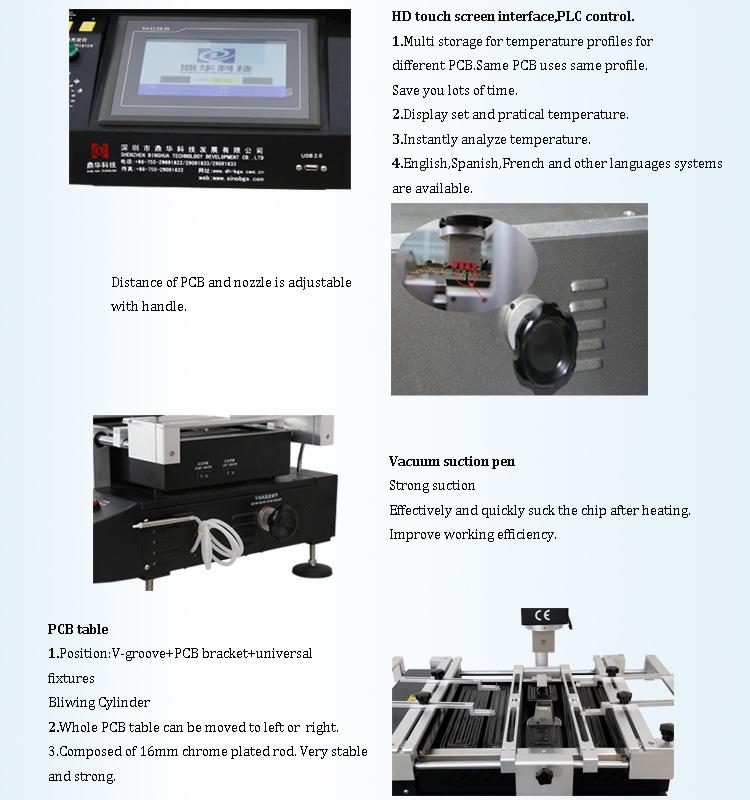

2. Cov yam ntxwv tseem ceeb ntawm DH-A1L BGA Rework Chaw nres tsheb

Scientific & Ntse

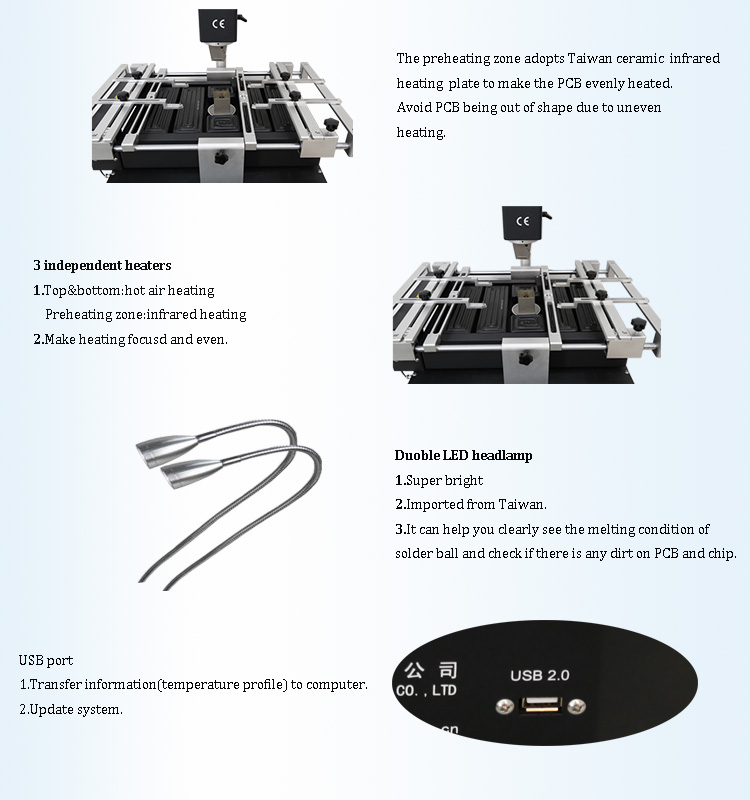

1. Qhov chaw nres tsheb muaj 3 qhov chaw ua cua sov ywj pheej: cov cua kub cua sov thiab thaj chaw IR preheating, uas ua kom sov ruaj khov thiab ceev ceev thaum tiv thaiv PCBA deformation.
2. Lub tshuab cua sov sab saum toj, qhov siab hauv qab qhov siab, thiab IR preheating cheeb tsam tuaj yeem hloov kho kom haum rau ntau hom kev kho BGA.
3. Nruab nrog ntau qhov ntau thiab tsawg ntawm titanium alloy BGA nozzles, uas tuaj yeem tig 360 degrees kom yooj yim tso thiab hloov.
4. Nws tso cai rau kev teeb tsa 6 qhov kub thiab txias 6 ntu, thiab tuaj yeem khaws ntau qhov kub thiab txias rau siv txhua lub sijhawm.

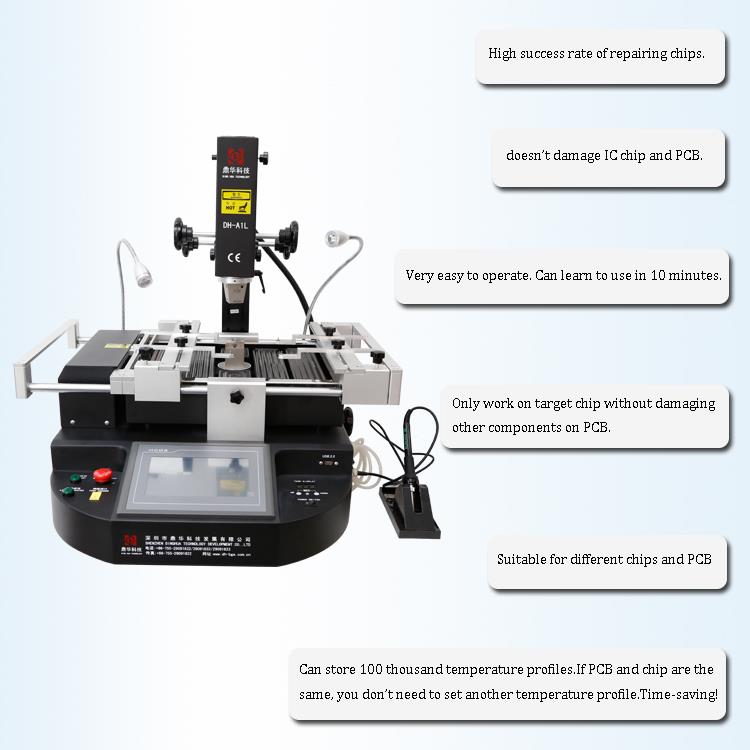

3. Vim li cas koj thiaj yuav tsum xaiv DH-A1L BGA rework chaw nres tsheb?

4. Kev Paub Txog:

Surface mount av npaj yuav tsum tau ua ua ntej txhim kho los yog hloov ib tug tshiab nto mount tivthaiv. Kev zam kom tsis txhob thermal thiab / lossis kev puas tsuaj rau thaj av thiab substrate yog qhov tseem ceeb. Ob lub kauj ruam tseem ceeb suav nrog:

• Tshem Tawm Qub Solder

Qhov no tuaj yeem ua tiav nrog cov hlau nplaum thiab cov khoom siv braided solder-wicking, los yog nrog lub tshuab nqus tsev txuas ntxiv Flo Desoldering uas siv lub tshuab rho tawm thiab cov lus qhia tshwj xeeb Flo-D-Sodr. Txoj kev no tso cai rau lub reflow thiab lub tshuab nqus tsev tshem tawm ntawm lub qub solder tshwm sim tsis tu ncua.

• Av huv si

Cov qub flux residues tom qab tshem tawm cov qub solder yuav tsum tau ntxuav nyob rau hauv cov kauj ruam no ua ntej yuav ntxiv tshiab solder.

• Ntxiv Tshiab Solder

Cov kauj ruam no yog ib feem ntawm cov txheej txheem kev teeb tsa thiab tuaj yeem ua tiav los ntawm pre-filling (pre-tinning) cov av (los ntawm reflowing hlau solder nrog ib tug soldering hlau los yog lwm yam cua sov txoj kev), los yog los ntawm kev thov cov tshuaj pleev ib ce (cream) nrog ib tug dispenser ua ntej (los yog tom qab) cov khoom yog muab tso rau hauv cov qauv av.

Tus nqi ntawm cov khoom siv yog qhov tseem ceeb rau kev ua tiav cov pob qij txha. Piv txwv li, qhov siv tau J-lead solder pob qij txha yuav tsum tau ntau dua solder dua li qhov tau txais gull-tis lead solder pob qij txha.

Surface Mount Components:

• Pre-/Auxiliary Heat Assembly thiab/los yog Cheeb Tsam (yog xav tau)
• Siv cov cua sov kom sib npaug thiab nrawm hauv kev tswj tau kom ua tiav, ib txhij reflow (melting) ntawm tag nrho cov pob qij txha.
• Tsis txhob thermal thiab / lossis kev puas tsuaj rau cov khoom, lub rooj tsavxwm, cov khoom sib txuas, thiab lawv cov pob qij txha.
• Tshem tawm cov khoom ntawm lub rooj tsavxwm tam sim ua ntej ib qho kev sib koom ua ke rov ua kom muaj zog.
• Npaj av rau cov khoom siv hloov pauv.

Thru-Hole Cheebtsam:

Desoldering Cheebtsam Ib qho kev sib koom ua ke ntawm ib lub sijhawm siv txoj kev Nqus Nruam Nruam

• Pre-/Auxiliary cua sov sib dhos thiab/los yog cov khoom (yog tias xav tau).
• Tshav kub qhov sib koom ua ke sai thiab tswj tau kom ua tiav cov txheej txheem rov ua tiav.
• Tsis txhob thermal thiab / lossis kev puas tsuaj rau cov khoom, lub rooj tsavxwm, cov khoom sib txuas, thiab lawv cov pob qij txha.
• Siv lub tshuab nqus tsev thaum lub zog ua kom txias rau qhov sib koom ua ke thiab tso cov hmoov txhuas.

Desoldering Cheebtsam siv txoj kev Solder Fountain

• Reflow tag nrho cov pob qij txha nyob rau hauv lub solder ciav.
• Tshem tawm cov khoom qub thiab tam sim ntawd hloov nws nrog cov khoom siv tshiab los yog tshem tawm cov thru-qhov rau kev hloov khoom tom qab.

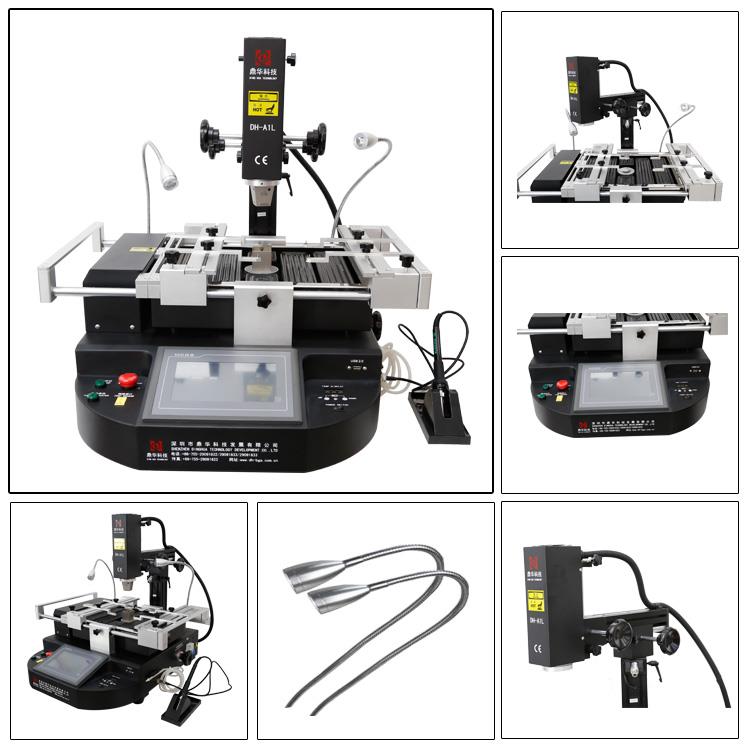

5.Cov duab nthuav dav ntawm DH-A1L BGA REWORK STATION

6.Packing & xa cov ntsiab lus ntawm DH-A1L BGA REWORK STATION



Kev xa khoom ntawm DH-A1L BGA REWORK STATION

Shipping:

1.Shipment yuav ua tiav hauv 5 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm.

2. Kev xa khoom ceev ceev los ntawm DHL, FedEX, TNT, UPS thiab lwm txoj hauv kev xws li los ntawm hiav txwv lossis los ntawm huab cua.

7. FAQ

Q: Yuav ua li cas kom paub qhov txawv ntawm cov hlau lead thiab tsis muaj txhuas chips?

A: Paub qhov txawv ntawm qhov chaw ntawm lub tshuab luam ntawv. Xws li Intel series sab qab teb choj, FW82801DBM NH82801DBM,

qhov qub yog coj, thiab tom kawg yog tsis muaj txhuas, nrog FW thiab NH yog qhov sib txawv.

2.RoHS-labeled ntawm lub cuab yeej lossis ntawm PCB yog cov khoom tsis muaj ntawv pov thawj.

3. RoHS scope: Tsuas yog rau cov khoom tshiab launched tom qab Lub Xya hli ntuj 1, 2006. Yeej, motherboards thiab notebooks tsim tom qab

2007 yog tag nrho cov tsis muaj txhuas.
