Kov Screen Computer BGA Rework Chaw nres tsheb

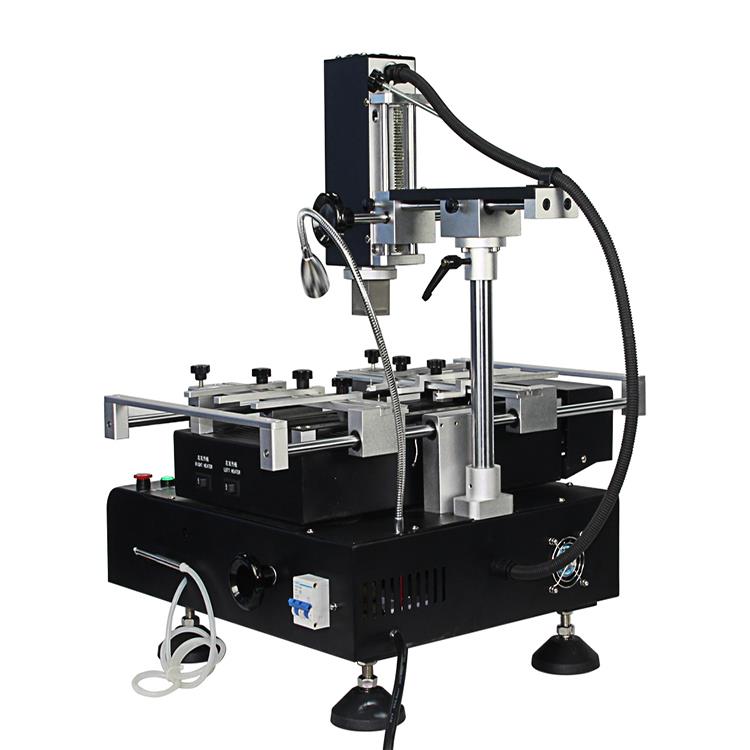

Kov Screen Computer BGA Rework Chaw Nres Tsheb 1. Cov lus piav qhia ntawm lub vijtsam kov lub computer bga rework chaw nres tsheb DH-D1 Nrog siab meej k-hom thermocouple kaw-voj tswj thiab PID tsis siv neeg qhov kub thiab txias qhov system, kub module thiab ntse tswj chav tsev, peb BGA Rework Chaw nres tsheb. ..
Hauj lwm lawm
1. Cov lus piav qhia ntawm lub vijtsam kov lub computer bga rework chaw nres tsheb DH-D1
Nrog rau qhov tseeb k-hom thermocouple kaw-loop tswj thiab PID tsis siv neeg qhov kub thiab txias qhov system, ntsuas kub thiab ntse tswj chav tsev, peb BGA Rework Chaw nres tsheb DH-D1 tuaj yeem ua kom qhov kub sib txawv ntawm ± 2 degree. Lub caij no, nws qhov ntsuas kub sab nraud txuas ua rau qhov ntsuas kub thiab ntsuas qhov tseeb ntawm lub sijhawm.
2. Khoom specification ntawm kov screen computer bga rework chaw nres tsheb DH-D1
| Hwj chim | 4800W |
| Lub tshuab cua sov sab saum toj | Cua kub 800W |
| Hauv qab rhaub | Cua kub 1200W, Infrared 2700W |
| Fais fab mov | AC220V+10%, 50/60HZ |
| Dimension | L560 * W650 * H580 hli |
| Qhov chaw | N-groove PCB kev them nyiaj yug, thiab nrog rau sab nraud universal fixture |
| Kev tswj qhov kub thiab txias | K hom thermocouple, kaw lub voj tswj cua sov |
| Kub qhov tseeb | ± 2 degree |
| PCB loj | Max 420 * 400 mm, Min 22 * 22 mm |
| Workbench zoo-tune | ± 15 hli rau pem hauv ntej / rov qab +15 hli rigt/sab laug |
| BGA chip | 2 * 2 - 80 * 80 hli |
| Yam tsawg kawg ntawm nti sib nrug | 0.15 hli |
| Kub sensor | 1 (yeem) |
| Net nyhav | 31 KG |
3. Khoom nta ntawm kov npo computer bga rework chaw nres tsheb DH-D1
Humanized tsim ua rau lub tshuab ua haujlwm yooj yim. Feem ntau tus neeg ua haujlwm tuaj yeem kawm siv nws hauv 10 feeb. Tsis muaj kev paub tshwj xeeb lossis kev txawj ntsexav tau, uas yog lub sij hawm- thiab lub zog-txuag rau koj lub tuam txhab.
Haum rau ntau hom PCB ntawm txhua qhov loj.
Superior cov ntaub ntawv lav lub neej ntev ntev.Cross-flow, sab sauv thiab hauv qab txias kiv cua txias lub tshuab txiav
sai li sai tau thaum cov txheej txheem cua sov tiav lawm,uas muaj txiaj ntsig zoo kom tsis txhob muaj kev puas tsuaj thiab kev laus ntawm lub tshuab.
Lub neej tsis txwv kev txhawb nqa thiab kev cob qhia pub dawb.

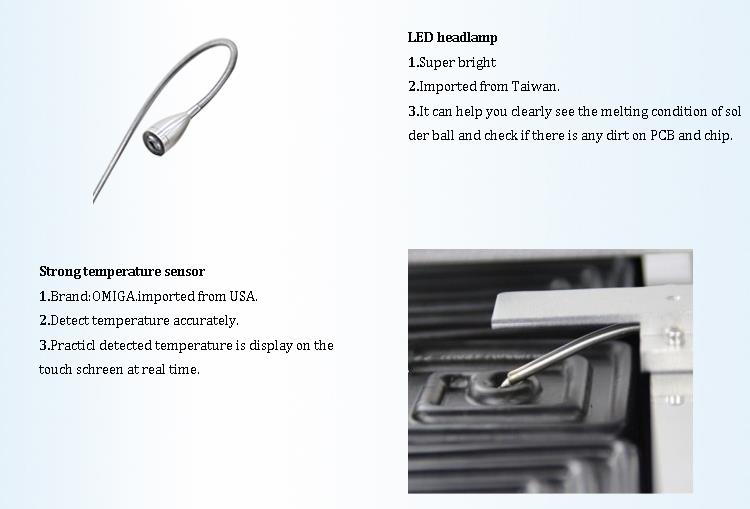

Super ci LED headlamp yog imported los ntawm Taiwan sab saum toj manufacturers.It tuaj yeem pab koj kom pom tseeb tias qhov melting mob ntawm cov pob solder thiab xyuas seb puas muaj.yog ib qho av ntawm PCB thiab nti.

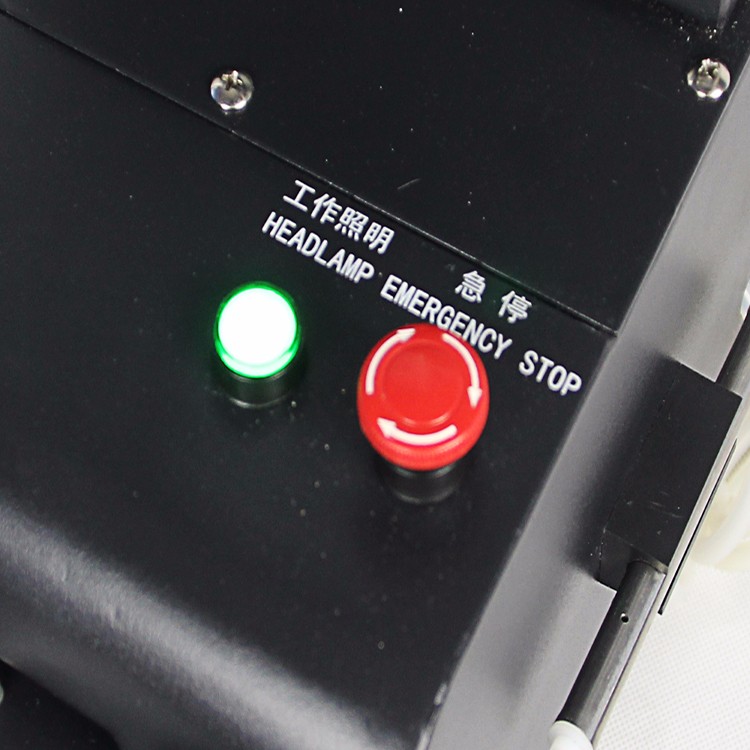

Yog muaj xwm txheej ceev yog muaj xwm txheej ceev.

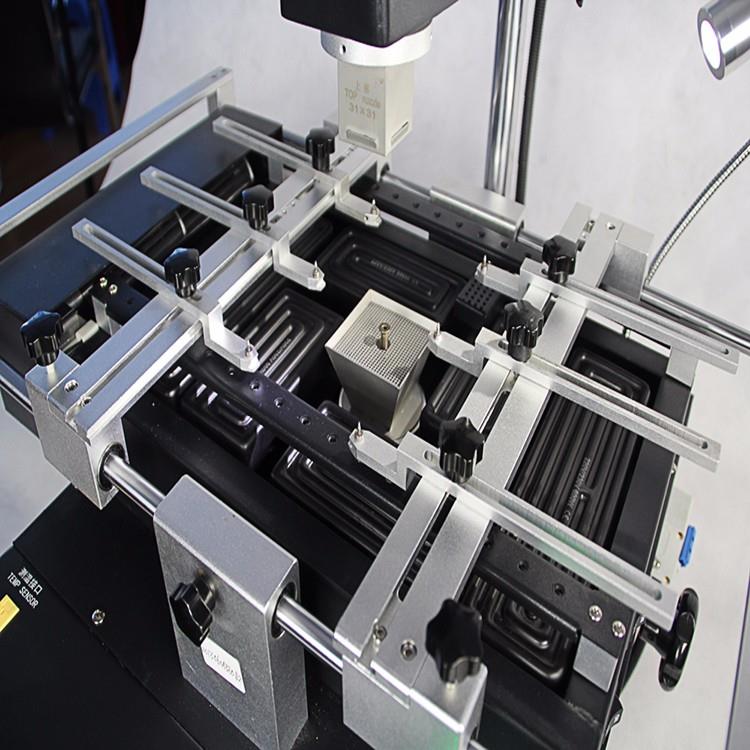

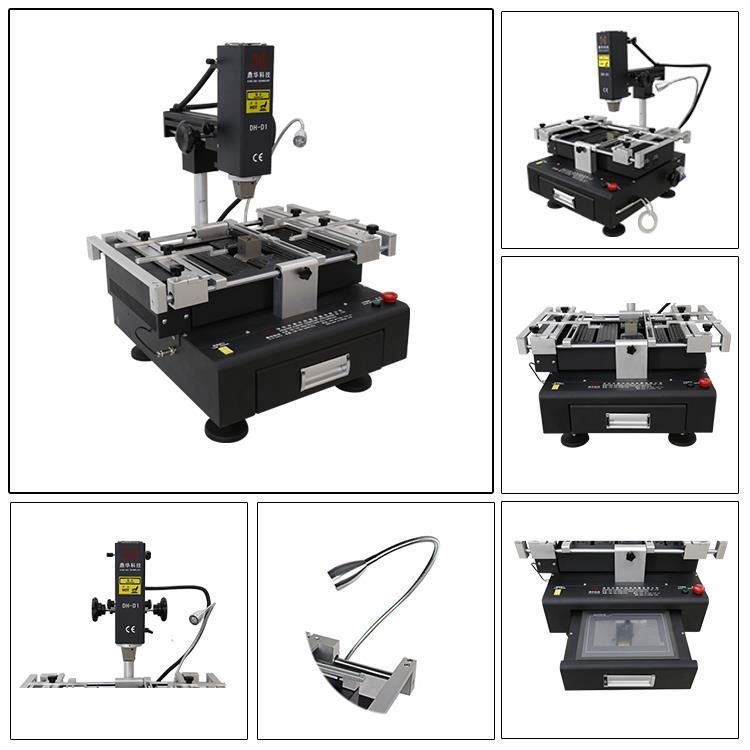

4. Cov ntsiab lus ntawm kov screen computer bga rework chaw nres tsheb DH-D1

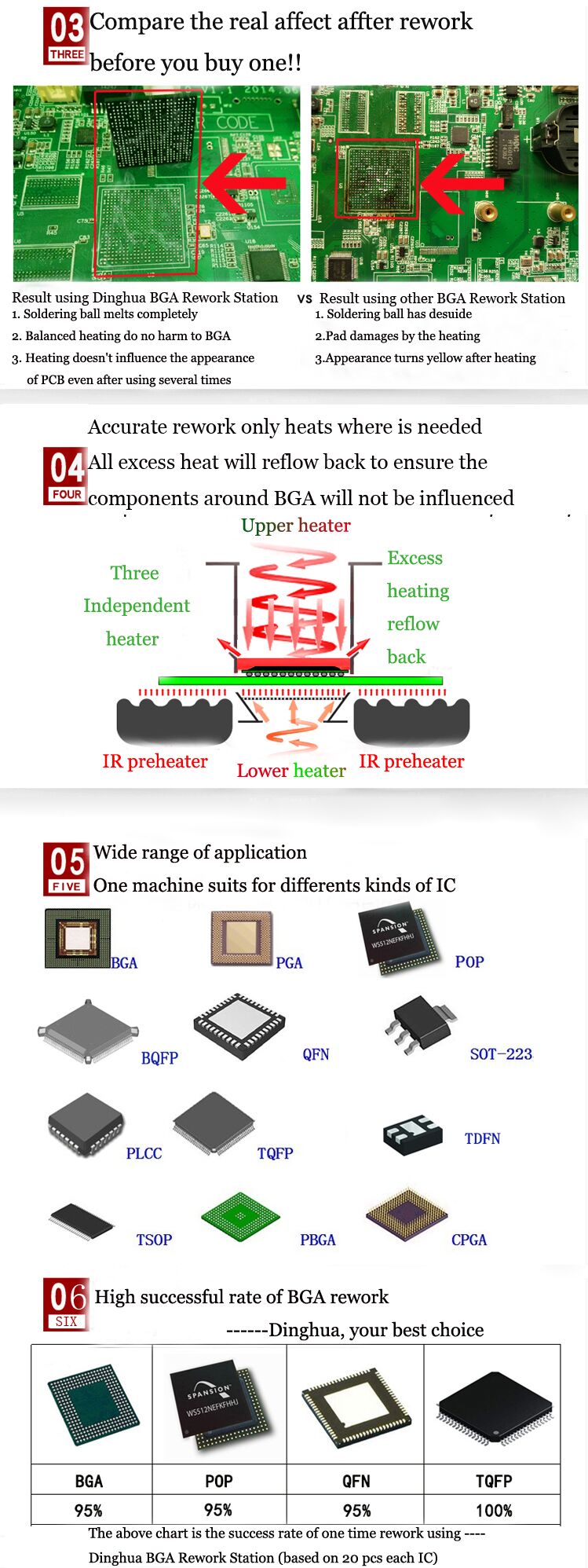

5. Vim li cas thiaj xaiv kov npo computer bga rework chaw nres tsheb DH-D1

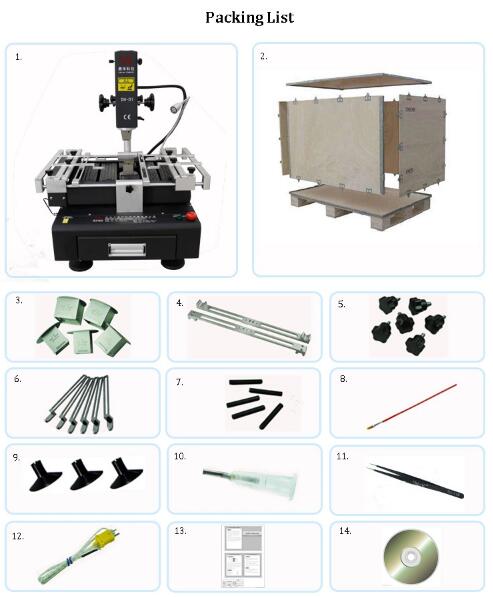

6. Ntim, xa ntawm lub vijtsam kov lub computer bga rework chaw nres tsheb DH-D1
7. Kev paub txog BGA
BGA CHIP PLACEMENT THIAB Routing RULE
BGA yog cov khoom siv feem ntau ntawm PCB, feem ntau yog CPU, NORTH BRIDGE, SOUTH BRIDGE, AGP CHIP, CARD BUS CHIP, thiab lwm yam. Feem ntau ntawm lawv yog nyob rau hauv hom bga ntim. Hauv luv luv, 80% ntawm cov teeb liab zaus thiab cov cim tshwj xeeb yuav rub tawm hom pob no. Yog li ntawd, yuav ua li cas los daws cov teeb meem ntawm BGA pob yuav muaj kev cuam tshuam zoo rau cov cim tseem ceeb.
Qhov me me uas feem ntau nyob ib puag ncig BGA tuaj yeem muab faib ua ob peb pawg raws li lawv qhov tseem ceeb
hla dhau.
Lub moos Terminal RC Circuit Court.
damping (pom nyob rau hauv series resistor, bank hom; piv txwv li, nco BUS teeb liab)
EMI RC Circuit Court (tshem tawm hauv damping, C, rub qhov siab style; xws li USB teeb liab).
Lwm yam tshwj xeeb circuits (tshwj xeeb circuits ntxiv raws li CHIP sib txawv; piv txwv li, qhov ntsuas kub ntawm CPU).
Cov pab pawg hluav taws xob me me ntawm 40mil lossis tsawg dua (hauv daim ntawv C, L, R, thiab lwm yam.; hom Circuit Court no feem ntau tshwm nyob ze ntawm AGP CHIP lossis CHIP nrog AGP muaj nuj nqi, thiab ntau pawg hluav taws xob sib cais los ntawm R, L).
Rub qis R, C.
General me me Circuit Court pawg (tso nyob rau hauv R, C, Q, U, thiab lwm yam.
Rub qhov siab R, RP.
1-6- khoom Circuit Court feem ntau yog qhov tseem ceeb ntawm kev tso kawm, thiab nws yuav tsum tau npaj kom ze rau BGA li sai tau, uas yuav tsum tau kho tshwj xeeb. Qhov tseem ceeb ntawm xya Circuit Court yog qhov thib ob, tab sis nws tseem yuav nyob ze rau BGA. 8, 9 yog ib lub voj voog dav dav, nws yog lub teeb liab tuaj yeem txuas nrog.
Kev txheeb ze ntawm qhov tseem ceeb ntawm qhov tseem ceeb ntawm qhov me me nyob ib puag ncig ntawm BGA saum toj no, cov cai ntawm ROUTING yog raws li hauv qab no:
by pass =>Thaum nws nyob ntawm tib sab li CHIP, nws txuas ncaj qha los ntawm CHIP tus pin mus dhau, ces dhau los ntawm kev rub tawm ntawm lub dav hlau; thaum nws txawv ntawm CHIP, nws tuaj yeem sib koom ua ke ntawm BGA's VCC thiab GND pins. 100 mil.
Clock terminal RC circuit =>Cable dav, xaim sib nrug, xaim ntev, lossis pob GND; Khaws cov cim kom luv thiab du raws li qhov ua tau, tsis hla VCC faib.
Damping =>Wireline dav, kab sib nrug, kab ntev, thiab pab pawg kab; cov kab yuav tsum yog luv thiab du li sai tau, thiab ib txheej ntawm cov kab yuav tsumtsis txhob sib xyaw nrog lwm cov cim..
EMI RC Circuits =>Cable dav, kab sib nrug, kab sib txuas, pob GND thiab lwm yam yuav tsum tau ua; ua tiav raws li cov neeg siv khoom xav tau.
Other special circuits =>Wireline dav, pob GND lossis cov kev cai tshem tawm; ua tiav raws li cov neeg siv khoom xav tau.
40milthe following small power circuit group =>Cable dav thiab lwm yam kev xav tau; Ua kom tiav cov txheej txheej saum npoo kom ntau li ntau tau kom khaws cia tag nrhosab hauv qhov chaw rau cov teeb liab kab, thiab sim kom tsis txhob muaj hluav taws xob teeb liab hla cov khaubncaws sab nraud povtseg
hauv cheeb tsam BGA, ua rau muaj kev cuam tshuam tsis tsim nyog.
Pull low R, C =>Tsis muaj kev cai tshwj xeeb; cov kab du.
General small circuit group =>Tsis muaj kev cai tshwj xeeb; cov kab du.
Pull height R,RP =>Tsis muaj kev cai tshwj xeeb; cov kab du.
