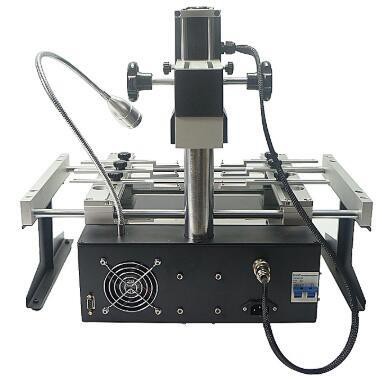

IR6500 BGA Rework Chaw nres tsheb
IR6500 BGA rework chaw nres tsheb, tseem hu ua DH-A01R, uas yog tus qauv pheej yig tshaj plaws thiab siv tau, nta nrog rau sab saum toj infrared cua sov cheeb tsam, thaj tsam IR preheating rau lub motherboard loj kom ua cua sov, daim ntawv thov rau lub xov tooj ntawm tes, khoos phis tawj thiab lwm yam khoom siv hluav taws xob.
Hauj lwm lawm
DH-6500 IR BGA rework chaw nres tsheb
DH-6500 universal infrared kho complex nrog digital kub tswj thiab ceramic cua sov rau Xbox,
PS3 BGA chips, laptops, pcs, thiab lwm yam.
DH -6500 nws txawv sab laug, sab xis thiab sab nraub qaum
Sab saum toj IR ceramic cua sov, wavelength 2 ~ 8um, thaj chaw cua sov txog li 80 * 80mm, daim ntawv thov rau Xbox,
gaming console motherboard, thiab lwm yam chip-theem kho.
Lub universal fixtures, 6 daim ntawm ib tug me me notch thiab ib tug nyias & tsa tus pin, uas yuav siv tau rau unregular.
motherboards yuav tsum tau kho ntawm lub rooj ntev zaum ua haujlwm, PCB loj tuaj yeem ncav cuag 300 * 360mm.
Hauv qab preheating cheeb tsam, them los ntawm anti-high-temperature iav-shield, nws cua sov cheeb tsam yog 200 * 240mm,
Feem ntau ntawm cov motherboards tuaj yeem siv rau ntawm nws.
2 qhov ntsuas kub rau lub tshuab 'lub sij hawm thiab qhov kub thiab txias, muaj 4 qhov chaw kub thiab txias
teem rau txhua qhov kub thiab txias profiles, thiab 10 pab pawg ntawm kub profiles yuav raug cawm dim.
Cov tsis muaj infrared BGA rework chaw nres tsheb:
| Fais fab mov | 110 ~ 250V +/-10% 50/60Hz |
| Hwj chim | 2500W |
| Cua sov Zones | 2 IR |
| PCB muaj | 300 * 360 hli |
| Cheebtsam loj | 2 * 2 ~ 78 * 78mm |
| Net nyhav | 1 6kg |
FQA ntawm IR BGA rework chaw nres tsheb
Q: Nws puas tuaj yeem kho lub xov tooj ntawm tes?
A: Yog, nws tuaj yeem.
Q: Ntau npaum li cas rau 10sets?
A: For better price, please email us: john@dh-kd.com
Q: Koj puas xav txais OEM?
A: Yog, thov qhia rau peb paub ntau npaum li cas koj xav tau?
Q: Kuv puas tuaj yeem yuav ncaj qha los ntawm koj lub tebchaws?
A: Yog, peb tuaj yeem xa tuaj rau koj lub qhov rooj los ntawm kev nthuav qhia.
