Mobile Ic Tsis Siv Neeg Reballing Tshuab
1.HD CCD optical alignment system rau positioning2.superior kev nyab xeeb muaj nuj nqi nrog thaum muaj xwm ceev tiv thaiv3.top cua sov lub taub hau thiab mounting lub taub hau 2 nyob rau hauv 1 design4.top cua ntws adjustable kom tau raws li qhov kev thov ntawm tej daim
Hauj lwm lawm

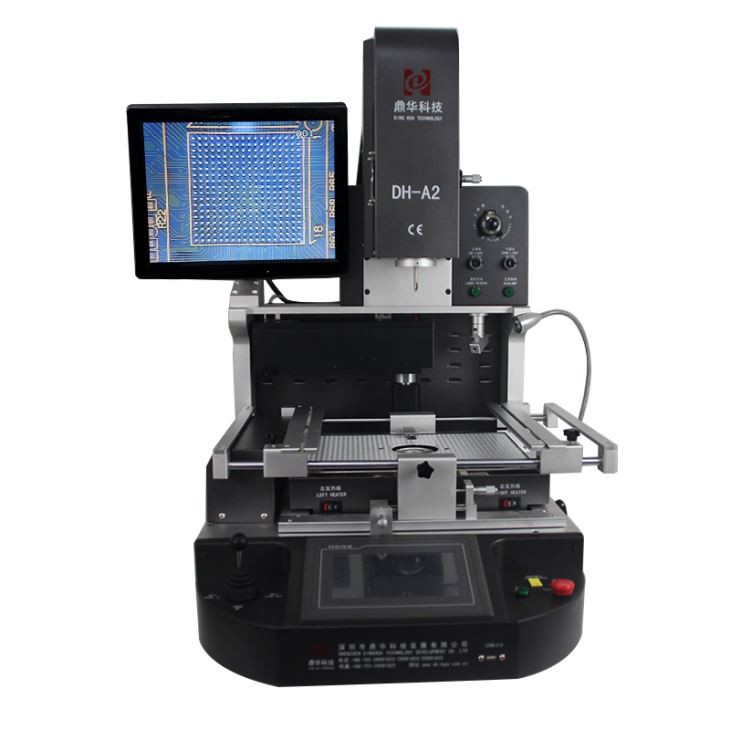

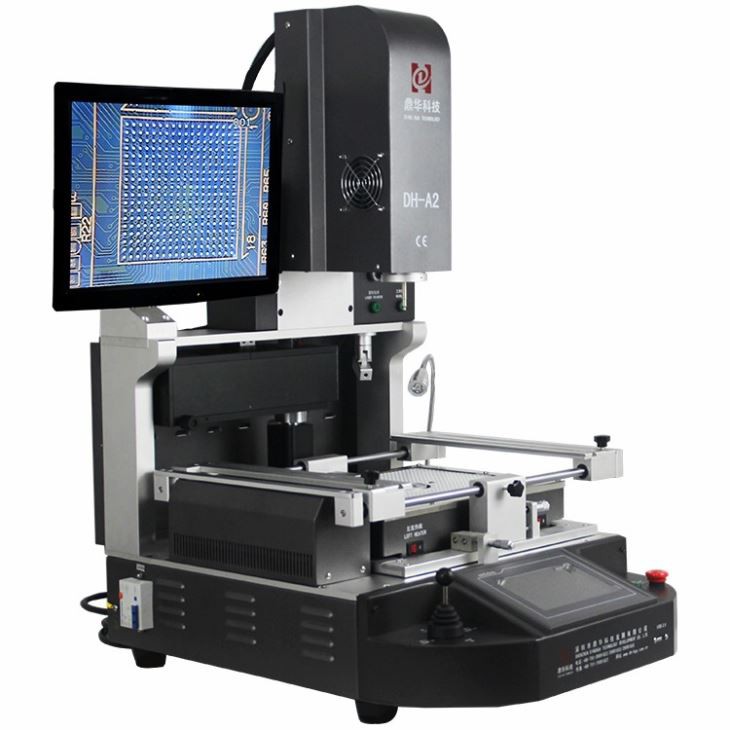

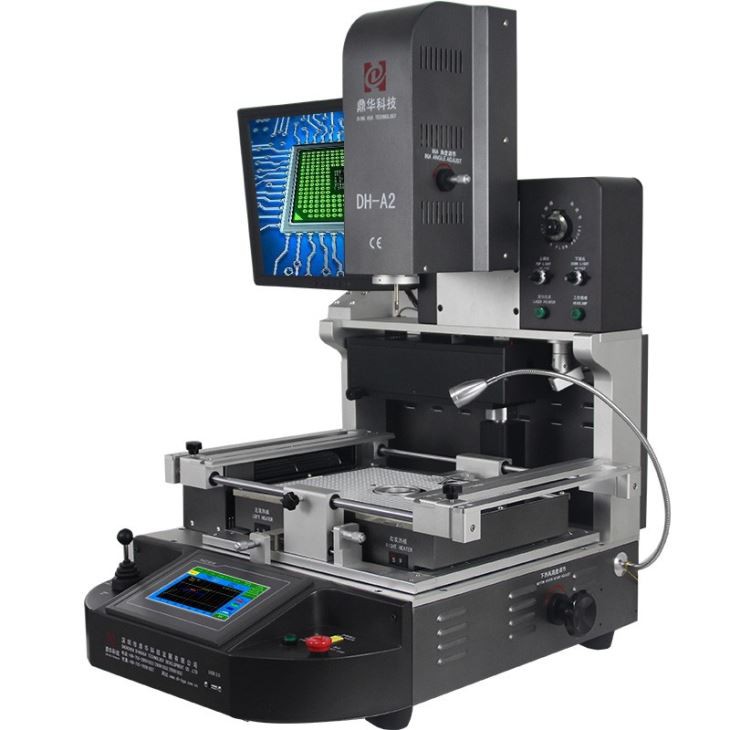

Mobile ic tsis siv neeg reballing tshuab
Lub tshuab hluav taws xob IC tsis siv neeg reballing yog cov cuab yeej siv los kho lossis hloov cov kev sib txuas sib txuas (IC) ntawm ib
mobile xov tooj lub motherboard. Nws yog ib txoj hauv kev zoo thiab raug nqi los kho cov ICs uas puas lawm yam tsis tau hloov cov
tag nrho cov motherboard, txiav lub sijhawm kho thiab nqi rau tus kws tshaj lij.
Lub tshuab reballing siv cov txheej txheem sib txawv xws li preheating, fluxing, alignment, reflow, thiab txias los kho
lossis hloov IC ntawm lub xov tooj ntawm tes. Cov txheej txheem yuav tshem tawm cov puas IC ntawm lub motherboard, tshem tawm.
ning cheeb tsam, aligning tshiab pob ua los ntawm ib tug tshwj xeeb alloy mus rau lub caij nyoog txoj hauj lwm ntawm IC tshem tawm, thiab ces soldering
IC tshiab rau lub motherboard.
Lub tshuab reballing tsis siv neeg txuag lub sijhawm thiab txo qhov kev pheej hmoo ntawm kev puas tsuaj rau lub motherboard raws li nws tau tsim los
ua qhov no cia li, xyuas kom meej tias cov txheej txheem reballing yog ua tau zoo.
Hauv cov ntsiab lus, lub xov tooj ntawm tes IC tsis siv neeg reballing tshuab yog cov cuab yeej tseem ceeb rau cov kws kho xov tooj ntawm tes, zoo li nws
ceev cov txheej txheem kho thiab txuag nqi los ntawm kev kho lub motherboard es tsis hloov nws tag nrho.
| Tag nrho lub zog | 5500W |
| 3 lub tshuab hluav taws xob ywj pheej | Sab saum toj kub-cua 1200w, qis cua kub-1200w, hauv qab infrared preheating 3000w |
| Qhov hluav taws xob | 110 ~ 240V ntxiv / -10 feem pua 50/60Hz |
| Hluav taws xob qhov chaw | 7 '' kov npo ntxiv rau siab precision ntse temp tswj module ntxiv rau stepper tsav tsav ntxiv rau PLC ntxiv rau LCD zaub ntxiv rau qhov kev daws teeb meem siab kho qhov muag CCD qhov system ntxiv rau qhov chaw laser |
| Kev tswj qhov kub thiab txias | K-Sensor kaw-loop ntxiv rau PID tsis siv neeg temp them ntxiv rau temp module, temp raug y nyob rau hauv ± 2 degree. |
| PCB positioning | V-groove ntxiv rau universal fixture plus movable PCB txee |
| Muaj feem xyuam PCB loj | Max 370x410mm Min 22x22mm |
| Muaj feem xyuam BGA loj | 1 * 1mm ~ 80x80mm |
| Qhov ntev | 600x700x850mm (L * W * H) |
| Net nyhav | 70 Kg |

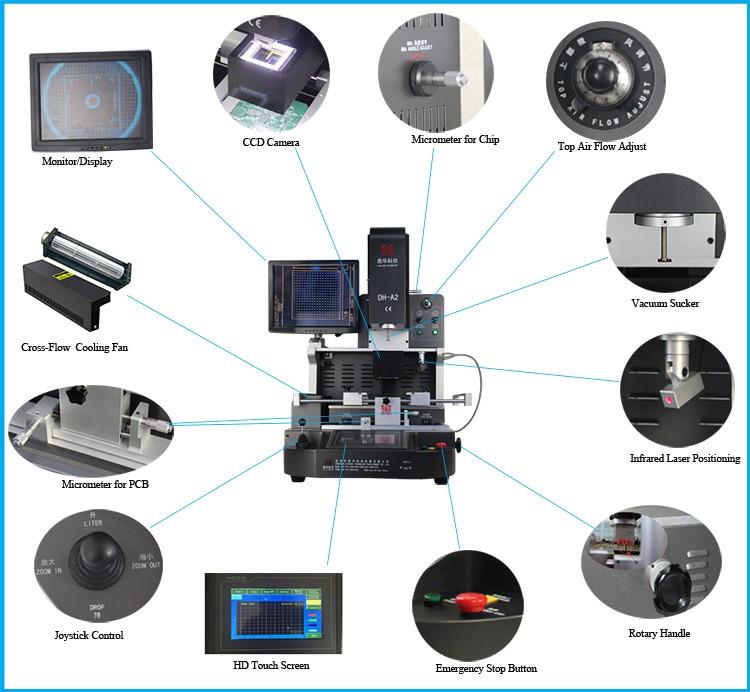

Advanced Features
① Sab saum toj kub airflow yog adjustable, kom tau raws li qhov kev thov ntawm tej daim.
② Desoldering, mounting thiab soldering txiav.
③ Built-in laser positioning, pab ceev txoj hauj lwm rau PCB.
④ Infrared cua sov system nrog peb lub tshuab hluav taws xob ywj pheej.
⑤ Mounting lub taub hau nrog cov cuab yeej ntsuas siab ua haujlwm, los tiv thaiv PCB los ntawm kev sib tsoo.

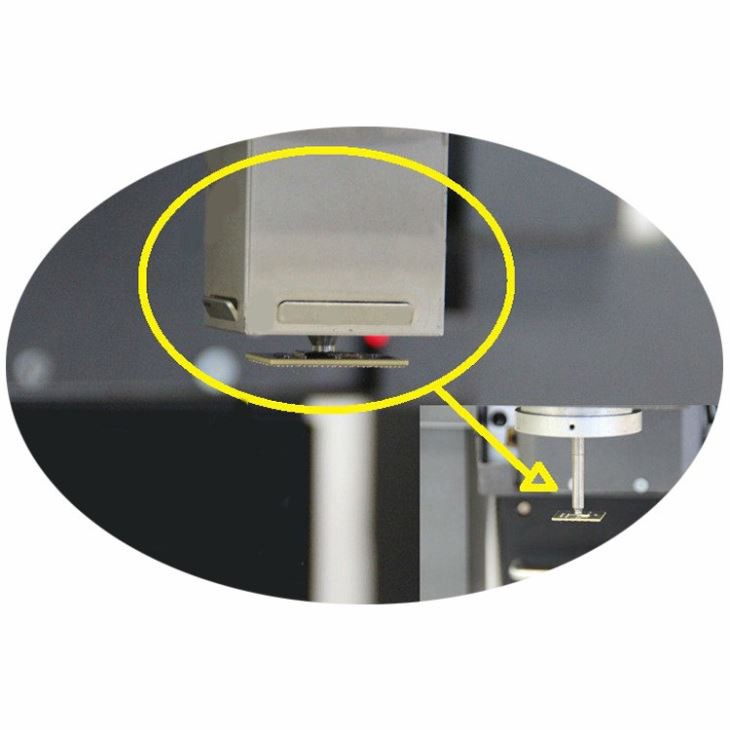

⑥ tsim-hauv lub tshuab nqus tsev nyob rau hauv mounting lub taub hau tuaj tos BGA nti txiav tom qab desoldering tiav.

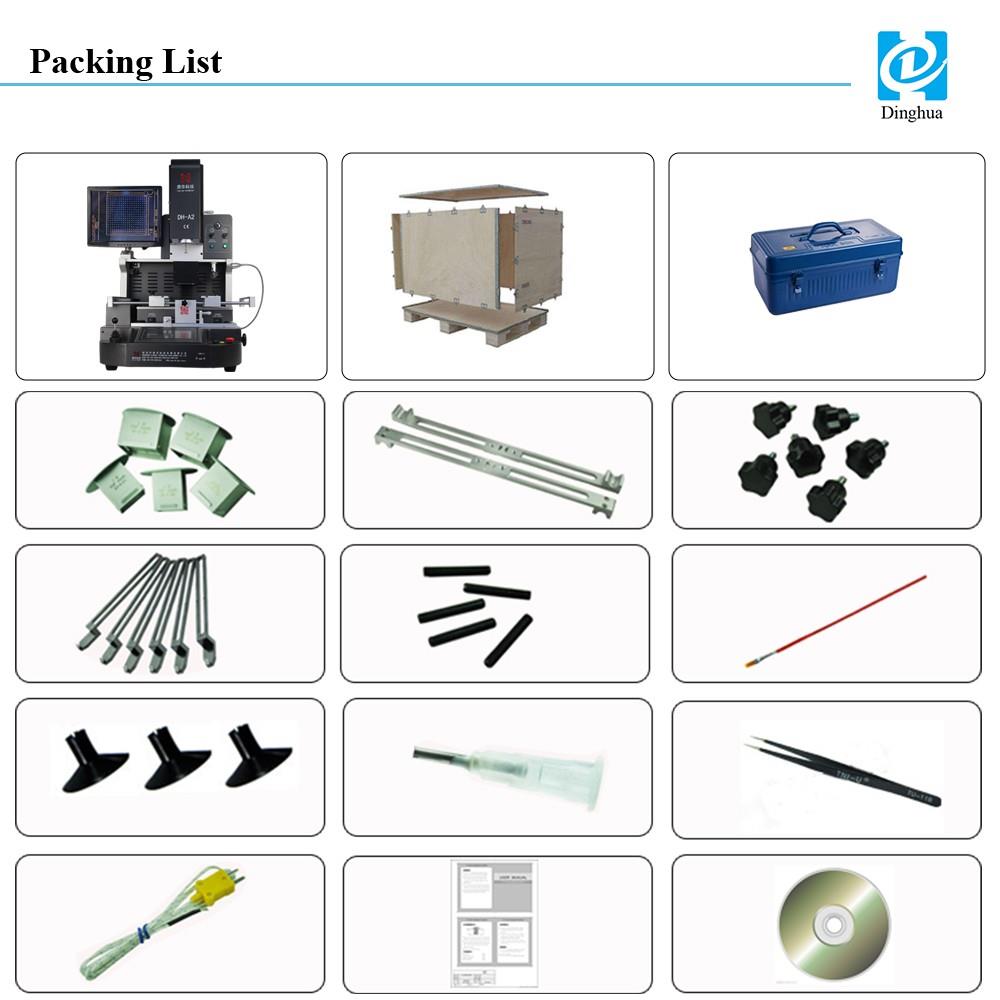

1. Tshuab: 1set
2. Tag nrho cov ntim rau hauv cov ntoo ruaj khov thiab muaj zog, haum rau ntshuam thiab xa tawm.
3. Sab saum toj nozzle: 3 pcs (31 * 31mm, 38 * 38mm, 41 * 41mm)
Hauv qab nozzle: 2pcs (34 * 34mm, 55 * 55mm)
4. Beam: 2 pcs
5. Plum pob qhov rooj: 6 pcs
6. Universal fixture: 6 pcs
7. Kev them nyiaj yug ntsia hlau: 5 pcs
8. Txhuam cwj mem: 1 pcs
9. Nqus khob: 3 pcs
10. Nqus koob: 1 pcs
11. Tweezer: 1 pcs
12. Temp sensor hlau: 1 pcs
13. Phau Ntawv Qhia Kev cob qhia: 1 pcs
14. Kev qhia CD: 1 pcs
