SMT Pick & Place Reball System

1.optical alignment system2.laser positioning3.top rhaub thiab nozzle 2 nyob rau hauv 14.HD kov screen interface

Xa kev nug

Hauj lwm lawm

Nws pib Reball System yog ib yam khoom tshwj xeeb lossis qauv ntawm cov cuab yeej siv hauv kev tsim hluav taws xob lossis kho.

Tej zaum nws yuav yog lub tshuab lossis cov cuab yeej tsim los xaiv thiab tso cov khoom me me rau hauv lub rooj tsav xwm hauv Circuit Court lossis rov ua dua (hloov) qhov tsis raug

Cheebtsam ntawm ib lub rooj tsavxwm. Yog tsis muaj cov ntsiab lus ntxiv lossis cov ntaub ntawv, nws nyuaj rau kev piav qhia ntxaws ntxiv.

Kev Ua Haujlwm Demo:

Desoldering BGA Pob thiab tin

A2E Assemble

Specifications:

1	Tag nrho lub zog	5200w
2	3 lub tshuab hluav taws xob ywj pheej	Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w
3	Qhov hluav taws xob	AC220V ± 10% 50/60Hz
4	Hluav taws xob qhov chaw	7 '' kov npo + siab precision ntse temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab daws teeb meem kho qhov muag CCD system + laser positioning
5	Kev tswj qhov kub thiab txias	K-Sensor kaw-voj + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree.
6	PCB positioning	V-groove + universal fixture + movable PCB txee
7	Muaj feem xyuam PCB loj	Max 370x410mm Min 22x22mm
8	Muaj feem xyuam BGA loj	2x2mm ~ 80x80mm
9	Qhov ntev	600x700x850mm (L * W * H)
10	Net nyhav	70 Kg

Daim ntawv thov:

Yam ntxwv:

A2E 内部发热系统

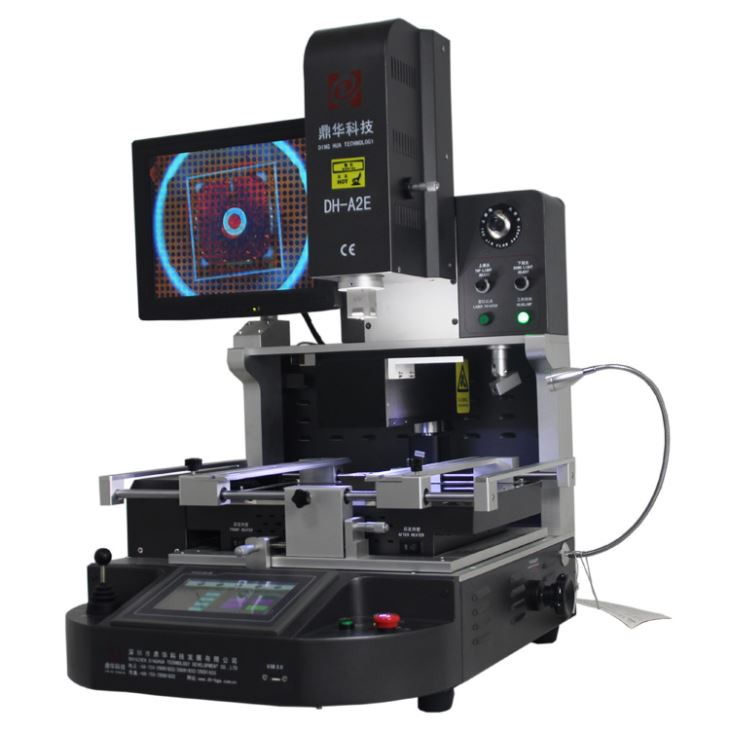

SMT Pick & Place Reball System DH-A2E

DH-A2E yog tsim los rework SMD / BGA / uBGA / QFN / LEDs ntawm me me mus rau nruab nrab-loj PCB sib dhos nrog

mus txog 18 "/450mm PCB muaj peev xwm.

kev ua tau zoo thiab soldering zoo muaj nyob txhua qhov chaw, tsis tau nws tseem yooj yim rau kev teeb tsa thiab siv. nrog tsuas yog qhov zoo tshaj plaws

Cheebtsam rau qhov zoo tshaj plaws precision, uas yog peb sab saum toj-muag system thiab ib tug ntawm qhov zoo tshaj plaws-ua BGA Rework chaw nres tsheb

thoob ntiaj teb.

Product imga2
