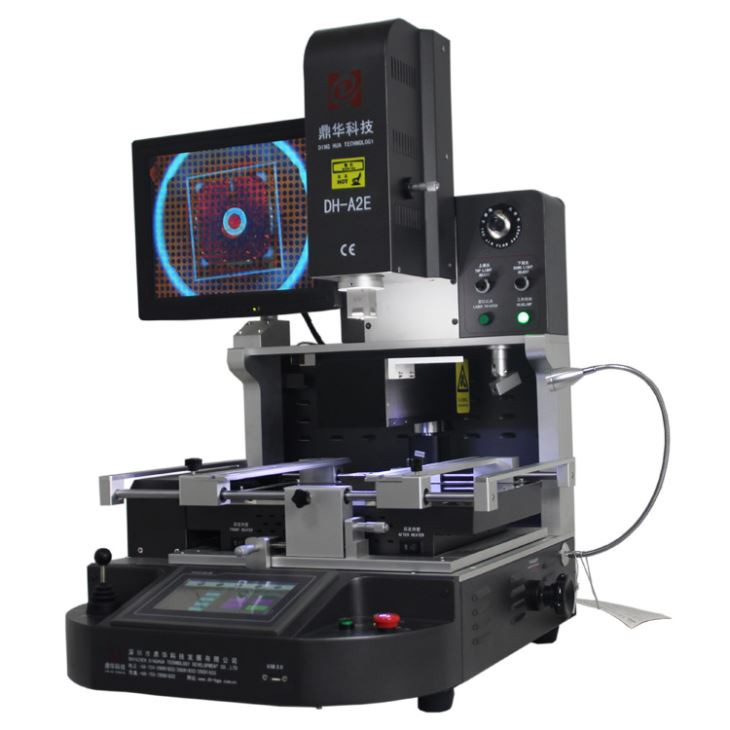

Game Console IC Chip Repairing Tool
1.kub cua ntxiv rau infrared cua sov system
2. ceev laser positioning
3.Kev tswj qhov kub thiab txias
4.Instant kub tsom xam
Hauj lwm lawm
Game Console IC Chip Repairing Tool
Game console IC nti kho cov cuab yeej hais txog cov txheej txheem tshwj xeeb tsim los kho thiab hloov kev sib xyaw ua ke
Circuit Court (IC) chips hauv game consoles, xws li PlayStation, Xbox, Nintendo, thiab ntau dua. Cov cuab yeej no feem ntau yog siv
los ntawm cov kws tshaj lij thiab xav tau kev paub tshwj xeeb thiab kev txawj ntse hauv kev kho hluav taws xob.
Reballing BGA thiab tin
Specifications:
| 1 | Tag nrho lub zog | 5200w |
| 2 | 3 lub tshuab hluav taws xob ywj pheej | Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w |
| 3 | Qhov hluav taws xob | AC220V ± 10% 50/60Hz |

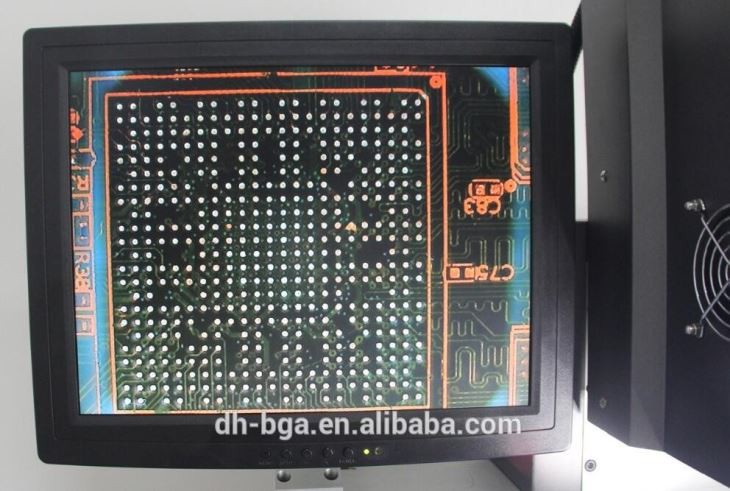

| 4 | Hluav taws xob qhov chaw | 7 '' kov npo ntxiv rau siab precision ntse temp tswj module ntxiv rau stepper lub cev muaj zog tsav tsheb ntxiv rau PLC ntxiv rau LCD zaub ntxiv rau siab daws teeb meem kho qhov muag CCD system ntxiv rau qhov chaw laser |
| 5 | Kev tswj qhov kub thiab txias | K-Sensor kaw-loop ntxiv rau PID tsis siv neeg temp them ntxiv rau temp module, temp raug nyob rau hauv ± 2 degree. |
| 6 | PCB positioning | V-groove ntxiv rau universal fixture plus movable PCB txee |
| 7 | Muaj feem xyuam PCB loj | Max 370x410mm Min 22x22mm |
| 8 | Muaj feem xyuam BGA loj | 2x2mm ~ 80x80mm |
| 9 | Qhov ntev | 600x700x850mm (L * W * H) |
| 10 | Net nyhav | 70 Kg |
Daim ntawv thov:
Yam ntxwv:
◆ Advanced nta
① Cov huab cua kub sab saum toj yog kho tau, kom ua tau raws li qhov xav tau ntawm cov chips.
② Desoldering, mounting thiab soldering txiav. Nws pib pub noj system enabled.

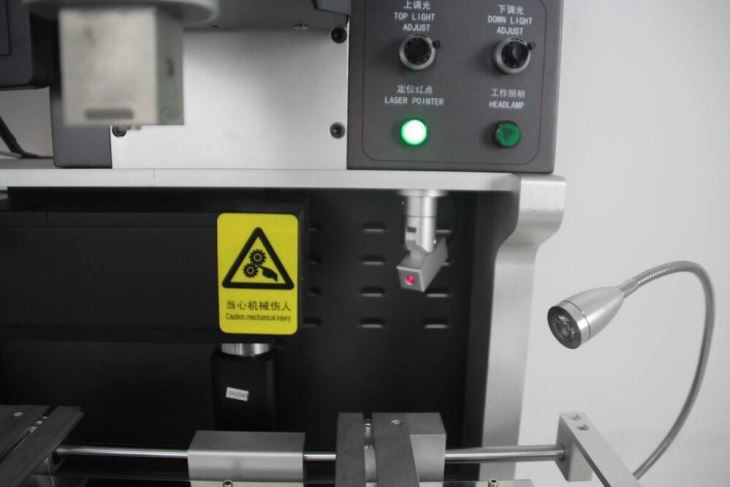

③ Ua-nyob rau hauv infrared laser positioning, pab ceev tso rau PCB.
④ Sab saum toj cua sov lub taub hau thiab mounting taub hau 2 hauv 1 tsim.
⑤ Mounting lub taub hau nrog cov cuab yeej ntsuas siab ua haujlwm, los tiv thaiv PCB los ntawm kev sib tsoo.
⑥ tsim-hauv lub tshuab nqus tsev hauv mounting lub taub hau tuaj tos BGA nti tau tom qab desoldering tiav.
Packing List:
Cov ntaub ntawv: Cov ntaub ntoo muaj zog ntxiv rau cov ntoo tuav ntxiv rau cov ntaub ntawv pov thawj pearl paj rwb nrog zaj duab xis
1pc Game Console IC Chip Kho cuab yeej
1pc txhuam cwj mem
1pc Phau ntawv qhia
1pc ua cd video
3pcs saum nozzles
2 pcs hauv qab nozzles
6pcs universal fixtures
6pcs fastened screws
4pcs kev them nyiaj yug ntsia hlau
1pc tweezer
Sucker loj: Dia 2,4,8,10,11mm
Sab hauv hexagon spanner: M2/3/4
Loj: 81 * 76 * 85CM
Qhov hnyav tag nrho: 115 kg
Shipped los ntawm huab cua DHL, FeDex Ups, TNT thiab lwm yam, los yog los ntawm hiav txwv nws yuav siv sij hawm ntev dua mus txog tab sis pheej yig dua rau koj xaiv.
