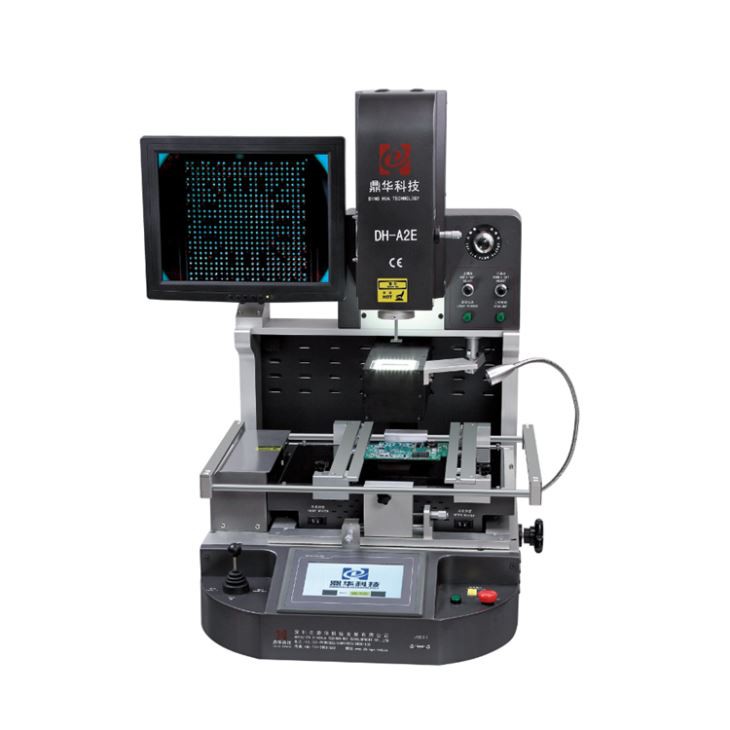

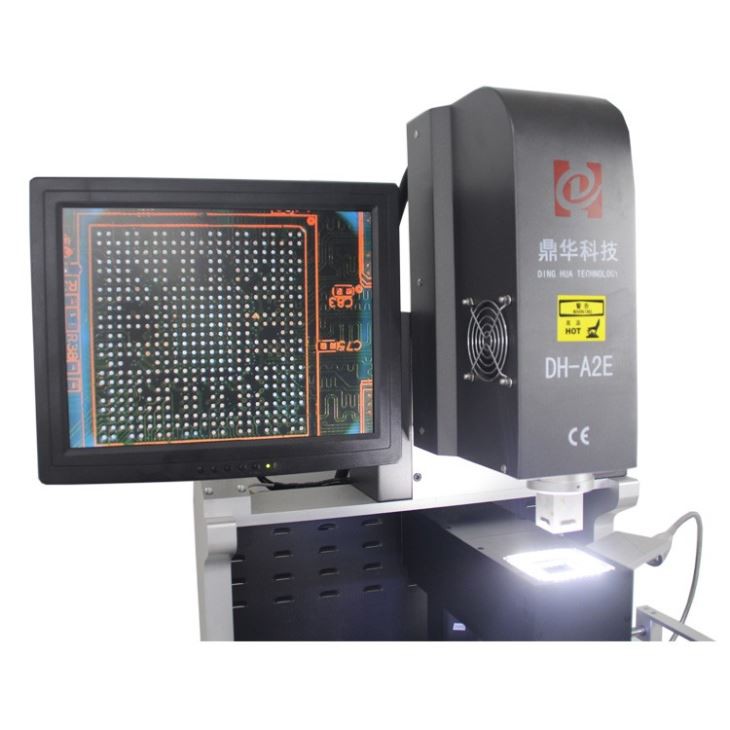

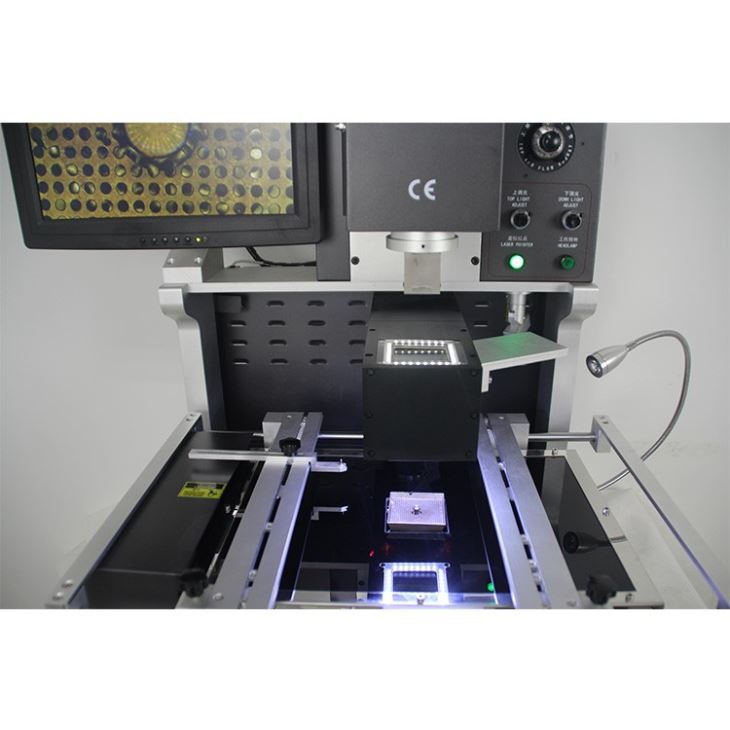

Tsis siv neeg GPU Chip Vuam Rooj

                                                                              Tsis siv neeg GPU Chip Vuam Rooj

Daim ntawv thov ntawm Tsis Siv Neeg GPU Chip Vuam Rooj:

Nta:

1. Embedded industrial PC, digital system settings, peb thaj chaw cua sov, Panasonic CCD lub koob yees duab kaw lus, HD kov npo kev sib tham sib tham, PLC tswj, ntau qhov kev ua haujlwm sib koom ua ke, ergonomic tsim, folding optical lens, nrog kev xaiv khaws cia thiab xaiv qhov kub thiab txias profiles.
2. High-precision K-hom thermocouple kaw-voj tswj thiab PID tsis siv neeg qhov kub thiab txias, nrog PLC thiab ntsuas kub, thiab chav tswj ntse uas ua kom muaj qhov sib txawv ntawm qhov kub ntawm ± 1 degree. Tsis tas li ntawd, ib qho kev ntsuas kub sab nraud txuas ua kom pom qhov ntsuas kub ntawm lub sijhawm thiab ntsuas qhov tseeb ntawm qhov ntsuas kub.
3. Nruab nrog tus tsav tsheb stepper rau kev ruaj ntseg, kev cia siab, kev nyab xeeb, thiab kev ua haujlwm zoo; suav nrog cov ntsiab lus siab pom qhov muag pom kev sib haum xeeb. PCB lub rooj tsavxwm ntse tso cai tso cai rau kev hloov pauv hauv X, Y, thiab Z cov lus qhia nrog "5-point support," V-groove PCB bracket, thiab universal fixtures.
4. Ob hom kev ua haujlwm: Auto / manual. Hauv hom pib, lub kaw lus cia li pub, xaiv thiab tso GPU chips / ICs, txoj haujlwm, solders, thiab desolders. Phau ntawv hom muaj xws li phau ntawv nce / nqis taub hau tswj nrog joysticks thiab phau ntawv tswj lub koob yees duab txav. Ob hom kev siv kho qhov muag kho qhov muag thiab laser positioning. Tsis tas li ntawd, lub tshuab nqus tsev built-in tso cai rau BGA nti khaws tau yooj yim.
5. Multi-functional nta muaj xws li "ceev positioning," "temperature tuav," "siab sensor," "instant temperature analysis," "lub suab ceeb toom ua ntej cua sov ua kom tiav," "HD visual optical alignment," thiab "high-precision temperature control," kom ntseeg tau tus nqi kho siab thiab ruaj khov.
6. Laser positioning pab kom ceev ceev PCB ntawm qhov chaw, nrog rau "5-point support positioning" kom yooj yim dua thiab raug.

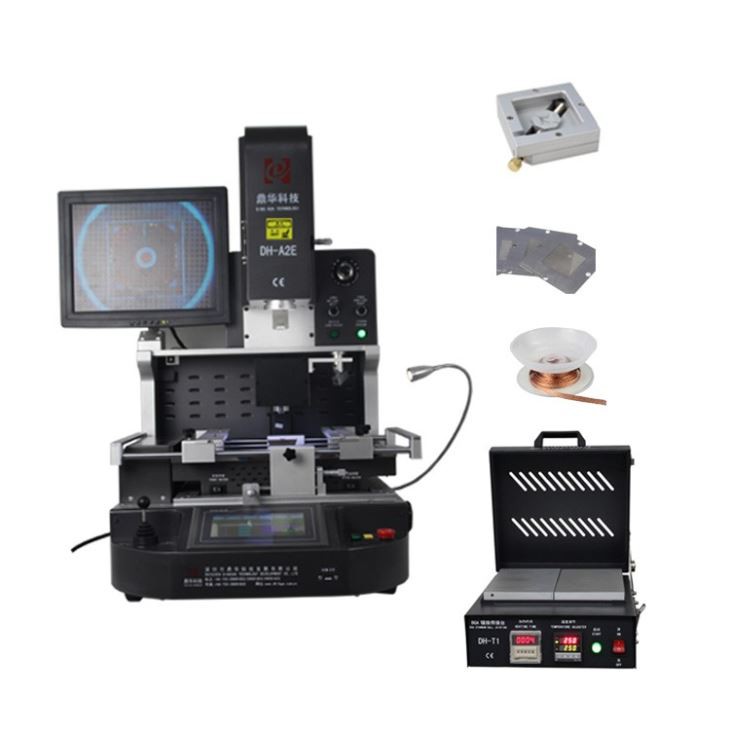

Packing List:

Cov ntaub ntawv: Cov ntaub ntoo muaj zog + ntoo tuav + pov thawj pearl paj rwb nrog zaj duab xis

1pc Vuam Rooj

1pc txhuam cwj mem

1pc Phau ntawv qhia

1pc ua cd video

3pcs saum nozzles

2 pcs hauv qab nozzles

4pcs universal fixtures

4pcs fastened screws

5pcs kev them nyiaj yug ntsia hlau

1pc tweezer

Sucker loj: Dia 2,4,8,10,11mm

Sab hauv hexagon spanner: M2/3/4

Loj: 81 * 76 * 85CM

FAQ

1, Lub ntim khoom zoo li cas? Puas muaj kev nyab xeeb thaum xa khoom?
Lub tshuab muaj kev tiv thaiv nrog cov ntaub ntawv ntoo muaj zog, cov ntoo tuav, thiab cov ntaub ntawv pov thawj pearl paj rwb nrog zaj duab xis, ua kom muaj kev nyab xeeb.

2, Txoj kev xa khoom yog dab tsi? Yuav siv sijhawm pes tsawg hnub los txog?
Lub tshuab feem ntau yog xa los ntawm courier (DHL, FedEx, UPS, thiab lwm yam), tuaj txog hauv 5 hnub. Xwb, nws tuaj yeem xa los ntawm huab cua mus rau koj lub tshav dav hlau (Qhov Rooj-rau-Tshav Dav Hlau Kev Pabcuam) hauv li 3 hnub lossis los ntawm hiav txwv nrog qhov tsawg kawg nkaus yuav tsum tau CBM ntawm 1 CBM, siv li ntawm 30 hnub.

3, Koj puas muab warranty? Qhov kev pab cuam tom qab muag zoo li cas?
Lub tshuab tuaj nrog 1- xyoo warranty thiab kev txhawb nqa dawb. Peb muab kev txhawb nqa thiab kev qhia ua yeeb yaj kiab nrog lub tshuab.

4, Lub tshuab puas yooj yim rau kev khiav lag luam? Kuv puas tuaj yeem siv nws yog tias kuv tsis muaj kev txawj ntse ua ntej?
Yog lawm, peb cov tshuab yog tsim los rau kev siv yooj yim. Feem ntau, nws yuav siv sijhawm 2-3 teev los kawm paub siv lub tshuab, thiab yog tias koj muaj kev paub dhau los, nws yuav yooj yim dua.

5, Yog tias peb tuaj xyuas koj lub Hoobkas, koj puas muab kev cob qhia dawb?
kiag li! Peb sov siab txais tos koj tuaj xyuas peb lub Hoobkas rau kev cob qhia dawb.

6, Cov nqe lus them nqi yog dab tsi?
Peb lees txais T / T, Western Union, MoneyGram, PayPal, thiab lwm yam kev xaiv.
