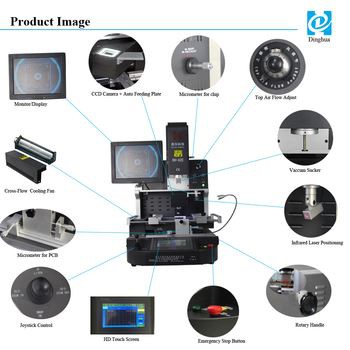

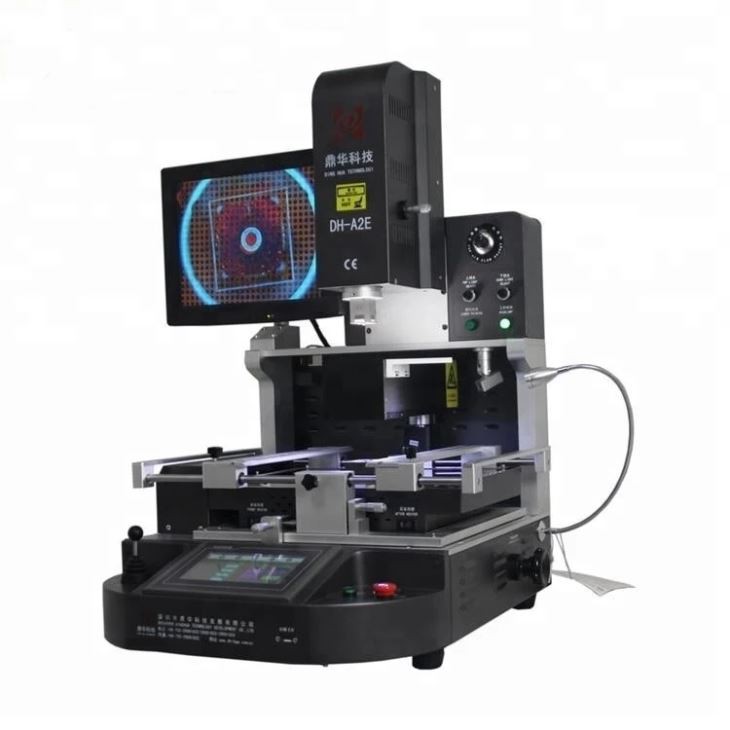

Xov tooj txawb Motherboard Re-work Machine

Xov tooj txawb Motherboard Re-work Machine

Kev Ua Haujlwm Demo:

Tshem tawm BGA Pob thiab tin

Specifications

Specifications

Tag Nrho Lub Zog	5200W
Lub tshuab cua sov sab saum toj	1200W
Hauv qab rhaub	2nd 1200W, 3rd IR rhaub 2700W
Qhov hluav taws xob	AC220V / 110V ± 10% 50Hz
Pub noj system	Nws pib pub mis rau nti
Hom kev ua haujlwm	Ob hom: phau ntawv thiab tsis siv neeg, xaiv dawb! HD kov npo, ntse tib neeg-tshuab, kev teeb tsa digital.
Kub profile cia	50, 000 pab pawg (cov pab pawg tsis txwv)
Optical CCD lub koob yees duab lens	Tsis siv neeg ncab tawm thiab folding los xaiv thiab tso BGA nti
Lub koob yees duab magnification	1.8 lab pixels
Workbench fine-tuning:	± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug
Qhov tseeb qhov chaw:	± 0.015mm
Bga positioning	Laser positioning, ceev thiab raug txoj hauj lwm ntawm PCB thiab BGA
PCB txoj haujlwm	Qhov chaw ntse, PCB tuaj yeem hloov kho hauv X, Y kev taw qhia nrog "5 ntsiab lus txhawb nqa" + V-groove pcb bracket + universal fixtures.
Teeb pom kev zoo	Taiwan coj lub teeb ua haujlwm, txhua lub kaum sab xis adjustable
Kev tswj qhov kub thiab txias	K sensor, kaw voj, PLC tswj
Temp raug	± 2 degree
PCB loj	Max 450 × 400 mm Min 22 × 22 mm
BGA chip	1 x 1 - 80 x 80 mm
Yam tsawg kawg ntawm nti sib nrug	0.015 hli
Sab nraud temper sensor	1pc ua
Qhov ntev	L740 × W630 × H710 hli
Net nyhav	70 KG

 Daim ntawv thov

Yam ntxwv:

Cov yam ntxwv Summary

• Dav siv rau kev kho nti-qib hauv cov khoos phis tawj, PS3, PS4, XBOX360, xov tooj ntawm tes, khoos phis tawj, TVs, tswj boards, thiab lwm yam.
• Reworks BGA, CCGA, QFN, CSP, LGA, SMD, LED, thiab lwm yam.
• Tsis siv neeg desoldering, mounting, thiab soldering; cia li khaws cov nti ib zaug desoldering tiav.
• HD CCD optical alignment system kom meej mounting ntawm BGAs thiab cov khoom.
• BGA mounting raug nyob rau hauv 0.01mm, nrog kev kho tus nqi ntawm 99.9%.
• Laser positioning rau ceev ceev ntawm BGA nti thiab motherboard.
• Superior kev nyab xeeb muaj nuj nqi, nrog rau kev tiv thaiv thaum muaj xwm ceev.
• Cov neeg siv-phooj ywg ua haujlwm nrog ntau lub luag haujlwm ergonomic system.

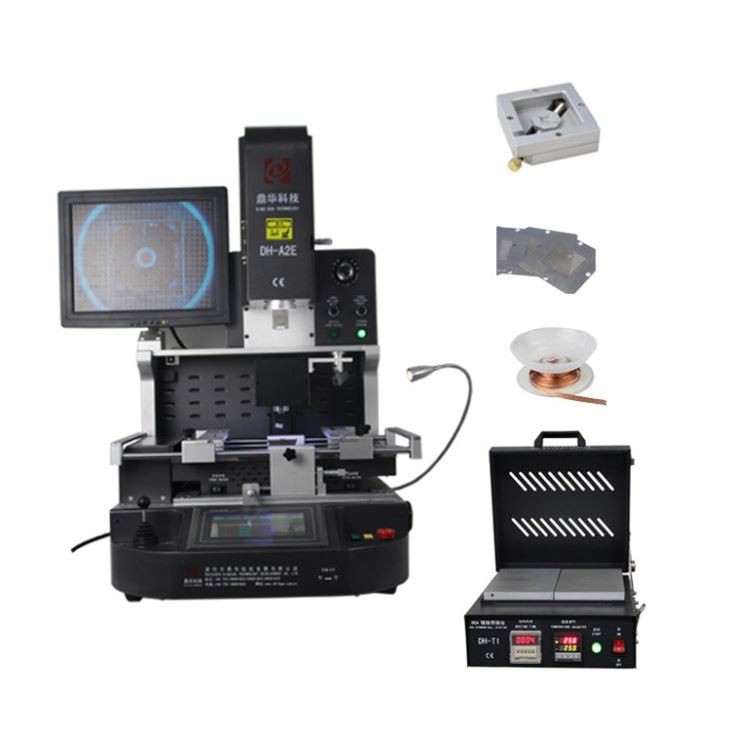

Daim ntawv teev npe



Cov ntaub ntawv: Cov ntaub ntoo muaj zog + ntoo tuav + pov thawj pearl paj rwb nrog zaj duab xis

1pc Re-work tshuab

1pc txhuam cwj mem

1pc Phau ntawv qhia

1pc ua cd video

3 pcs saum nozzles

2 pcs hauv qab nozzles

6pcs universal fixtures

6pcs fastened screws

4pcs kev them nyiaj yug ntsia hlau

1pc tweezer

Sucker loj: Dia 2,4,8,10,11mm

Sab hauv hexagon spanner: M2/3/4

Loj: 81 * 76 * 85CM

Qhov hnyav tag nrho: 115 kg



FAQ

1, Lub ntim khoom zoo li cas? Puas muaj kev nyab xeeb thaum xa khoom?
Lub tshuab muaj kev tiv thaiv zoo nrog cov ntaub ntawv ntoo muaj zog, cov ntoo tuav, cov ntaub ntawv pov thawj pearl paj rwb, thiab zaj duab xis kom muaj kev nyab xeeb.

2, Txoj kev xa khoom yog dab tsi? Yuav siv sijhawm pes tsawg hnub los txog?
Kev xa khoom feem ntau yog los ntawm kev xa khoom (DHL, FedEx, UPS, thiab lwm yam), nrog rau lub sijhawm tuaj txog ntawm 5 hnub. Xwb, nws tuaj yeem xa los ntawm huab cua mus rau koj lub tshav dav hlau ze tshaj plaws (Qhov Rooj-rau-Tshav Dav Hlau Kev Pabcuam), tuaj txog li 3 hnub, lossis los ntawm hiav txwv nrog qhov tsawg kawg nkaus yuav tsum tau CBM ntawm 1 CBM, siv sijhawm li 30 hnub.

3, Koj puas muab warranty? Qhov kev pab cuam tom qab muag zoo li cas?
Lub tshuab tuaj nrog 1- xyoo warranty thiab kev txhawb nqa dawb. Peb kuj muab cov yeeb yaj duab qhia los pab lub tshuab ua haujlwm.

4, Lub tshuab puas yooj yim rau kev khiav lag luam? Kuv puas tuaj yeem siv nws txawm tias kuv tsis muaj kev txawj ntse ua ntej?
Yog lawm, peb cov cav tov tau tsim los ua haujlwm yooj yim. Feem ntau nws yuav siv sijhawm 2-3 teev los kawm paub siv lub tshuab. Yog tias koj muaj qee qhov kev paub, nws yuav yooj yim dua.

5, Yog tias peb tuaj xyuas koj lub Hoobkas, koj puas muab kev cob qhia dawb?
kiag li! Koj zoo siab txais tos tuaj xyuas peb lub Hoobkas rau kev cob qhia dawb.

6, Cov nqe lus them nqi yog dab tsi?
Peb lees txais T / T, Western Union, MoneyGram, PayPal, thiab lwm yam.

Specification:

Tag Nrho Lub Zog	5200W
Lub tshuab cua sov sab saum toj	1200W
Hauv qab rhaub	2nd 1200W, 3rd IR rhaub 2700W
Qhov hluav taws xob	AC220V / 110V ± 10% 50Hz
Pub noj system	Nws pib pub mis rau nti
Hom kev ua haujlwm	Ob hom: phau ntawv thiab tsis siv neeg, xaiv dawb! HD kov npo, ntse tib neeg-tshuab, kev teeb tsa digital.
Kub profile cia	50, 000 pab pawg (cov pab pawg tsis txwv)
Optical CCD lub koob yees duab lens	Tsis siv neeg ncab tawm thiab folding los xaiv thiab tso BGA nti
Lub koob yees duab magnification	1.8 lab pixels
Workbench fine-tuning:	± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug
Qhov tseeb qhov chaw:	± 0.015mm
Bga positioning	Laser positioning, ceev thiab raug txoj hauj lwm ntawm PCB thiab BGA
PCB txoj haujlwm	Qhov chaw ntse, PCB tuaj yeem hloov kho hauv X, Y kev taw qhia nrog "5 ntsiab lus txhawb nqa" + V-groove pcb bracket + universal fixtures.
Teeb pom kev zoo	Taiwan coj lub teeb ua haujlwm, txhua lub kaum sab xis adjustable
Kev tswj qhov kub thiab txias	K sensor, kaw voj, PLC tswj
Temp raug	± 2 degree
PCB loj	Max 450 × 400 mm Min 22 × 22 mm
BGA chip	1 x 1 - 80 x 80 mm
Yam tsawg kawg ntawm nti sib nrug	0.015 hli
Sab nraud temper sensor	1pc ua
Qhov ntev	L740 × W630 × H710 hli
Net nyhav	70 KG
