Dinghua 5880 BGA Rework Chaw nres tsheb - Kev daws teeb meem rau kev kho vaj huam sib luag nyuaj
Hauj lwm lawm

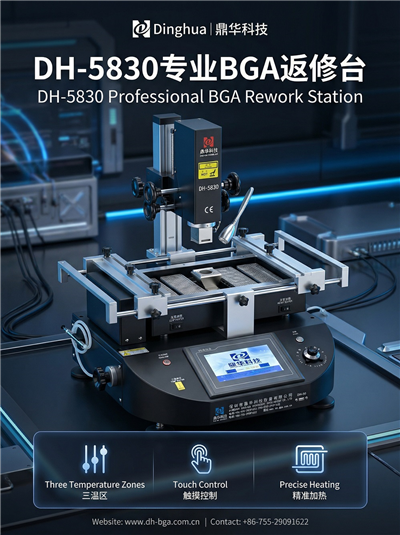

Lub Dinghua 5830 yog ib lub xeev - ntawm -the-art, tri-zoneBGA rework chaw nres tshebengineered rau precision, kev ntseeg siab, thiab yooj yim ntawm kev siv. Tsim tshwj xeeb rau kev kho kom yooj yim ntawm cov neeg rau zaub mov boards, kev sib txuas lus modules, thiab tsheb ECUs, nws tshem tawm cov teeb meem kev lag luam xws li PCB warping thiab thermal puas rau cov khoom. Nws sawv ua ib qho cuab yeej tseem ceeb ntawm cov qib siabECU kho cov cuab yeej.
Ntsiab nta & Cov txiaj ntsig
1.User-Tus phooj ywg Touchscreen ua haujlwm:Ua ntej-loaded cov kev pab cuam thiab ib tug intuitive interface tso cai rau cov neeg ua hauj lwm ua complex chip kho nrog tsawg heev kev cob qhia, ua tus kws tshaj lijBGA rework chaw nres tshebnkag mus rau txhua qib kev txawj ntse.
2.Tri-Zone Independent PID Temperature Control:Ua kom muaj huab cua sov sab saud, qis dua infrared preheating, thiab hauv qab tsis tu ncua - qhov kub thiab txias. Qhov system no neutralizes board kev ntxhov siab, cia kev nyab xeeb kho ntawm ob -sided PCBs-ib qho txiaj ntsig tseem ceeb rau kev nkag siab zooECU kho cov cuab yeej.
3.Superior cua sov & Durability:Nruab nrog siab -cov khoom siv hluav taws xob zoo tuaj yeem ua kom raug, tswj qhov kub thiab txias thiab lub neej ua haujlwm ntev, ua kom zoo zoo soldering yam tsis muaj qhov txias txias.
4. Loj Compatibility:Txaus siab rau PCBs txog li 500x400mm nrog lub universal adjustable fixture, ua rau nws zoo tagnrho rau oversized boards thiab ntau yam layouts.
5.Precision saib xyuas:Qhov chaw ntsuas kub sab nraud tso cai rau qhov tseeb -lub sijhawm ntsuas kub ntawm PCB lossis nti nto, lav qhov tseeb qhov tseeb.
6.Complete Accessories:Xws li lub tshuab nqus tsev cwj mem rau kev yooj yim nti tuav thiab USB chaw nres nkoj rau cov ntaub ntawv xa tawm thiab kev tshuaj xyuas cov txheej txheem.
Technical Specifications
| Parameter | Specification |
|---|---|
| Tag Nrho Lub Zog | 5200W |
| Lub Hwj Chim Siab Tshaj Plaws | 1200W |
| Lub Hwj Chim hauv qab | Zone 2: 1200W; Zone 3: 2700W (Ntxiv - cheeb tsam loj) |
| Fais fab mov | AC220V ± 10%, 50Hz |
| Qhov Loj (LxWxH) | 500 x 600 x 650 mm |
| Positioning System | V-slot nrog X-axis adjustable PCB yas dhos & universal fixture |
| Temp. Tswj | K-hom Thermocouple, Kaw- voj PID |
| Temp. Qhov tseeb | ± 2 degree |
| PCB Loj Compatibility | Max: 500x400mm; Min: 20 x 20 mm |
| BGA Chip Compatibility | 2x2mm mus rau 80x80mm |
| Min. Chip Pitch | 0.15 hli |
| Tshuab hnyav | 45kg ua |
Advanced Functional Description
1.Smart Control System:Embedded muaj PC nrog HD touchscreen HMI thiab PLC tswj. Nta tiag tiag -lub sij hawm kub nkhaus zaub thiab tsom xam rau cov txheej txheem zoo meej.
2.High-Precision Temperature Management:Kaw - voj K- hom thermocouple system nrog nws pib - nyiaj them, tswj los ntawm PLC & siab kub module kom paub meej ± 2℃raug.
3.Secure & Flexible Fixturing:V- lub hauv paus qhov chaw thiab lub qhov rooj nkag tau yooj yim tiv thaiv PCB npoo ntawm kev puas tsuaj thiab tiv thaiv deformation thaum cua sov.
4.Multi-Stage Profile Control:Txhua qhov ntawm peb thaj chaw cua sov txhawb nqa 6-8 theem kub profiles, khaws cia rau tam sim. Independent PID algorithms ua kom muaj cua sov zoo ib yam.
5.Txhim kho cov txheej txheem tswj:Ua- nyob rau hauv lub zog txias kiv cua txo PCB warping. Lub tshuab nqus tsev twj tso kua mis nrog tus cwj mem yooj yim tswj kev nyab xeeb BGA.
6. Kev nyab xeeb & ntawv pov thawj:CE tau ntawv pov thawj. Xws li nres thaum muaj xwm txheej ceev, pib lub hwj chim- tawm kev tiv thaiv, thiab suab nrov ua ntej{2}} ceeb toom ua ntej lub voj voog ua tiav.
Technical Specifications
Vacuum Pen:Precisely xaiv thiab tso BGA / me SMD Cheebtsam yam tsis muaj kev sib cuag; zam electrostatic / lub cev puas tsuaj, xyuas kom meej qhov kev sib raug zoo.
Lower Heater Height Kho:Precisely kho qhov ntsug nrug ntawm qis cua sov thiab PCB; haum PCBs ntawm txawv thicknesses, optimize hauv qab cua sov uniformity, tiv thaiv PCB warpage / overheating.
Multi-functional bracket, yooj yim ruaj PCBs ntawm txhua yam duab.
Hauv qab cheeb tsam infrared cua sov.
Lub nozzle yog tsim los ntawm titanium alloy tag nrho, tuaj yeem tig 360 degrees, thiab yog ib qho yooj yim los hloov, thaum xyuas kom meej tias cov cua kub yog concentrated nyob rau hauv lub PCB board.
Peb lub tuam txhab
Shenzhen Dinghua KeChuang Automation Co., Ltd. yog lub teb chaws siab -tech enterprise mob siab rau R&D, manufacturing, thiab kev txhawb nqa. Nyob rau hauv lub lag luam dej nyab nrog imitations, peb sawv tawm los ntawm txoj kev innovation thiab zoo.
Expertise & Innovation:Focused nkaus xwbBGA rework chaw nres tshebtxij li xyoo 2010. Peb tuav 38 patents thiab hloov kho peb cov khoom tas li, zoo li 5880cua kub rework chaw nres tsheb, kom tau raws li kev lag luam xav tau.
Kev tsis sib haum xeeb:Peb siv cov khoom zoo tshaj plaws (Meanwell, Omron, cov khoom siv hluav taws xob tuaj txawv teb chaws) thiab tswj xyuas cov txheej txheem tsim khoom nruj, uas txhua tus neeg ua haujlwm lav ris rau qhov zoo.
Txhim khu kev txhawb nqa:Peb nyob rau hauv - pab neeg hauv tsev ntawm software thiab hardware engineers muab kev hloov kho software sai, lub neej dawb thiab kev pab cuam.
Professional Ib puag ncig:Peb siv 6S kev tswj xyuas nruj, ntseeg tias kev qhuab qhia hauv pem teb yog qhov tseem ceeb rau cov khoom lag luam zoo.
Cov ntaub ntawv pov thawj:Peb cov neeg siv khoom suav nrog cov thawj coj hauv kev lag luam xws li Huawei, BYD, Foxconn, Samsung, ZTE, thiab ntau lub tsev kawm qib siab thoob ntiaj teb thiab cov koom haum tshawb fawb. Pebcua kub rework chaw nres tshebthiab lwm yamECU kho cov cuab yeejyog exported rau ntau tshaj 180 lub teb chaws.
Vim li cas thiaj xaiv Dinghua?
Shenzhen Dinghua KeChuang Automation Co., Ltd. yog lub teb chaws siab -tech enterprise mob siab rau R&D, manufacturing, thiab kev txhawb nqa. Nyob rau hauv lub lag luam dej nyab nrog imitations, peb sawv tawm los ntawm txoj kev innovation thiab zoo.
Expertise & Innovation:Focused nkaus xwbBGA rework chaw nres tshebtxij li xyoo 2010. Peb tuav 38 patents thiab niaj hnub hloov kho peb cov khoom, zoo li 5830cua kub rework chaw nres tsheb, kom tau raws li kev lag luam xav tau.
Kev tsis sib haum xeeb:Peb siv cov khoom zoo tshaj plaws (Meanwell, Omron, cov khoom siv hluav taws xob tuaj txawv teb chaws) thiab tswj xyuas cov txheej txheem tsim khoom nruj, uas txhua tus neeg ua haujlwm lav ris rau qhov zoo.
Txhim khu kev txhawb nqa:Peb nyob rau hauv - pab neeg hauv tsev ntawm software thiab hardware engineers muab kev hloov kho software sai, lub neej dawb thiab kev pab cuam.
Professional Ib puag ncig:Peb siv 6S kev tswj xyuas nruj, ntseeg tias kev qhuab qhia hauv pem teb yog qhov tseem ceeb rau cov khoom lag luam zoo.
Cov ntaub ntawv pov thawj:Peb cov neeg siv khoom suav nrog cov thawj coj hauv kev lag luam xws li Huawei, BYD, Foxconn, Samsung, ZTE, thiab ntau lub tsev kawm qib siab thoob ntiaj teb thiab cov koom haum tshawb fawb. Pebcua kub rework chaw nres tshebthiab lwm yamECU kho cov cuab yeejyog exported rau ntau tshaj 180 lub teb chaws.
