Tus nqi zoo tshaj BGA Rework Tshuab

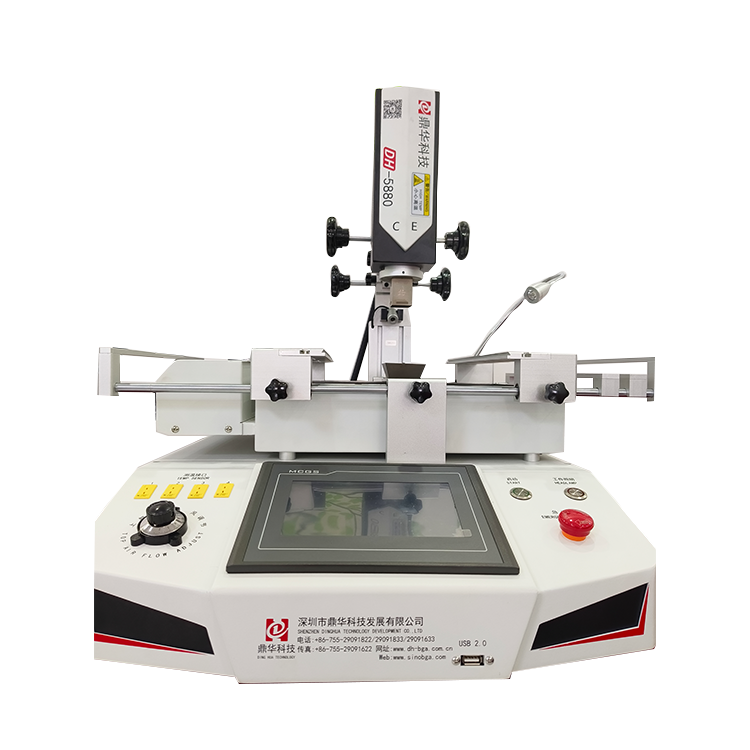

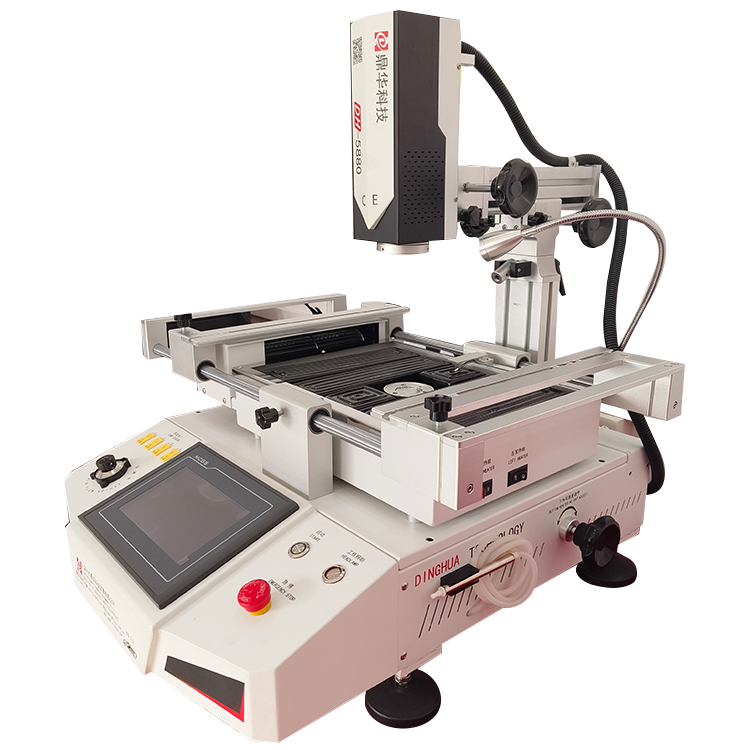

Dinghua DH-5880 yog ib lub tshuab BGA rework uas tsim los rau siab -kev pabcuam hluav taws xob. Raws li ib tug txhim khu kev qha motherboard kho tshuab, nws nta ib tug 3 zones cua sov BGA chaw nres tsheb nrog ywj siab tswj ntawm lub sab sauv kub huab cua, qis cua kub, thiab hauv qab infrared preheating zones, kom ntseeg tau tias uniform cua sov faib, tiv thaiv PCB warping, thiab xa ruaj khov rework kev kawm ntawm high-density PCBs.
Hauj lwm lawm
Khoom Description
CovDinghua DH-5880 UASyog lub xeev- ntawm--art BGA kho tshuab tsim los rau siab -kev kho hluav taws xob zoo. Raws li tus kws tshaj lij- qib motherboard kho tshuab, nws muaj qhov siab tshaj 3 thaj chaw cua sov BGA chaw nres tsheb uas tso cai rau kev ywj pheej ntawm huab cua kub sab saud, cua kub qis, thiab nthuav davhauv qab infrared (IR) preheating chaw. Qhov kev teeb tsa no ua kom muaj qhov sib txawv ntawm cov thermal faib, tiv thaiv lub rooj tsav xwm warping thiab ua kom muaj kev vam meej rov qab rau txawm tias qhov nyuaj tshaj plaws - PCBs ceev.
Engineered rau versatility, no BGA kho tshuab yog dav siv nyob rau hauv kev kho ntawmlaptops, game consoles, thiab automotive electronics.Lub tshuab kho motherboard siv lub siab - txhais kov npo interface thiab laser positioning technology kom ua tiav qhov tseeb qhov tseeb thaum muab nti. Nrog nws lub siab - zog 3 thaj chaw ua cua sov BGA chaw nres tsheb, DH-5880 muab kev ruaj ntseg thiab thermal precision uas yuav tsum tau ua kom tau raws li cov qauv siv lead ua niaj hnub no, ua rau nws yog ib qho cuab yeej tseem ceeb rau txhua qhov chaw ua haujlwm tshaj lij.
Saj zawg zog thiab txhim khu kev qha kho kev daws teeb meem

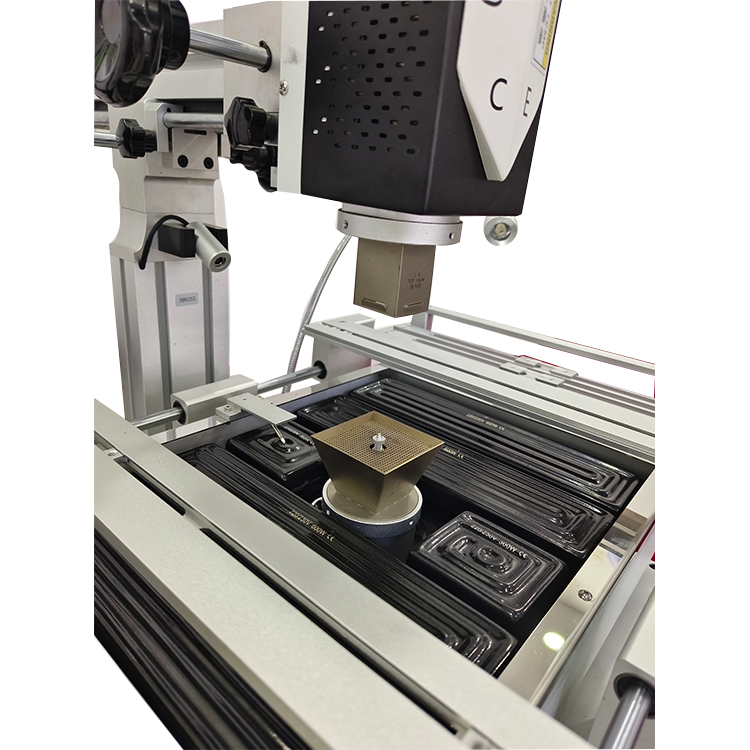

Ua nrog kev sib xyaw ua ke ntawm kub - cua thiab infrared cua sov tshuab, lub chaw nres tsheb ntapeb thaj chaw cua sov ywj siab- cua kub sab saud, cua kub qis, thiab thaj chaw infrared preheating- kom xa cov cua kub tsis sib xws thiab txo qis thermal stress ntawm PCBs. Qhov no ua kom muaj kev ruaj ntseg thiab ua tau zoo reflow soldering rau cov rooj sib txoos me me.
Intelligent Temperature Control

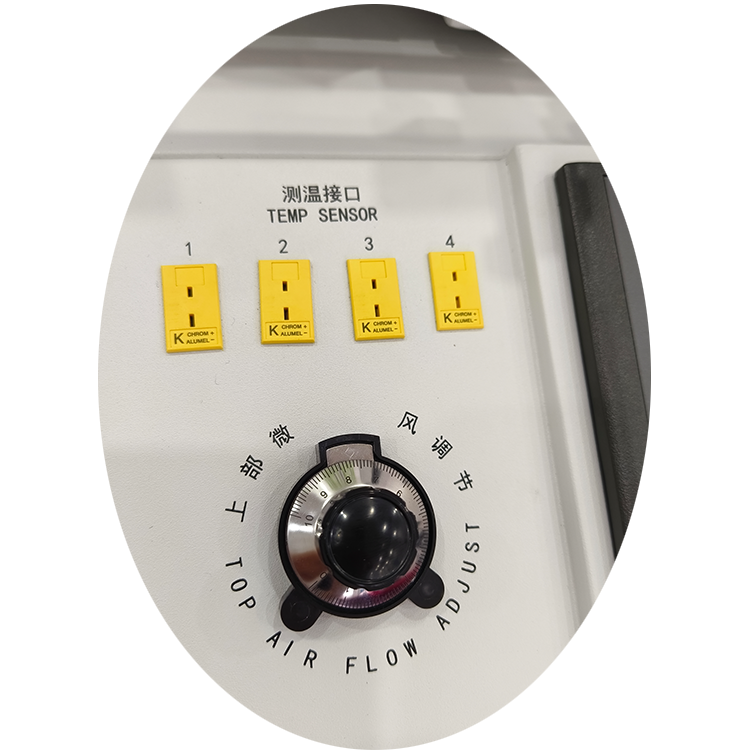

Nruab nrog tiag tiag- lub sijhawm saib xyuas thiab ntsuas kub sab nraud, lub kaw lus qhia ob qho tib si teeb tsa thiab qhov ntsuas kub tiag tiag, tso cai rau cov tswv lag luam los tshuaj xyuas thiab kho qhov ntsuas nrog qhov tseeb. Qhov kaw - voj K- hom tswj muab kev tswj xyuas kom sov ruaj khov nrog qhov sib txawv me me.
Cov khoom specification
| 1 | Yam khoom | Parameter |
| 2 |
Tag Nrho Lub Zog |
5600W |
| 3 |
Lub tshuab cua sov sab saum toj |
1200W |
| 4 |
Hauv qab rhaub |
Qhov thib ob kub cheeb tsam 1200W, infrared kub cheeb tsam 3000W |
| 5 |
zog |
AC220V ± 10% 50Hz |
| 6 |
Qhov ntev |
L630 × W730 × H680 hli |
| 7 |
Qhov chaw |
V-groove + universal fixture + 5-cov ntsiab lus txhawb nqa + Kho tau hauv X kev taw qhia |
| 8 |
Kev tswj qhov kub thiab txias |
K Sensor, kaw lub voj |
| 9 |
Temp raug |
± 2 degree |
| 10 |
PCB loj |
Max 440 × 360 mm Min 22 × 22 mm |
| 11 |
BGA chip |
2 X 2-80 X 80 mm |
| 12 |
Yam tsawg kawg ntawm nti sib nrug |
0.15 hli |
| 13 |
Sab nraud Temperature Sensor |
4 (yeem) |
| 14 |
Net nyhav |
48kg ua |
Cov khoom tseem ceeb nta
Kev ua haujlwm yooj yim thiab nyab xeeb
Lub tshuab nqus tsev vacuumkom muaj kev nyab xeeb thiab yooj yim chip pick- tom qab desoldering.
USB 2.0 interfacerau kev txuas mus rau lub computer lossis nas, ua kom lub screenshot capture thiab kev hloov kho tshiab rau yav tom ntej.
Siab- fais fab hla- kiv cua txiastiv thaiv PCB warpage thiab tiv thaiv cov khoom nyob ze.
Ntse suab ceeb toomceeb toom cov neeg ua haujlwm ua ntej cua sov ua tiav.

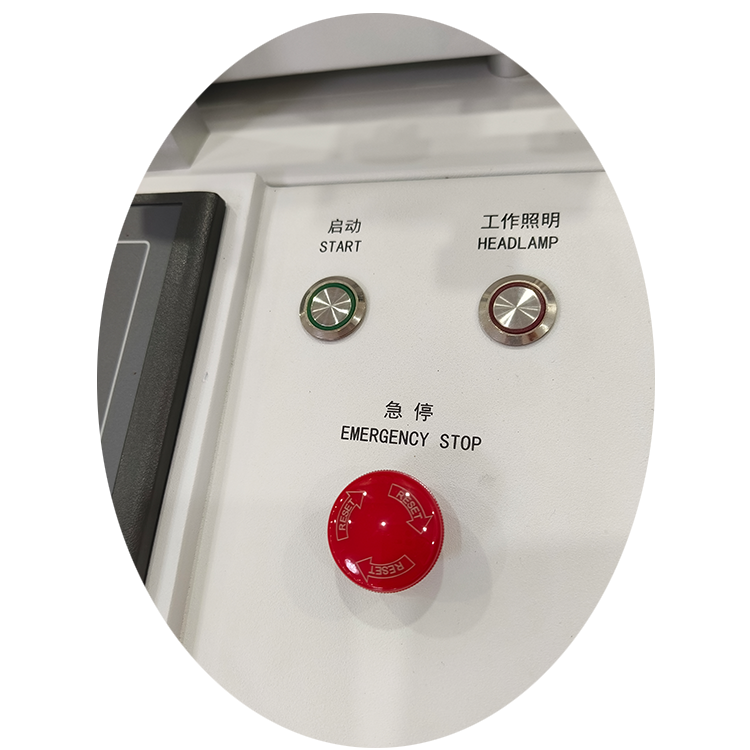

Kev tiv thaiv kev nyab xeebnrog overheat guard rau kev ruaj ntseg siv.
Cov kev xav zoo li no ua rau lub chaw nres tsheb yooj yim rau kev khiav lag luam thaum txhim kho kev ua haujlwm rov ua tau zoo thiab kev ntseeg siab.
Zoo tagnrho rau Kev Kho Txawb thiab Kev Kho Hluav Taws Xob
Compact thiab tus nqi -zoo, phau ntawv no BGA rework chaw nres tsheb yog tshwj xeeb tshaj yog nrov nyob rau hauv lubmobile xov tooj kho teb, zoo lilaptop, gaming console, thiab kev saib xyuas PCB. Nws qhov chaw -txuag hneev taw thiab kev tshaj lij- qib kev ua tau zoo ua rau nws zoo tagnrho rau ob lub khw kho me me thiab cov chaw pabcuam loj.
