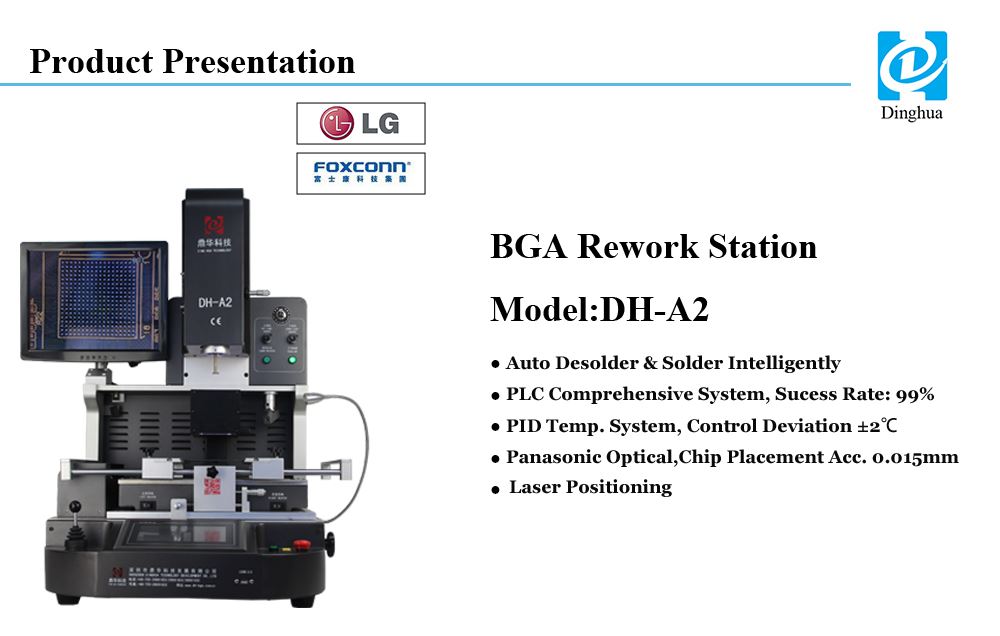

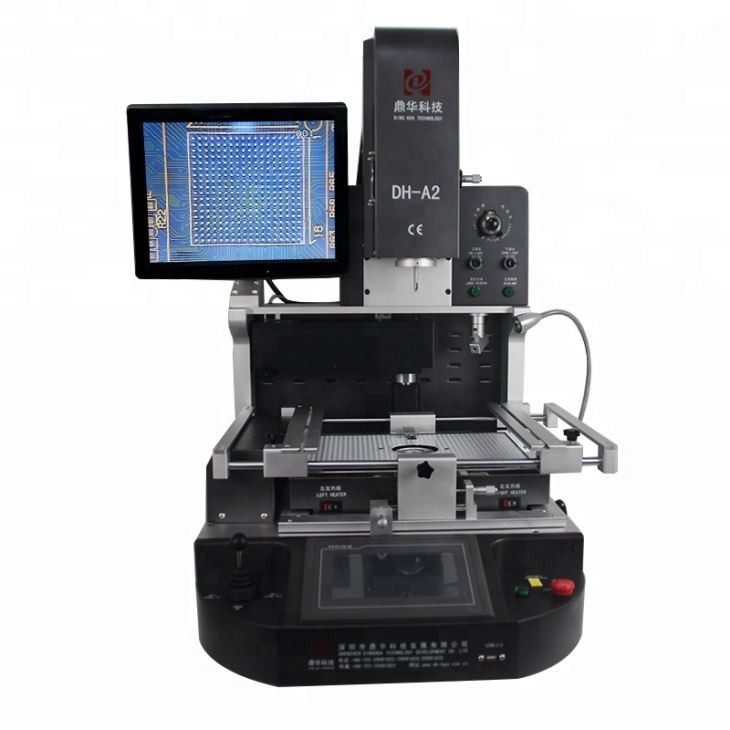

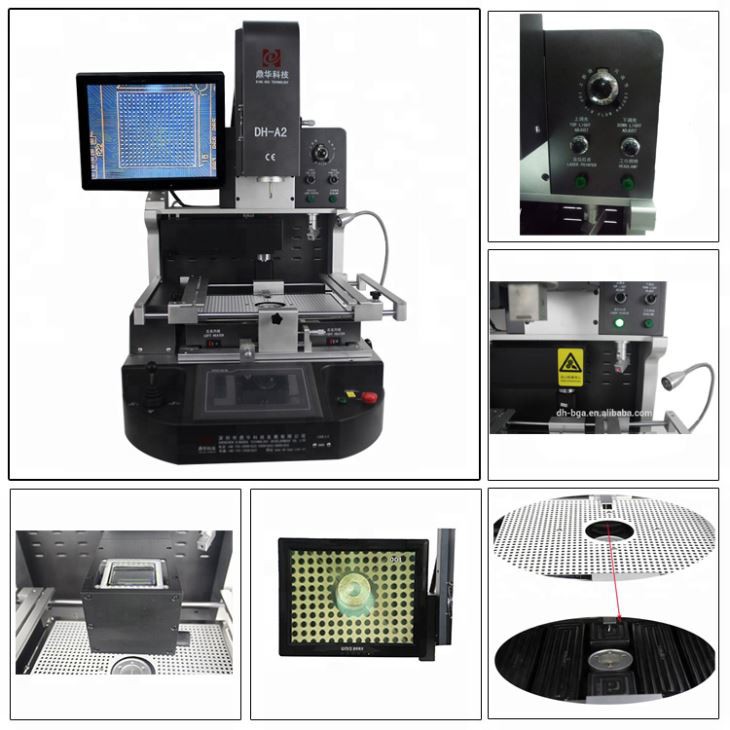

Bga Soldering Chaw nres tsheb Bga Rework Tshuab Bga Rework Reflow Chaw nres tsheb



Qhia peb BGA soldering chaw nres tsheb, qhov kawg daws rau reworking BGA Cheebtsam nrog precision thiab

yooj yim. Tsim los ua kom tau raws li qhov xav tau ntawm cov kws tshaj lij thiab cov neeg nyiam DIY, peb cov tshuab BGA rework feature adva-

nced nta kom xa cov txiaj ntsig zoo txhua lub sijhawm.
Qhov chaw nres tsheb BGA rework no nta ib qho yooj yim-rau-siv interface thiab built-in touchscreen kom tiav tswj ntawm tem-

perature, airflow, thiab lwm yam kev teeb tsa tseem ceeb. Nws compact tsim ua rau nws yooj yim rau khaws cia thaum tsis siv, thaum nws st-

urdy kev tsim kho kom lub neej ntev thiab kev ntseeg tau.

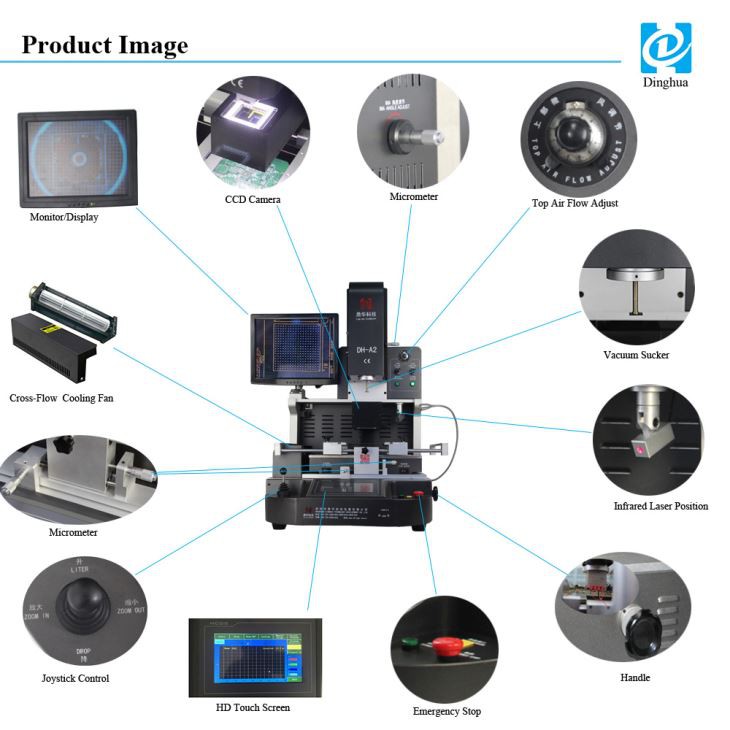

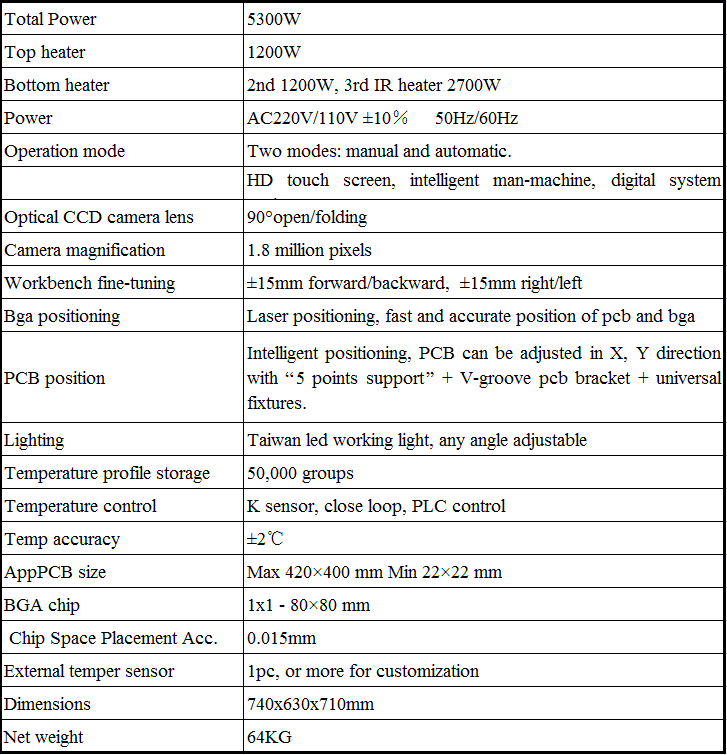

Specification





Nta:

1. Nws pib de-soldering & re-soldering, ua haujlwm yooj yim, nrog ntau yam kev siv.

2. Kev kho qhov ua tiav tau nce mus txog 99%, raws li kev ua haujlwm raug.

3. Kev tswj qhov kub thiab txias, nrog k-hom thermocouple kaw-voj tswj, PID pib

kub them nyiaj system, sab nraud temp. sensor, uas ua rau qhov sib txawv ± 2 degree.

4. Ob hom kev ua haujlwm nyob rau hauv lub system: tag nrho tsis siv neeg thiab phau ntawv, uas yog ib qho yooj yim mus hloov ntawm lub

ob qho tib si rau kev ua haujlwm zoo tshaj plaws.

5. Nws pib hom muaj xws li: pib lub tshuab cua sov lub zog, pib CCD lub koob yees duab txav, laser txoj hauj lwm, nws pib re

- soldering thiab soldering.

6. Kev tuav ib hom yog siv los kov HD npo rau qhov kub thiab txias nkhaus / profile teeb tsa lossis hloov kho,

ua rau saum lub rhaub qhov siab hloov nrog cov joysticks, thiab lub koob yees duab txav, qhov ntsuas kub sab nraud,

thiab khaws ib nti nrog lub tshuab nqus tsev, yog tias tsim nyog.

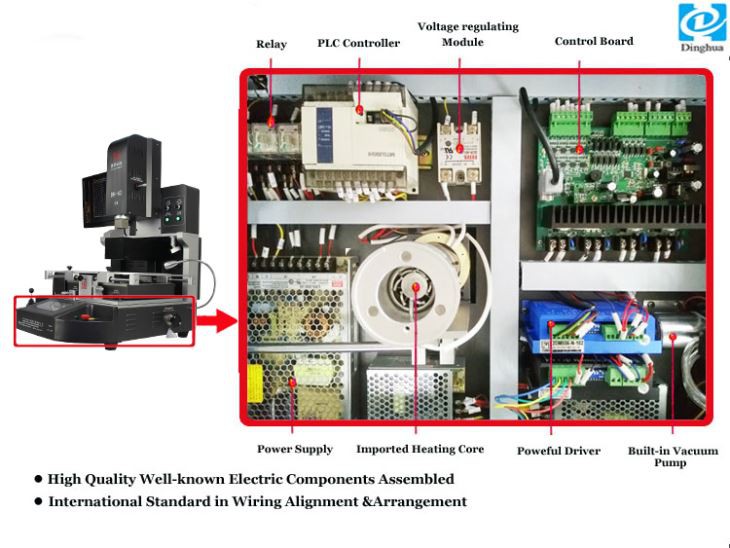

7. HD kov npo kev sib tham sib tham, nrog PLC tswj cov kev pabcuam sib koom ua ke,

uas ua rau kev ua haujlwm zoo heev thiab yooj yim.

8. Muaj peev xwm teeb tsa 8 ntu ntawm qhov kub thiab txias, nrog kev hloov pauv cua sov sab saum toj thiab qis cua sov (txog 16

ntu). Thiab tsis txwv tus naj npawb ntawm qhov kub thiab txias profiles khaws cia hauv qhov kev pab cuam.

9. Pub dawb los kho lossis rov teeb tsa qhov nkhaus thaum lub sijhawm ua haujlwm, ib zaug nws tsim nyog los hloov.

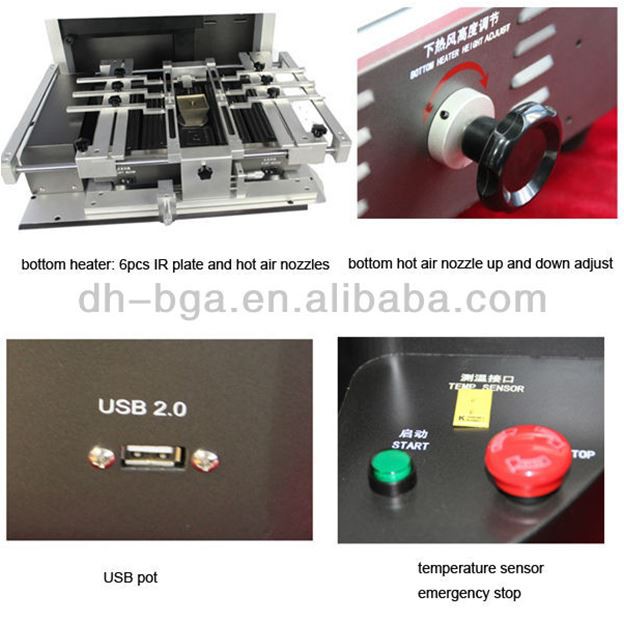

10. Peb lub tshuab cua sov yog tsim los ntawm tus kheej, tab sis khiav kev sib koom tes, thiab IR infrared pre-heater yog qhov loj.

rau kev txawj ntse ntau yam ntawm cov khoom kho.

11. High quality radiating ntxuam nrog loj ntim cua-ceev, khiav cia li tom qab cua sov ua hauj lwm (

nqes mus rau <45 degree) los txhawb kev ua kom txias txias, thiab tiv thaiv cov cua sov los ntawm kev laus.

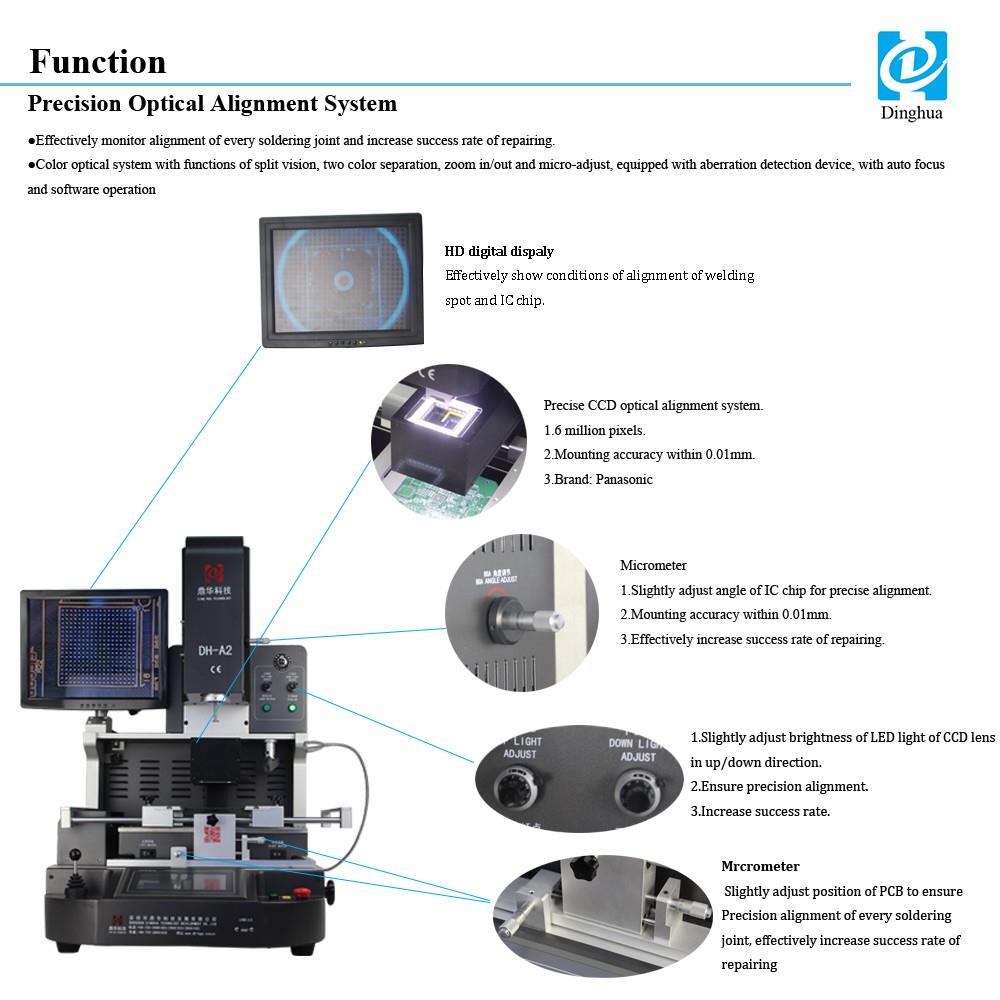

12. Panasonic branded optical alignment system nrog nws pib-folded CCD lub koob yees duab, hauv 180 lab pixels, uas

ua kom pom tseeb thiab txhim khu kev qha.

13. Tib neeg cov qauv tsim, nws pib-folding optical lens, ywj siab xaiv teeb tsa ntawm qhov kub thiab txias, rau qhov zoo heev

ntse siv chips.

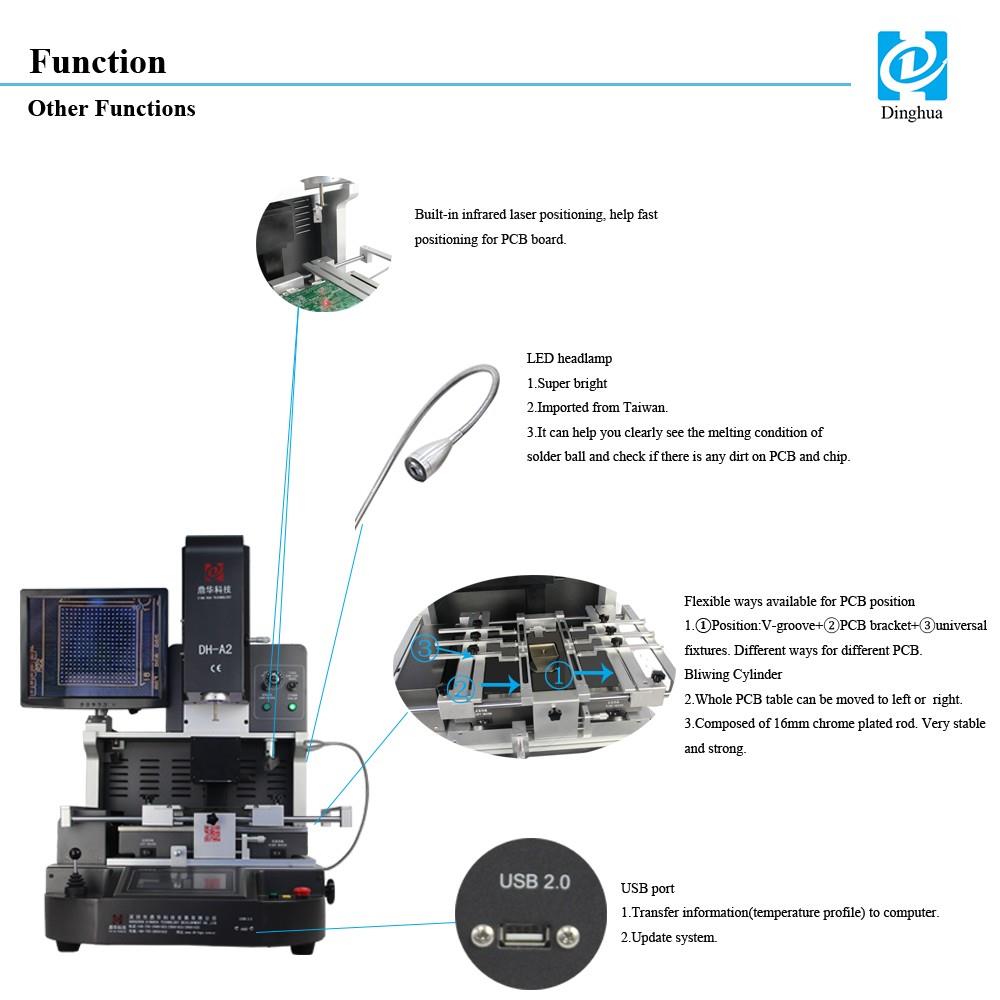

14. Precise tsim universal fixtures, ua rau lub PCB tuaj yeem hloov kho hauv X, Y, Z kev taw qhia nrog "5 ntsiab lus sup-

chaw nres nkoj" + V-groove thiab PCB bracket, uas ua rau nws muaj kev ywj pheej los tso rau PCB sai.

15. Laser point positioning ua rau txoj hauj lwm ntawm nti / IC yooj yim, raug thiab ceev.

16. Tsis tas li ntawd, qhov hloov pauv hloov tau yooj yim pab tiv thaiv lwm qhov ntawm PCB raug deformed, thiab nthuav dav.

kev siv ntau ntawm PCB qhov ntau thiab tsawg.

17. Lub zog loj LED lub teeb rau kev soj ntsuam tshuab ua haujlwm ntau pom kev.

18. 5 teeb ntawm ntau qhov sib txawv ntawm cov hlau nplaum nozzles ua los ntawm cov khoom siv titanium alloy yog muab pub dawb.

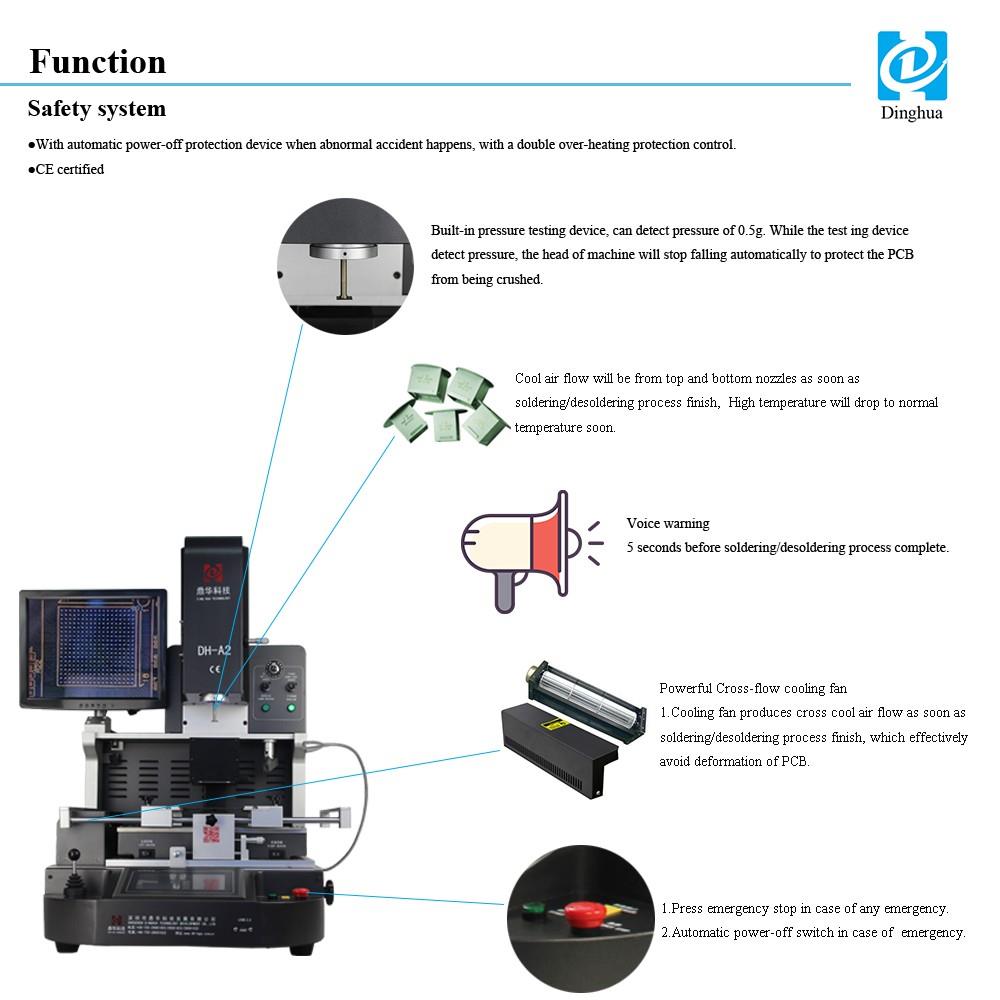

19. Nws pib kev nyab xeeb thiab ceeb toom system: pib lub suab ceeb toom ntawm 5 vib nas this ua ntej cua sov tiav.

20. Kev tiv thaiv ob npaug: Kev tiv thaiv kub dhau + kev ua haujlwm kub ceev.

21. CE daim ntawv pov thawj pom zoo.

Nrog peb BGA rework chaw nres tsheb, koj yuav muaj peev xwm tswj tau qhov nyuaj BGA Cheebtsam nrog kev ntseeg siab.

Txawm hais tias koj tab tom rov ua haujlwm PCBs, kho cov khoom siv hluav taws xob, lossis ua haujlwm ntawm lwm cov haujlwm nyuaj, cov cuab yeej no yog koj li

mus-rau kev daws teeb meem rau tag nrho koj BGA soldering xav tau.

Ntawm peb lub tuam txhab, peb tau cog lus los muab cov khoom zoo tshaj plaws thiab kev pabcuam tshwjxeeb rau cov neeg siv khoom.

Peb cov BGA soldering chaw nres tsheb tsis muaj qhov tshwj xeeb thiab peb muab kev lees paub rau lawv. Yog koj yog

tab tom nrhiav rau qhov zoo, txhim khu kev qha BGA rework tshuab, ces peb BGA rework thiab rov qab chaw nres tsheb yog koj

kev xaiv zoo tshaj plaws.

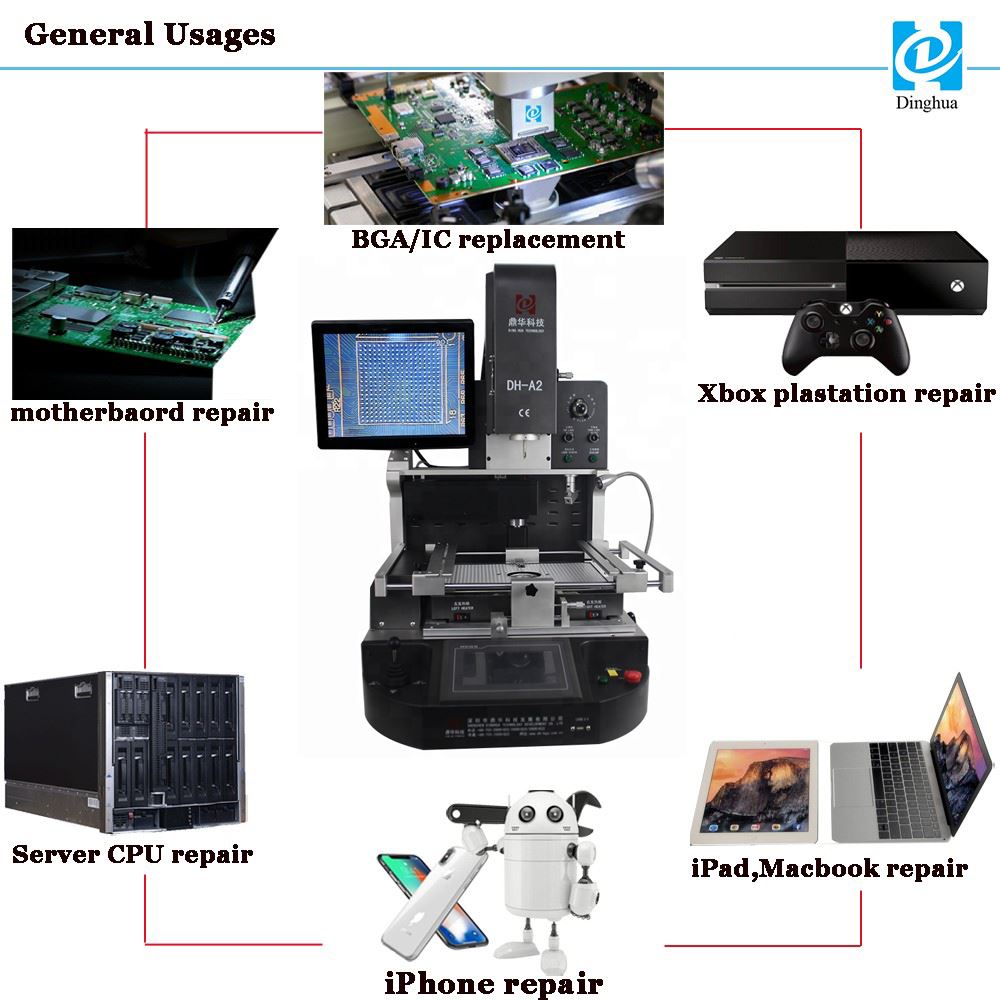

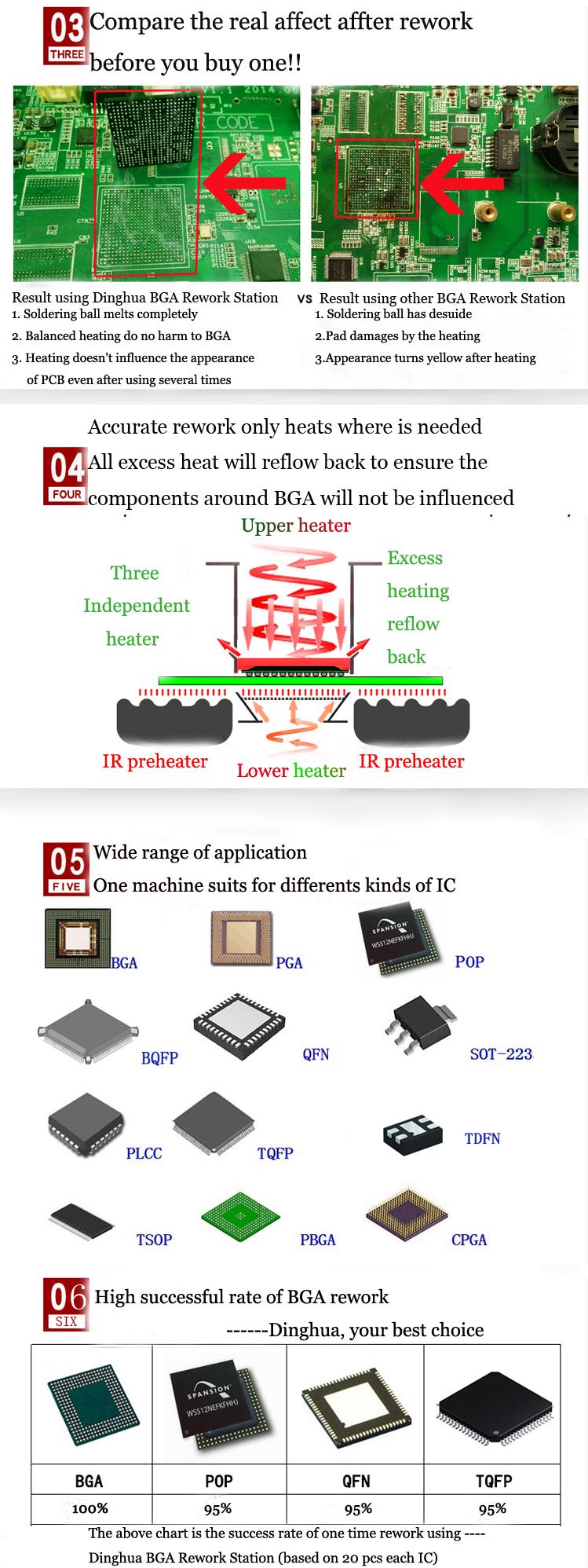

Daim ntawv thov



1. Ua tiav ntau yam ntawm cov ntawv thov rov ua haujlwm hauv cov chaw pabcuam nruab nrab thiab loj, xov tooj ntawm tes thiab xov tooj cua

tsim kho, xov tooj ntawm tes, PDAs, handhelds, laptops, notebooks, portable kho mob cov cuab yeej LAN,

network nodes, khoom siv tub rog sib txuas lus, thiab lwm yam.

2. Siv tau los kho txhua yam chips, xws li BGA, PGA, POP, BQFP, QFN, PLCC, TQFP, TSOP, thiab lwm yam.

thiab tsis muaj txhuas.

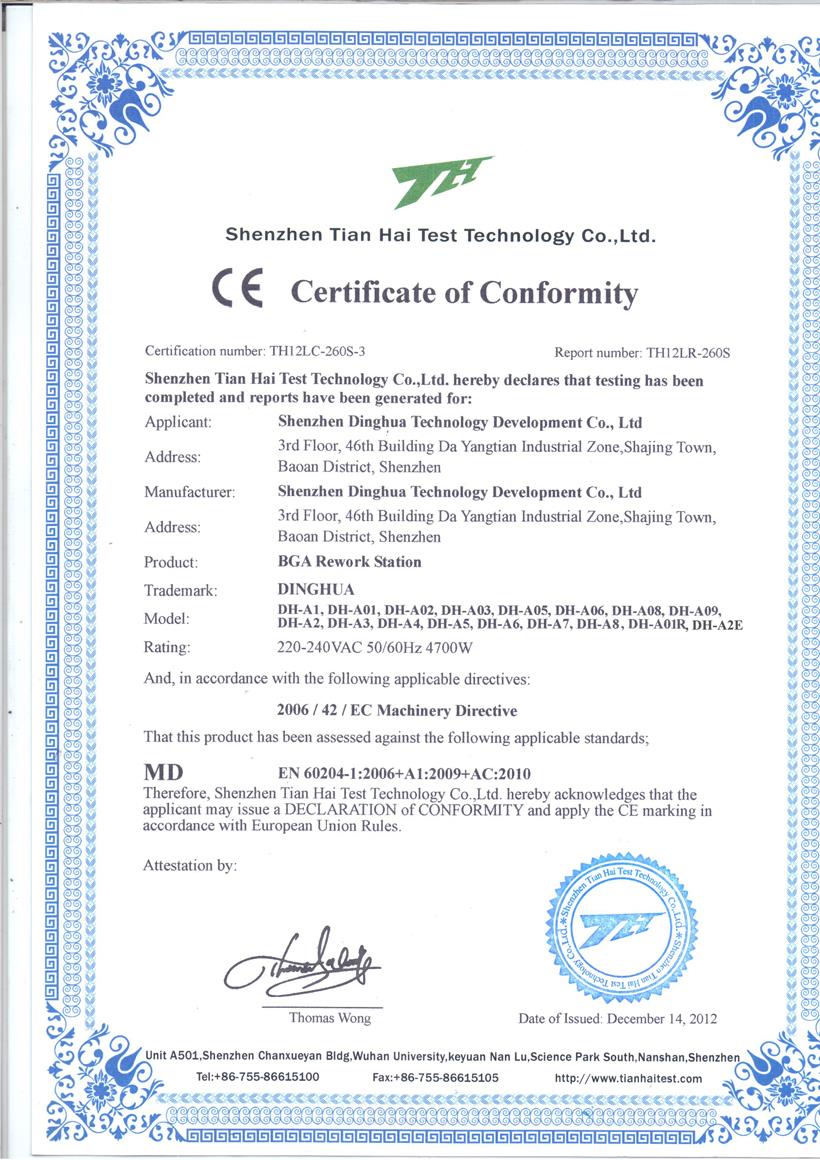

Daim ntawv pov thawj

Cov ntaub ntawv ntim khoom

Cov ntaub ntawv: Cov ntaub ntoo muaj zog + ntoo tuav + pov thawj foams nrog zaj duab xis

Loj: 82 * 77 * 87cm

Qhov hnyav tag nrho: 105 kg

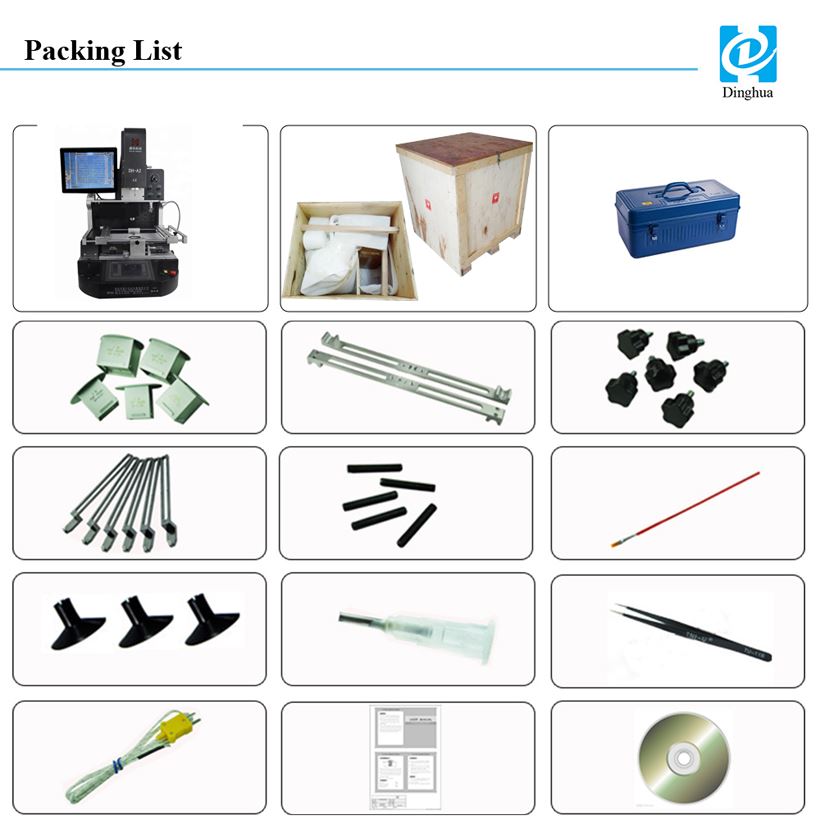

Daim ntawv teev npe

• 1pc BGA Rework Tshuab

• 1pc txhuam cwj mem

• 1pc Phau ntawv qhia

• 3 pcs saum nozzles

• 2 pcs hauv qab nozzles

• 6pcs universal fixtures

• 6pcs fastened screws

• 4pcs kev them nyiaj yug ntsia hlau

• Sucker loj: Dia 2,4,8,10,11mm

• Sab hauv hexagon spanner: M2/3/4

•

Cov ntaub ntawv tuam txhab



Ua haujlwm video ntawm Bga Soldering Chaw nres tsheb Bga Rework Tshuab Bga Rework Reflow Chaw nres tsheb





Kev pabcuam

1. Ntawm kev muag khoom ua ntej, pub dawb rau kev ua qauv qhia thiab cov lus qhia kev sab laj, ntawm qhov chaw lossis hauv video.
2.Can muab txheej txheem video lossis kev cob qhia ua ntej xa zaub mov, ntawm koj xav tau.
3. Tom qab-muag, nrog ib pab neeg muaj zog technical back-up.

4. Muab cov luv nqi loj rau kev txiav txim loj loj los yog rau kev txiav txim rov qab.

5.Warranty: 1 xyoo dawb, thiab tau txais cov nqi them rau xyoo ntxiv.



FAQ

1. Yuav ua li cas txog lub pob? Puas muaj kev nyab xeeb thaum lub sijhawm xa khoom?

Tag nrho cov xov tooj ntawm tes LCD refurbished tshuab yog packed Safely, los ntawm standard muaj zog ntoo thawv los yog thawv

box nrog ua npuas ncauj sab hauv.



2. Txoj kev xa khoom yog dab tsi? Muaj pes tsawg hnub lub tshuab yuav tuaj rau peb?

Peb yuav xa lub tshuab los ntawm DHL, FedEx, UPS, thiab lwm yam (Qhov Rooj Rau Qhov Kev Pabcuam), nyob ib ncig ntawm 5 hnub los txog.

Los yog los ntawm Cua rau koj lub tshav dav hlau (Qhov Rooj rau Tshav Dav Hlau Kev Pabcuam), nyob ib ncig ntawm 3 hnub los txog.

Los yog los ntawm Hiav Txwv mus rau lub hiav txwv, qhov tsawg kawg nkaus CBM yuav tsum tau: 1 CBM, nyob ib ncig ntawm 30 hnub los txog.



3. Koj puas muab qhov Warranty? Yuav ua li cas txog qhov kev pab cuam tom qab muag?

1 xyoo warranty pub dawb rau cov khoom seem, Tag nrho lub neej kev txhawb nqa.

Peb muaj pab pawg tshaj lij tom qab muag, yog tias muaj lus nug, cov yeeb yaj kiab pabcuam kuj tau muab rau hauv kev pabcuam tomqab muag.



4. Lub tshuab no yooj yim rau kev khiav lag luam? Yog tias kuv tsis muaj kev paub dhau los, Kuv puas tuaj yeem ua haujlwm tau zoo?

Koj puas muab cov neeg siv phau ntawv thiab cov yeeb yaj kiab ua haujlwm los txhawb peb?

Yog lawm, peb cov tshuab tau tsim los siv tau yooj yim, Nquag nws yuav siv sijhawm rau koj 2-3 teev los kawm txog kev khiav haujlwm,

yog tias koj yog tus kws tshaj lij, nws yuav kawm sai dua. Peb yuav muab cov lus Askiv siv phau ntawv dawb, thiab

cov yeeb yaj kiab ua haujlwm muaj.



5, Yog tias peb tuaj rau koj lub Hoobkas, koj yuav muab kev cob qhia dawb?

Yog, sov siab txais tos tuaj xyuas peb lub Hoobkas, peb yuav npaj cov kev cob qhia dawb rau koj.



6. Txoj kev them nyiaj yog dab tsi?

Peb lees txais cov nqe lus them nqi: hloov txhab nyiaj hauv txhab nyiaj, Western Union, Nyiaj Gram, Paypal, thiab lwm yam.
