SMD Rework Chaw nres tsheb
Nrog rau kev tsim qauv zoo dua thiab cov qauv siab heev, thiab kev ua haujlwm, DH-A2 yog cov kws tshaj lij hauv SMD cov khoom xws li txuas, ntsaws. Feem ntau siv nyob rau hauv desoldering & re-soldering BGA, SMD Cheebtsam, kho motherboards, mobile phones & laptop PCBA, iPhone logic board, Xbox, PS2/3, thiab gaming consoles.
Hauj lwm lawm

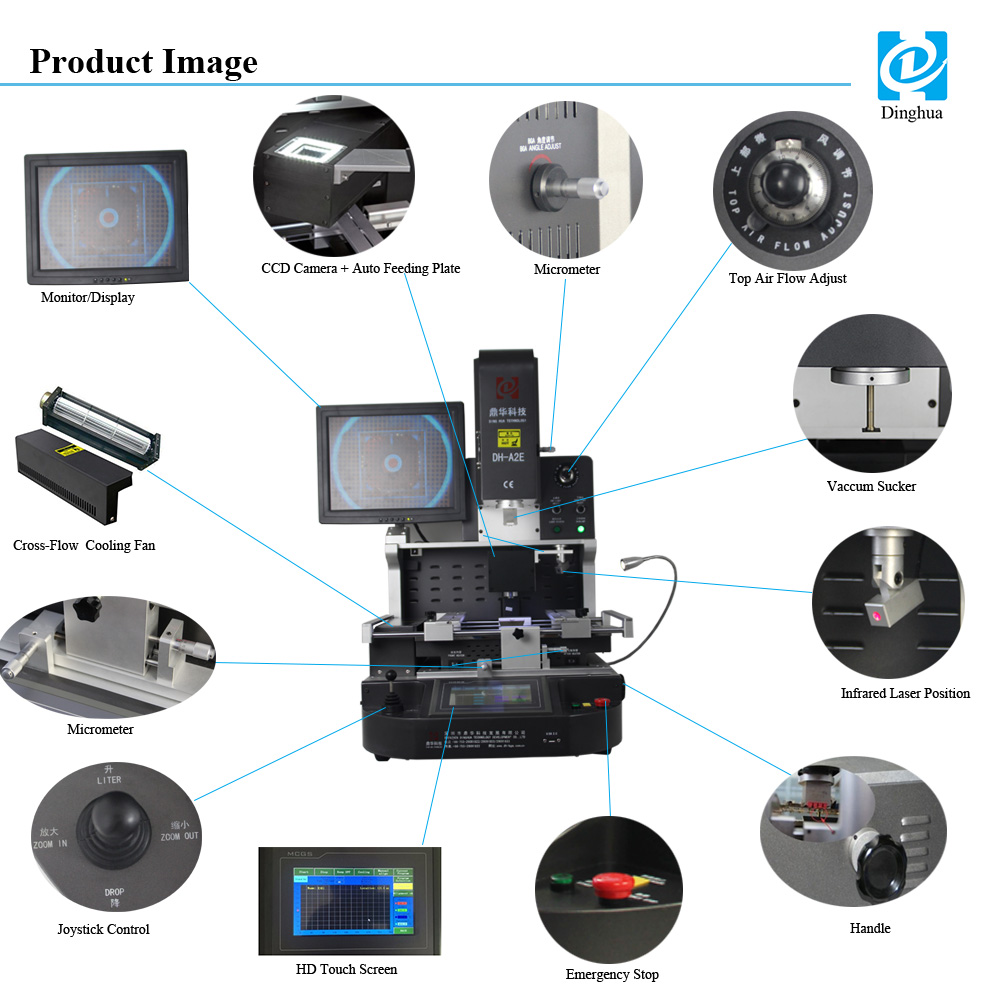

DH-A2E BGA Rework Chaw nres tsheb tshwj xeeb zoo:
● Laser positioning
● Kov Screen Tswj
● Muab Precision: 0.015mm
●CCD Optical Alignment System
●Operator-friendly user interface
● Tsis siv neeg puv lossis phau ntawv hom xaiv xaiv tau
Specification | ||
1 | Tag nrho lub zog | 5500W |
2 | 3 lub tshuab hluav taws xob ywj pheej | Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w |
3 | Qhov hluav taws xob | AC220V ± 10% 50/60Hz |
4 | Hluav taws xob qhov chaw | 7 '' kov npo + siab precision ntse temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab daws teeb meem kho qhov muag CCD system + laser positioning |
5 | Kev tswj qhov kub thiab txias | K-Sensor kaw-voj + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree. |
6 | PCB positioning | V-groove + universal fixture + movable PCB txee |
7 | Muaj feem xyuam PCB loj | Max 370x410mm Min 22x22mm |
8 | Muaj feem xyuam BGA loj | 2x2mm ~ 80x80mm |
9 | Qhov ntev | 600x700x850mm (L * W * H) |
10 | Net nyhav | 70 Kg |

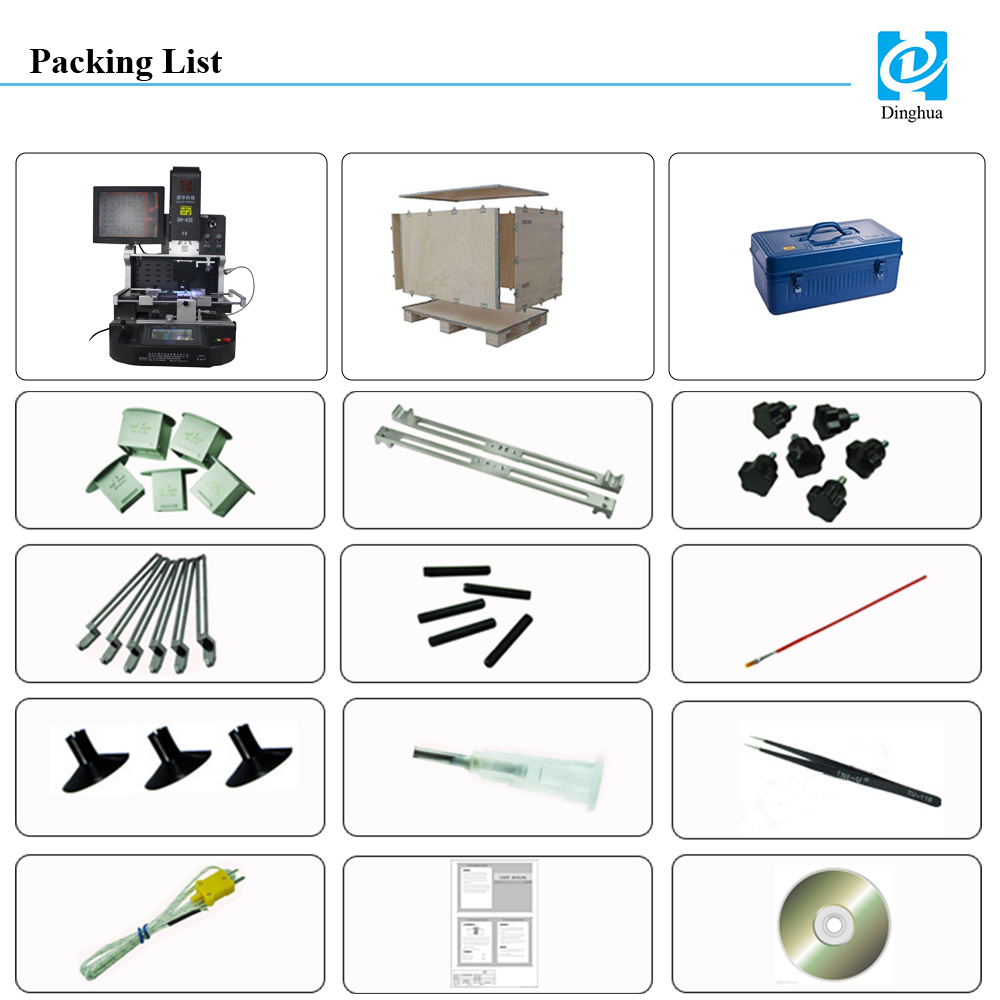

Daim ntawv teev npe
1. Tshuab: 1set
2. Tag nrho cov ntim rau hauv cov ntoo ruaj khov thiab muaj zog, haum rau kev ntshuam thiab xa tawm.
3. Sab saum toj nozzle: 3 pcs (31 * 31mm, 38 * 38mm, 41 * 41mm)
Hauv qab nozzle: 2pcs (34 * 34mm, 55 * 55mm)
4. Beam: 2 pcs
5. Plum pob qhov rooj: 6 pcs
6. Unicersal fixture: 6 pcs
7. Kev them nyiaj yug ntsia hlau: 5 pcs
8. Txhuam cwj mem: 1 pcs
9. Nqus khob: 3 pcs
10. Nqus koob: 1 pcs
11. Tweezer: 1 pcs
12. Temp sensor hlau: 1 pcs
13. Phau Ntawv Qhia Kev cob qhia: 1 pcs
14. Kev qhia CD: 1 pcs
FAQ:
Q: Vim li cas thiaj xaiv Dinghua?
A: 1, Ntau tshaj 13 xyoo dhau los ntawm BGA rework chaw nres tsheb chaw tsim khoom;
2, Txhua tus qauv BGA Rework Chaw nres tsheb nrog CE pom zoo;
3, Lub koob npe nrov thoob ntiaj teb;
4, Kev pabcuam tshaj lij thiab kev txhawb nqa technology
5, Cov nqi sib tw nrog cov khoom zoo, Cov khoom siv hauv eBay, Amazon, thiab Alibaba rau kev nyab xeeb thiab
lav cov neeg siv khoom hmoov zoo
Q: Kuv yuav ua li cas them nyiaj? Txoj kev twg zoo dua?
A: Kev hloov pauv hauv txhab nyiaj (T / T), Western Union, Paypal, thiab lwm yam tau txais, tab sis hloov txhab nyiaj & T / T yog
nyiam.
Q: Txoj kev twg thiab pes tsawg hnub lub tshuab yuav tuaj txog?
A: Peb xa los ntawm DHL, Fed-ex, UPS, thiab lwm yam (Qhov Rooj Rau Qhov Rooj), 6 ~ 9 hnub los txog;
los ntawm Cua rau koj lub tshav dav hlau ze tshaj plaws (Qhov Rooj rau Tshav Dav Hlau Kev Pabcuam) 5 ~ 9 hnub los txog;
Q: Kev Pabcuam Tomqab Muag:
a.Unlimited dawb technical support. Koj tuaj yeem tiv tauj peb txhua lub sijhawm thaum koj xav tau kev pab.
b. Kev qhia dawb hauv online. CD qhia tau pub dawb.
c. 3 xyoo warranty rau lub tshuab cua sov. 1- xyoo warranty rau tag nrho lub tshuab.
Q: Lub tshuab no puas yooj yim ua haujlwm? yog tias kuv tsis muaj kev paub dhau los, kuv tuaj yeem ua haujlwm tau zoo?
Koj puas muab cov neeg siv phau ntawv thiab cov yeeb yaj kiab ua haujlwm los txhawb peb?
A: Yog lawm, peb lub tshuab BGA yog tsim los siv tau yooj yim, Nquag nws yuav siv sijhawm rau koj 2-3 teev los kawm paub ua haujlwm,
yog tias koj yog tus kws tshaj lij, nws yuav kawm sai dua. Peb yuav muab cov lus Askiv siv phau ntawv dawb, thiab cov
kev ua haujlwm video muaj.
