Txawb xov tooj BGA Kub Cua Rework Chaw nres tsheb DH-5830
1 Daim Min. Kev txiav txim
Loj: 700 * 760 * 580mm
Qhov hnyav tag nrho: 60KG
Rated muaj peev xwm: 4800W
Kub Profile Cia: 50, 000 pawg
Voltage: AC220V ± 10% 50Hz
Hom Kev Ua Haujlwm: Phau ntawv ntxiv rau Touchscreen
Hauj lwm lawm

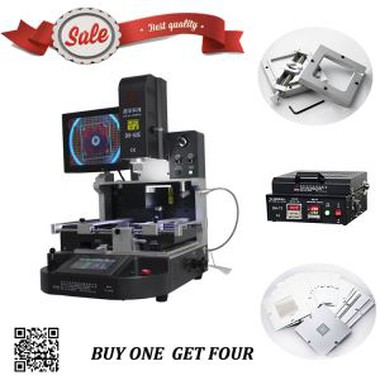

Dinghua DH-5830 BGA Rework Chaw nres tsheb
Lub tshuab no yog siv los kho motherboard IC / Chip / Chipset ntawm Laptop, Txawb, PC, iPhone,
Xbox, thiab lwm yam. Nrog cov yam ntxwv 3- tso cua sov (2x cua kub ntxiv rau IR Preheating), embedded Smart PC, Auto Profile,
Txias Txias, Micro kub-cua hloov kho, Nqus Pick-up & Chaw, Universal Support rau feem ntau ntawm
PCB Loj/Shape.
Khoom siv
Motherboard ntawm lub computer, smartphone, laptop, lub koob yees duab digital, cua txias, TV thiab lwm yam khoom siv hluav taws xob
los ntawm kev lag luam kev kho mob, kev sib txuas lus kev lag luam, kev lag luam tsheb, thiab lwm yam.
Kev siv ntau yam: BGA, PGA, POP, BQFP, QFN, SOT- 223, PLCC, TQFP, TDFN, TSOP, PBGA, CPGA, LED nti.
SPECIFICATIONS | |
Tag Nrho Lub Zog | 5500W |
Sab saum toj rhaub Fais fab | 1200W (1st cua kub cua sov) |
Hauv qab rhaub | 1200W (2nd cua kub cua sov), 3000W (IR preheat) |
Kub qhov tseeb | ± 2 degree |
Fais fab mov | AC220V ± 10% 50Hz |
Dimension | 700x760x580mm (L * W * H) |
Kub Profile Cia | 50, 000 pawg |
Hom kev ua haujlwm | Phau ntawv plus Touchscreen |
Kev them nyiaj yug PCB | V-groove ntxiv rau universal fixture ntxiv rau 5-cov ntsiab lus txhawb ntxiv rau Kho hauv X kev taw qhia |
Kev Tswj Kub Kub | K-hom Thermocouple ntxiv rau Kaw Loop |
PCB Loj | Max. 410x370mm, Min. 22 x 22 mm |
BGA Chip | 2 x 2 mm (2) x 80 mm |
Yam tsawg kawg ntawm Chip Spacing | 0.15 hli |
Sab nraud connector rau kev ntsuas kub | 1pcs los yog Customized |
Net nyhav | 35 KG |
