Xov tooj Kho PS3 BGA Rework Chaw nres tsheb
◆ Advanced nta
① Cov huab cua kub sab saum toj yog kho tau, kom ua tau raws li qhov xav tau ntawm cov chips.
② Desoldering, mounting thiab soldering txiav.
③ Ua-nyob rau hauv infrared laser positioning, pab ceev tso rau PCB.
④ Sab saum toj cua sov lub taub hau thiab mounting taub hau 2 hauv 1 tsim.
⑤ Mounting lub taub hau nrog cov cuab yeej ntsuas siab built-in, los tiv thaiv PCB los ntawm kev sib tsoo.
⑥ tsim-hauv lub tshuab nqus tsev hauv mounting taub hau tuaj tos BGA nti tau tom qab desoldering tiav.
Hauj lwm lawm

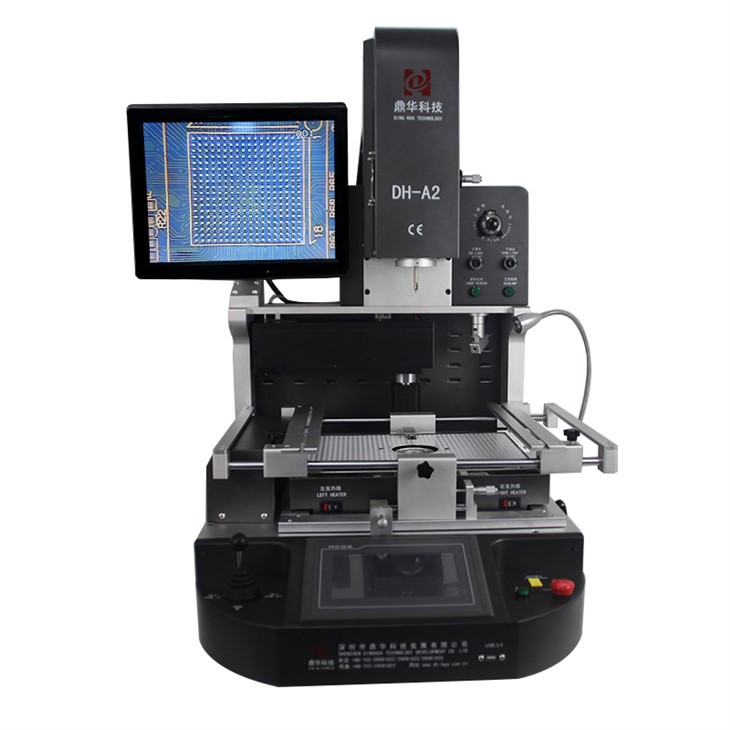

Xov tooj Kho PS3 BGA Rework Chaw nres tsheb
Cov yam ntxwv Summary
☞ Siv dav hauv Chip Theem Kho hauv laptops, PS3, PS4, XBOX360, Txawb Xov Tooj, Computers, TV,
tswj boards thiab lwm yam.
☞ Rework BGA, CCGA, QFN, CSP, LGA, SMD, LED thiab lwm yam.
☞ Tsis siv neeg desoldering, Mounting thiab Soldering, tsis siv neeg khaws nti thaum desoldering tiav.
☞ HD CCD Optical Alignment system rau precisely mounting BGA thiab Cheebtsam.
☞ BGA mounting raug nyob rau hauv 0.01mm, Kho kom zoo npaum li cas 99.9%.
☞ Laser Positioning rau Fast Positioning BGA Chip thiab motherboard.
☞ Superior Safety Functions, nrog rau kev tiv thaiv thaum muaj xwm ceev.
☞ Cov neeg siv-phooj ywg ua haujlwm, Multi-functional ergonomic system.
|
Tsis muaj. |
Specifications | Kev piav qhia |
|
1 |
Tag nrho lub zog |
5300w |
|
2 |
3 lub tshuab cua sov ywj siab |
Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w |
|
3 |
Qhov hluav taws xob |
AC220V ± 10% 50/60Hz |
|
4 |
Hluav taws xob qhov chaw |
7 '' kov npo + siab precision ntse temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab daws teeb meem optical CCD system + laser positioning |
|
5 |
Kev tswj qhov kub thiab txias |
K-Sensor kaw-voj + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree. |
|
6 |
PCB positioning |
V-groove + universal fixture + movable PCB txee |
|
7 |
Muaj feem xyuam PCB loj |
Max 370x410mm Min 22x22mm |
|
8 |
Muaj feem xyuam BGA loj |
2x2mm ~ 80x80mm |
|
9 |
Qhov ntev |
600x700x850mm (L * W * H) |
|
10 |
Net nyhav |
70 Kg |
