Txawb Xov tooj Raug Rho Tawm Machine Tsis Siv Neeg Rework BGA Tshuab
Peb yog cov chaw tsim ua lag luam thiab cov tub luam ntawm Kev Nruab Nrab Siab Siv BGA Rework. Cov cav tov no yog tsim los ntawm kev ua haujlwm rau cov cuab yeej technology thiab cov qauv ntawm kev lag luam. Cov no yog cov khoom siv ua haujlwm BGA Rework Stations raws li IR technology thiab siv tau nrog SMD cov chaw ua hauj lwm.
Hauj lwm lawm
CCD koob yees duab optical automatic bga rework chaw nres tsheb
Cov Qauv Ntsuas
☛ Kev siv lub tshuab ua kom tsis muaj teeb meem, kev tawm ntaiv thiab kev ntuav, tsis tuaj yeem siv nti thaum ntim tiav.

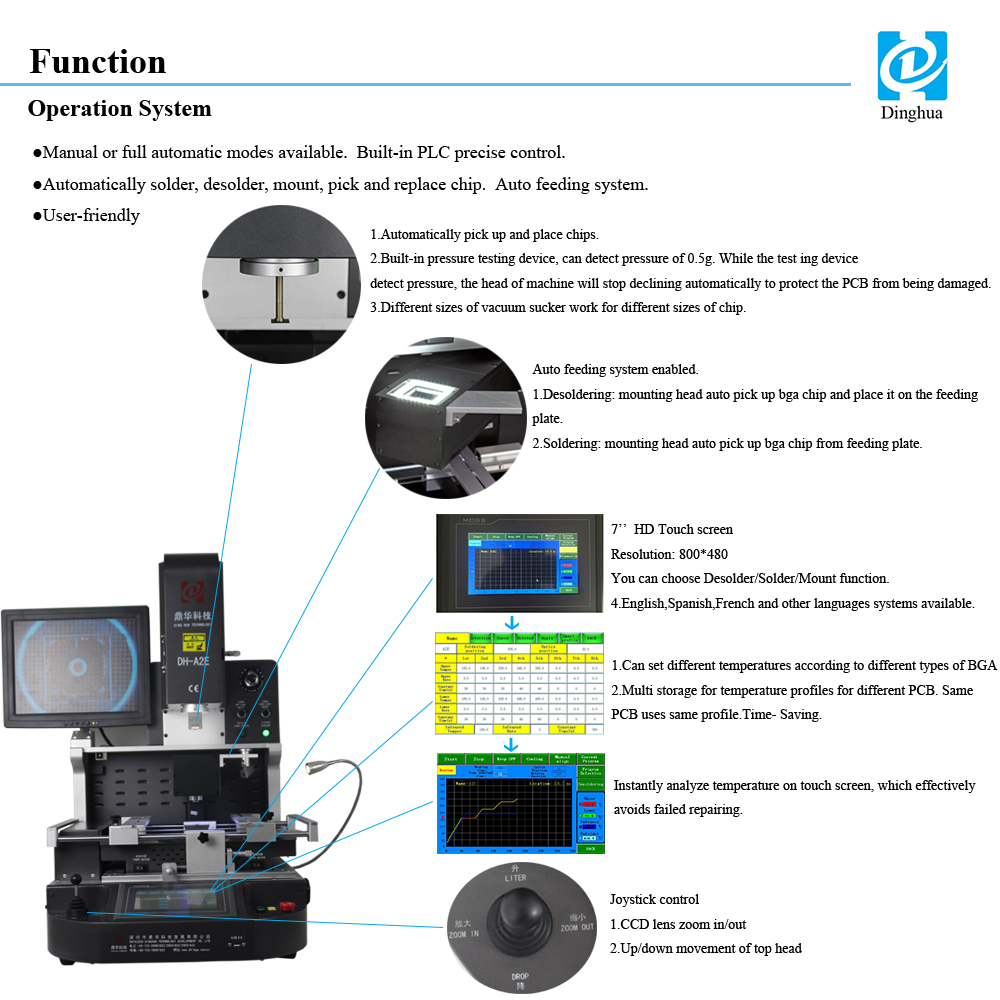

☛ Chip pib pub noj system enabled.
☛ HD CCD Optical Teem system rau precisely mounting BGA thiab Cheebtsam. CCD lens pib folding & streching.
☛ Independent MITSUBISHI PLC hauv kev tswj kev qoj taw, txav kom zoo dua qub thiab muaj tseeb.

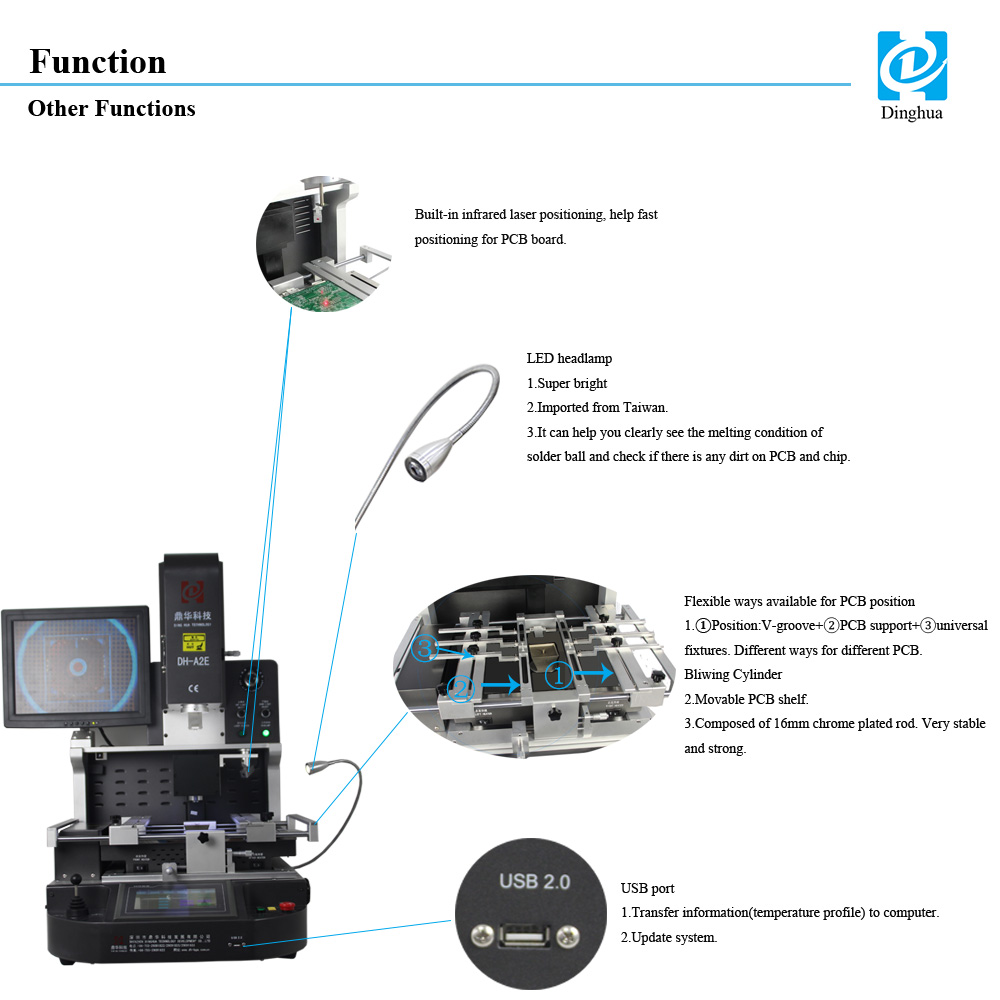

☛ Laser Positioning rau kev yoo mov BGA Chip thiab motherboard.
☛ BGA mounting raug nyob rau hauv 0,01mm, Kho tau zoo npaum li cas 99.9%.
☛ ntu nrog cov pa saum huab cua khawm kho kom haum, kom tau raws li qhov xav tau ntawm chips me me.
☛ Kev Tiv Thaiv Kev Nyab Xeeb Siab, nrog kev tiv thaiv thaum muaj xwm ceev.
☛ Tus neeg siv lag luam ua haujlwm, Lub cev ntau txoj haujlwm ergonomic.
Khoom video: https://youtu.be/S0-Hs2bHxDk
Specifications | |||
1 | Tag nrho cov hwj huam | 5300w | |
2 | 3 ywj siab tso cua sov | Sab saum toj cua kub 1200w, qis cua kub qis 1200w, hauv qab taw ntom ntom nti 2700w | |
3 | Voltage | AC220V ± 10% 50 / 60Hz | |
4 | Cov khoom fais fab | 7 '' touch screen + siab precision ntse voj temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab kho qhov muag CCD system + laser positioning | |

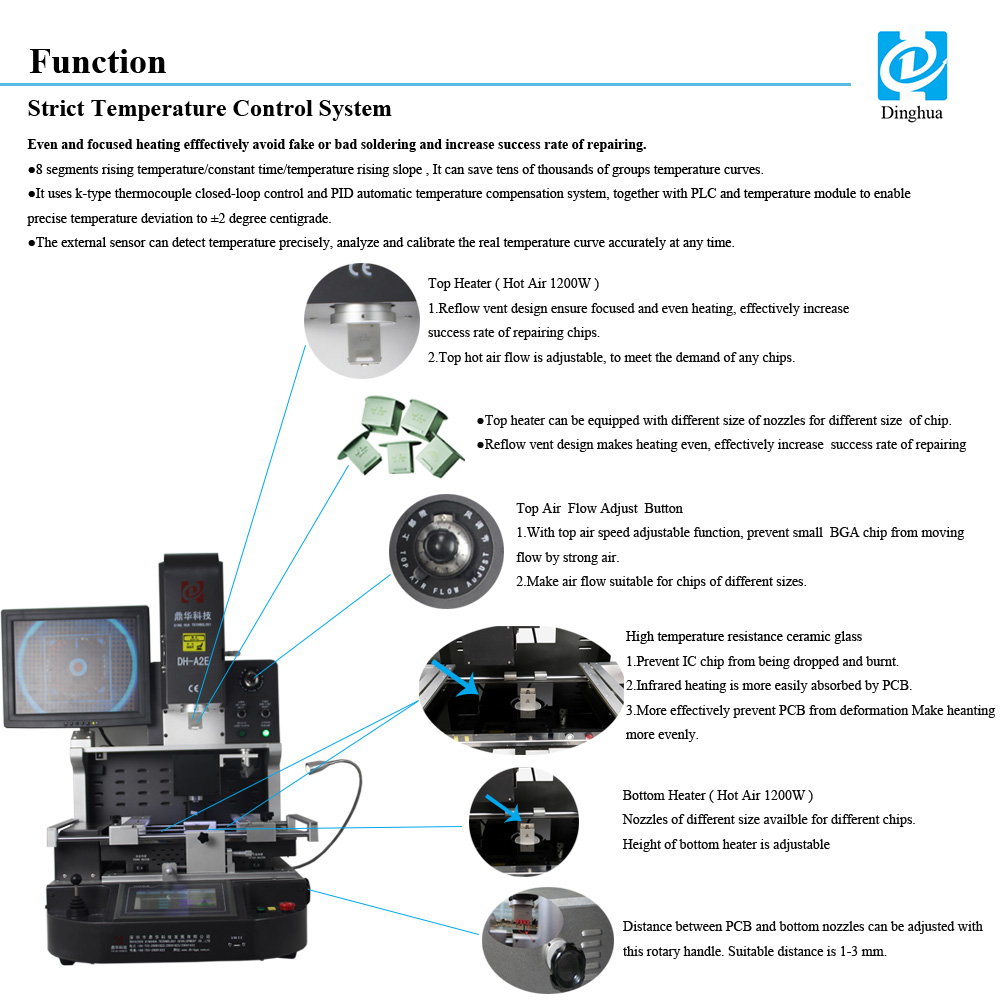

5 | Kub tswj | K-Sensor kaw-voj + PID tsis them nyiaj yug tsis them ntev + temp module, temp tseeb li ntawm ± 2 ℃. | |
6 | PCB teebmeem | V-Groove + Kev sib kho universal + txawb PCB txee | |
7 | Qhov luaj li cas ntawm PCB | Max 370x410mm Min 22 x 22mm | |
8 | Yooj yim BGA luaj li cas | 2x2mm ~ 80 x 80 hli | |
9 | Qhov ntev | 600x700x850mm (L * W * H) | |
10 | Net nyhav | 70 Kg | |
Ntim & Kev Xa Mus
Kev Hu Xov Xwm
Luam theej duab QR chaws kom txuag tau tus xov tooj.
Los yog nias qhov txuas mus xa kuv cov lus ntawm Whatsapp ncaj qha.
https://api.whatsapp.com/send?phone=8613724352458
Specifications | |||
1 | Tag nrho cov hwj huam | 5300w | |
2 | 3 ywj siab tso cua sov | Sab saum toj cua kub 1200w, qis cua kub qis 1200w, hauv qab taw ntom ntom nti 2700w | |
3 | Voltage | AC220V ± 10% 50 / 60Hz | |
4 | Cov khoom fais fab | 7 '' touch screen + siab precision ntse voj temp tswj module + stepper tsav tsav + PLC + LCD zaub + siab kho qhov muag CCD system + laser positioning | |
5 | Kub tswj | K-Sensor kaw-voj + PID tsis them nyiaj yug tsis them ntev + temp module, temp tseeb li ntawm ± 2 ℃. | |
6 | PCB teebmeem | V-Groove + Kev sib kho universal + txawb PCB txee | |
7 | Qhov luaj li cas ntawm PCB | Max 370x410mm Min 22 x 22mm | |
8 | Yooj yim BGA luaj li cas | 2x2mm ~ 80 x 80 hli | |
9 | Qhov ntev | 600x700x850mm (L * W * H) | |
10 | Net nyhav | 70 Kg | |
