BGA Rework Chaw Nres Tsheb Nqe
1. Tsis Siv Neeg BGA Rework Chaw Nres Tsheb Nqe nrog cov khoom zoo thiab tus nqi.2. Kev sib raug zoo: CCD lub koob yees duab thiab micrometer.3. MCGS 7 nti kov npo.4. Ntau txheej kub profiles tuaj yeem txuag tau.
Hauj lwm lawm
Tsis Siv Neeg BGA Rework Chaw Nres Nkoj Nqe
1.Application Ntawm Tsis Siv Neeg BGA Rework Chaw Nres Tsheb Nqe
Ua hauj lwm nrog txhua yam ntawm motherboards lossis PCBA.
Solder, reball, desoldering ntau hom chips: BGA, PGA, POP, BQFP, QFN, SOT223, PLCC, TQFP, TDFN, TSOP, PBGA, CPGA, LED nti.
1.Application Ntawm Tsis Siv Neeg BGA Rework Chaw Nres Tsheb Nqe
Ua hauj lwm nrog txhua yam ntawm motherboards lossis PCBA.
Solder, reball, desoldering ntau hom chips: BGA, PGA, POP, BQFP, QFN, SOT223, PLCC, TQFP, TDFN, TSOP, PBGA, CPGA, LED nti.

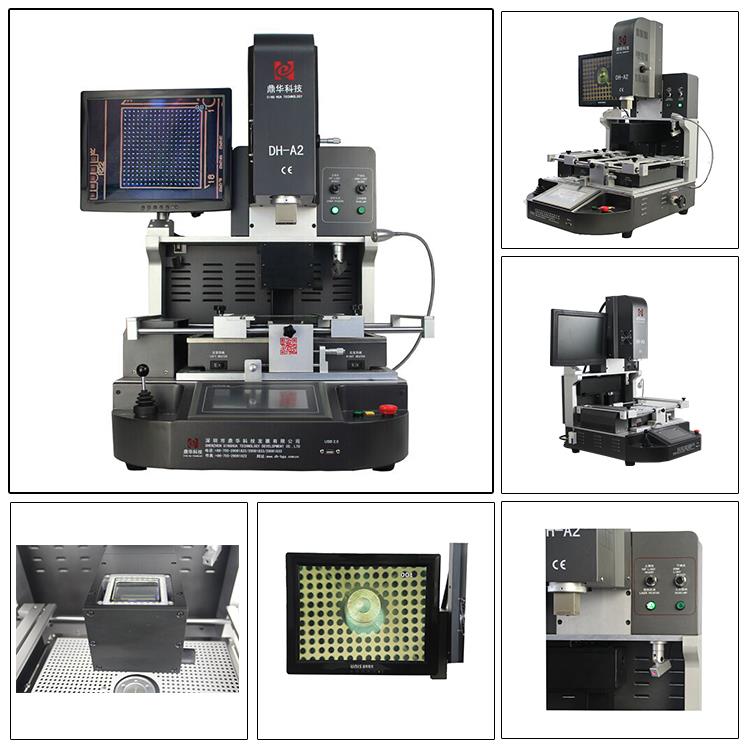

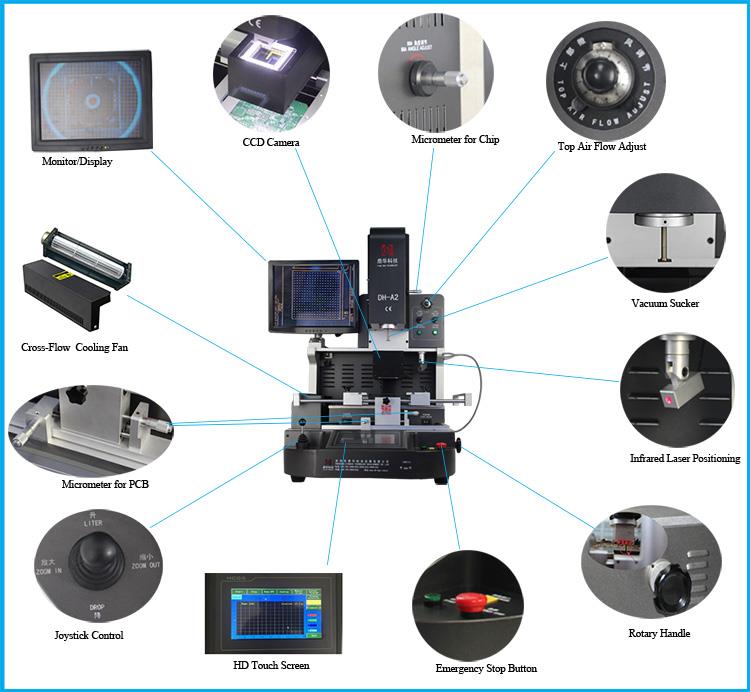

2.Product nta ntawmTsis Siv Neeg Optical BGA Rework Chaw Nres Nkoj Nqe
3.Specification ntawmTsis Siv Neeg Optical BGA Rework Chaw Nres Nkoj Nqe
| Hwj chim | 5300W |
| Lub tshuab cua sov sab saum toj | Cua kub 1200W |
| Hauv qab rhaub | Cua kub 1200W.Infrared 2700W |
| Fais fab mov | AC220V ± 10% 50/60Hz |
| Dimension | L530 * W670 * H790 hli |
| Qhov chaw | V-groove PCB kev txhawb nqa, thiab nrog rau sab nraud universal fixture |
| Kev tswj qhov kub thiab txias | K hom thermocouple, kaw voj tswj, ywj siab cua sov |
| Kub qhov tseeb | ± 2 degree |
| PCB loj | Max 450 * 490 mm, Min 22 * 22 mm |
| Workbench fine-tuning | ± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug |
| BGAchip | 80 * 80-1 * 1 hli |
| Yam tsawg kawg ntawm nti sib nrug | 0.15 hli |
| Temp Sensor | 1 (yeem) |
| Net nyhav | 70kg ua |

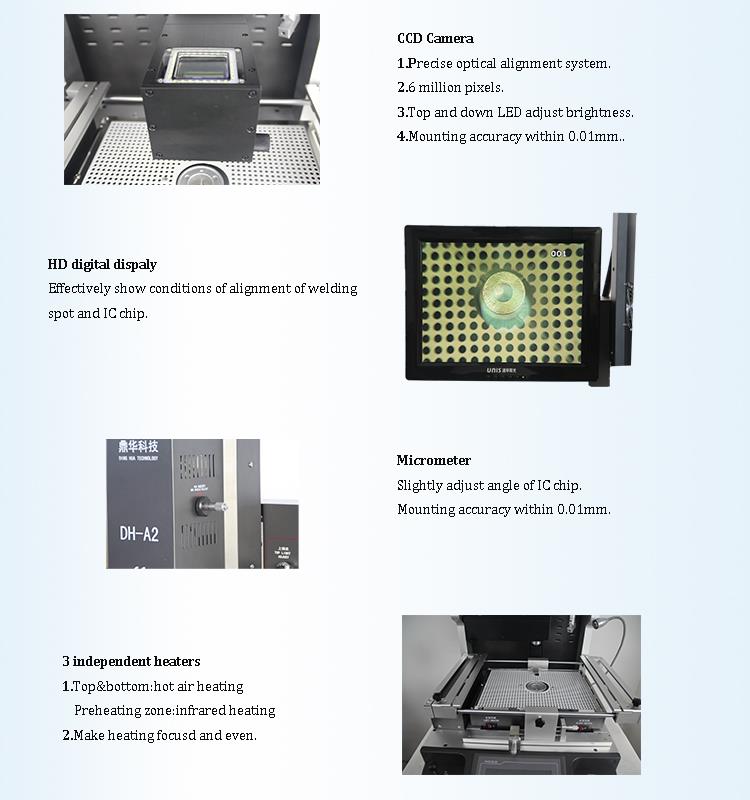

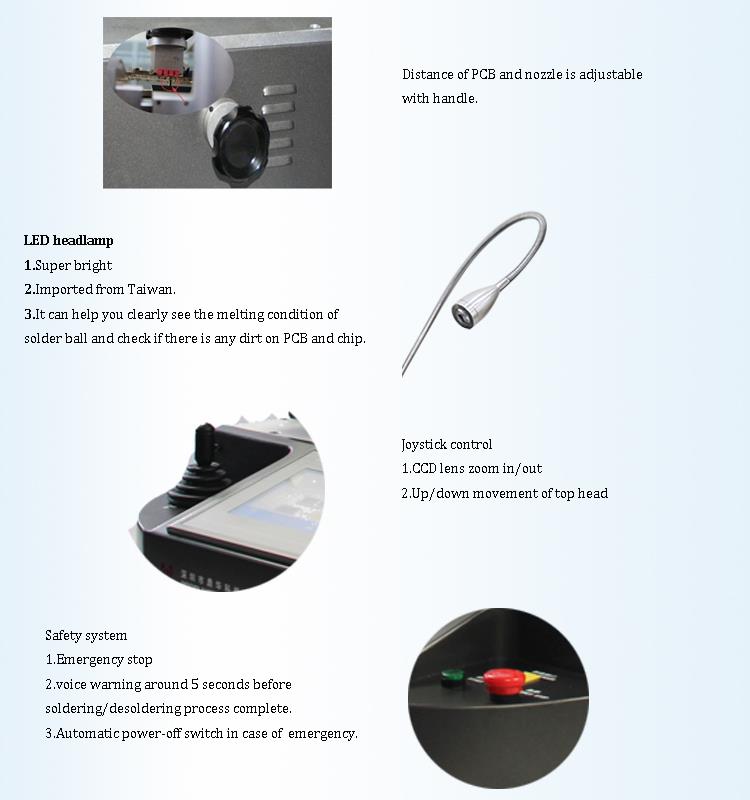

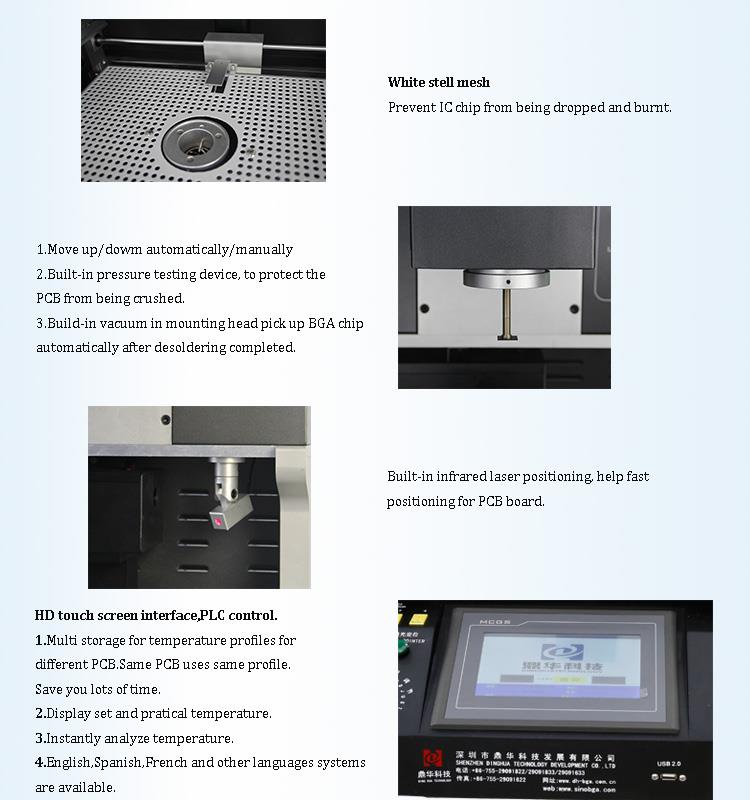

4. Cov ntsiab lus ntawmTsis siv neeg Optical infraredBGA Rework Chaw Nres Tsheb Nqe

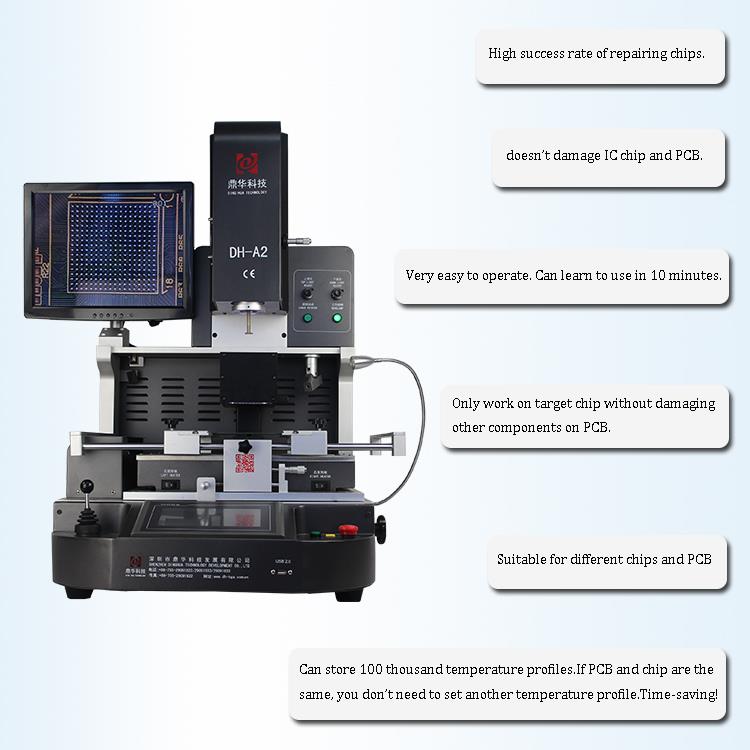

5.Vim li cas thiaj xaiv pebTsis Siv Neeg BGA Soldering Rework Chaw nres tsheb?
6. Daim ntawv pov thawj ntawmTsis siv neeg kho qhov muagBGA Soldering Rework Chaw nres tsheb nrog CCD lub koob yees duab
UL, E-MARK, CCC, FCC, CE ROHS daim ntawv pov thawj. Lub caij no, txhawm rau txhim kho thiab ua kom zoo dua qub, Dinghua tau dhau ISO, GMP, FCCA, C-TPAT ntawm qhov chaw soj ntsuam daim ntawv pov thawj.
7.Packing & shipping ntawmTsis siv neegBGA Soldering Rework Chaw nres tsheb
8.Shipment rauTsis Siv Neeg BGA Soldering Rework Chaw nres tsheb
DHL / TNT / FEDEX. Yog tias koj xav tau lwm lub sijhawm shipping, thov qhia rau peb. Peb yuav txhawb koj.
9. Cov nqe lus them nqi
Hloov chaw hauv txhab nyiaj, Western Union, Credit Card.
Thov qhia rau peb yog tias koj xav tau lwm yam kev txhawb nqa.
10. DH-A2 Tsis Siv Neeg SMD Kho Chaw Ua Haujlwm li cas?
11. Muaj kev paub txog
Lub North Choj yog qhov tseem ceeb tshaj plaws ntawm motherboard chipset, tseem hu ua Host Bridge. Feem ntau, lub npe
ntawm lub chipset muaj npe tom qab lub npe ntawm Northbridge nti. Piv txwv li, Northbridge nti ntawm Intel 965P chipset yog 82965P,
Northbridge nti ntawm 975P chipset yog 82975P, thiab lwm yam. Lub North Choj nti yog lub luag haujlwm rau kev sib txuas nrog CPU thiab tswj lub cim xeeb, AGP, PCI-E cov ntaub ntawv xa mus hauv North Bridge, muab hom thiab zaus ntawm CPU, sab pem hauv ntej.
tsheb npav zaus ntawm qhov system, hom kev nco (SDRAM, DDR, DDR2, DDR3, thiab lwm yam. Nrog kev txhawb nqa siab tshaj plaws, AGP qhov, PCI-E
qhov, ECC kev kho qhov yuam kev, Northbridge nti ntawm kev sib xyaw chipset kuj tseem sib xyaw ua ke ntawm cov khoom tseem ceeb. Feem ntau ntawm cov motherboard ze ntawm lub qhov (socket) CPU, qhov no yog vim qhov tseeb tias kev sib txuas lus ntawm Northbridge nti thiab processor yog qhov ze tshaj plaws, thiab
qhov kis tau tus mob yog luv luv thiaj li yuav txhim kho kev sib txuas lus. Vim tias cov ntaub ntawv muaj peev xwm ua tau ntawm North Choj nti yog qhov loj heev, cov cua sov kuj tau txais qhov loj thiab loj dua. Lub North Choj nti yog them nrog lub dab dej kub los txhim kho cov cua sov dissipation ntawm North Choj nti. Qee qhov North Choj chips ntawm motherboard kuj tseem yuav siv nrog lub kiv cua rau cua sov dissipation.
South Bridge kuj yog ib feem tseem ceeb ntawm motherboard chipset. Lub luag haujlwm tseem ceeb rau kev sib txuas lus ntawm I / O tsheb npav thiab kev tswj hwm
ntawm IDE cov cuab yeej. Piv txwv li, South Bridge nti uas Intel's P35 chipset yog nruab nrog yog ICH9 series, uas yog me ntsis zoo ib yam raws li qhov xav tau thiab qhov chaw ntawm South Bridge.
Peb paub tias CPU yuav tsum tau txuas nrog lub motherboard los ntawm kev sib txuas ua haujlwm. Tom qab ntau xyoo ntawm kev loj hlob,
CPU siv cov txheej txheem sib txuas xws li hom tus pin, hom ntawv, hom hu, thiab tus pin hom. Lub CPU interface yog tus pin-hom interface, sib xws rau cov hom qhov sib thooj ntawm lub motherboard. Ntau hom CPUs muaj qhov sib txawv CPU sib txawv, yog li yog tias koj xaiv
CPU, koj yuav tsum xaiv lub motherboard nrog rau qhov sib thooj hom. CPU socket hom ntawm lub motherboard yog txawv. Cov
tus naj npawb, ntim, thiab cov duab ntawm cov jacks sib txawv, yog li lawv tsis tuaj yeem txuas rau ib leeg.
Qhov (socket) 775, tseem hu ua Socket T, txhawb nqa Pentium 4, Pentium 4 EE, Celeron D thiab dual-core Pentium D, Pentium EE thiab Core architecture Corne processors CPUs, nrog cov pins whisker, los ntawm cov neeg sib txuas rau hauv qab ntawm CPU tau txais kov nrog
lub teeb liab, uas yog lub ntsiab CPU qhov ntawm InTEL platform.
Qhov (socket) AM2 yog tus qauv qhov rau AMD 64-ntsis desktop CPUs uas txhawb nqa DDR2 nco thaum kawg ntawm Tsib Hlis 2006. Nws txhawb nqa AMD Athlon
64 FX / Athlon 64 X2 / Athlon 64 / Sempron thiab lwm yam processors. Socket AM2 muaj 940 CPU tus pin jacks, txhawb 200MHz FSB thiab 1000MHz HyperTransport tsheb npav zaus, thiab txhawb nqa dual channel DDR2 nco.
Lub qhov (socket AM) {{0}} tus pin yog tib yam li AM2 tam sim no, tshwj tsis yog tias lub npav HyperTransport nce mus txog 3.0 thiab txhawb kev ua haujlwm ntau txog 2.6 GHz. Cov ntaub ntawv xa tawm bandwidth yuav ncav cuag 5.2 GT / s lossis 20.8 GB / s ntawm qhov zaus no, uas yog tus qauv.
rau AMD K10 processors. Lub slot yog sib xws nrog AM2.
