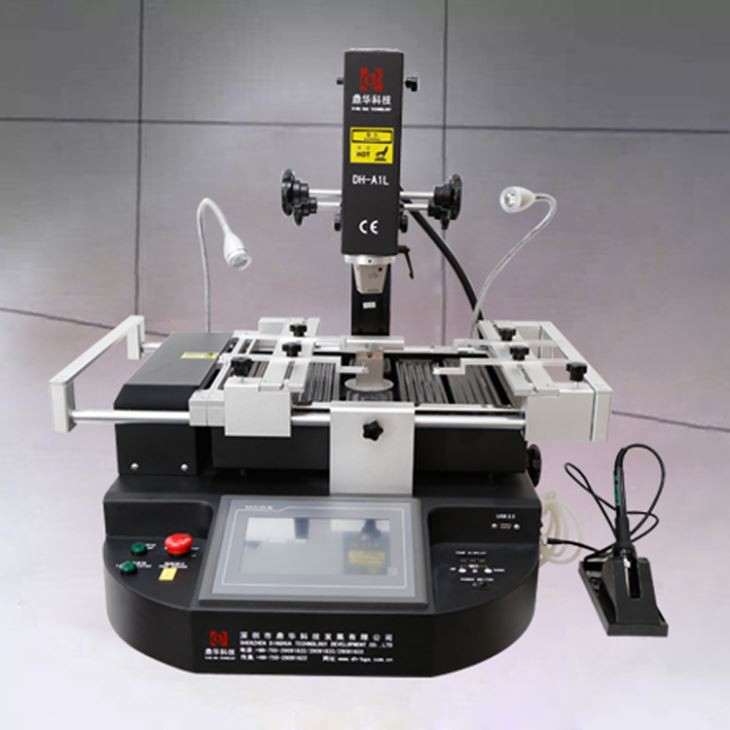

Kov Screen VGA Card BGA Rework Chaw nres tsheb

Kov npo video bga rework chaw nres tsheb

Ceev saib ua ntej:

Promotional nqi! DH-A1L BGA Rework Tshuab, nruab nrog HD kov npo tam sim no hauv Tshuag. Peb mob siab rau peb tus kheej rau bga

rework & tsis siv neeg machinery, npog feem ntau ntawm Is Nrias teb, Tebchaws Europe thiab Asmeskas kev lag luam.Peb cia siab tias yuav dhau los ua koj lub sijhawm ntev

tus khub hauv Suav teb.

1. Specification

2.Main nta ntawm DH-A1L BGA rework chaw nres tsheb

Lub ntsiab nta:

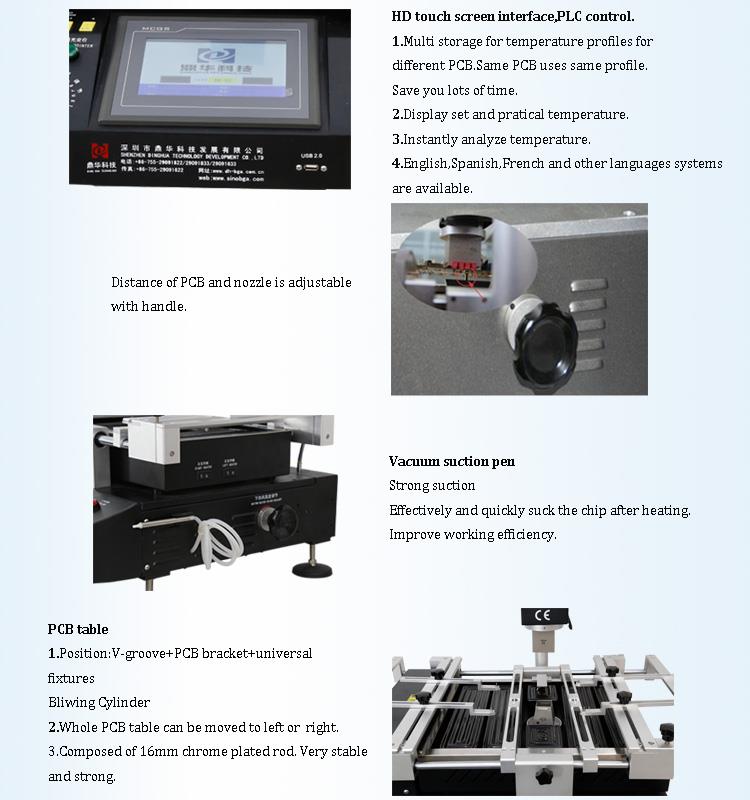

HD kov npo interface, PLC tswj.

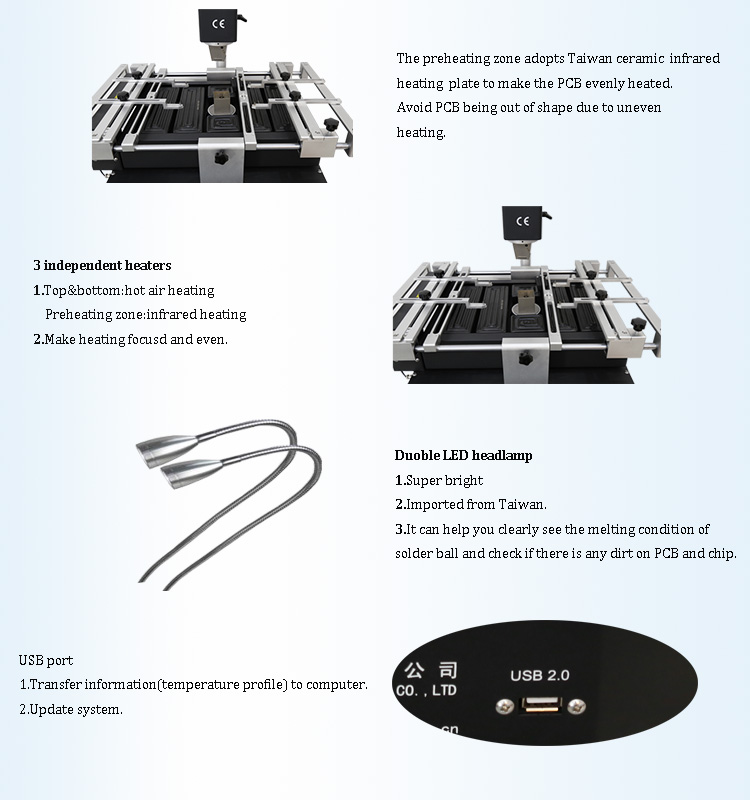

Peb lub tshuab hluav taws xob ywj pheej txhua tus tuaj yeem teeb 8 ntu cua sov, cua txias thiab qhov kub thiab txias, txuag qhov kub thiab txias profile

yog unlimited. IR preheat cheeb tsam tuaj yeem xaiv raws li PCB loj

K sensor kaw tswj, tswj cov txheej txheem cua sov precisely.

Cov kiv cua muaj zog hla kev pab ua kom txias rau PCB pawg thawj coj saib ceev ceev thiab tiv thaiv nws los ntawm deformation.

V-groove PCB txhawb nqa kom nrawm, yooj yim thiab raug qhov chaw uas haum rau txhua yam ntawm PCB pawg thawj coj saib.

Cov cua kub nozzles tuaj yeem hloov kho txhua qhov kev taw qhia

Suab hint system. Muaj lub tswb ua ntej ua tiav ntawm desoldering thiab soldering.

Daim ntawv pov thawj CE, nrog kev hloov pauv thaum muaj xwm txheej ceev thiab tsis siv neeg lub hwj chim tawm tiv thaiv thaum muaj xwm txheej ceev

Yuav ua li cas kom tau txais qhov kub thiab txias yog qhov tseem ceeb tshaj plaws rau kev kho BGA nti.

DH-A1L bga rework chaw nres tsheb siv HD kov npo interface, PLC tswj, K sensor kaw voj tswj thiab tsis siv neeg

kub them nyiaj system. Nws ua ke nrog qhov ntsuas kub, uas ua rau qhov tseeb qhov kub thiab txias rau ± 2 degree.

Cov cua kub nozzles, 360 degree kev sib hloov, yooj yim rau nruab thiab hloov, customized yog muaj.Qhov chaw nres tsheb hlau sab nraud yog heev

yooj yim rau koj ua haujlwm.

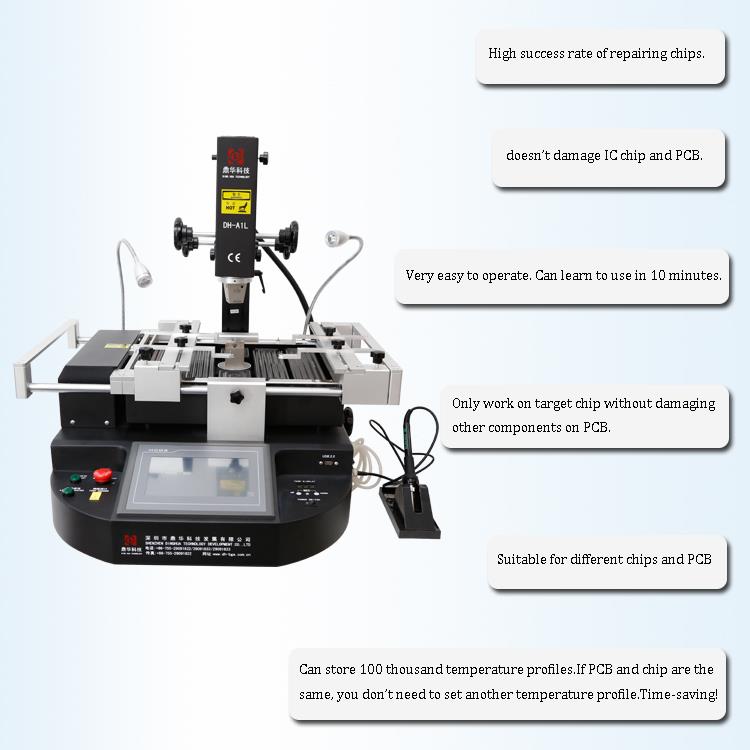

3.Vim li cas koj yuav tsum xaiv DH-A1L BGA rework chaw nres tsheb?

4. Kev Paub Txog:

Kev ceev faj txoj kev rau cua sov:

Nrog cov khoom siv hluav taws xob txuas ntxiv ua kom sov, cov lus qhia thiab kev ceev faj yuav tsum tau ua raws li hauv qab no:

- Yuav tsum siv lub tshuab ua haujlwm siab, kaw-kho qhov ntsuas kub tswj cov khoom siv hluav taws xob uas muaj cov khoom siv hluav taws xob txaus txaus

txhawm rau khaws cov thermal load ntawm kev ua haujlwm thiab lub luag haujlwm lub voj voog ntawm daim ntawv thov

-Tip kub tuaj yeem poob qis dua qhov xav tau thaum lub sijhawm hnyav, siv tas li yog tias cov khoom siv hluav taws xob tsis txaus

-Yuav tsum tsim kom muaj kev sib txuas zoo thermal ntawm cov lus qhia thiab kev sib koom ua ke, thiab siv cov lus qhia geometry tsim nyog (zoo li) thiab kom ua tau zoo

hloov kub

- Feem ntau tsis zoo rau cov khoom siv uas cov pob qij txha tsis tuaj yeem siv tau, xws li BGA's

(Ball Grid Arrays) thiab cov khoom nti nrog hauv qab nkaus xwb.

-Cov lus qhia thiab kev ua haujlwm yuav tsum tsis muaj oxides thiab kab mob, thiab cov lus qhia yuav tsum tau tinned kom muaj txiaj ntsig zoo rau kev hloov cua sov

-Siv cov khoom siv sab nraud lossis ntxiv cov khoom siv ntxiv qee zaum tsim nyog kom ua tiav cov cua sov hloov pauv tau zoo

-Rau deg mount tivthaiv tshem tawm, feem ntau yuav tsum muaj meej match ntawm cov lus qhia thiab compo-nent geometry rau

zoo cua sov hloov mus rau tag nrho cov pob qij txha

-Kev sib cuag tuaj yeem cuam tshuam cov khoom sib xyaw ua ke rau hauv av, tshwj xeeb tshaj yog thaum SMD kev teeb tsa lossis rov ua haujlwm

-Tau hloov cov cua kub sai heev rau kev siv nrog cov tshuaj txhuam los yog cov khoom rhiab heev

-Tej thaiv kev pom thaum lub sijhawm sib dhos thiab rov ua haujlwm thiab cuam tshuam nrog kev sib koom ua ke thaum lub sij hawm solder solidification

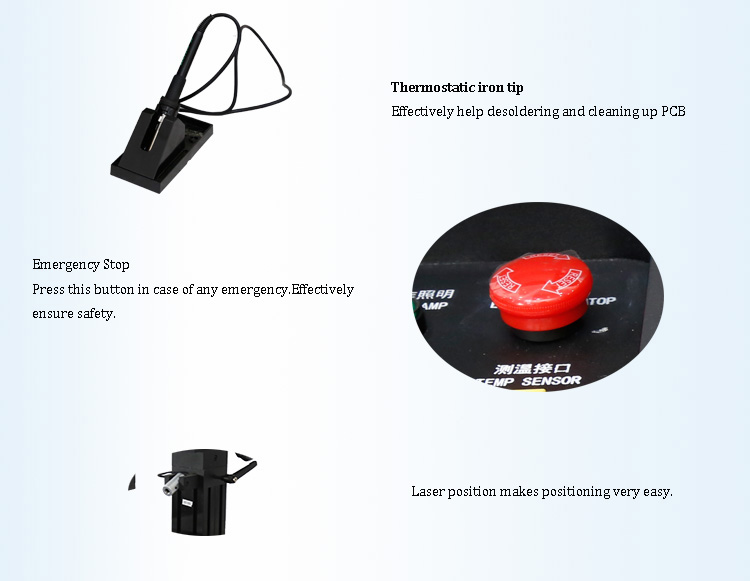

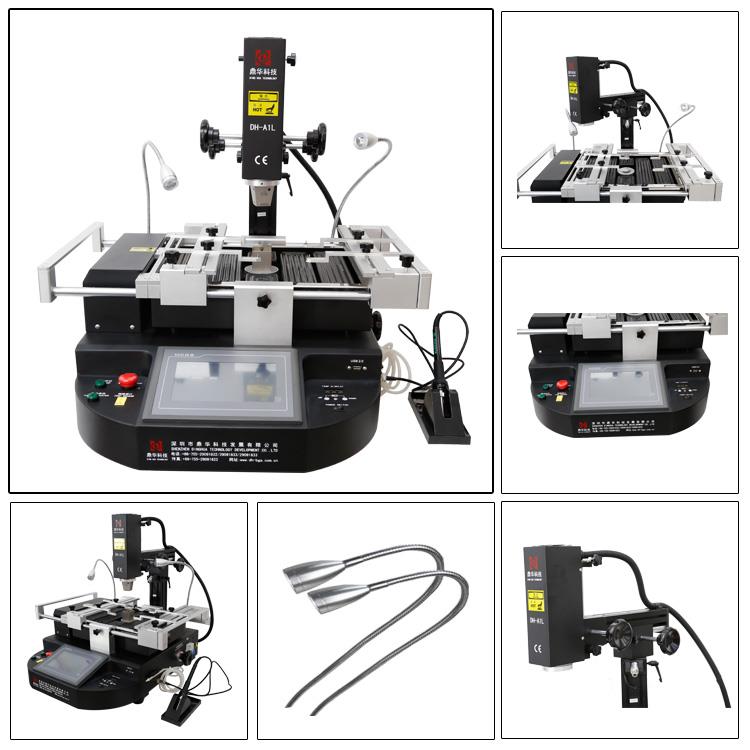

5.Cov duab nthuav dav ntawm DH-A1L BGA REWORK STATION

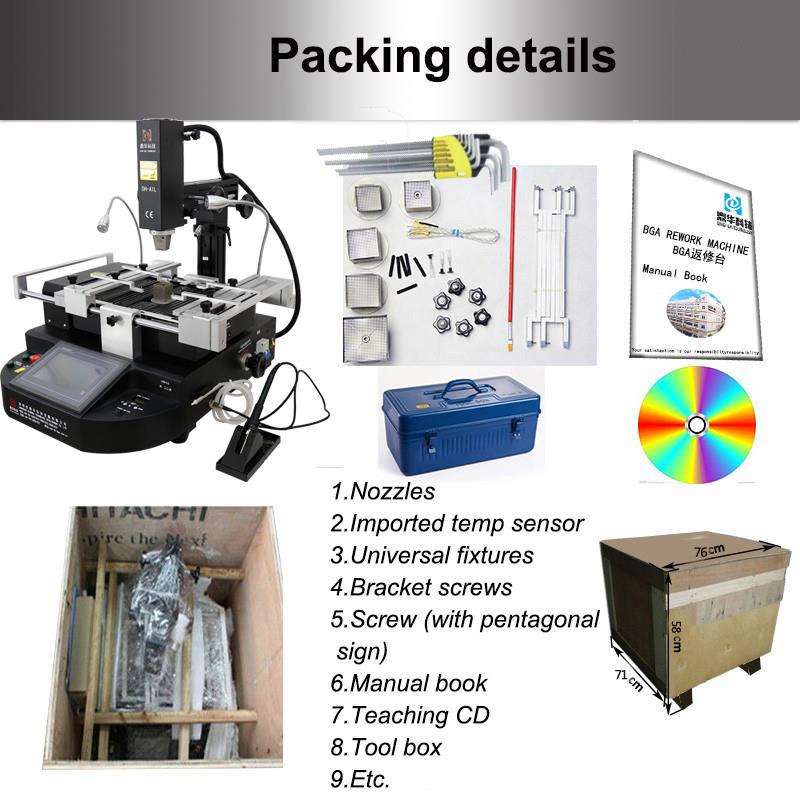

6. Ntim & xa cov ntsiab lus ntawm DH-A1L BGA REWORK STATION

Kev xa khoom ntawm DH-A1L BGA REWORK STATION

Peb yuav siv FedEx / DHL / UPS / TNT / EMS kom ceev thiab nyab xeeb shipping. Peb yuav siv qhov yooj yim tshaj plaws thaum koj yuav cov khoom.

· Ua ntej shipping, peb yuav ntim txhua yam khoom zoo rau koj. Thiab thov xyuas lub pob sab nraud thaum koj tau txais cov pob khoom zoo

· Yog tias koj muaj kev tshwj xeeb rau kev xa khoom, thov qhia rau peb paub ua ntej.

7. FAQ

Q: Koj puas muab qhov Warranty? Yuav ua li cas txog qhov kev pab cuam tom qab muag?

1 xyoo warranty pub dawb rau cov khoom seem, Kev txhawb nqa lub neej tag nrho.

Peb muaj cov kws tshaj lij tom qab muag pab pawg, yog tias muaj lus nug, cov yeeb yaj kiab pabcuam kuj tau muab rau hauv kev pabcuam tomqab muag.

Q: Lub tshuab no puas yooj yim ua haujlwm? yog tias kuv tsis muaj kev paub dhau los, kuv tuaj yeem ua haujlwm tau zoo?

Koj puas muab cov neeg siv phau ntawv thiab cov yeeb yaj kiab ua haujlwm los txhawb peb?

A: Yog lawm, peb lub tshuab BGA yog tsim los siv tau yooj yim, Nquag nws yuav siv sijhawm rau koj 2-3 teev los kawm txog kev khiav haujlwm, yog tias koj yog

tus kws tshaj lij, nws yuav kawm tau sai dua.Peb yuav muab cov lus Askiv siv phau ntawv pub dawb, thiab kev ua haujlwm video yog

muaj.
