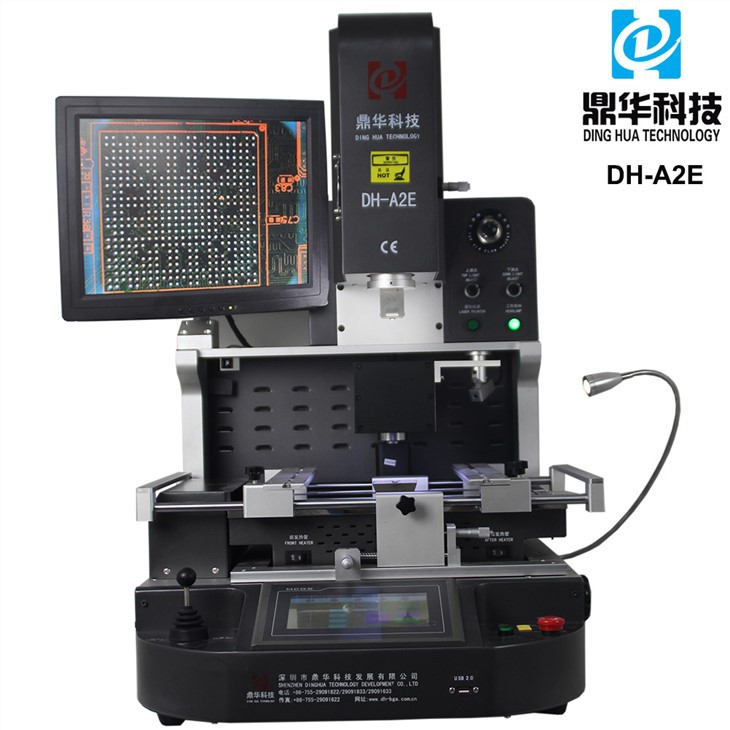

Pob Grid Array Rework Reball Tshuab

Automatic Ball Grid Array Rework Reball Tshuab



1.Khoom nta ntawm Automatic Ball Grid Array Rework Reball Tshuab



• Kev ua tiav siab ntawm kev kho chip-theem. Desoldering, mounting thiab soldering txheej txheem yog tsis siv neeg.

• Kev sib haum xeeb yooj yim.

• Peb tus kheej kub cua sov + PID tus kheej qhov chaw hloov kho, qhov tseeb kub yuav nyob ntawm ± 1 degree

• Ua hauv lub tshuab nqus tsev twj, khaws thiab tso BGA chips.

• Tsis siv neeg txias ua haujlwm.

2.Specification ntawm Automated Ball Grid Array Rework Reball Tshuab



3.Cov ntsiab lus ntawm Cov Cuab Yeej Kub Tsis Siv Neeg Pob Zeb Array Rework Reball Tshuab





4.Vim li cas thiaj xaiv peb Infrared Automatic Ball Grid Array Rework Reball Tshuab?



5.Certificate of Optical alignment automatic Ball Grid Array Rework Reball Tshuab



6.Packing npentawm Optics dlhos CCD Lub Koob Yees Duab Pob Grid Array Rework Reball Tshuab



7. Kev xa khoom ntawm Automatic Ball Grid Array Rework Reball Tshuab Split Vision

Peb xa lub tshuab ntawm DHL / TNT / UPS / FEDEX, uas yog ceev thiab nyab xeeb. Yog tias koj xav tau lwm cov nqe lus ntawm kev xa khoom,

thov koj xav qhia rau peb paub.



8. Cov nqe lus them nqi.

Hloov chaw hauv txhab nyiaj, Western Union, Credit card.

Peb yuav xa lub tshuab nrog 5-10 kev lag luam tom qab tau txais cov nyiaj them poob haujlwm.



9. Hu rau peb kom teb tam sim thiab tus nqi zoo tshaj.

Email:john@dh-kc.com

MOB/WhatsApp/Wechat: +86 15768114827

Nyem qhov txuas ntxiv kuv WhatsApp:

https://api.whatsapp.com/send?phone=8615768114827



10. Related Knowledge of Automatic Ball Grid Array (BGA) Rework/Reball Machine

FPC SMT Soldering Cov Qauv Zoo:

• Yam tsawg kawg nkaus Clearance: Qhov loj me ntawm cov khoom siv yuav tsum tshaj lub ncoo los ntawm 20µm.
• Vuam txoj hauj lwm: Yuav tsum muaj kev tshem tawm ntawm 1/2 ntawm txoj haujlwm vuam.

4. Cov lus qhia tshwj xeeb rau Kev Tshuaj Xyuas Cov Khoom Siv Welded:

Tsis muaj.	Cov khoom soj ntsuam	Kev soj ntsuam Standard	Phem Icon
4.1	Yam Tsis Tau	Yuav tsum tsis txhob muaj qhov tsis sib xws lossis qhov chaw poob ntawm FPC cov pob qij txha.	tsis muaj
4.2	Kev puas tsuaj	Cheebtsam tom qab vuam yuav tsum tsis txhob puas los yog notched.	tsis muaj
4.3	Yam tsis raug	Cov qauv specifications ntawm cov khoom siv soldered rau cov ntaub qhwv yuav tsum phim cov duab kos duab engineering.	tsis muaj
4.4	Polarity	Kev taw qhia ntawm qhov chaw welded yuav tsum ua raws li cov lus qhia ntawm pawg thawj coj saib lossis cov duab kos duab engineering.	tsis muaj
4.5	Lwm yam	Yuav tsum tsis muaj kua nplaum, tin me ntsis, lossis lwm yam khib nyiab pov tseg hauv cov khoom siv tus pin.	tsis muaj
4.6	npuas	Lub pob ntawm cov khoom siv soldered yuav tsum tsis muaj qhov tsis zoo foaming.	tsis muaj

5.1 Nruam Vuam
Yuav tsum tsis muaj luv luv ntawm cov pob qij txha.

5.2 Welded Joints
Welded qhov chaw yuav tsum tsis txhob muaj cov pob qij txha uas tsis txuas nrog cov ntsiab lus solder.

5.3 Non-Fusible Solder
Cov khoom yuav tsum tsis muaj qhov tsis tiav lossis ploj lawm cov pob qij txha.

5.4 Floating:

• 5.4.1: Qhov siab ntawm cov ntaub qhwv qhov siab ntawm lub hauv qab ntawm tus pin connector yuav tsum tsis txhob tshaj qhov siab ntawm tus pin. (Ceeb Toom: Raws li pom hauv daim duab T, qhov siab ntawm tus pin yog G, qhov siab ntawm cov ntaub qhwv lub taub hau yog T, thiab qhov siab ntawm cov ntaub qhwv lub taub hau thaum soldering tsis tuaj yeem tshaj qhov siab ntawm tus pin, piv txwv li, G tsawg dua lossis sib npaug T.)
• 5.4.2: Qhov siab ntawm cov ntaub qhwv hauv qab ntawm cov resistor, LED, thiab lwm yam, yuav tsum tsis txhob siab tshaj 1/2 ntawm cov khoom siv lead ua qhov siab.

5.5 Solder Deficiency:

• 5.5.1: Qhov siab ntawm lub tin ntawm lub connector yuav tsum yog 2/3 ntawm tus pin qhov siab thiab yuav tsum tsis txhob siab tshaj qhov siab uas cov yas sib ntsib. (Ceeb Toom: Raws li pom hauv daim duab T, qhov siab ntawm tus pin yog G, qhov siab ntawm cov ntaub qhwv tin yog T, thiab F yog qhov siab ntawm qhov taw tes qhov siab. Yog li ntawd, F Ntau dua lossis sib npaug rau G {{2} }/3T.)
• 5.5.2: Cov hlau lead ntawm cov resistor, LED, thiab lwm yam yuav tsum muaj solder yam tsawg 2/3 qhov siab ntawm tus pin.
