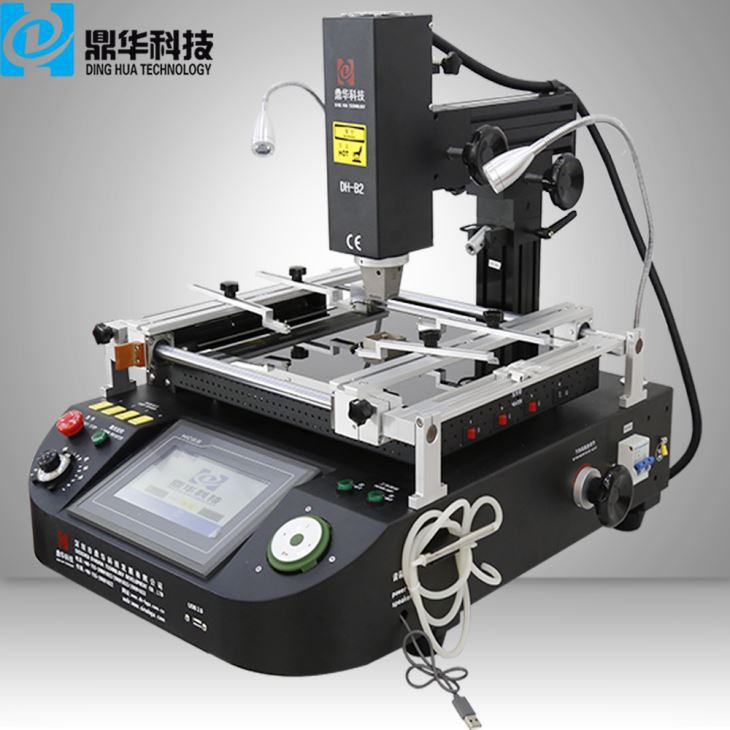

Kov Screen Smart Phone BGA Rework Tshuab

Kov npo ntse xov tooj bga rework tshuab

1. Ceev saib ua ntej:

Lub ntsiab nta

Peb muab DH-B2 bga rework tshuab nrog kev ua tau zoo dua. Cov yam ntxwv loj tshaj ntawm cov qauv no yog nws qhov tshwj xeeb

bluetooth muaj nuj nqi uas tuaj yeem txuas lub xov tooj & lwm lub tshuab lom zem rau kev ua si suab paj nruag. Peb muab 24 teev

kev txhawb nqa los ntawm email lossis hu. Peb yuav nyob online ib txwm ua haujlwm rau koj qhov kev nug.



1. Specification

1	Hwj chim	4800W
2	Lub tshuab cua sov sab saum toj	Cua kub 800W
3	Botomheater	Cua kub 1200w, Infrared 2700W
4	Fais fab mov	AC220V ± 10%, 50 / 60HZ
5	Dimension	L560 * W650 * H580mm
6	Qhov chaw	V-groove PCB kev txhawb nqa, thiab nrog rau sab nraud universal fixture
7	kev tswj kom rov zoo	K hom thermocouple, kaw voj tswj, ywj siab cua sov
8	Kub qhov tseeb	± 2 degree
9	PCB loj	Max 420 * 400mm, Min 22 * ​​22 m
10	Workbench zoo-tune	± 15mm rau pem hauv ntej / rov qab, ± 15mm sab xis / sab laug
11	BGA chip	2 * 2-80 * 80 hli
12	Yam tsawg kawg ntawm nti sib nrug	0.15 hli
13	Kub sensor	1 (yeem)
14	Net nyhav	31 KG

2. Cov yam ntxwv tseem ceeb ntawm DH-B2 BGA rework chaw nres tsheb

1.Peb qhov chaw kub kub kom sov nws tus kheej.

2.Upper kub cheeb tsam tuaj yeem txav tau yooj yim, Thaj Chaw Thib Ob tuaj yeem hloov kho nce thiab nqis. bga reballing tshuab

3. Cov cua kub nozzle tuaj yeem tig tau 360 degree.

4.With daim ntawv pov thawj CE, muab ob npaug rau kev tiv thaiv kub.



3.Vim li cas koj yuav tsum xaiv DH-B2 BGA rework chaw nres tsheb?

DH-B2 BGA Rework Chaw nres tsheb tiag tiag kho kev ua haujlwm:

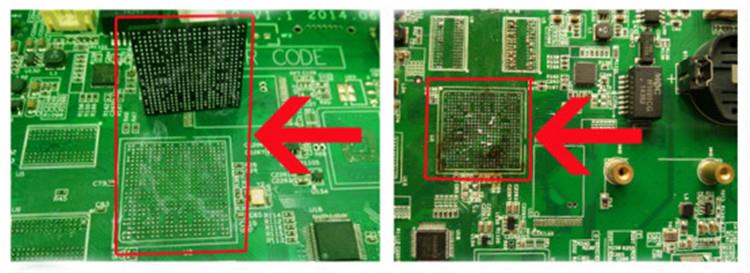

Qhov tshwm sim siv DH-B2 BGA rework chaw nres tsheb (sab laug daim duab)	VS
1. Soldering pob tuaj yeem yaj tag	1. Soldering pob muaj desuide
2. Cov cua kub sib npaug yuav tsis ua mob rau BGA	2. Lub ncoo tau txais kev puas tsuaj tom qab siv
3. Cov cua kub tsis cuam tshuam rau cov tsos ntawm PCB txawm tias tom qab cua sov ob peb zaug	3. Cov tsos mob pib daj tom qab cua sov



Thov saib daim duab hauv qab no los sib piv qhov cuam tshuam tiag tiag tom qab siv peb lub chaw nres tsheb bga rework

nrog lwm tus ua ntej koj txiav txim siab.

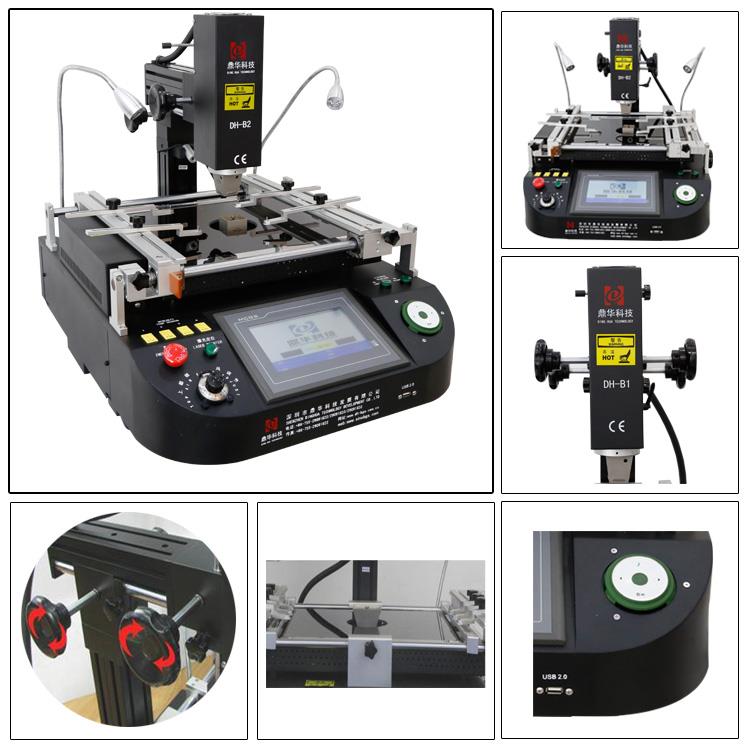

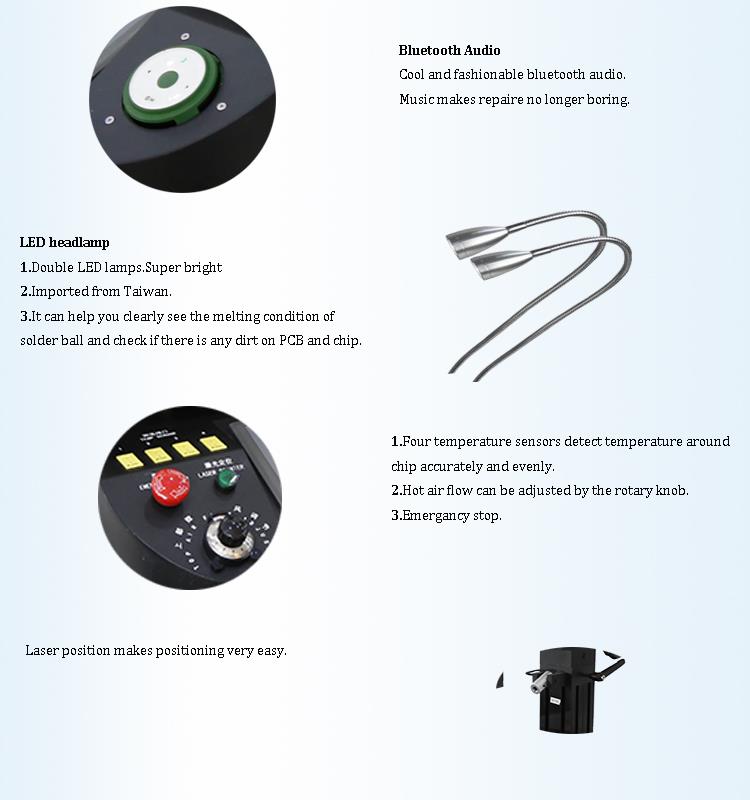

4.Cov duab nthuav dav ntawm DH-B2 BGA REWORK STATION

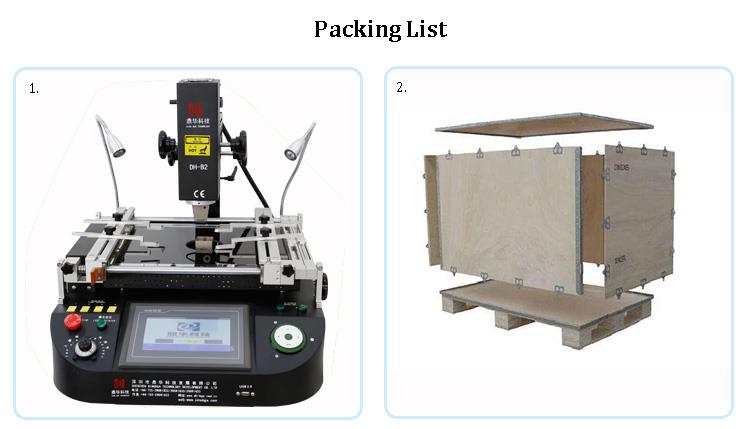

6. Ntim cov ntsiab lus ntawm DH-B2 BGA REWORK STATION

Daim ntawv teev npe

1. Tshuab: 1set

2.Tag nrho cov ntim rau hauv cov ntoo ruaj khov thiab muaj zog, haum rau ntshuam thiab xa tawm.

3.Tom ntej nozzle: 3 pcs (31 * 31mm, 38 * 38mm, 41 * 41mm)

Hauv qab nozzle: 2pcs (34 * 34mm, 55 * 55mm)

4.: 2 pcs

5. Plum pob qhov rooj: 6 pcs

6.Universal fixture: 6 pcs

7.Kev them nyiaj yug ntsia hlau: 5 pcs

8. Txhuam cwj mem: 1 pcs

9. Nqus khob: 3 pcs

10. Nqus koob: 1 pcs

11. Tweezer: 1 pcs

12.Temp sensor hlau: 4 pcs

13.Professional phau ntawv qhia: 1 pcs

14.Teaching CD: 1 Pcs

Ntim Dimension: 65 * 77 * 53mm Net Nyhav: 36KG Gross Nyhav: 55KG



6.Delivery detials ntawm DH-B2 BGA REWORK STATION

Shipping:

1.Shipment yuav ua tiav hauv 5 hnub ua haujlwm tom qab tau txais cov nyiaj them poob haujlwm.

2. Kev xa khoom ceev ceev los ntawm DHL, FedEX, TNT, UPS thiab lwm txoj hauv kev xws li los ntawm hiav txwv lossis los ntawm huab cua.







7. FAQ

Q: Kuv tuaj yeem them nyiaj li cas?

A: Paypal, T / T, Western Union yog txoj kev nyiam.

Q: Yuav ua li cas txog lub pob?

A: Ua npuas ncauj thiab ntoo rooj plaub los tiv thaiv cov khoom.

Q: Yuav ua li cas txog txoj kev xa khoom?

A: Feem ntau peb yuav coj kev nthuav qhia xws li DHL, Fedex, UPS thiab TNT rau cov qauv xaj.Rau qhov kev txiav txim ntau,

yuav siv dav hlau ya los yog hiav txwv xa khoom.



8. Kev pabcuam

1.Peb muab rau koj tus phooj ywg lus Askiv siv phau ntawv lossis kev ua haujlwm ua yeeb yaj kiab dawb.
2.24 teev kev txhawb nqa los ntawm email lossis hu.
3.Warranty: 1 xyoo pub dawb, 2-3 xyoo tus nqi thiab kev pabcuam pub dawb ib txwm.
4.Free kev cob qhia kom paub tseeb tias koj txawj ua haujlwm ntawm peb cov khoom.
5. OEM / ODM txais. Tab sis MOQ ntawm OEM / ODM yog 100 teeb.
