Bga Rework Chaw nres tsheb tsis siv neeg Tus nqi hauv Is Nrias teb DH-A2E

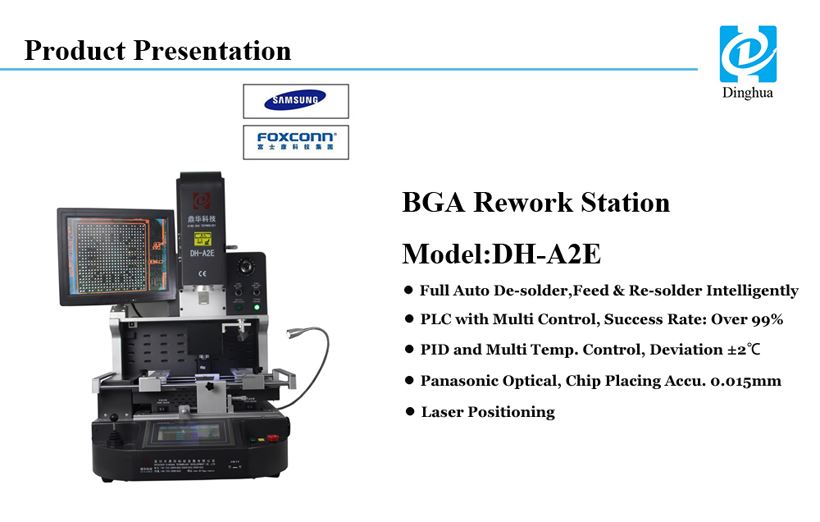

                   DH-A2E Ntiaj teb no Kub-muag Intelligent Optical Alignment BGA Rework Chaw nres tsheb





Bga Rework Chaw nres tsheb tsis siv neeg daim ntawv thov nqi

Ua kom tiav ntau yam ntawm cov ntawv thov rov ua haujlwm hauv me me, nruab nrab, thiab loj qhov chaw pabcuam thiab cov chaw tsim khoom.

Chip theem kho ntawm motherboards rau cov xov tooj ntawm tes, xov tooj cua, PDAs, handhelds, laptops, notebooks, network nodes,

khoom siv kev sib txuas lus thiab lwm yam, xws li tag nrho cov khoom siv, tshuab, cov kev pab cuam, connectors, thiab lwm yam.

Siv rau txhua daim chips, suav nrog: BGA, PBGA, CSP, QFN, PGA, POP, PLCC, CCGA, CBGA, QFN, VQFN, VGA, BQFC,

TDFN, TQFP, TSOP, CPGA, etc.

Nta:

1. Nws pib de-soldering, feeder & re-soldering, nrog kev ceeb toom rau cov kauj ruam tom ntej, rau kev ua haujlwm yooj yim heev.

2. Kev kho qhov ua tau zoo nce mus txog 99%, raws li kev ua haujlwm raug.

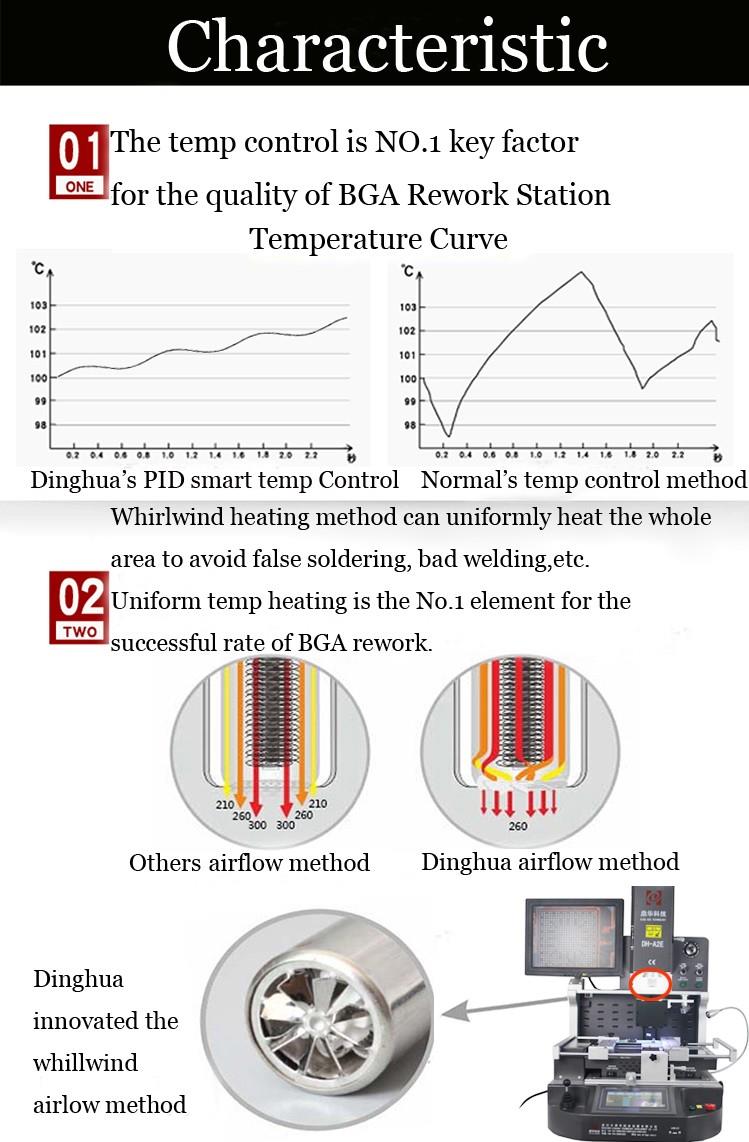

3. Kev tswj qhov kub thiab txias, nrog qhov tseeb k-hom thermocouple kaw-voj tswj, PID nws pib kub

them nyiaj system, sab nraud temp. sensor, uas ua rau qhov sib txawv ± 2 degree.

4. Ob hom kev ua haujlwm nyob rau hauv qhov system: tag nrho tsis siv neeg thiab phau ntawv, uas yog ib qho yooj yim los hloov ntawm ob rau kev ua haujlwm zoo tshaj plaws

nyhuv.

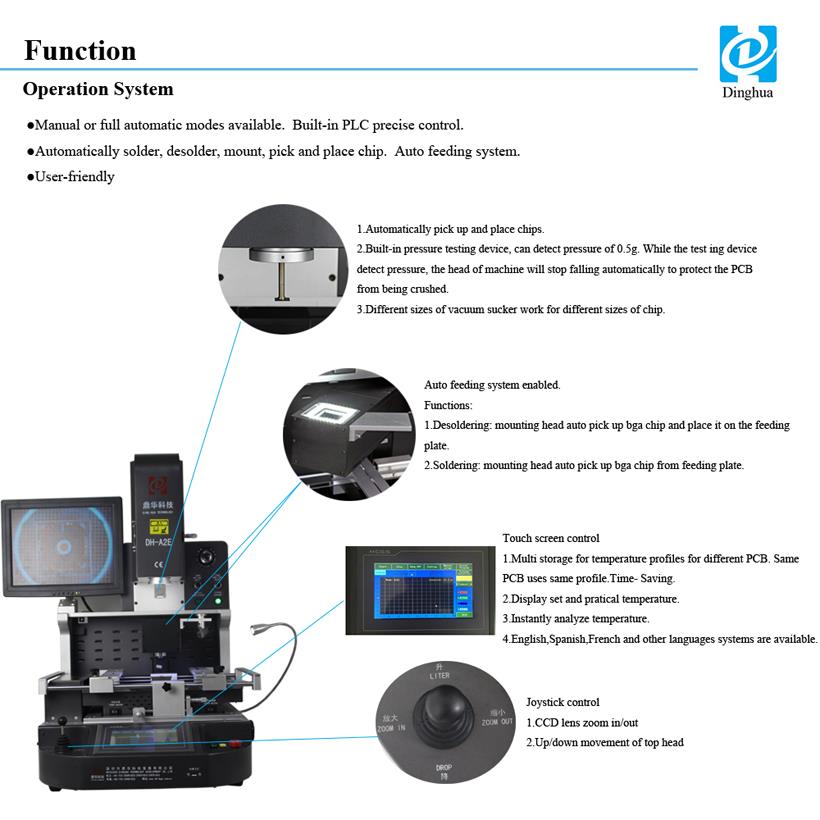

5. Nws pib hom muaj xws li: Nws pib pub system, pib BGA / IC xaiv thiab qhov chaw, laser txoj hauj lwm, nws pib d-soldering thiab rov soldering.

6. Kev ceev hom yog tsuas yog siv los kov HD npo rau qhov kub thiab txias nkhaus / profile teeb tsa lossis hloov kho, ua rau saum lub rhaub

qhov siab hloov nrog joysticks, thiab lub koob yees duab txav, ntsuas kub sab nraud, thiab khaws cov nti nrog lub tshuab nqus tsevcwj mem, yog tias tsim nyog.

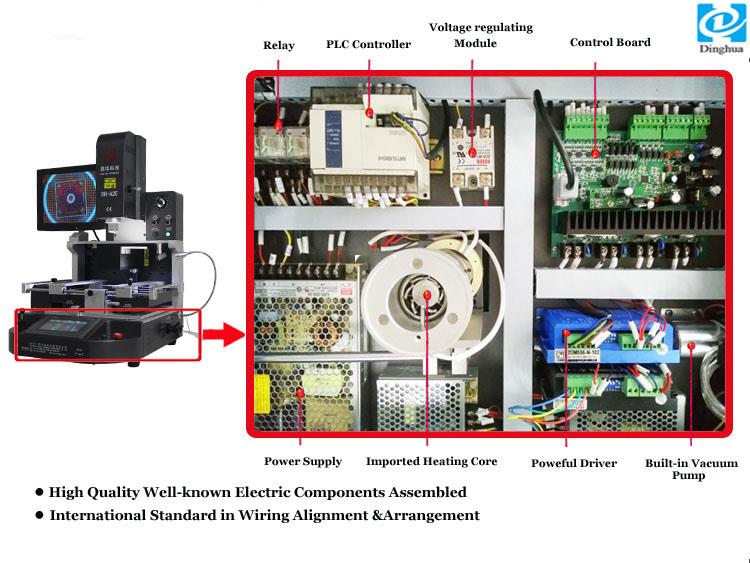

7. HD kov npo kev sib tham sib tham, nrog PLC tswj cov kev pabcuam sib koom ua ke, nrog rau kev ua haujlwmyooj yim heev thiab yooj yim.

8. Muaj peev xwm teeb tsa 8 ntu ntawm qhov kub thiab txias, nrog kev hloov pauv cua sov sab saum toj thiab qis cua sov (txog 16 ntu). Thiab tsis txwvtus naj npawb ntawm qhov kub thiab txias profiles khaws cia hauv qhov kev pab cuam.

9. Pub dawb los kho lossis rov teeb tsa qhov nkhaus thaum lub sijhawm ua haujlwm, ib zaug nws tsim nyog los hloov.

10. Peb lub tshuab cua sov yog tsim los ntawm tus kheej, tab sis kev ua haujlwm ua ke, thiab IR infrared pre-heater yog qhov loj rau kev txawj ntse ntawm kev kho vaj huam sib luag.

11. Cov kiv cua zoo tshaj plaws nrog lub ntim loj ntawm cua-txias cia li khiav txoj cai tom qab ua haujlwm cua sov (txog <45 degree) los txhawbua kom txias txias, thiab tiv thaiv kom tsis txhob muaj cua sov.

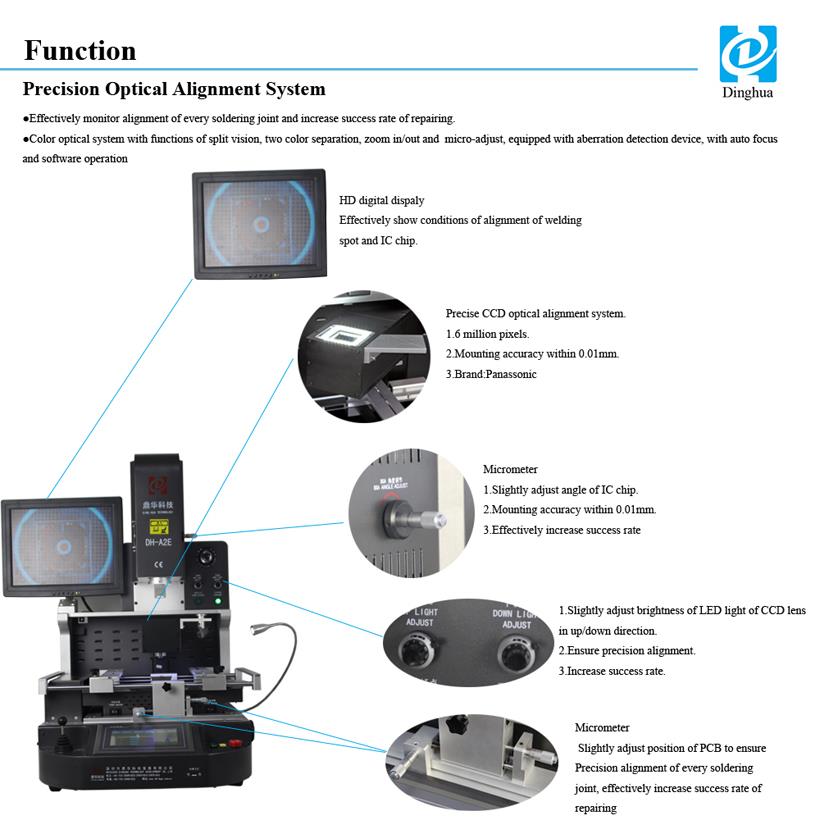

12. Panasonic branded optical alignment system nrog nws pib-folded CCD lub koob yees duab, hauv MAX 220x, uas ua rau lub zeem muag pom tseeb thiab txhim khu kev qha.

13. Tib neeg cov qauv tsim, nws pib folding optical lens, ywj siab xaiv teeb tsa ntawm qhov kub thiab txias, rau kev siv cov chips zoo heev.

14. Precise tsim universal fixtures, ua rau lub PCB tuaj yeem hloov kho hauv X, Y, Z kev taw qhia nrog "5 cov ntsiab lus txhawb" + V-groove thiab PCB bracket, uas ua rau nws yooj yim rau txoj hauj lwm PCB sai.

15. Laser point positioning ua rau txoj hauj lwm ntawm nti / IC yooj yim, raug thiab ceev.

16. Tsis tas li ntawd, qhov hloov pauv hloov tau yooj yim pab tiv thaiv lwm qhov ntawm PCB raug deformed, thiab nthuav dav siv ntau qhov ntau thiab tsawg PCB.

17. Lub zog loj LED lub teeb rau kev soj ntsuam tshuab ua haujlwm ntau pom kev.

18. 5 teeb ntawm ntau qhov sib txawv ntawm cov hlau nplaum nozzles ua los ntawm cov khoom siv titanium alloy yog muab pub dawb.

19. Nws pib kev nyab xeeb thiab ceeb toom system: pib lub suab ceeb toom ntawm 5 vib nas this ua ntej cua sov tiav.

20. Kev tiv thaiv ob npaug: Kev tiv thaiv kub dhau + kev ua haujlwm kub ceev.

21. CE daim ntawv pov thawj pom zoo.

Nco tseg:

1. Phau ntawv thiab CD-ROM ntawm kev ua yeeb yam yeeb yaj kiab yog muab pub dawb, uas yooj yim rau kev nkag siab.

2. Kev cob qhia kuj suav nrog yog tias xav tau.

Ntim

Cov ntaub ntawv: Cov ntaub ntoo muaj zog + ntoo tuav + pov thawj pearl paj rwb nrog zaj duab xis

Loj: 81 * 76 * 85CM

Qhov hnyav tag nrho: 115 kg

Packing List (Tshwj tsis yog)

1pc BGA Rework Tshuab

1pc txhuam cwj mem

1pc Phau ntawv qhia

1pc ua cd video

3 pcs saum nozzles

2 pcs hauv qab nozzles

6pcs universal fixtures

6pcs fastened screws

4pcs kev them nyiaj yug ntsia hlau

1pc tweezer

Sucker loj: Dia 2,4,8,10,11mm

Sab hauv hexagon spanner: M2/3/4



Kev pabcuam

1.Thaum muag khoom ua ntej, pub dawb rau kev ua qauv qhia thiab cov lus qhia kev sab laj, ntawm qhov chaw lossis hauv video.
2.Can muab txheej txheem video lossis kev cob qhia ua ntej xa zaub mov, ntawm koj xav tau.
3. Tom qab-muag, nrog cov kws tshaj lij technical back-up pab pawg.

4. Muab cov luv nqi loj loj rau kev txiav txim siab ntim lossis rau kev txiav txim rov qab.

5.Warranty: 1 xyoo dawb, thiab tau txais cov nqi them rau xyoo ntxiv.



Video ntawm BGA rework chaw nres tsheb:
