Dinghua Bga Rework Chaw nres tsheb DH-5830

                                                                DinghuaBgaRework Chaw nres tsheb DH-5830

Dinghua Bga Rework Chaw nres tsheb DH-5830 yog qhov chaw ua haujlwm siab-precision rework chaw nres tsheb rau soldering thiab desoldering ntawm ntau qhov chaw

mount cov khoom. Nws nta ob lub zog siab, kho tau-theem cua sov raws, lub tshuab nqus tsev khaws cov cwj mem thiab kho tus kheej

auto-level soldering caj npab. Qhov chaw nres tsheb rework no yog tsim los txhim kho cov txheej txheem soldering, pab kom pom cov txiaj ntsig zoo.

Nws kuj muaj qhov ntsuas kub sib xyaw ua ke, uas pab kom ntseeg tau tias cov khoom siv tsis dhau-soldering thiab

uas kub thaum lub sij hawm soldering txheej txheem yog khaws cia nyob rau hauv cov kev txwv tsis. Nws yog zoo tagnrho rau siv nyob rau hauv ntau lawm thiab main-

tenance ntawm nto mount technology Cheebtsam.

Tshwj xeeb feature:

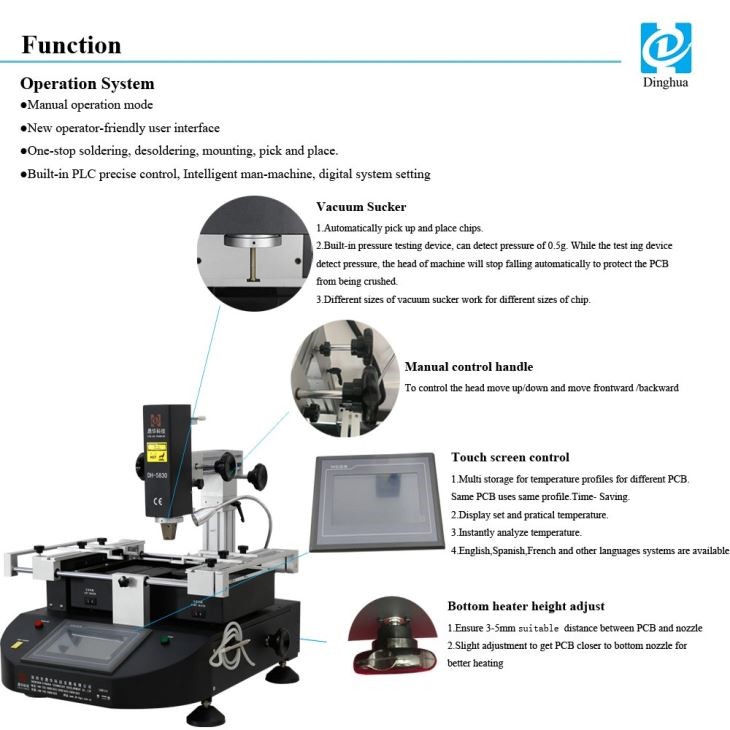

Nrog lub tshuab nqus tsev nqus, khaws bga nti yooj yim tom qab de-soldering.

Nrog USB 2.

Kev teeb tsa lub sijhawm tiag tiag thiab qhov ntsuas kub ntawm qhov profile tuaj yeem siv los txheeb xyuas thiab kho qhov tsis raug.

Sab nraud qhov kub thiab txias sensor tso cai rau ntsuas kub thiab ntsuas qhov tseeb ntawm lub sijhawm ntsuas kub profile.

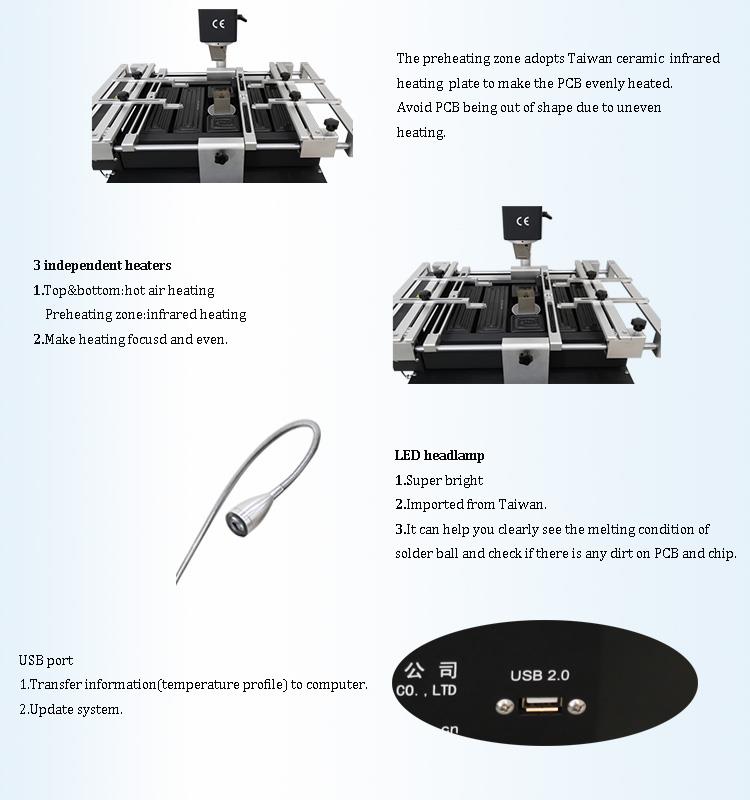

Txais peb thaj chaw cua sov, sab sauv thiab qis cua kub cua sov, hauv qab cua sov yog infrared preheating cheeb tsam.

K hom kaw lub voj tswj, qhov tseeb qhov kub yuav nyob ntawm ± 2 degree

Lub zog hluav taws xob hla lub kiv cua txias, tiv thaiv PCB los ntawm deformation.

Suab hint system: muaj lub suab ceeb toom 5s-10s ua ntej ua kom tiav cua sov, kom tus neeg teb xov tooj npaj

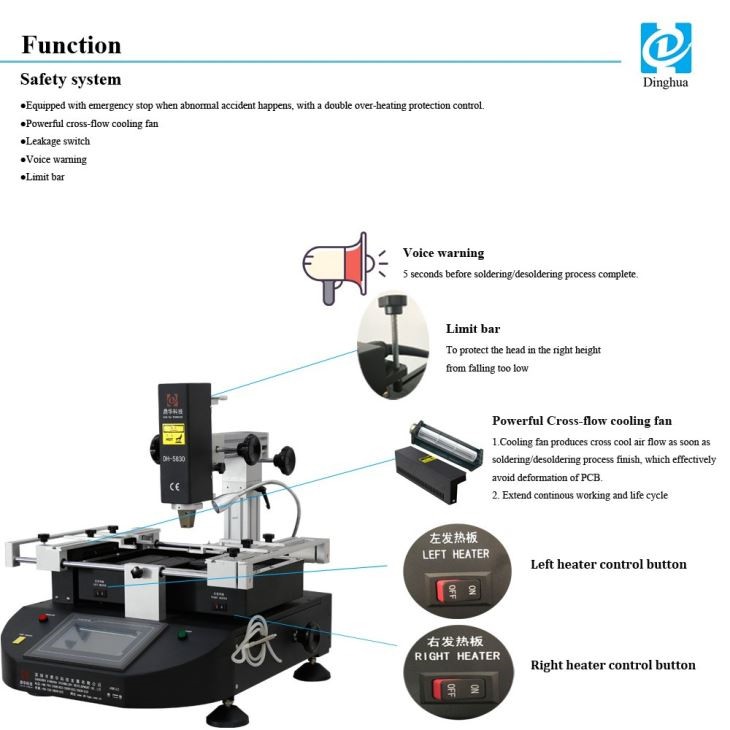

Kev ntsuas kev ruaj ntseg: overheat guard thiab thaum muaj xwm ceev nres muaj nuj nqi

Humanized tsim:

Lub tshuab cua sov sab saud tuaj yeem txav nce / nqis, pem hauv ntej / rov qab, tig tau ywj pheej

Lub tshuab hluav taws xob qis tuaj yeem nce / nqis kom nyob deb zoo nrog pcb.

Kev nkag siab zoo ntawm tus pas ntsuas kub, ntsuas qhov ntsuas kub kom raug ntau dua

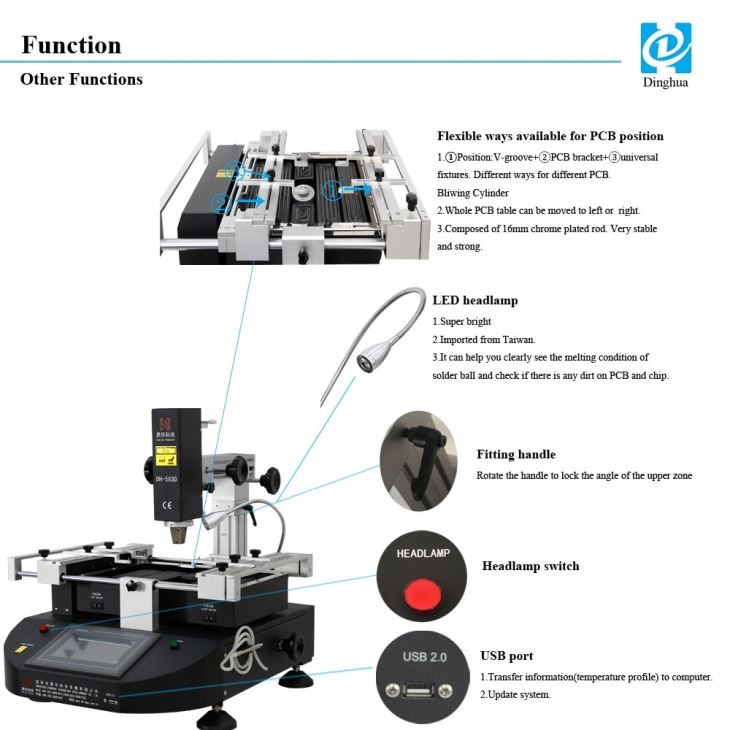

PCB clamp (V-groove) nrog universal fixture, haum rau txhua yam ntawm BGA.

Muaj peev xwm teeb 8 ntu cua sov, loj cia ntawm qhov kub thiab txias profiles

Nrog rau qhov sib txawv me me ntawm nozzles, hloov tau yooj yim thiab siv, customized yog muaj.

Cov nyees khawm muaj yeeb yuj ua lus Askiv thiab suav, paub yooj yim thiab siv.

CE daim ntawv pov thawj, tsis siv neeg lub hwj chim tawm tiv thaiv thaum muaj xwm txheej ceev.
