Infrared SMT Soldering System DH-A2
1.HD CCD kho qhov muag ua haujlwm rau txoj hauj lwm2.Soperiorororior kev nyab xeeb nrog kev tiv thaiv thaum muaj xwm txheej ceev3.Top Cua ntws tau hloov kho kom tau raws li cov chips
Hauj lwm lawm

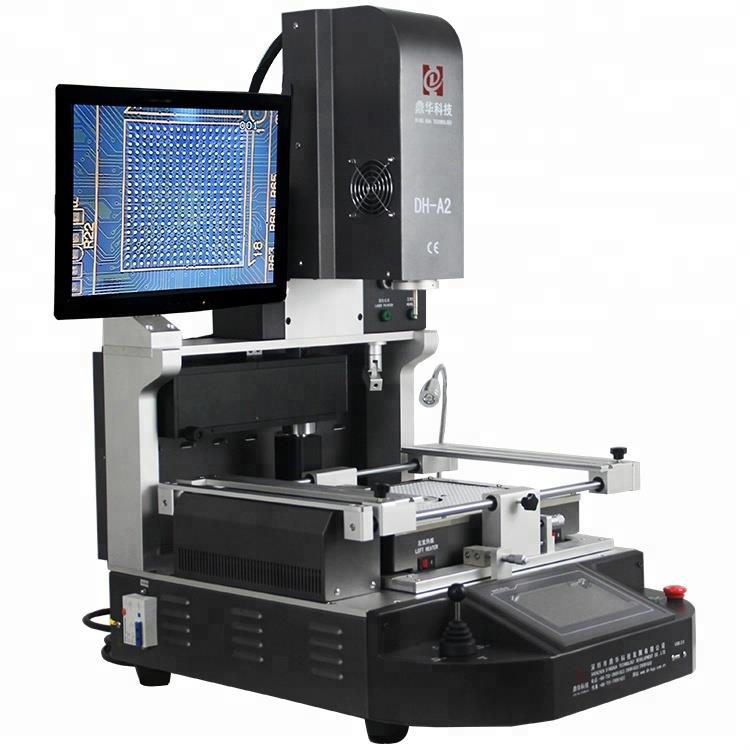

Infrared SMT Soldering System DH-A2
DH-A2 los ntawm Shenzhen Dinghua thev naus laus zis yog ib qho tsis siv neeg & hybrid thiab lub laptop smt Nws sib xyaw:
- Sab saum toj thiab hauv qab kub-cua sov (≈ 1,200 w txhua)
- Hauv qab zos infrared ua ntej-cua sov cheeb tsam (≈ 2,700-3,000 w) rau cov cua sov ntawm PCBs thiab Cheebtsam

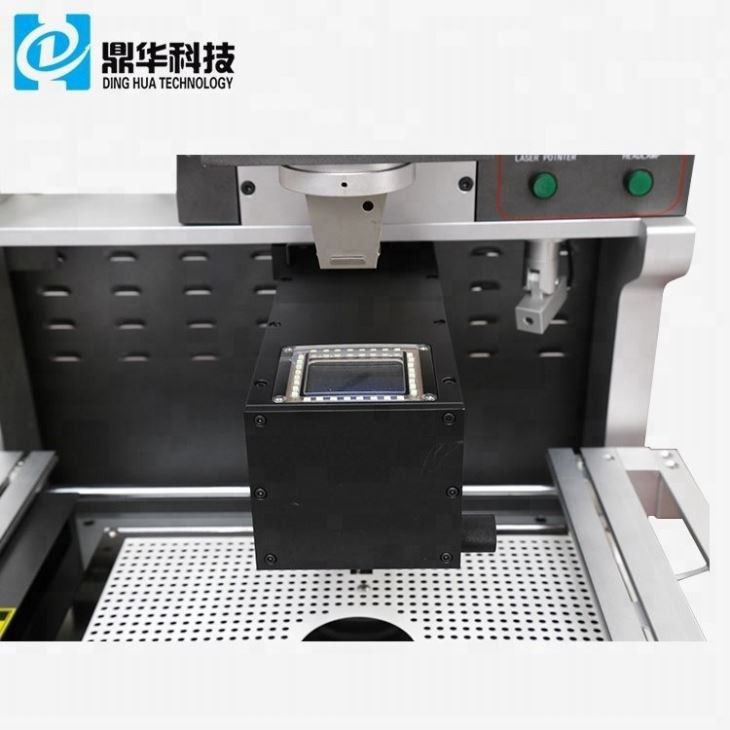

- Lub Zeem Muag System nrog CCD lub koob yees duab thiab Yeem Laser tso rau cov thooj.
- Embedded Industrial Muaj PC / Plc & TouchScreen HMI, Kev Tuav Qauv, Lub Tshuab Nqus Tsev, Chaw Nco, Qhov Kev Cia Siab & Kev Ntsuam Xyuas
|
Cov lus qhia
|
|||
|
1
|
Tag Nrho Fais Fab
|
5300w
|
|
|
2
|
3 Cov cua sov ywj pheej
|
Sab saum toj cua cua 1200W, qis dua cua kub 1200W, hauv qab Infrared Preheating 2700w
|
|
|
3
|
Fai fab hov ntau
|
AC220V ± 10% 50 / 60HZ
|
|
|
4
|
Qhov Chaw Hluav Taws Xob
|
7 '' Kov npo + siab precisent txawj ntse Temp tswj cov neeg tsav tsheb + Plc + LCD Zaub CCD system + Laser Installing
|
|
|
5
|
Tswj Qhov Kub
|
K-Sensor kaw-Voj + Lub Sij Hawm Nyiaj Txiag Nyiaj + Temp Module, Temp Qhov tseeb nyob rau hauv ± 2 degree.
|
|
|
6
|
PCB muab tso rau
|
V-Groove + Universal Fixture + Rooj Noj Pcb Txiaj
|
|
|
7
|
Siv PCB Loj
|
Max 370 x 410mm Min 22x22 hli
|
|
|
8
|
Muaj feem siv BGA loj
|
2x2mm ~ 80x80mm
|
|
|
9
|
Qho loj
|
600x700x850mm (l * w * h)
|
|
|
10
|
Qhov hnyav
|
64 kg
|
|
Ua ntej kawg
① Sab saum toj cua ntws yog kho tau kom tau raws li cov kev xav tau ntawm cov chips.
② Txhawb cov tsis siv neeg nqis peev, mounting, thiab soldering.

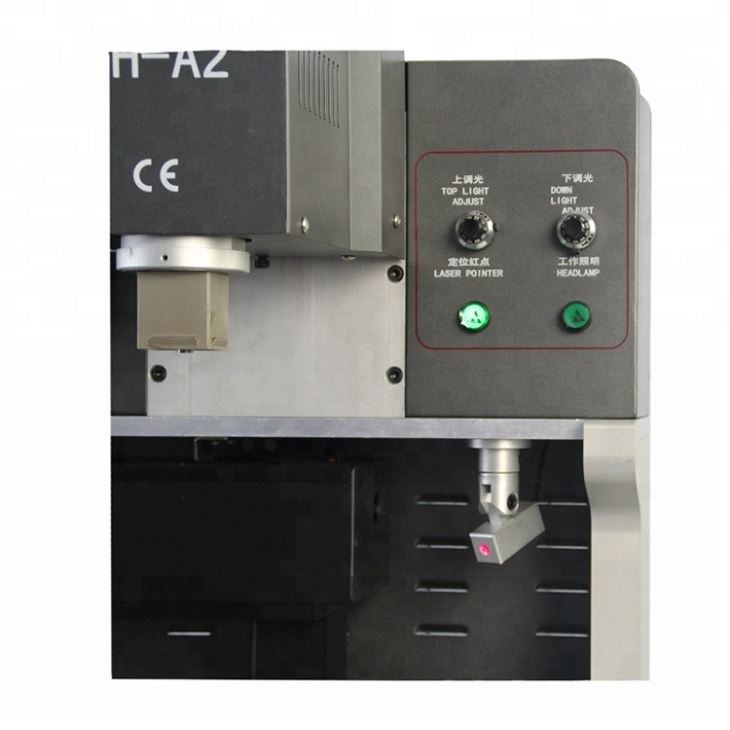

Inst built-in laser tso system rau cov pcb signignment.
In Infrared cua sov nrog peb lub tshav kub sab nraud.
⑤ Lub Taub Hau Mounting suav nrog cov khoom siv siab nrhiav kom tiv thaiv PCB kev puas tsuaj.
Ruch buchaer-in nqus tsev nyob rau hauv lub taub hau mounting cia li xaiv tau lub BGA nti tom qab Deslodering ua tiav.
- Tshuab: 1 teeb
- Txhua tus tau ntim rau hauv qhov chaw ruaj khov thiab muaj zog ntoo ntoo, haum rau cov ntshuam thiab xa tawm.
- Sab saum toj Nozzle: 3 Pcs (31 * 31mm, 38 * 38 * 38 * 41 * 41 hli) hauv qab: 2pcs (34 hli, 55 * 55mm)
- Nqaj: 2 pcs
- Plum Pob Zeb: 6 PCs
- Unicersal fixture: 6 pcs
- Txhawb ntswj: 5 pcs
- Txhuam Pen: 1 Pcs
- Lub Tshuab Nqus Tsev: 3 Pcs
- Lub Tshuab nqus tsev rab koob: 1 PCs
- Tweezer: 1 Pcs
- TEMP Sensor Hlau: 1 Pcs
- Phau Ntawv Qhia Cov Kev Tshaj Tawm: 1 pcs
- Qhia CD: 1 Pcs
