Mobile Xov tooj Motherboard Rework Chaw nres tsheb

1. laser centering qhia

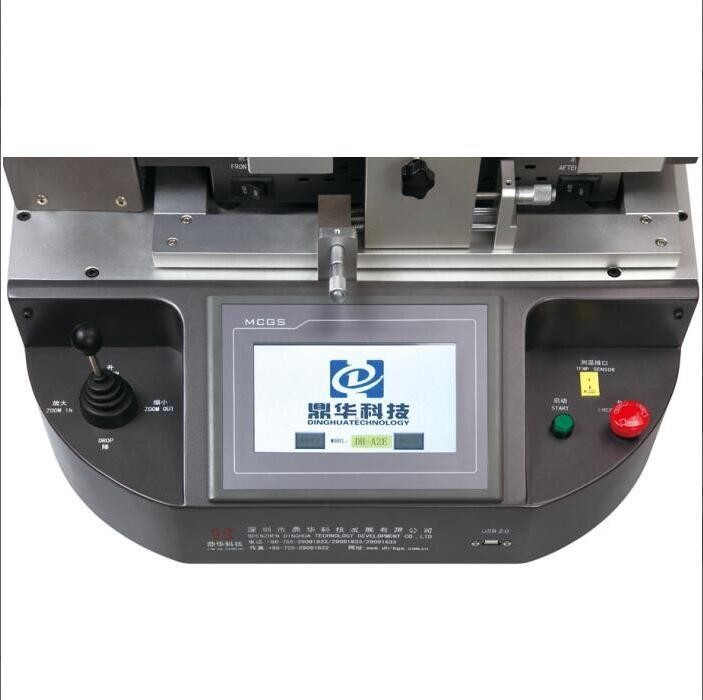

2. hd kov screen interface, plc tswj
3. k sensor kaw voj tswj
4. cua kub nozzles

Xa kev nug

Hauj lwm lawm

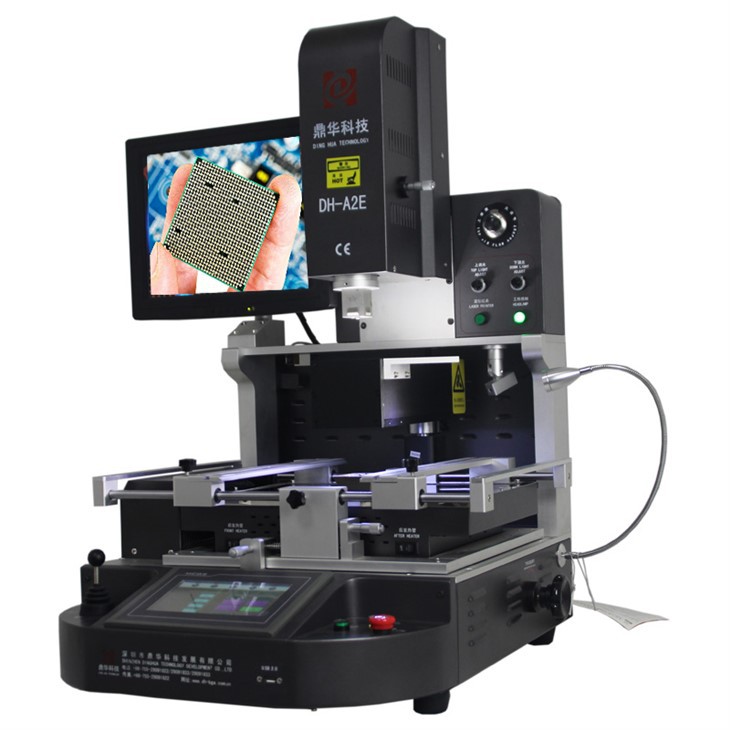

Xov tooj txawb Motherboard Rework Chaw nres tsheb DH-A2E

Lub Xov Tooj Txawb Xov Tooj Motherboard Rework Chaw Nres Tsheb yog ib qho khoom siv los kho lossis hloov cov khoom ntawm lub xov tooj ntawm tes ' motherboard. Qhov chaw nres tsheb feem ntau suav nrog cov khoom cua sov thiab ntau yam sib hloov nozzles, uas tso cai rau tus kws tshaj lij kom sov thiab tshem tawm cov khoom tsis zoo xws li chips, capacitors, thiab resistors.

Nws kuj tseem siv tau los txhim kho cov khoom tshiab. Qhov ntsuas kub thiab airflow raug tswj xyuas kom ntseeg tau tias cov khoom me me tsis puas thaum lub sijhawm ua haujlwm. Cov cuab yeej no feem ntau yog siv los ntawm cov khw kho xov tooj ntawm tes thiab cov kws tshaj lij.

A2E Assemble

Specifications:

1	Tag nrho lub zog	5200w
2	3 lub tshuab hluav taws xob ywj pheej	Sab saum toj kub cua 1200w, qis cua kub 1200w, hauv qab infrared preheating 2700w
3	Qhov hluav taws xob	AC220V ± 10% 50/60Hz
4	Hluav taws xob qhov chaw	7 '' kov npo + siab precision ntse temp tswj module + stepper tsav tsav + PLC + LCD zaub + kev daws teeb meem siab kho qhov muag CCD system + laser positioning
5	Kev tswj qhov kub thiab txias	K-Sensor kaw-voj + PID tsis siv neeg temp them + temp module, temp raug nyob rau hauv ± 2 degree.
6	PCB positioning	V-groove + universal fixture + movable PCB txee
7	Muaj feem xyuam PCB loj	Max 370x410mm Min 22x22mm
8	Muaj feem xyuam BGA loj	2x2mm ~ 80x80mm
9	Qhov ntev	600x700x850mm (L * W * H)
10	Net nyhav	70 Kg
